Today, let’s take a closer look at the SHACMAN all-terrain fire truck.
Despite its relatively compact size, the vehicle features a high chassis with substantial ground clearance, giving it a rugged and powerful appearance. In terms of performance, it boasts a vertical obstacle clearance of 0.4 meters and a maximum fording depth of 800 mm, indicating its formidable off-road capabilities.
Designed specifically for all-terrain firefighting and rescue operations—primarily in wild and remote areas—the vehicle comes equipped with integrated lighting systems. Additionally, 4 high-intensity floodlights are mounted on the roof to enhance illumination coverage during nighttime or low-visibility missions.

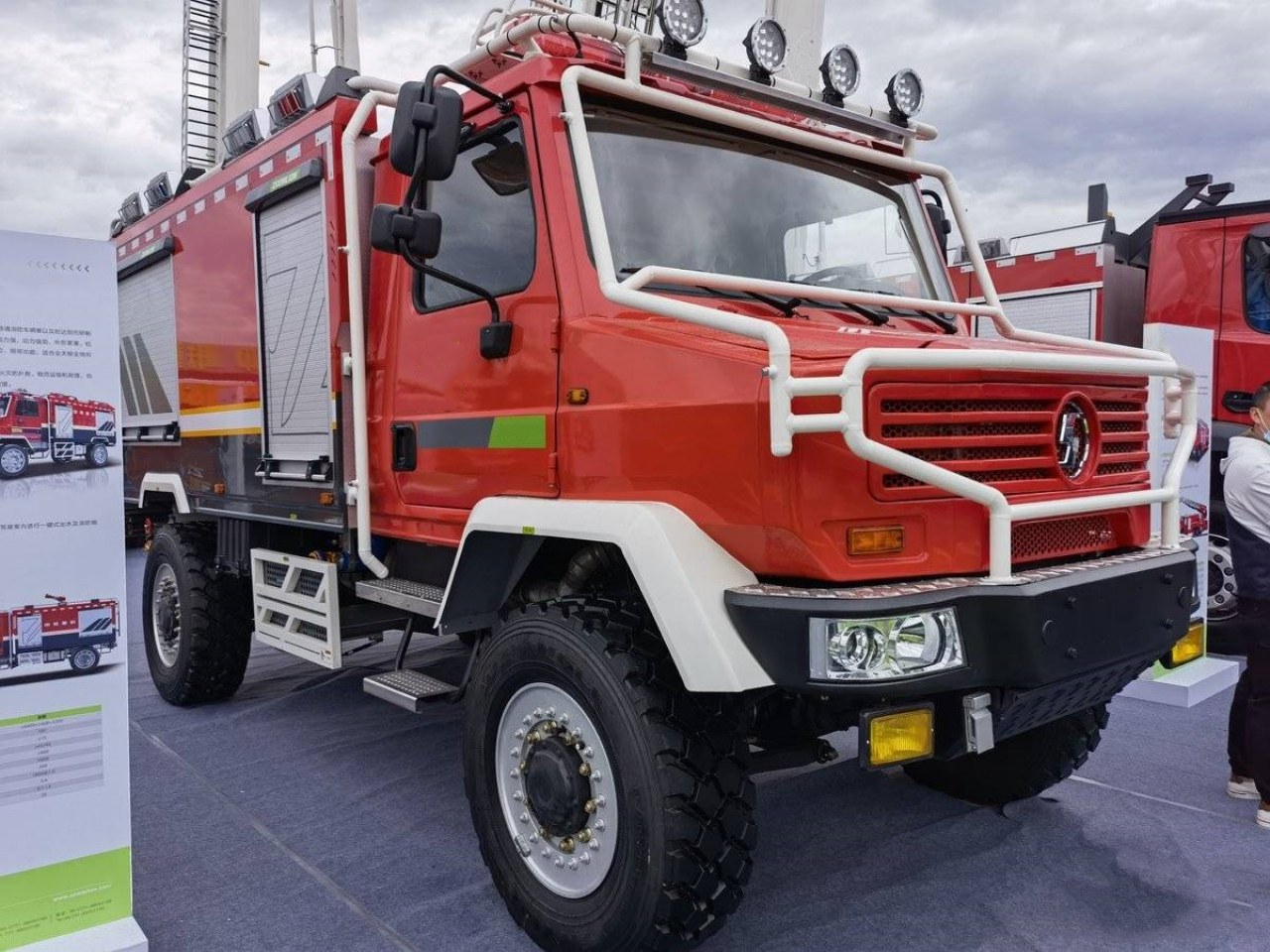

Surrounding the exterior of the cab is a distinctive white piping system. Contrary to what one might assume, this is not a roll cage or anti-collision bar, but rather a water spray system used for self-protection when advancing through intense fire zones.

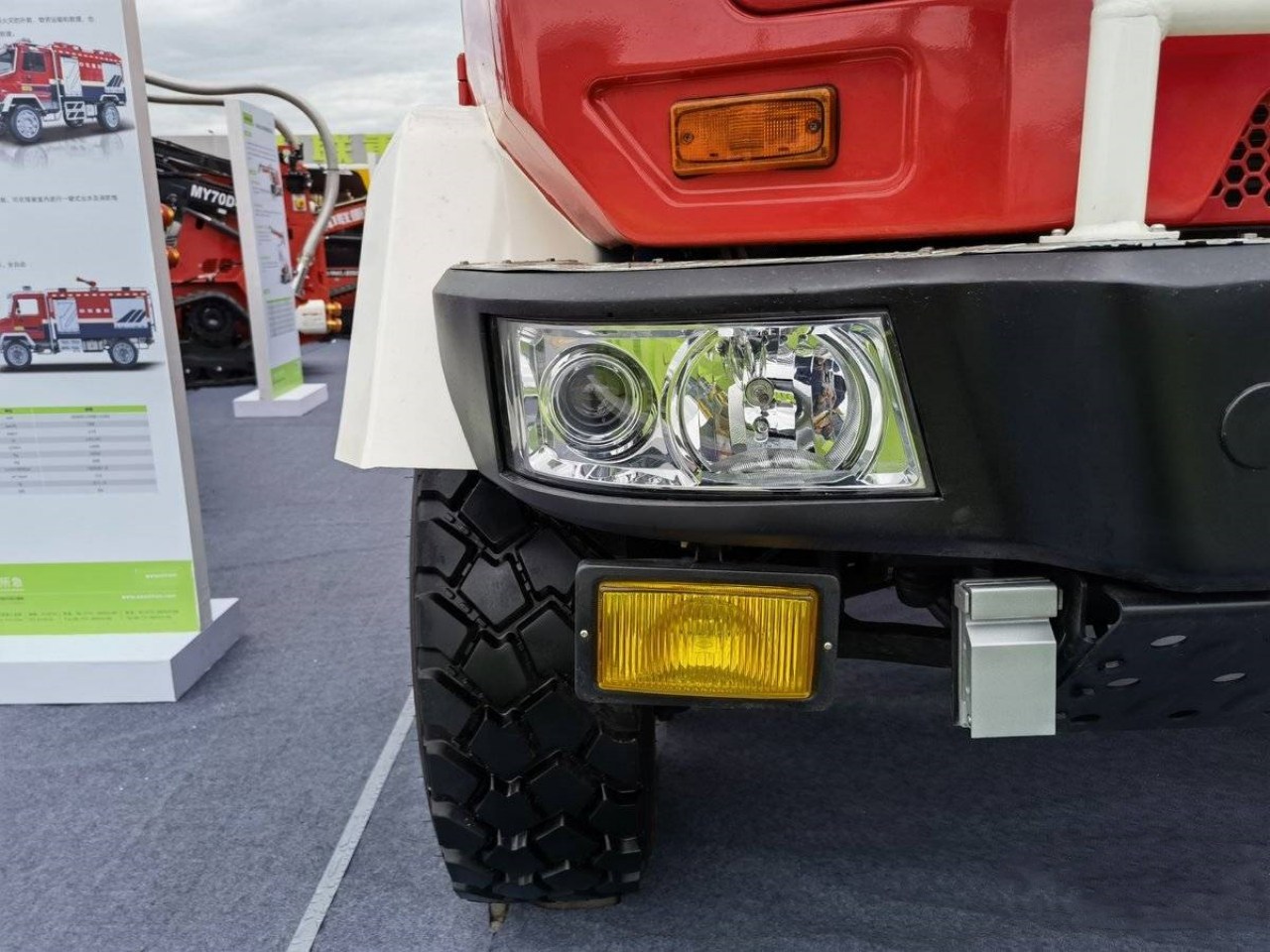

The headlight configuration is standard, with projector-style low beams and reflector-based high beams. Notably, the oversized fog lights below emit a rich yellow hue, purposefully designed to enhance visibility through dense smoke and heavy fog.
Quick Fact – Truck Lighting: Halogen bulbs offer the most complete light spectrum. Yellow light, with a wavelength just below red, is particularly effective in penetrating fog and smoke, improving visibility in emergency scenarios.

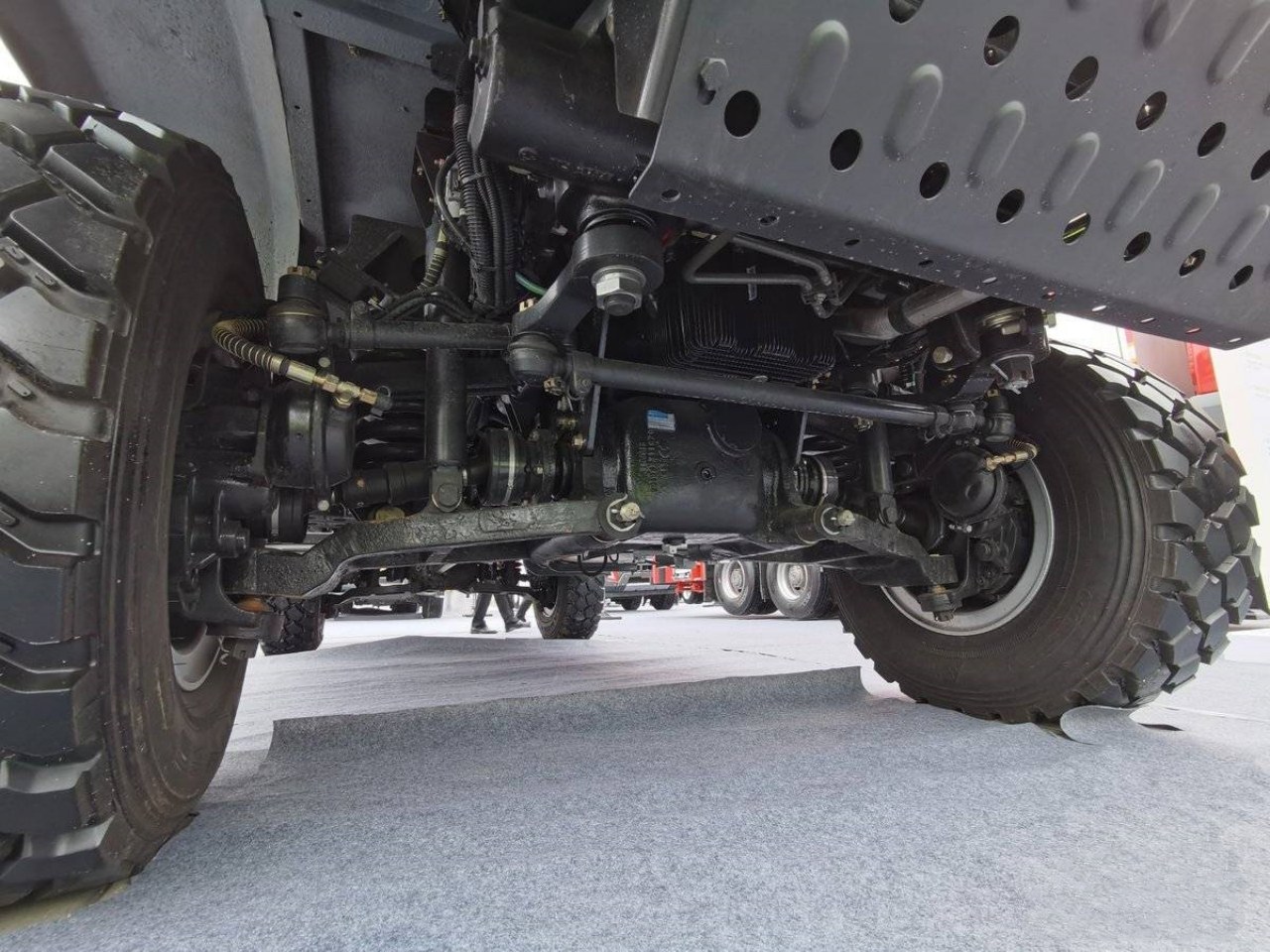

As an all-terrain fire truck, the chassis is a key highlight. This 4×4 model features an independent double-wishbone front suspension paired with disc brakes on all wheels.

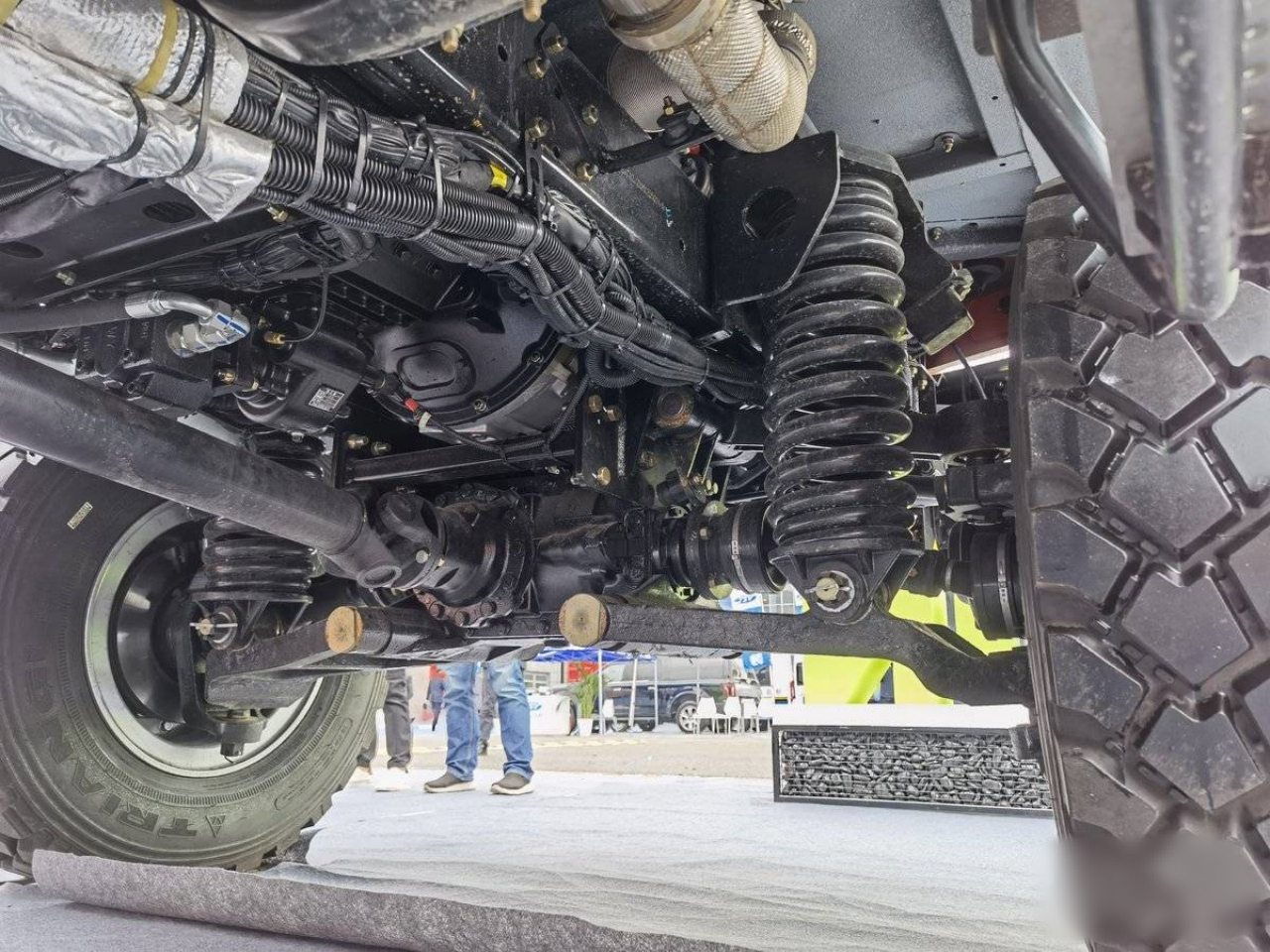

The overall suspension architecture resembles that of a passenger vehicle, but on a much more robust scale. Heavy-duty coil-over shock absorbers support the vehicle’s substantial weight.

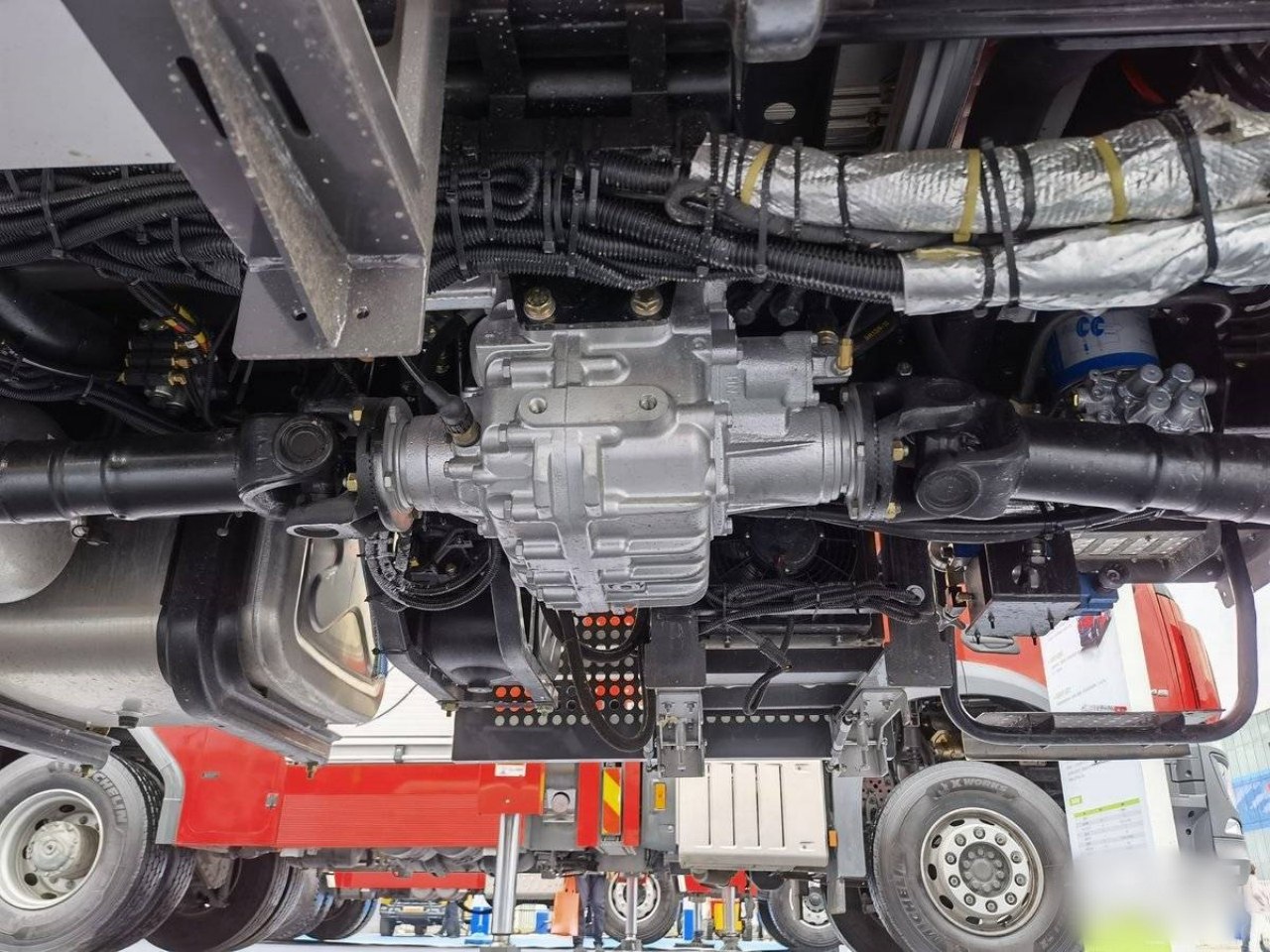

At the center of the chassis lies a transfer case. Power from the transmission is routed through this component and then distributed to both the front and rear axles, ensuring full-time all-wheel drive functionality.

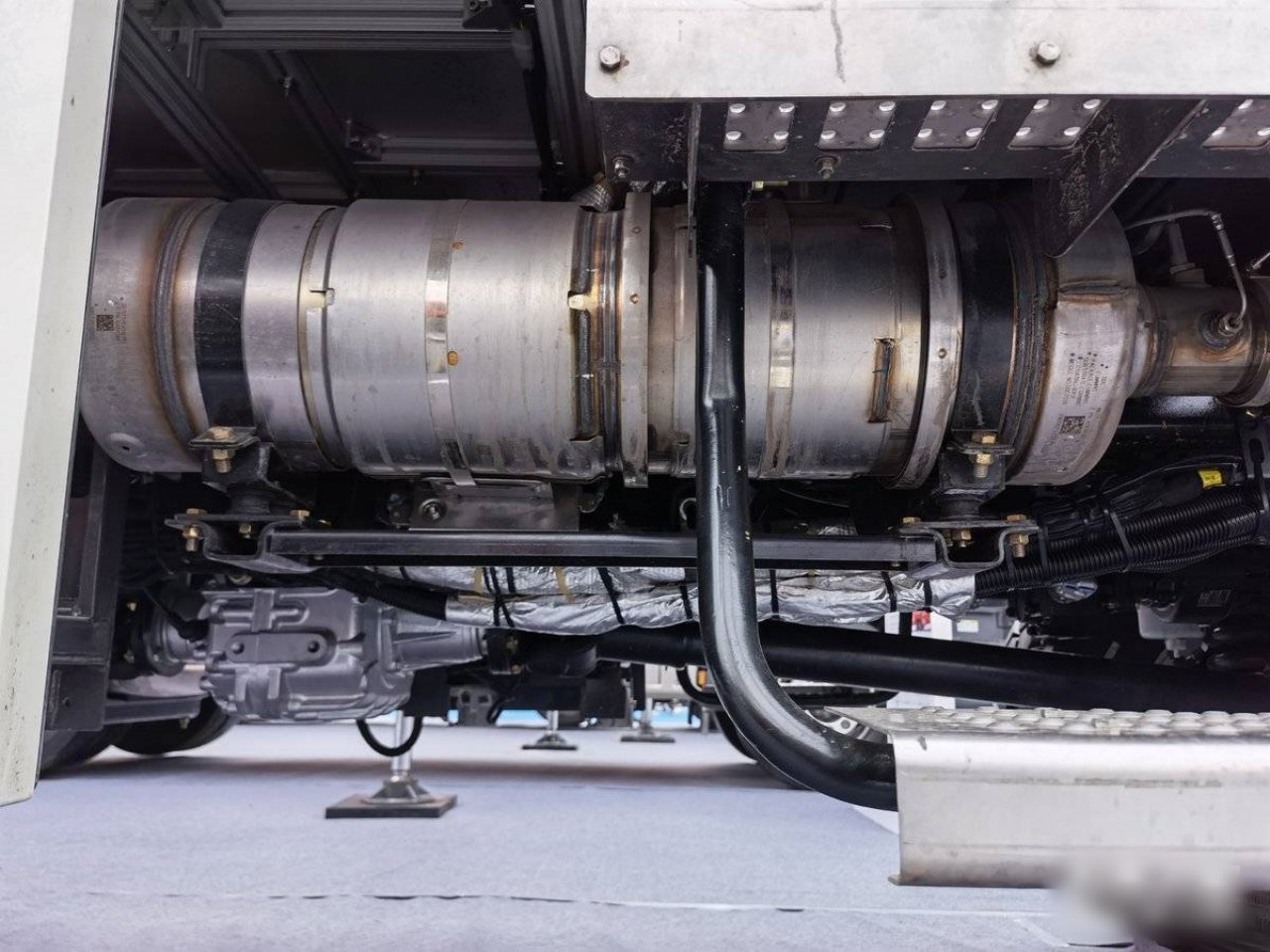

The large exhaust after-treatment system at the rear is a clear indication that the vehicle complies with EURO VI emissions standards.
One of the hallmarks of all-terrain vehicles is their extreme approach and departure angles—measuring up to 45 degrees in this case—ensuring superior off-road maneuverability.

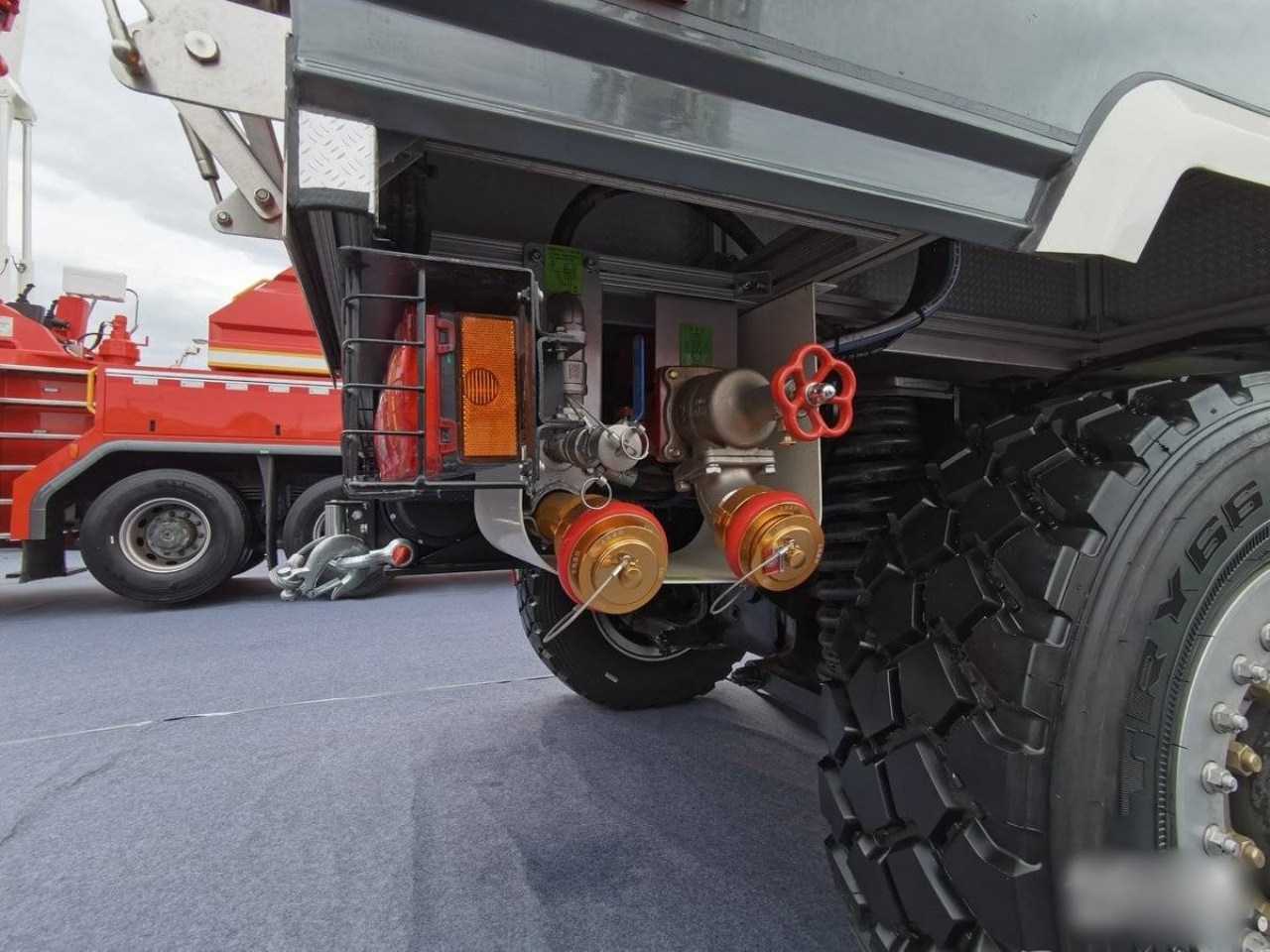

At the rear, the fire hose outlets are well-protected by a reinforced skid plate.

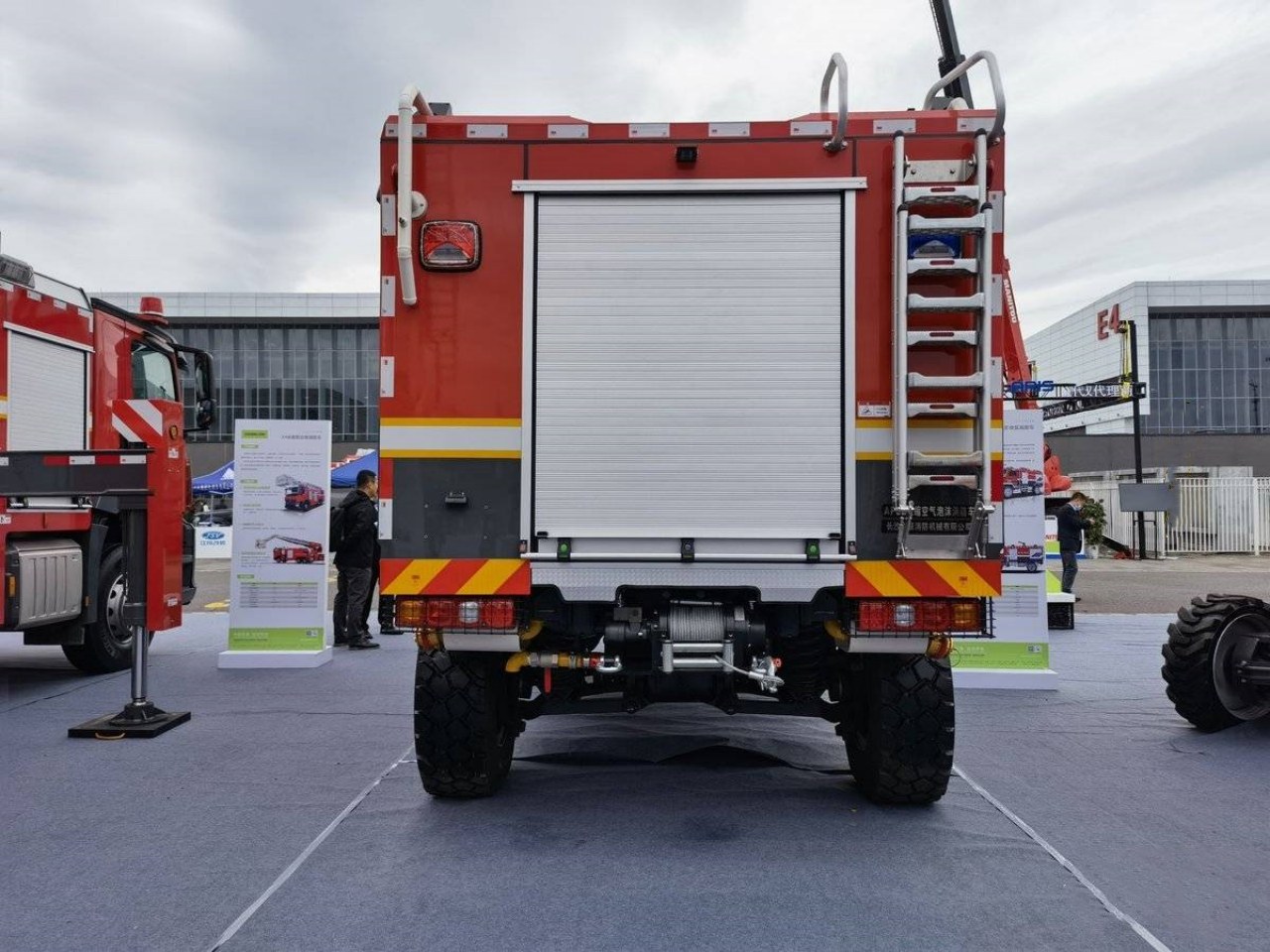

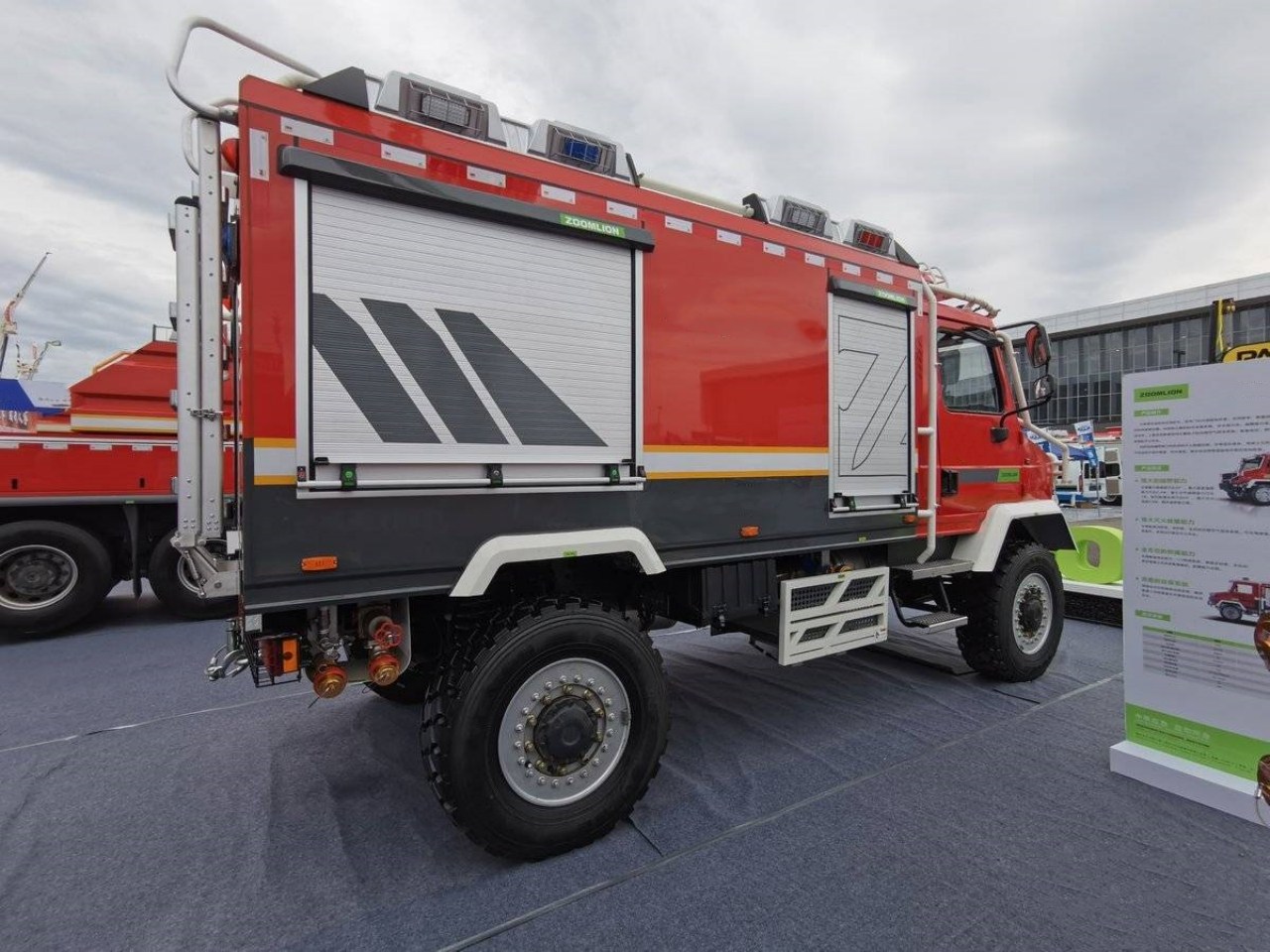

A large roll-up aluminum door provides quick and easy access to equipment storage. These lightweight and durable shutter doors are common on specialty vehicles like fire trucks due to their practicality.

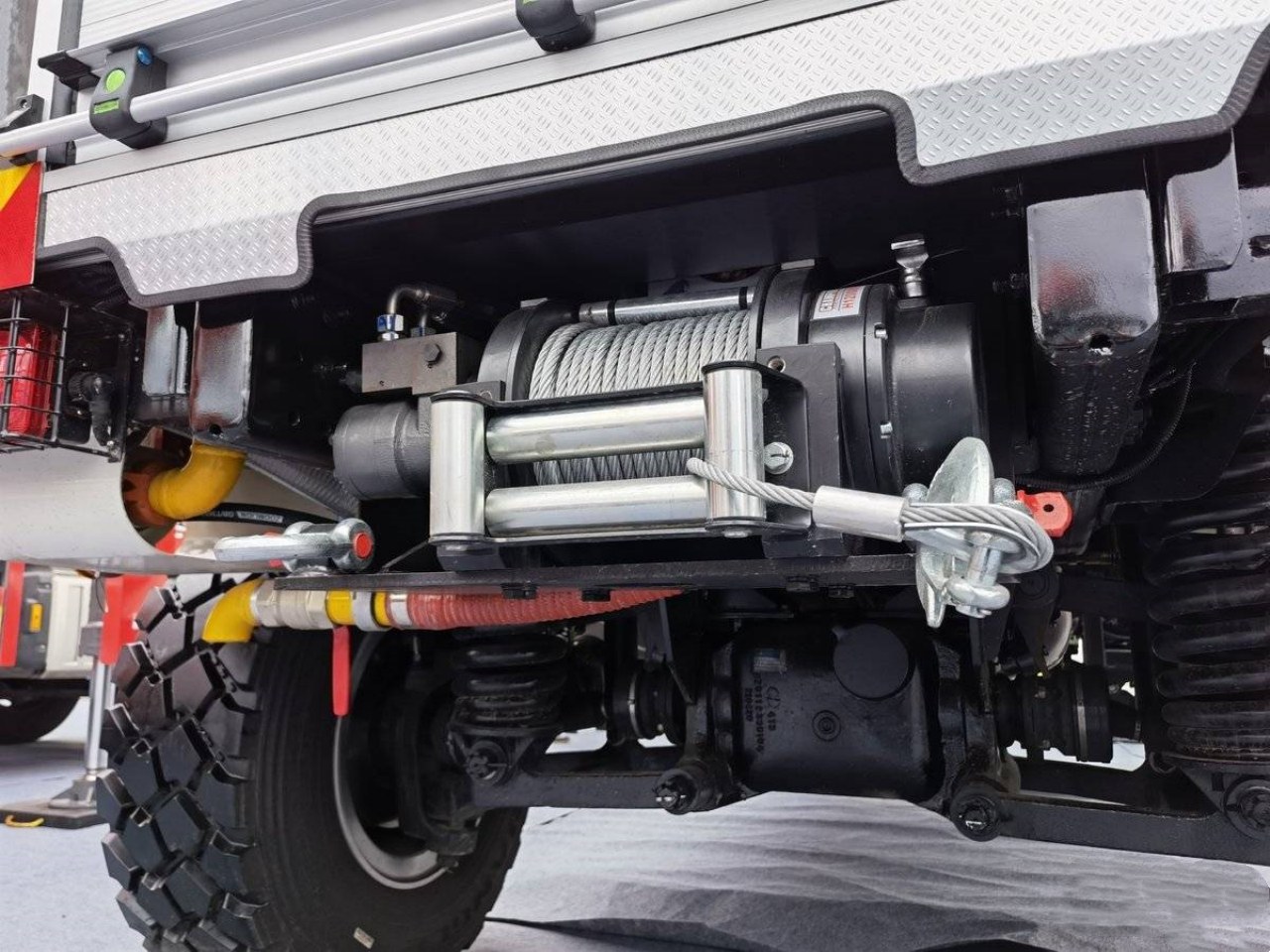

Beneath the rear bumper is a heavy-duty winch, enabling the truck to assist in towing or self-recovery during rescue missions.

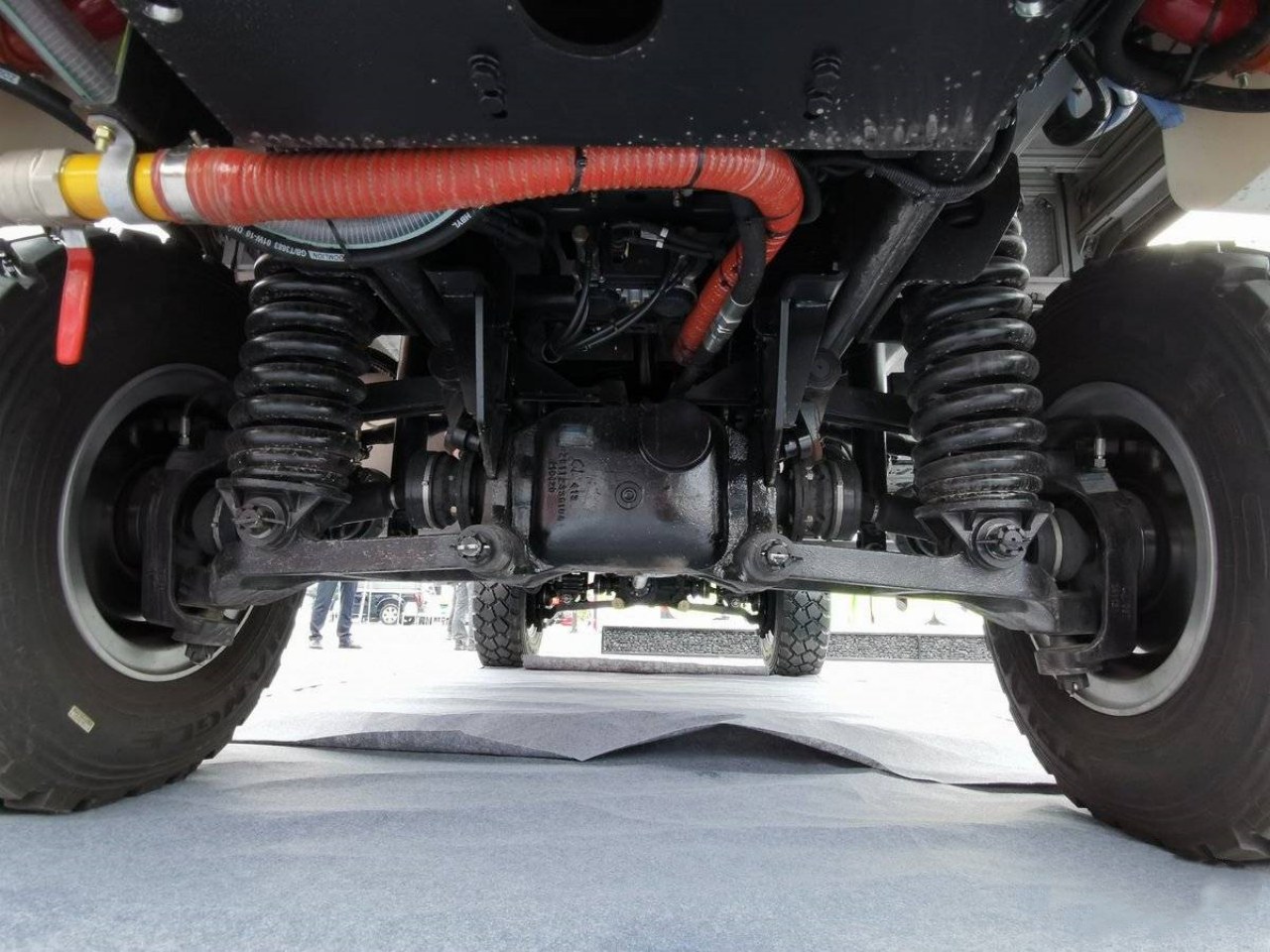

The rear suspension mirrors the front, using the same double-wishbone independent setup. Notably, the SHACMAN wildland fire truck lacks anti-roll bars, which allows for greater wheel articulation. This design maximizes ground contact on uneven terrain, enhancing traction and overall off-road performance.
