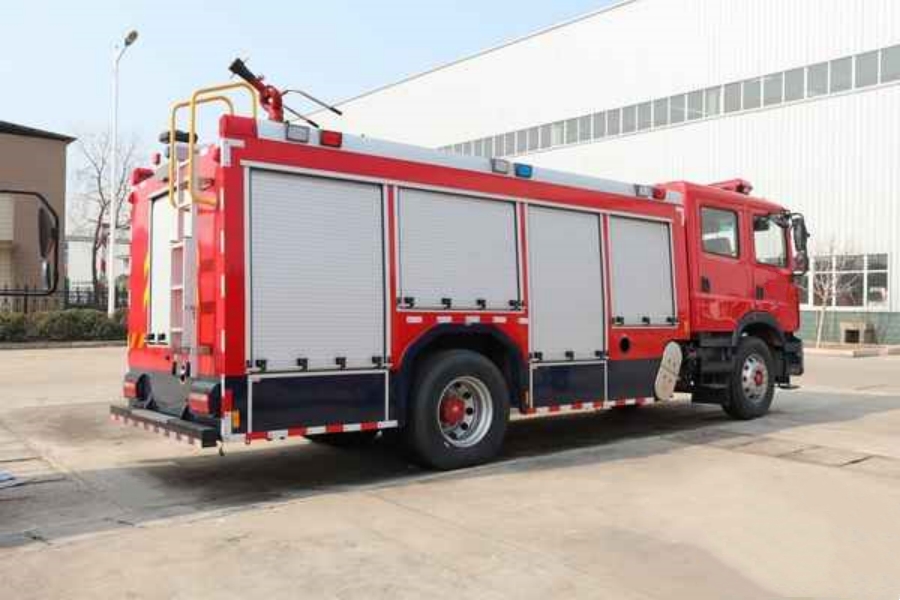

The Dongfeng Duolika D9 double-row Euro VI 5CBM water tanker fire truck features a Dongfeng Duolika D9 double-row cab that can accommodate 3+3 people. It is equipped with a Cummins 230-horsepower engine, an 8-speed gearbox, 295/80R22.5 tires, and 8/10+7 leaf springs. Standard features include ABS, factory-installed air conditioning, power windows, and air brakes.
| Specification | Details |
|---|---|
| Overall Dimensions (L×W×H) | 8,210 × 2,500 × 3,450 mm |
| Wheelbase | 4,700 mm |
| Gross Vehicle Weight (GVW) | 15 tons |
| Rated Payload | 5 tons |
| Curb Weight | 9.55 tons |
| Water Tank Capacity | 5 m³ |
| Water Tank Dimensions (L×W×H) | 3,000 × 1,400 × 1,250 mm |
| Side Protection | Integrated structure |
| Rear Protective Device Material | Q235A steel |
| Rear Protective Device Size | 100 × 120 mm cross-section |
| Rear Protective Device Mounting | Bolted to the vehicle |
| Rear Protective Device Ground Clearance | 450 mm |
| Main Specialized Equipment | Fire pump, Fire monitor |
Inside the cab, the original dashboard is equipped with a firefighting operation panel and a warning light control box. Additional fittings include a siren, a power take-off control switch with indicator lights, and an auxiliary power switch.
