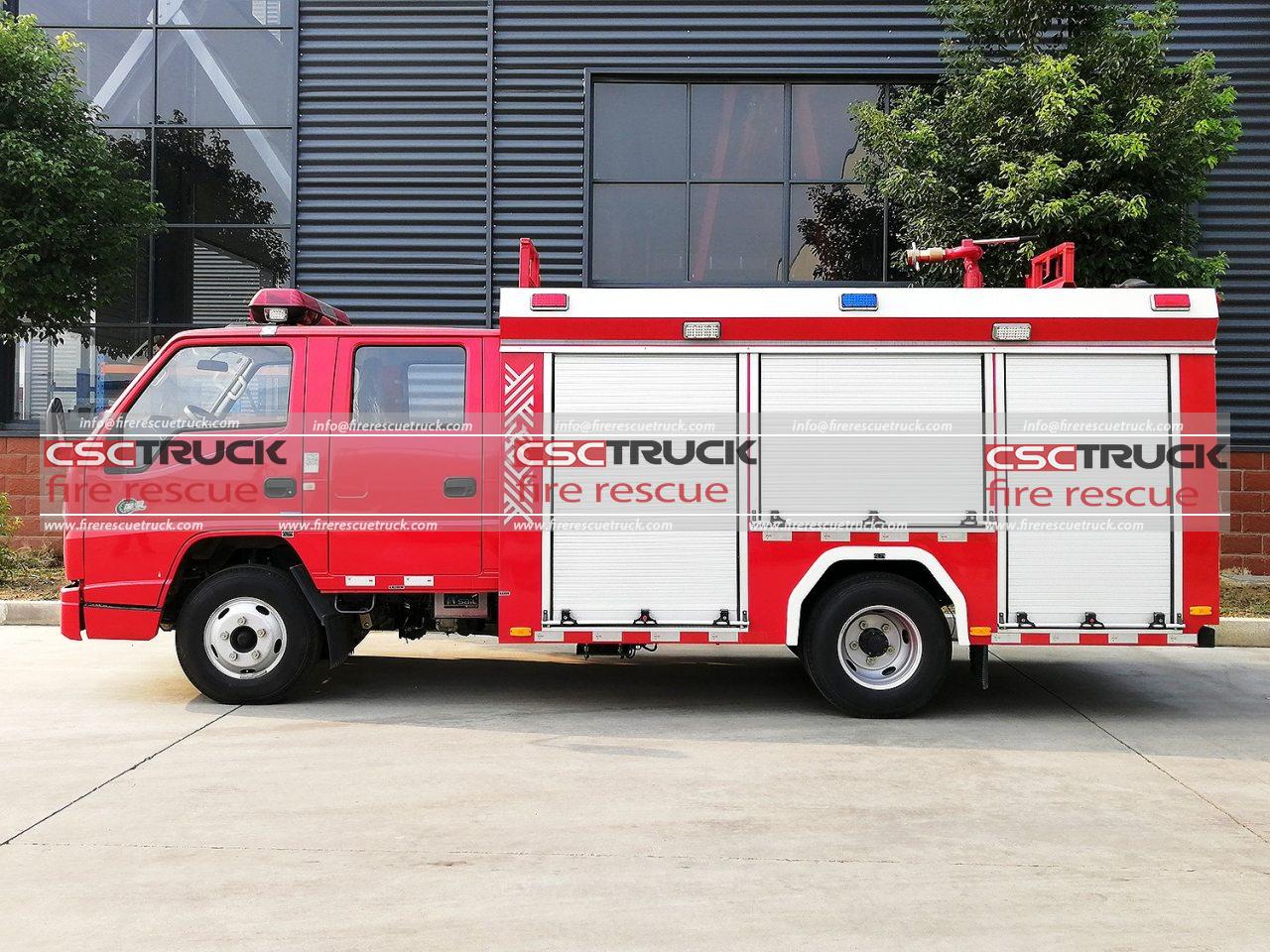

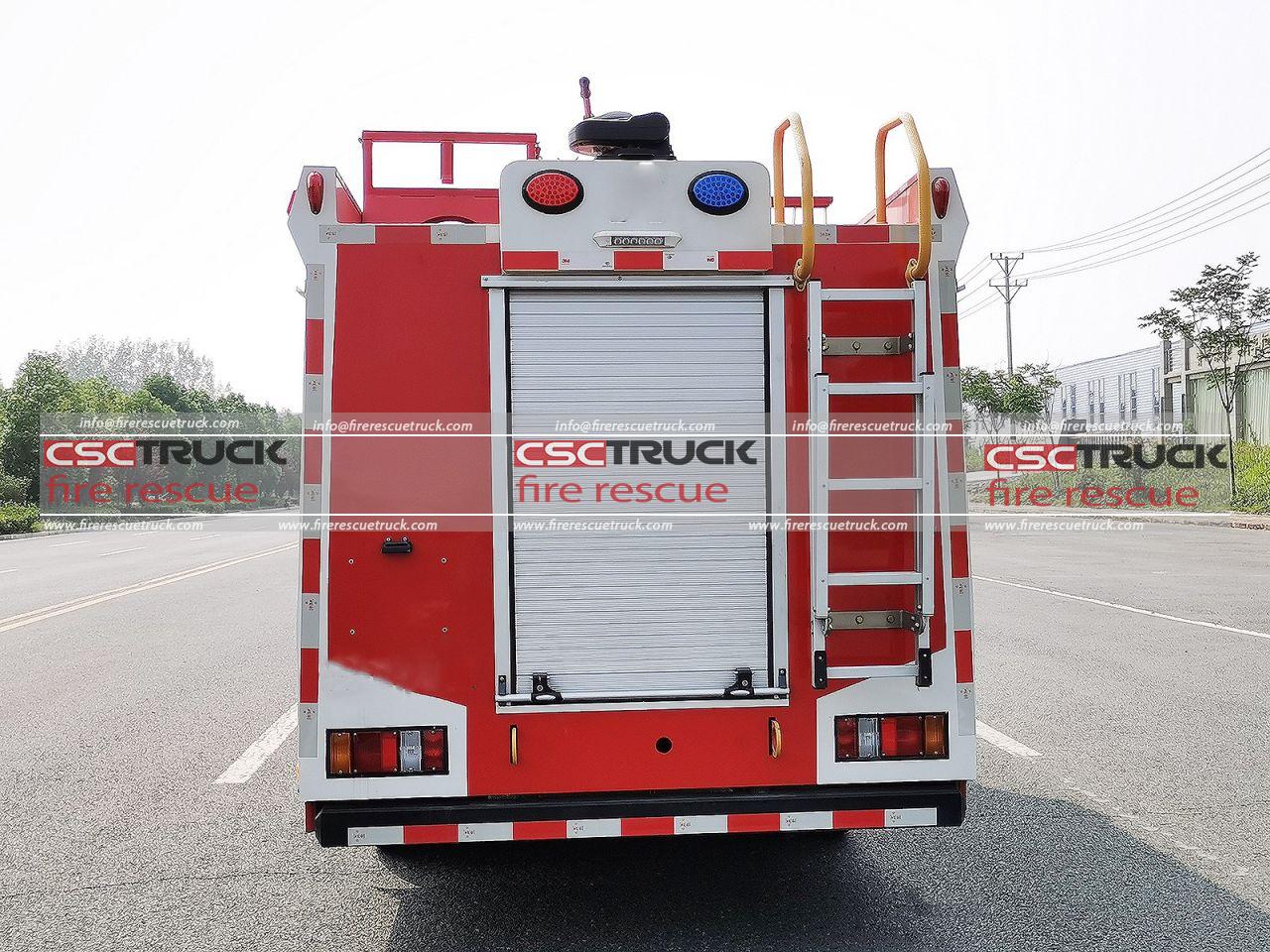

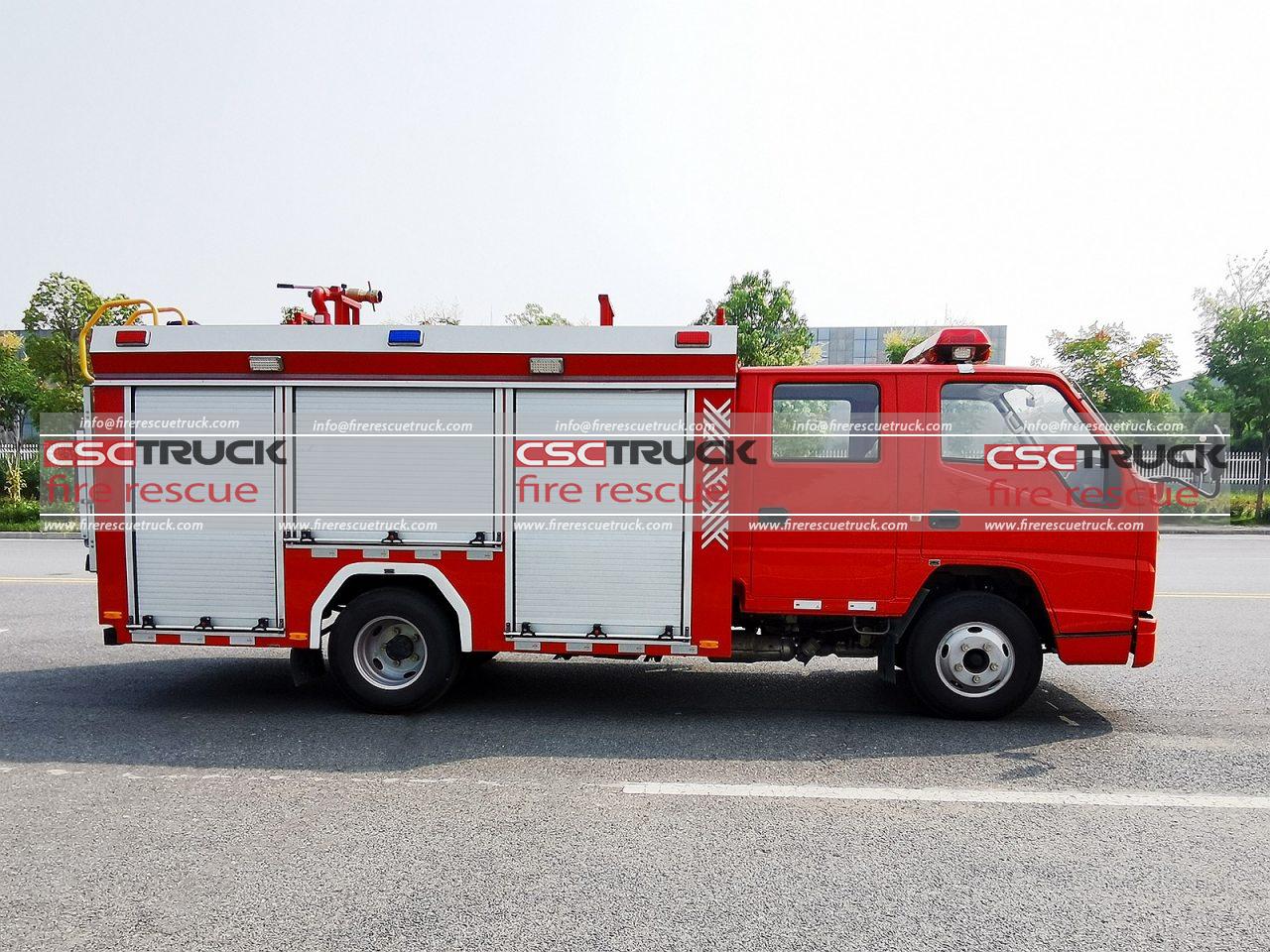

3CBM Small Water Tender Fire Truck

Model No.:	CSCWTFT003
Water Tanker Capacity:	2.5 CBM
Overall Dimensions(LxWxH):	6,290×1,960×2,650mm
Chassis Brand:	JMC
Drive Type:	4×2
Wheelbase:	3,360mm
Engine Model:	JX4D30B6H
Engine Power:	85kW(115 horsepower)
Maximum Speed:	90km/h
Emission Standard:	EURO VI
Fire Pump Model:	CB10/20
Fire Monitor Model:	PS20
Fire Flow Rate:	20L/s
Fire Range:	≥48m

Truck Enquiry

Categories: Tanker Fire Truck, Water Fire Truck

BRIEF

The 3CBM small water tender fire truck produced by CSCTRUCK Fire Rescue Truck is a highly efficient and compact firefighting vehicle designed for rapid response in urban and semi-urban areas. Built on a reliable JMC chassis, this 4×2 drive vehicle offers excellent maneuverability, making it ideal for navigating narrow streets, congested areas, and difficult-to-access fire scenes. Its compact size does not compromise its operational capability, as it is equipped with a 2.5 CBM water tank, providing sufficient water supply for initial firefighting efforts and support in areas where hydrant access may be limited.

Powered by a JX4D30B6H engine, the truck delivers 85 kW (115 horsepower), allowing it to reach a maximum speed of 90 km/h, ensuring quick arrival at emergency sites. The engine meets the stringent EURO VI emission standard, reflecting the manufacturer’s commitment to environmentally friendly operation and compliance with modern emission regulations.

For firefighting operations, the tanker fire truck is equipped with a CB10/20 fire pump and a PS20 fire monitor, which together offer a fire flow rate of 20 liters per second and a maximum spray range of 48 meters. This setup ensures effective fire suppression in small to medium-scale incidents, providing firefighters with precise control over water delivery. The fire monitor’s adjustable direction and flow capacity enhance its versatility, allowing it to handle various firefighting scenarios efficiently.

Designed with both performance and reliability in mind, the 3CBM small water tender fire truck is well-suited for municipal fire departments, industrial facilities, and private enterprises requiring a compact yet capable firefighting solution. Its combination of maneuverability, sufficient water capacity, reliable engine performance, and advanced pumping equipment makes it a practical choice for rapid response and effective firefighting operations, particularly in areas where larger fire trucks may face limitations.

This vehicle exemplifies CSCTRUCK Fire Rescue Truck’s dedication to providing high-quality, versatile, and environmentally conscious fire rescue solutions.

FEATURES

Compact Water Capacity – Equipped with a 2.5 CBM water tank, ideal for quick-response firefighting in urban or confined areas.
Reliable Chassis and Engine – Built on a JMC chassis with a JX4D30B6H engine delivering 85 kW (115 HP), providing stable performance and durability.
Efficient Firefighting System – Features a CB10/20 fire pump and PS20 fire monitor with a 20 L/s flow rate, ensuring effective water discharge.
Good Mobility and Speed – 4×2 drive type with a maximum speed of 90 km/h, allowing rapid deployment to emergency sites.
Extended Fire Reach – Fire monitor range of ≥48 meters and compliance with EURO VI emission standards for environmentally friendly operation.

SPECIFICATION

1. Vehicle Overview & Technical Specifications

Field	Value
Complete Vehicle Model	CSCWTFT003
Complete Vehicle Dimensions(LxWxH)	$6,290 \times 1,960 \times 2,650$ mm
Gross Mass	$6,250$ kg
Crew Capacity	$2 + 3$ people
Chassis Manufacturer	Jiangling Motors Co., Ltd.
Chassis Model	JX1061TSGA26
Engine Model	JX4D30B6H
Engine Power	$85$ kW ( $115$ horsepower)
Engine Displacement	$2892$ mL
Maximum Speed	$90$ km/h
Tire Model	$245/70$ R19.5
Number of Tires	$6 + 1$
Drive Type	$4 \times 2$
Gearbox Gears	$5$ gears
Wheelbase	$3,360$ mm
Emission Standard	EURO VI
Tank Volume	$2.5$ cubic meters
Power Take-Off (PTO)	Full power PTO, forced water cooling
Fire Pump Model	CB10/20
Fire Monitor Model	PS20
Fire Flow Rate	$20$ L/s
Fire Range	$\geq 48$ m

2. Vehicle Description

Component	Description
Cab	Flat-head, four-door, original double-row (optional air breathing apparatus backrest in the rear row), power steering, clutch assist, electric windows, central locking, air conditioning, air cut-off brake (optional oil brake).
Tank	Built-in tank structure. The tank body is welded from high-quality carbon steel (Wuhan Iron and Steel Q235) (optional 304 stainless steel or PP material), with internal wave baffles and horizontal baffles. The inner wall of the tank is sprayed with anti-corrosion epoxy resin. The tank is elastically connected to the chassis frame and is equipped with manholes, overflow ports, residual water discharge, a water level gauge, and filling ports etc.
Equipment Compartment	The main pump room is welded with high-quality square tubes. The equipment compartment is located behind the pump room and has roller shutter doors on both sides with internal lighting; the pump room is located at the rear of the entire vehicle, with aluminum alloy roller shutter doors on both sides and the rear, and the pump room is equipped with a new type of alarm/operation panel.
Electrical Configuration	A long row of $100$ W alarm and all-red warning lights is installed at the front top of the cab. $6$ field lighting lamps are installed at the rear of the vehicle, one all-red light and blue-yellow flashing lights on both sides of the vehicle, with safety signs and reflectors; the cab is equipped with alarm microphone, the passenger compartment, tank compartment, and pump room are all equipped with lighting, and the operation panel is equipped with lighting, indicator lights, etc.

3. Onboard Equipment List

No.	Name	Specification	Quantity	Unit	Remarks
1	Suction Hose	$125 \times 4$ meters	2	Piece	Threaded
2	Strainer	FLF125	1	Piece	Threaded
3	Water Divider	FH180/65 $\times 3$ -1.6	1	Piece	Internal Snap
4	Water Collector	JT100/65 $\times 2$ -1.0	1	Piece	Internal Snap
5	Water Hose	$13$ -65-20	6	Coil	Low Pressure; Internal Snap
6	Water Hose	$13$ -80-20	6	Coil	Low Pressure; Internal Snap
7	Reducing Coupling	KJ65/80	2	Piece	Internal Snap
8	Hose Wrap Cloth	DT-SB	4	Piece
9	Hose Hook		4	Piece
10	Underground Fire Hydrant Wrench	QT-DS1; Length 400	1	Piece
11	Above-Ground Fire Hydrant Wrench	Length 860	1	Piece
12	Suction Hose Wrench	FS100	2	Piece
13	DC Straight-Flow Nozzle	QZG3.5/7.5; 65	1	Item	Low Pressure; Internal Snap
14	DC Spray Nozzle	QZK3.5/7.5; 65	1	Item	Low Pressure; Internal Snap
15	Fire Bucket		1	Item
16	Fire Extinguisher	$3$ Kg	1	Set
17	Fire Belt Axe	Length 390; GF-285	1	Piece
18	Rubber Mallet		1	Piece
19	Rechargeable Handheld Light		1	Piece
