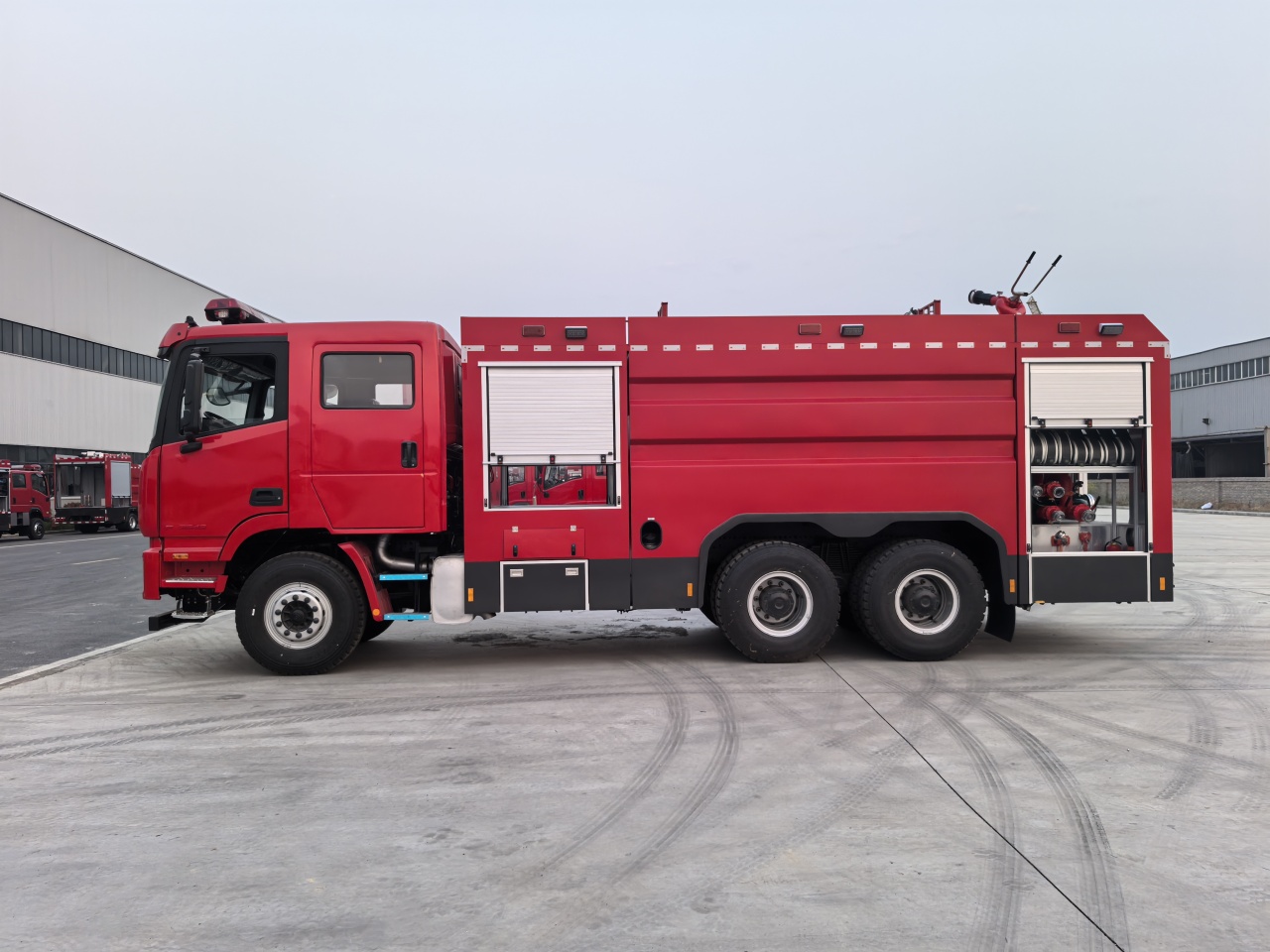

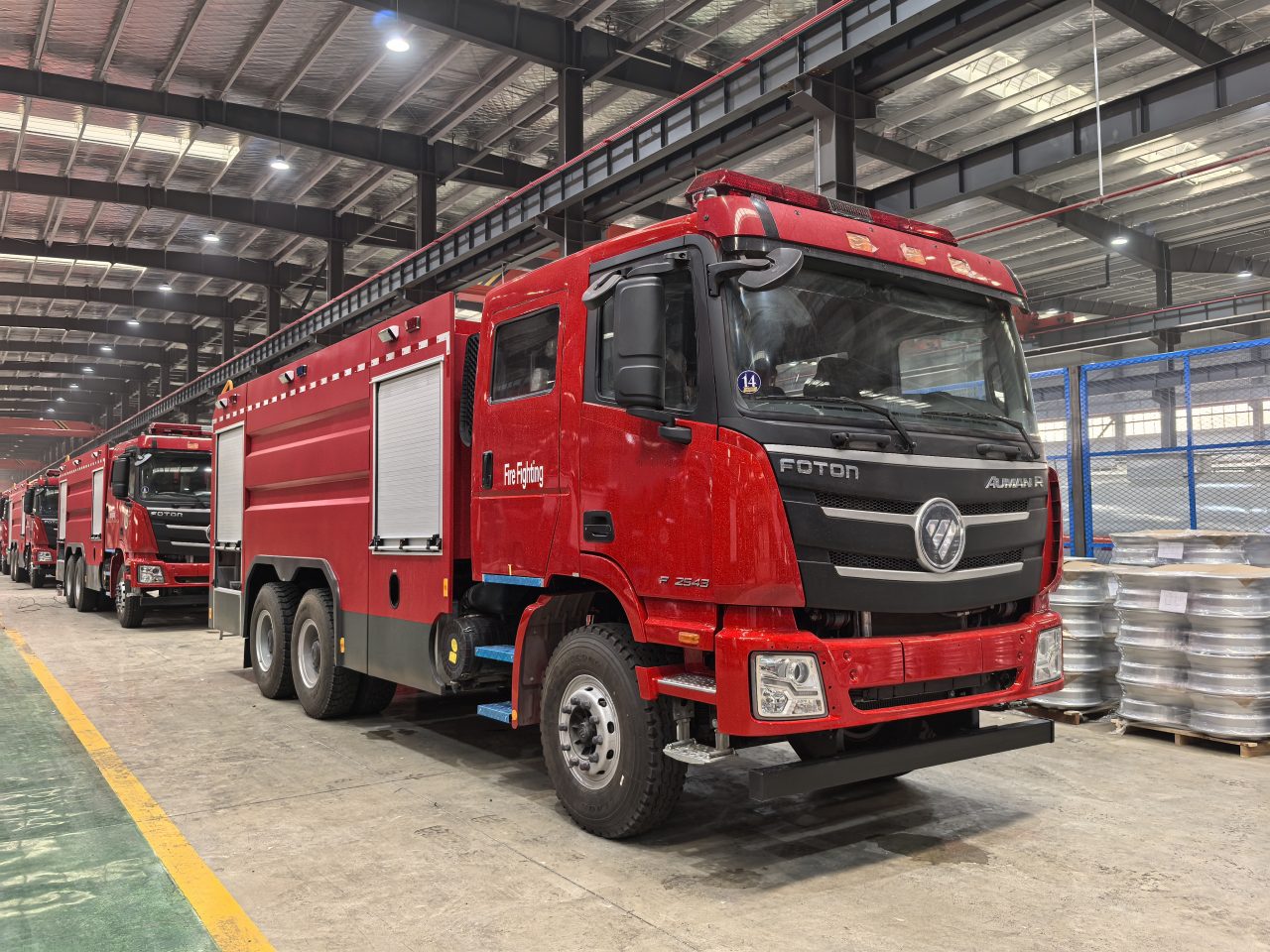

FOTON Auman 10 Wheelers 12000L Water Tanker Fire Engine

BRIEF



The FOTON Auman 10-wheelers 12,000L water tanker fire engine, manufactured by CSCTRUCK Fire Rescue Truck, is a heavy-duty firefighting vehicle designed for high-capacity water transport and effective fire suppression in challenging environments. Built on a robust Foton Auman chassis and configured with a 6×4 drive type, this fire engine combines power, durability, and advanced firefighting capabilities.

At the heart of this tanker fire engine is the ISGe5-340 engine, delivering 340 horsepower and complying with the Euro 5 emission standard, ensuring strong performance while meeting stringent environmental regulations. The vehicle is fitted with a 12,000-liter carbon steel water tank, ideal for large-scale firefighting operations in industrial, urban, and rural settings.

Its firefighting system is anchored by the CB10/60 fire pump, capable of producing 60 liters per second at 1.0 MPa normal pressure, equivalent to 3,600 liters per minute. This high-performance pump ensures continuous and reliable water delivery during emergency operations.

Complementing the pump is the PS 8/60W fire monitor, which matches the pump’s 60L/[email protected] output and offers a rated flow of 3,600L/min with a water throwing range of at least 75 meters, allowing responders to tackle fires from a safe distance and access hard-to-reach zones.

Engineered for stability and strength, this 10-wheeler fire truck is well-suited for municipal fire brigades and emergency rescue departments requiring large water volume, high-pressure output, and extended reach. Its combination of rugged chassis, powerful drivetrain, and high-efficiency pump system makes it a reliable solution for large-scale firefighting missions.



FEATURES



1. High-Capacity Water Tank
   Equipped with a 12,000-liter carbon steel water tank, this fire engine ensures prolonged firefighting operations, especially in large-scale or remote-area fires.
2. Robust Powertrain
   Built on a Foton Auman 6×4 chassis, the truck is powered by a 340hp ISGe5-340 engine complying with Euro 5 emission standards, providing strong performance with environmental responsibility.
3. Efficient Fire Pump System
   Features the CB10/60 fire pump, capable of delivering 60L/s at 1.0MPa, with a rated flow of 3,600L/min—ideal for rapid water discharge during firefighting missions.
4. Long-Range Fire Monitor
   Equipped with a PS 8/60W fire monitor, offering the same 60L/s flow at 1.0MPa and a range of at least 75 meters, allowing effective fire suppression from a safe distance.
5. Reliable Construction and Design
   With its carbon steel tank structure and professionally engineered components, the truck offers durability, corrosion resistance, and long service life even under tough emergency conditions.



SPECIFICATION



Technical Specification
Truck	Make/Model Line	FOTON	6X4 LHD
	Gearbox	12JSD180TA（Q）
	Engine Model	ISGe5-340
	Horsepower	340hp
	Front /Rear loading	9T+13*2T
	Tire Size	12R22.5 18PR with 1spare  tire
	Wheelbase	4500+1400mm

Cabin	Mode	Double cab
	People	2+4 person
	Material	High-quality Q235 carbon steel
	The seats	The seats in the rear section should be made in the form of a locker with mounts for breathing apparatus for fire-fighters in the quantity of 4 units and 4 units of reserve tanks, and equipped with safety belts for all members of the truck crew. The seat cushions of the TCC should be foldable to ensure access to lockers under the seats.

Water tanker	Capacity	12,000 Liters
	Shape	Round Cylindrical
	Material	Carbon steel
	Thickness	Shell: 5mm
	Reinforcing ribs	Installed on the surface of the sewer tanker to increase the strength of the tank.
	Tank Testing	The tank is hydrostatically tested.
Fire Pump	Make/Model	CB10/60
	Origin	China
	Normal Pressure	60L/[email protected]
	Rated flowing	3,600L/M
	Outlet Pressure	1.00MPa
Fire monitor	Make/Model	PS 8/60W
	Origin	China
	Normal Pressure	60L/[email protected]
	Rated flowing	3,600L/M
	flowing Range	≥75m
Pipe system	Material	High-quality steel pipe
	Pipeline inlet	1 unit DN100 inlet behind the pump room
	Filling pipe	1 unit DN65 port on each side of the water tank (2 units)
		1 unit DN65 pump filling the water tank.
	Pipeline outlet	1 unit DN65 on each side of the pump room (2 units), with a valve
	Cooling pipe	Cooling pipe and control valve for PTO

Electrical Equipment
Auxiliary lighting	Firemen’s room, pump room, and equipment box are respectively provided with lights, operating instrument panel is provided with lighting, indicators.

Strobe light	Red and blue strobe lights are installed on both sides of the body.
Warning device	Long row of all-red alarm lights mounted on the roof of the cab.
	An alarm with a control box in front of the driver.
Projector	Install a 35W projector at the rear of the upper structure.
Painting	The exterior and interior of the tank are spray-painted with high-quality paint.

Accessories

No.	Item	Standardards	QTY
1	Suction Pipe	DN150x 4m	2
2	Water Filter	FLF DN150	1
3	Water separator	FII8065x3-1.6	1
4	Water collector	JII150/80×2-1.0	1
5	Suction Pipe Spanner	FS100	2
6	Overground Hydrant Spanner	QT-DS1, 400mm	1
7	Underground Hydrant Spanner	860mm	1
8	Fire hose	16-65-20	6
9	Fire hose	16-80-20	2
10	Fire hose	16-65-5	1
11	Reducer union	KJK65/80	1
12	Hose bandage	DT-SB	4
13	Hose strap		4
14	Water-stream nozzle	QZG3.5/7.5	1
15	Diffuser nozzle	QHD6.0/8	1
16	Flowering water nozzle	QZH19	1
17	Air foam nozzle	QP4/0.7Z; 65	1
18	Outer pipette assembly	Φ40×2000	1
19	Shovel	1050mm	1
20	Crowbar	1060mm	1
21	Fire axe	390mm	1
22	Fire hammer		1
23	Portable ladder	TE60	1
24	Extinguisher	3kg/ABC	1

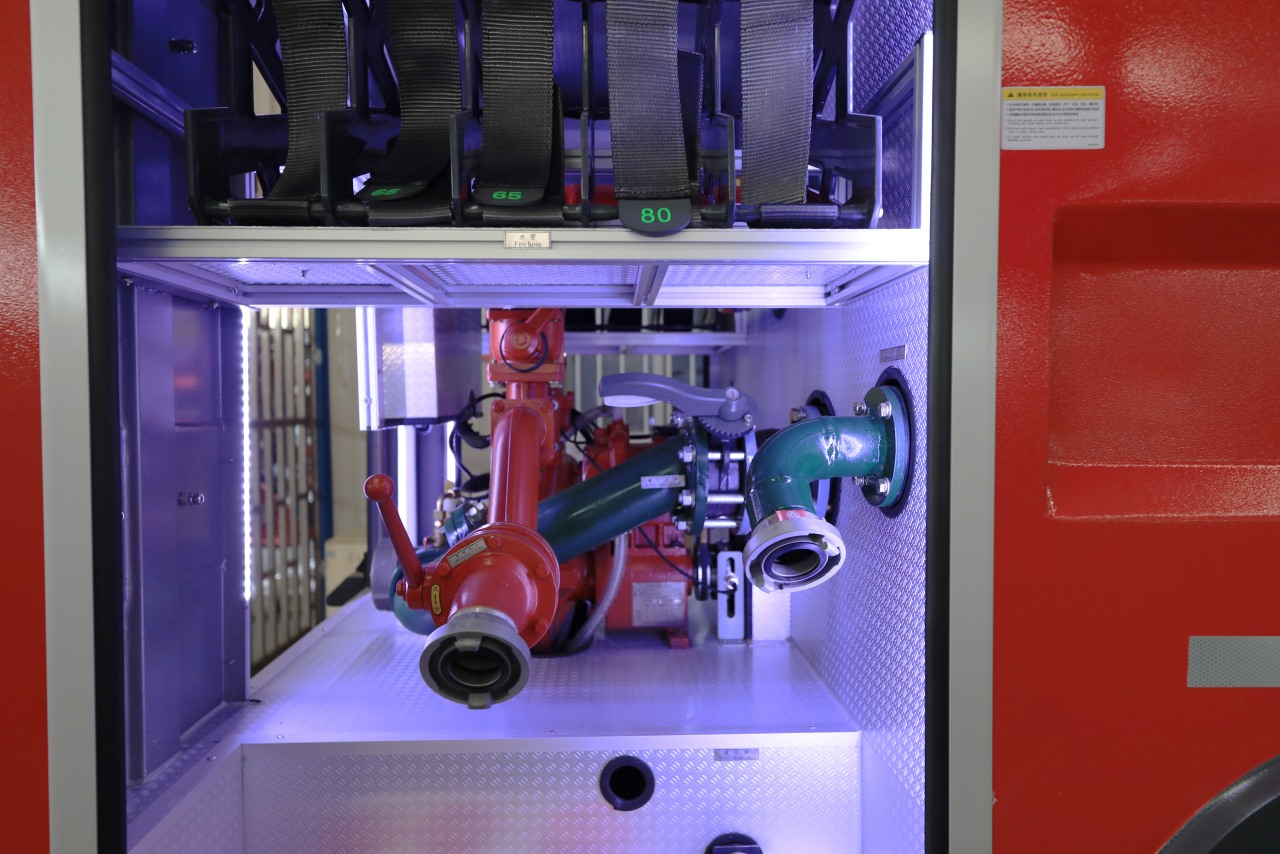

Pump room

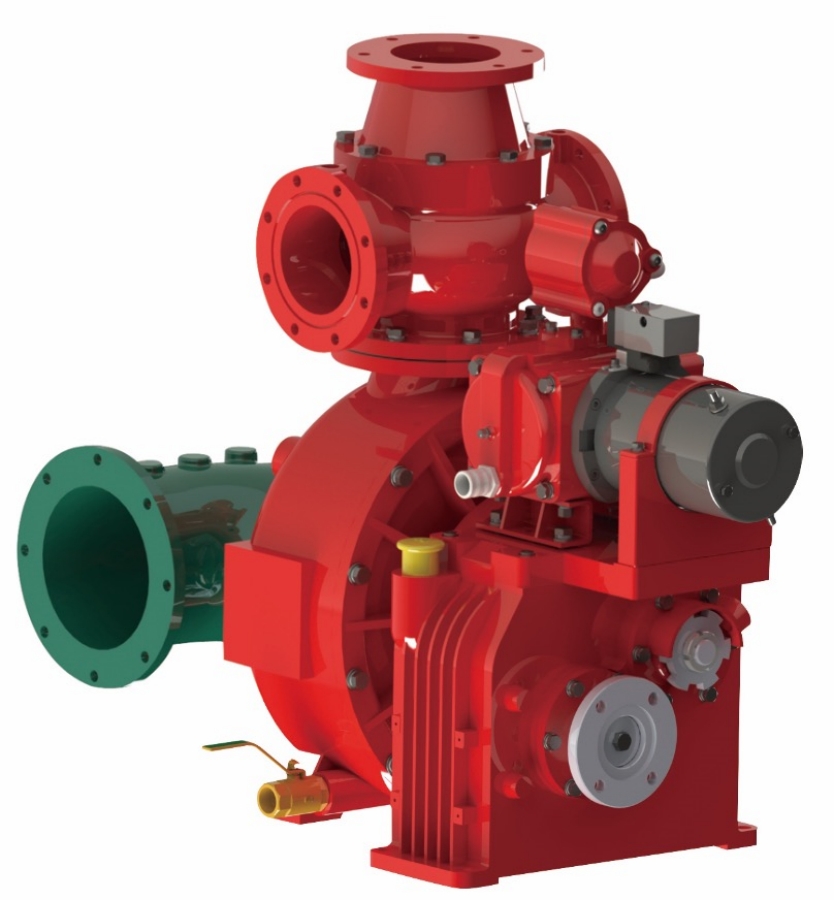

Fire pump

Fire monitor

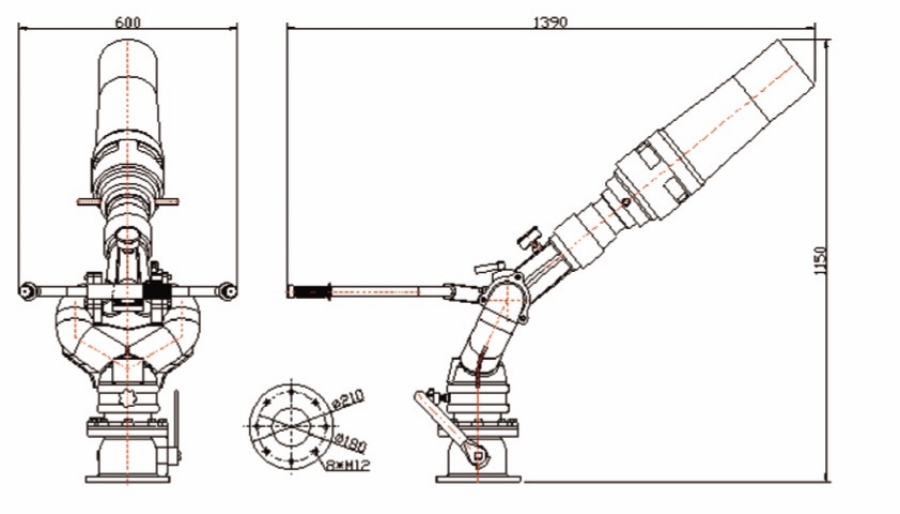

Fire monitor

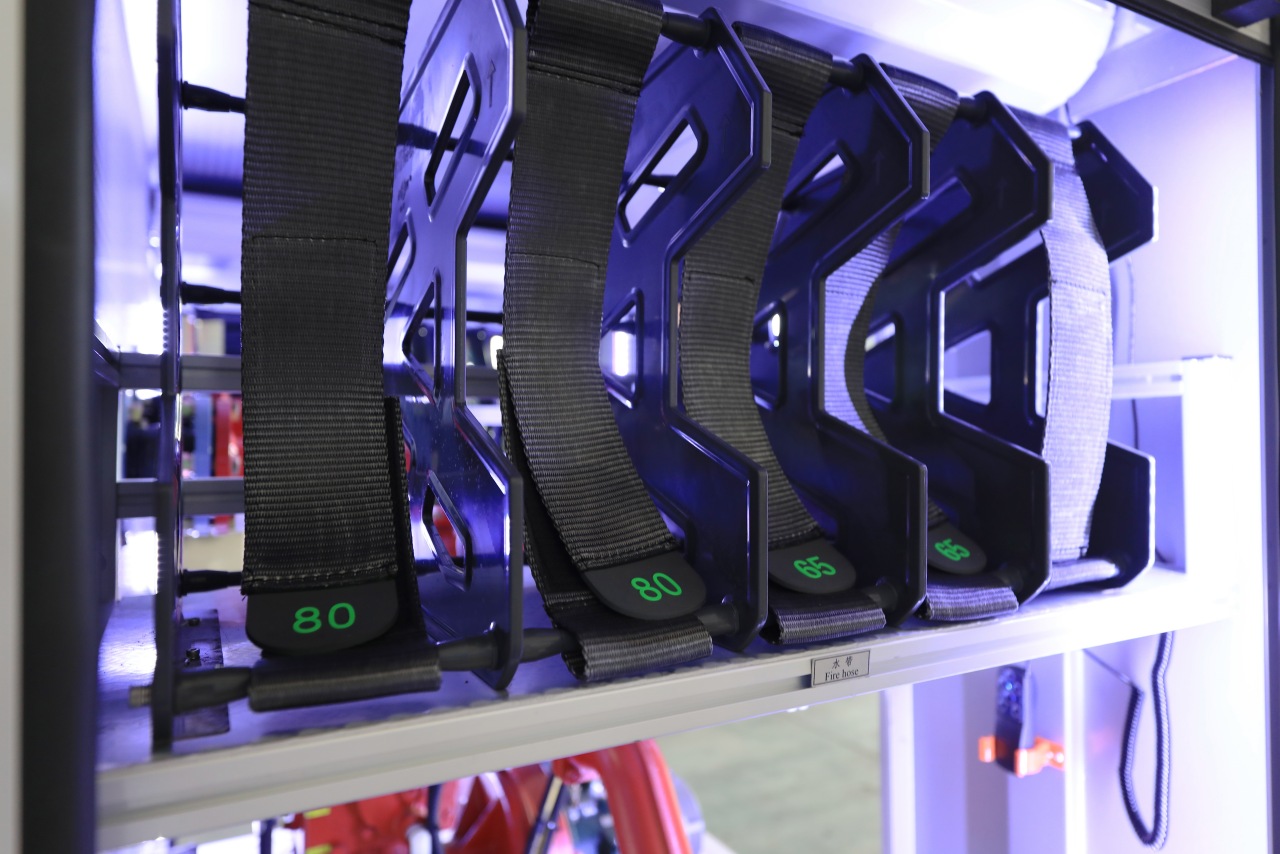

Fire horse

Fire hydrant

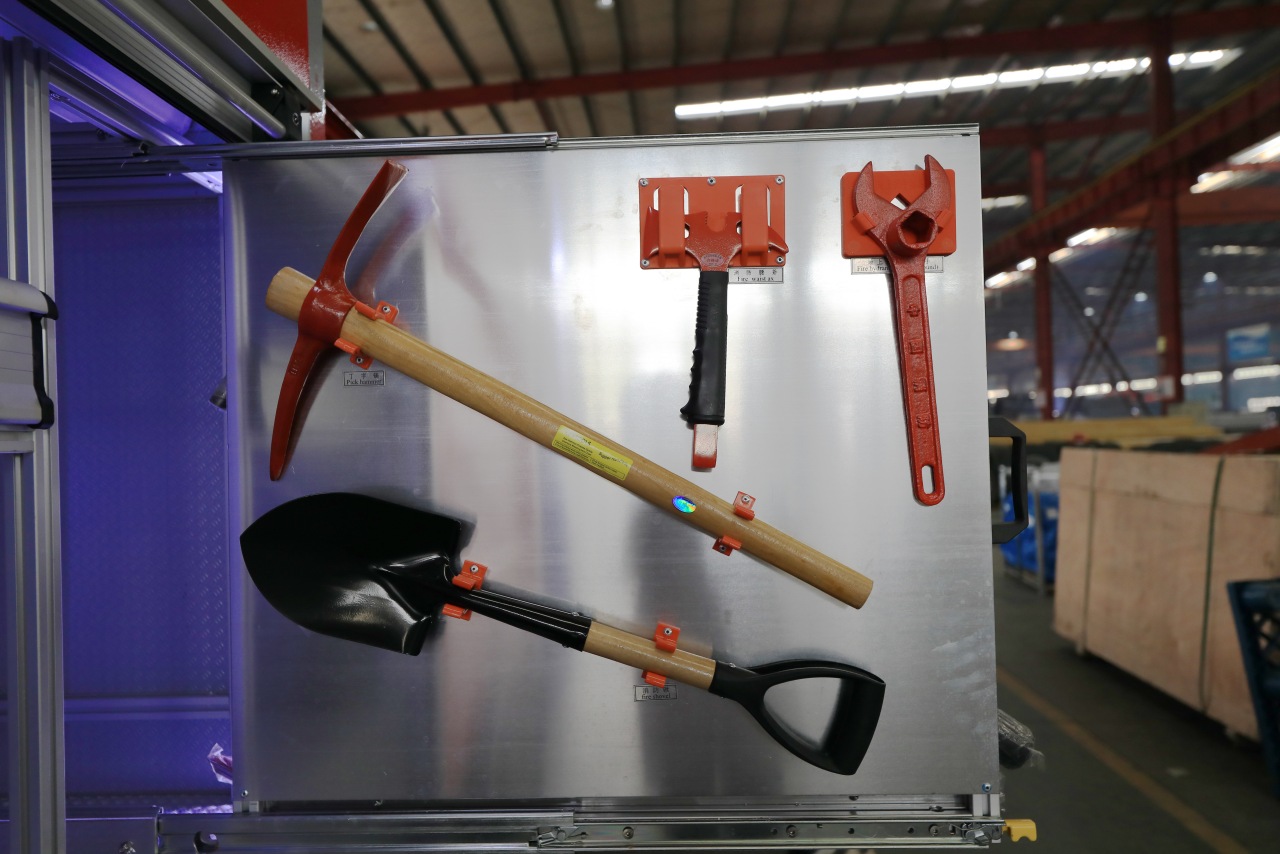

Ax, hammer, and shovel

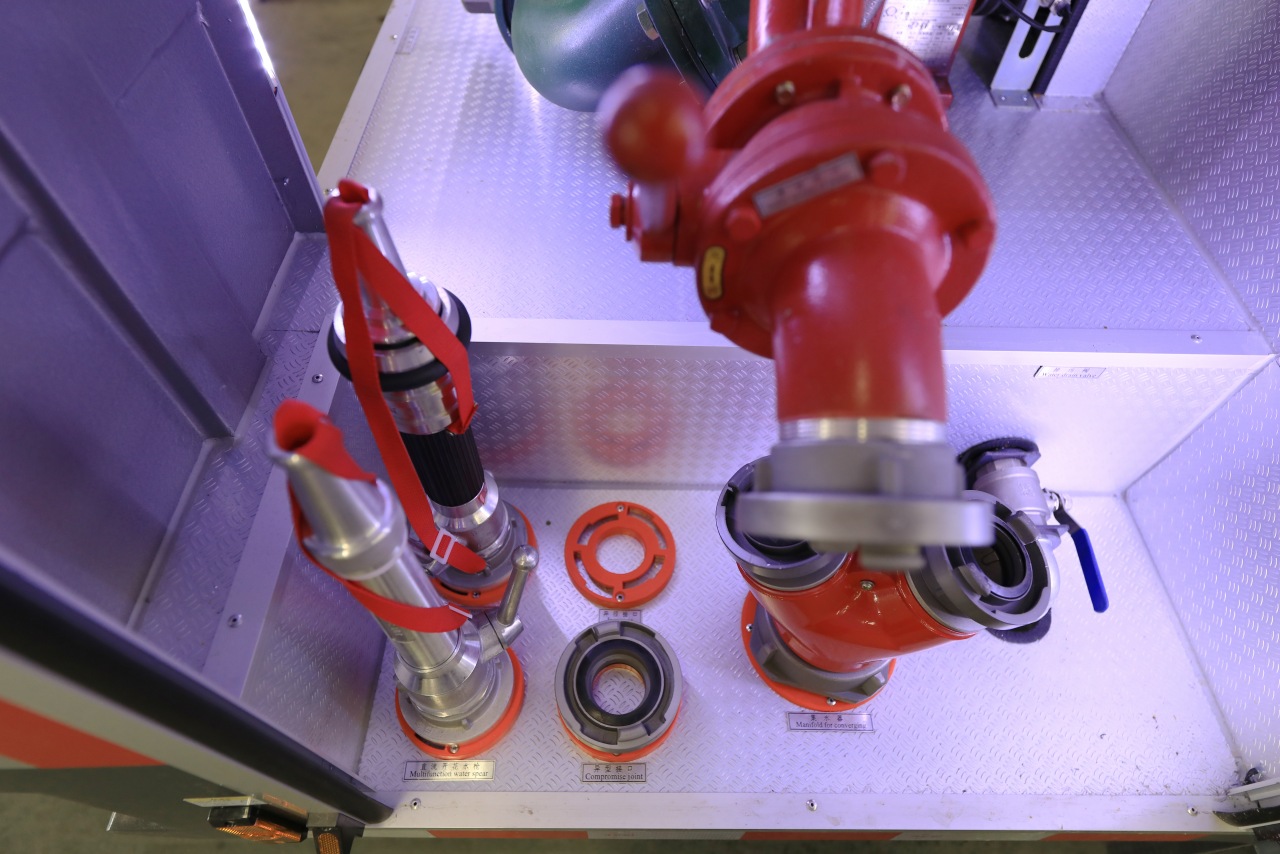

Water gun, a compromise joint, and a manifold converging

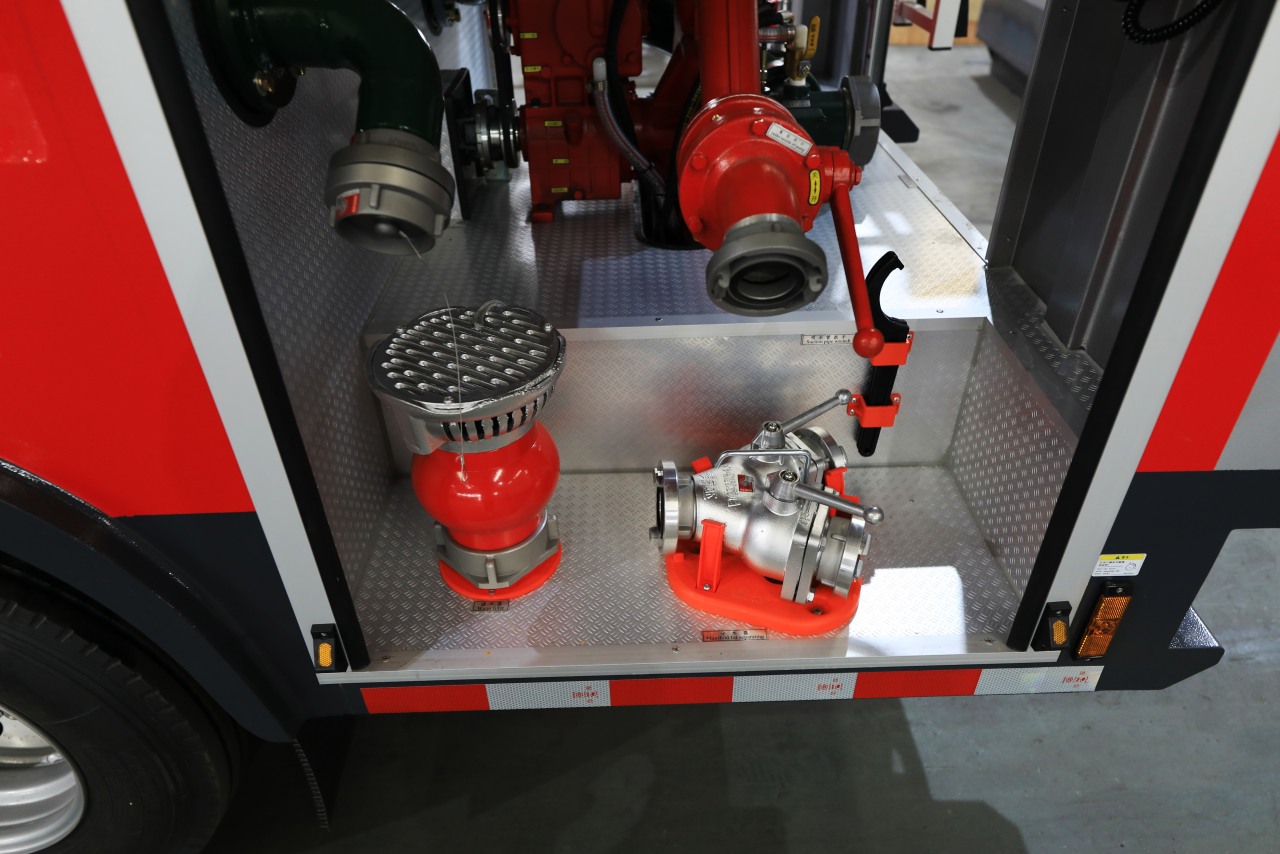

Water filter and manifold for separating
