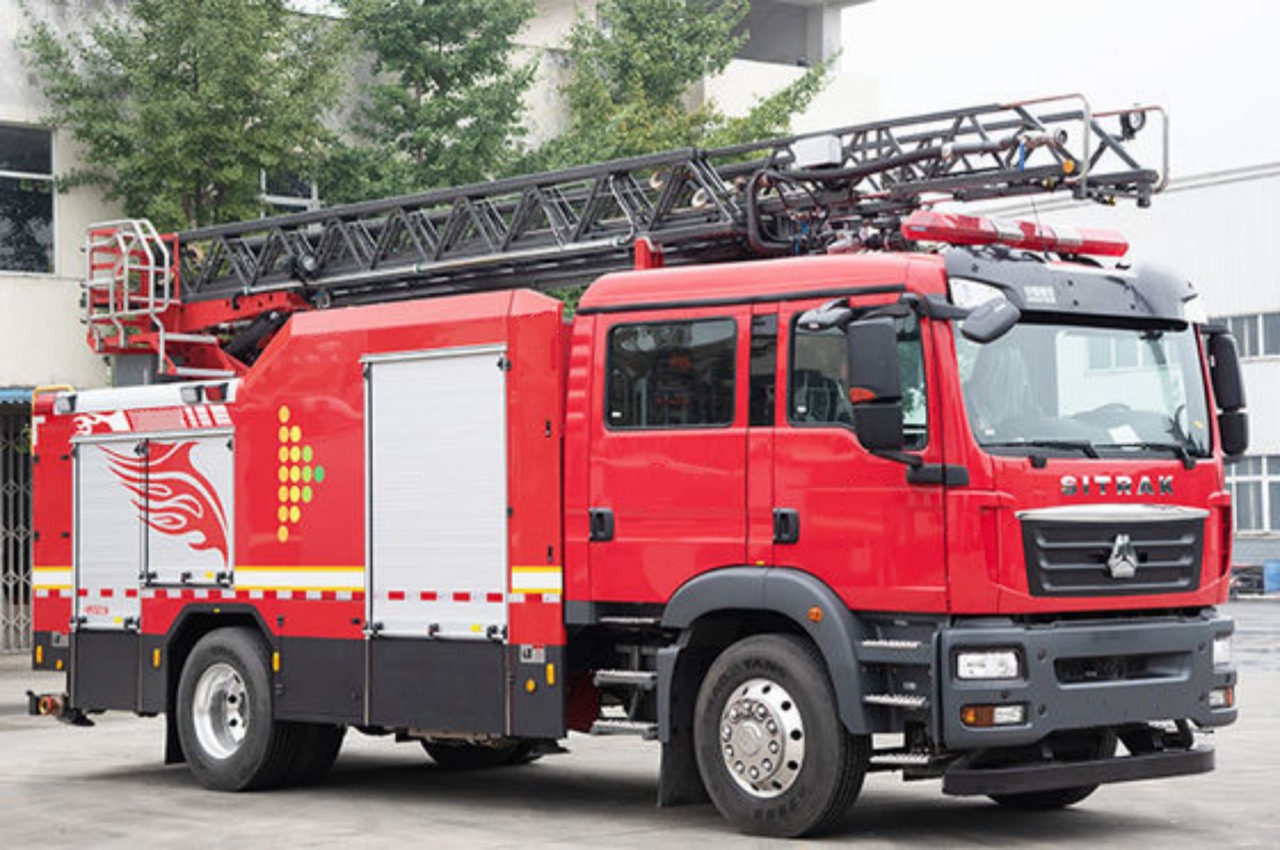

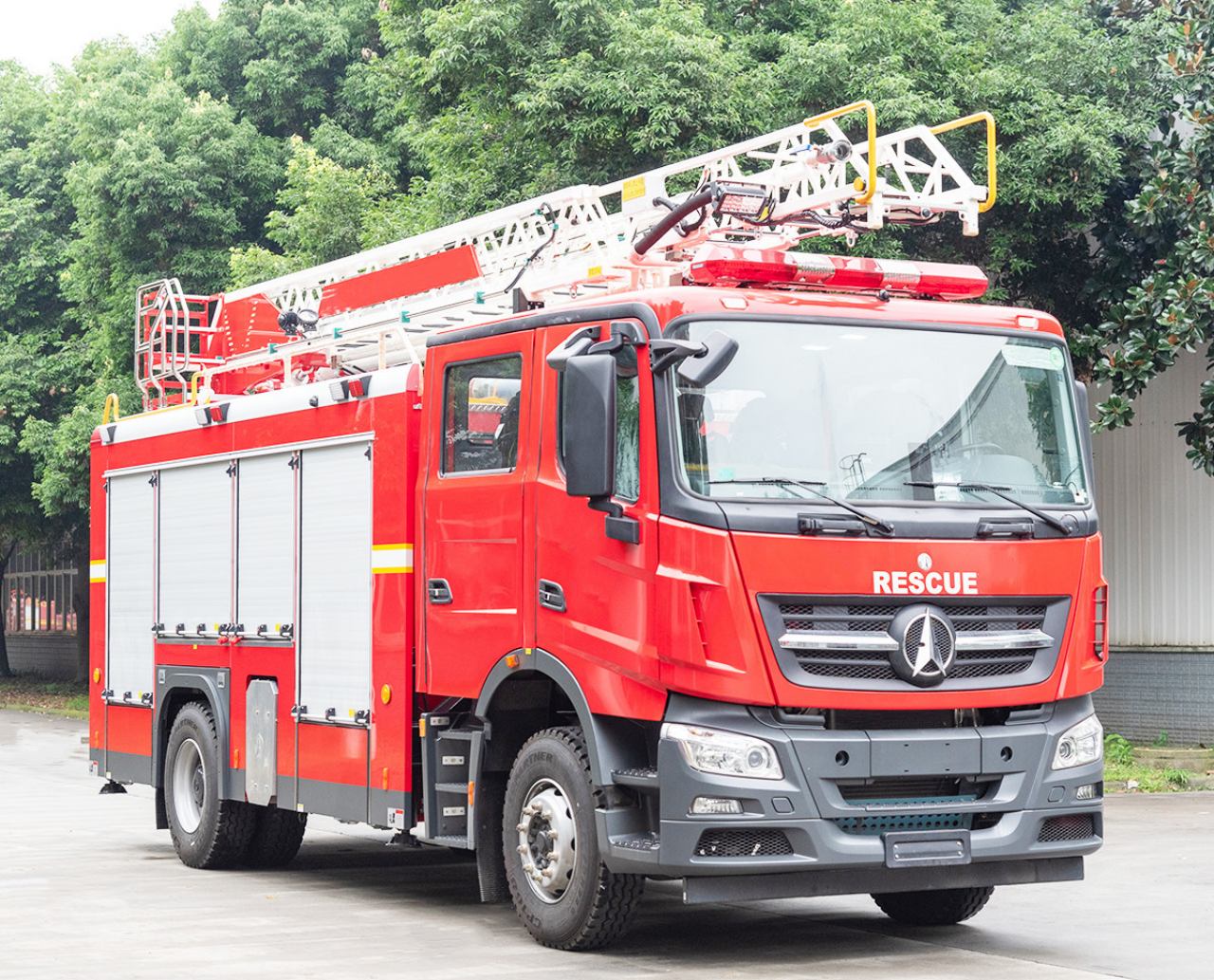

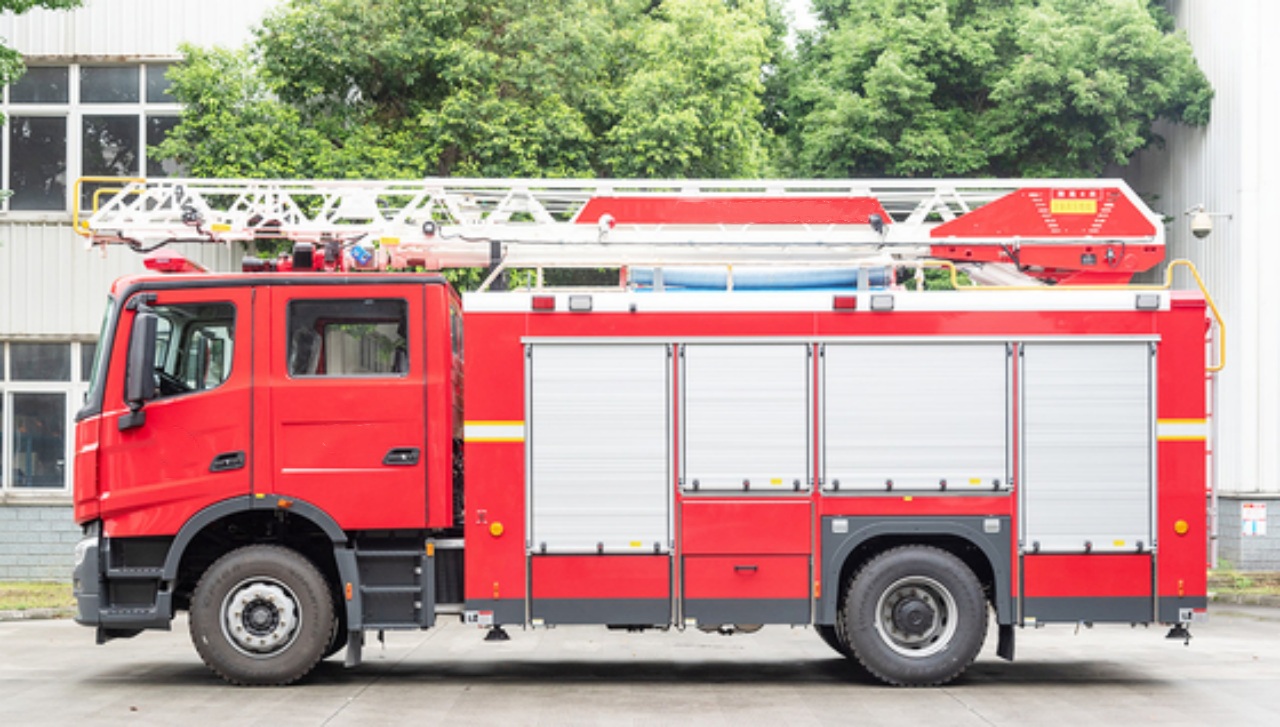

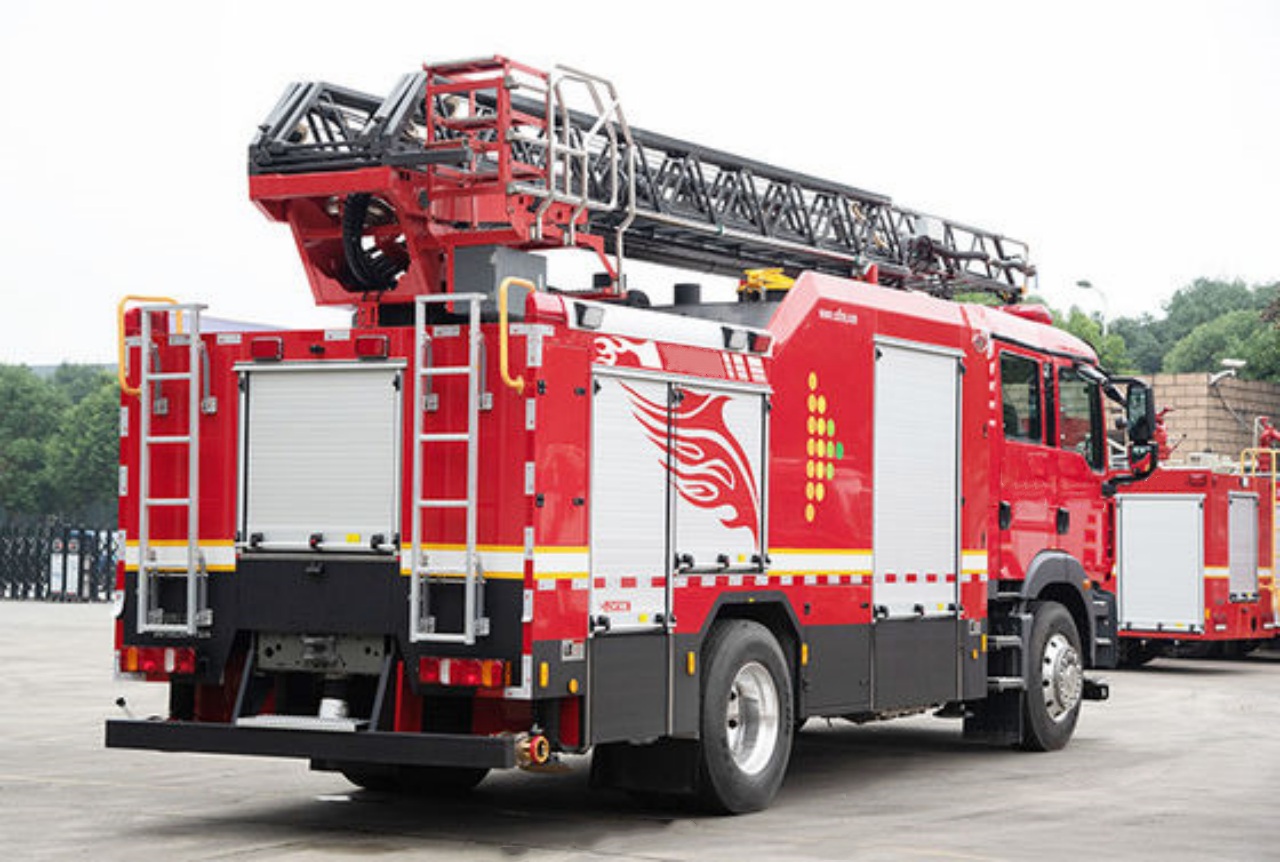

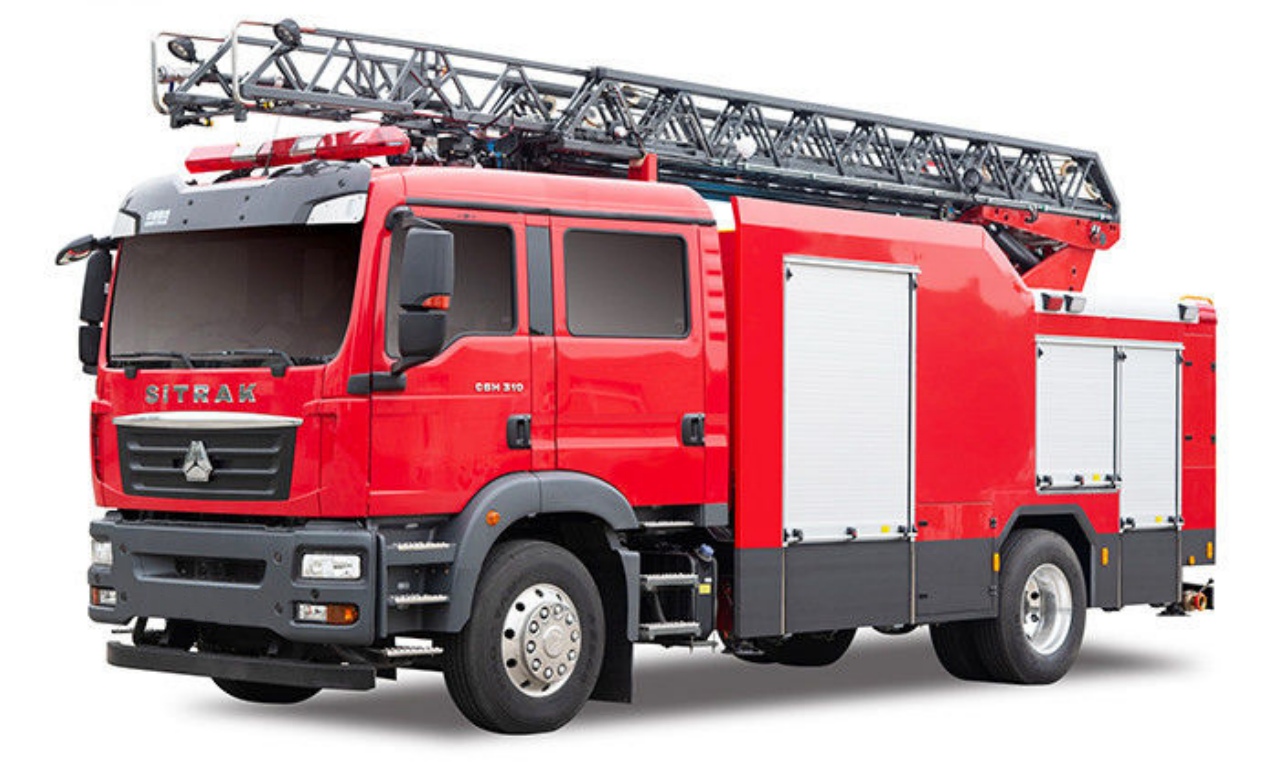

Aerial ladders are vital tools used by fire departments around the world to reach high places, perform rescues, and attack fires from above. When you see a fire truck extend its long metal arm toward a burning building, you’re witnessing an aerial ladder in action. These specialized devices are not just ordinary ladders—they are complex, mechanically operated structures designed for reliability, flexibility, and safety in extreme conditions. This article will explore how aerial ladders work, including their components, mechanisms, and operational procedures.
1. Introduction to Aerial Ladders
An aerial ladder is a mechanically operated, extendable ladder mounted on a fire truck, commonly referred to as a ladder truck or aerial apparatus. Unlike ground ladders that must be manually lifted and leaned against a surface, aerial ladders are hydraulically powered, offering firefighters a rapid, stable, and elevated pathway to reach rooftops, windows, or even stranded individuals in tall structures.
They serve multiple purposes:
- Providing access to high elevations.
- Delivering water through elevated nozzles.
- Facilitating victim rescues.
- Acting as an elevated observation platform.
2. Major Components of an Aerial Ladder
To understand how an aerial ladder works, it’s crucial to examine its key components:
a. The Ladder Sections
Most aerial ladders consist of 2 to 5 ladder sections (also called fly sections), nested together and capable of extending to lengths between 70 and 135 feet (21 to 41 meters). These sections are made from high-strength steel or aluminum to ensure structural integrity while minimizing weight.
b. Turntable
The turntable is a rotating base mounted on the rear of the fire truck. It allows the ladder to rotate 360 degrees horizontally, giving firefighters full directional control without needing to reposition the truck.
c. Hydraulic System
Hydraulics are the core of aerial ladder operations. A system of hydraulic cylinders, hoses, pumps, and valves powers the extension, elevation, and rotation of the ladder. This allows for precise control even under load.
d. Stabilizers/Outriggers
Before extending the ladder, operators deploy stabilizers (also called outriggers) from the truck chassis to the ground. These extendable supports ensure the truck remains balanced and prevents tipping while the ladder is in use.
e. Controls and Operator Station
Most aerial ladders have dual control stations—one on the ground and one at the base of the ladder or in the bucket (if it’s a platform ladder). These stations include joysticks, gauges, and buttons to control movement, water flow, and positioning.
3. Operational Mechanics of the Aerial Ladder
The operation of an aerial ladder involves several coordinated mechanical and hydraulic processes:
a. Setup and Stabilization
Before extending the ladder, the fire truck must be parked on a level surface. The driver/operator activates the hydraulic system to lower and extend the outriggers. Sensors often ensure that the stabilizers make firm ground contact before ladder operation can begin.
b. Rotation (Slewing)
Once stabilized, the ladder is rotated using hydraulic slewing motors on the turntable. This allows the operator to position the ladder over the desired area, whether it’s a window on the 10th floor or a rooftop.
c. Elevation
Hydraulic cylinders lift the base of the ladder, adjusting its angle. The ladder can usually be elevated from 0° (horizontal) up to 75°–80° above the horizontal plane. The angle is critical for reaching height while maintaining structural stability.
d. Extension and Retraction
Nested ladder sections are extended using hydraulic rams or cable-pulley systems. As one section pushes out, it triggers the movement of the next. The smooth and stable extension is essential, especially when firefighters are climbing or when the ladder is supporting a hose stream.
e. Climbing and Water Delivery
Firefighters can ascend the ladder using rungs spaced according to standard dimensions, often with safety rails on both sides. Some aerial ladders are equipped with a pre-piped waterway along the side, delivering water to a nozzle at the top. This nozzle can be manually or remotely controlled.
4. Types of Aerial Ladders and Variants
There are several types of aerial ladders, each designed for specific tasks:
a. Straight Aerial Ladder
This is the traditional ladder with no platform at the top. Firefighters climb it for access or use it as an anchor point for rescues.
b. Aerial Ladder Platform (Tower Ladder)
These feature a bucket or platform at the end, which can carry multiple firefighters and equipment. They are especially useful for rescues and elevated water streams.
c. Quint Trucks
Short for “quintuple combination pumper,” these vehicles combine the features of an engine and a ladder truck: Pump, water tank, hose, ground ladders, and an aerial ladder. They offer versatility in urban settings.
5. Safety Systems and Features
Given the risks involved in operating at great heights, aerial ladders incorporate several safety features:
- Load Sensors: Monitor weight on the ladder and warn of overload.
- Angle Sensors: Alert the operator if the ladder angle is unsafe.
- Interlocks: Prevent ladder movement unless stabilizers are fully deployed.
- Slip-resistant Rungs: Help firefighters maintain grip in wet or smoky conditions.
- Fall Arrest Harness Points: Allow secure attachment of safety gear for climbing personnel.
6. Training and Operational Protocols
Proper operation of an aerial ladder requires specialized training. Operators must be certified and regularly drilled on positioning, load limits, rescue techniques, and troubleshooting. They must understand:
- Wind speed tolerances
- Maximum angle of operation
- Safe working loads depending on extension length and ladder angle
During emergencies, time and safety are paramount, so efficient and practiced coordination between the driver/operator, ladder crew, and hose teams is essential.
7. Maintenance and Inspections
Routine maintenance is essential to keep an aerial ladder in working condition. Departments conduct:
- Daily checks for hydraulic leaks and control responsiveness.
- Monthly inspections of mechanical components.
- Annual certification tests, including full ladder extensions under load.
Failures during an emergency can be catastrophic, so rigorous inspection protocols are mandatory.
Conclusion
Aerial ladders are engineering marvels that blend power, precision, and safety into one tool designed for critical, life-saving work. From their hydraulic systems to their telescoping sections and integrated safety controls, these ladders represent the pinnacle of firefighting equipment. Their successful operation depends on mechanical reliability, operator skill, and strict adherence to safety procedures. Whether scaling tall buildings or launching high-volume water attacks, the aerial ladder remains an indispensable asset in modern firefighting.
