Fire trucks are marvels of engineering, serving as one of the most vital components of emergency response systems worldwide. Among their many functions—transporting firefighters, carrying equipment, and providing emergency medical support—one of their most critical capabilities is pumping water to extinguish fires. But how fast can a fire truck pump water? The answer depends on several factors, including the type of fire truck, the specifications of the pump, and the operating conditions. This article will delve into the various elements that determine how fast a fire truck can pump water and provide insights into typical flow rates, specialized equipment, and real-world performance.
Types of Fire Trucks and Their Pumping Capabilities
Not all fire trucks are created equal. The term “fire truck” is often used generically, but in reality, there are different classifications of fire apparatus with varying capabilities:
- Type 1 and Type 2 Engines (Pumper Trucks): These are the most common fire engines used in municipal fire departments. Type 1 engines are usually equipped with a pump capable of delivering 1,000 to 2,000 gallons per minute (GPM). Type 2 engines typically have a slightly lower pumping capacity, around 500 to 1,000 GPM.

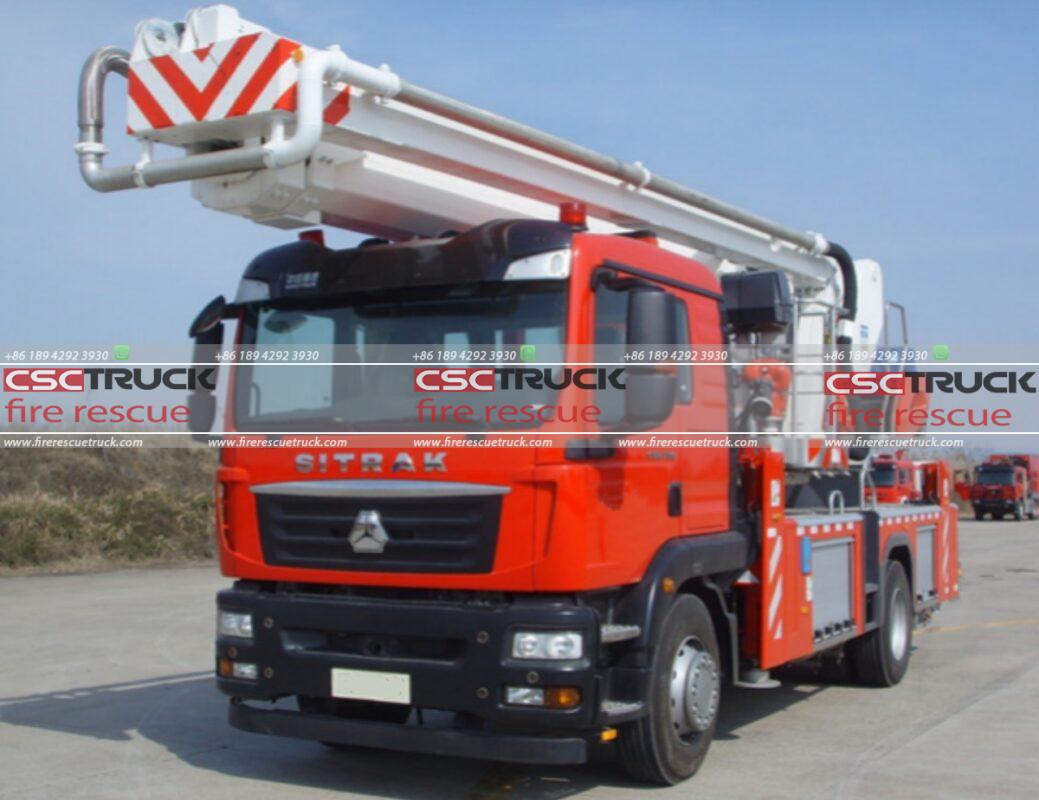

- Aerial Trucks: These vehicles are primarily designed for height access and rescue operations but are often equipped with pumps ranging from 1,000 to 2,000 GPM as well, particularly if they have a built-in waterway in the aerial ladder.
- Wildland Fire Engines (Types 3 to 7): Designed for off-road firefighting, these trucks typically pump water at lower rates. A Type 3 engine might pump around 150 to 500 GPM, while smaller wildland engines (Type 6 or 7) may only manage 50 to 150 GPM.
- Industrial and Airport Crash Trucks: These specialized vehicles can far exceed the pumping capacity of municipal trucks. Some airport crash tenders can pump up to 3,000 GPM or more and often feature high-pressure turrets for long-distance spraying.
How Fire Truck Pumps Work
To understand how fast a fire truck can pump water, it’s helpful to understand how the pump itself operates. Most fire trucks are equipped with centrifugal pumps, which use an impeller spinning at high speed to convert mechanical energy into kinetic energy. This kinetic energy propels water through the discharge outlets.
The pumping speed, or flow rate, is measured in gallons per minute (GPM). Fire trucks typically draw water either from onboard tanks, external hydrants, or natural water sources like ponds or lakes. The pump’s capacity is often regulated by the size of the intake and discharge ports, the strength of the engine driving the pump, and the pressure settings.
For example, a pumper truck with a 1,500 GPM pump might deliver water at 150 PSI (pounds per square inch) to multiple hoses simultaneously, depending on demand and supply.
Real-World Pumping Scenarios
In real-world firefighting situations, the maximum rated GPM is rarely achieved continuously or in isolation. Firefighters must balance pressure, hose length, elevation, and nozzle size to deliver water effectively. Here are a few examples of how a fire truck might perform in the field:
- Residential Fire: A typical house fire might require 250 to 500 GPM, depending on the size of the home and fire spread. One pumper truck with a 1,000 GPM pump can easily manage multiple lines to handle the job.
- Commercial Fire: Larger fires in commercial buildings might necessitate several engines operating in tandem, collectively delivering 1,500 to 3,000 GPM or more. Aerial trucks may be used to supply water from elevated positions, especially for roof-level fires.
- Wildland Fires: In rugged terrain, pumping requirements are lower due to the need for mobility and conservation of water. A Type 6 wildland engine might deliver just 50 GPM, but that water is often applied with precision through backpack lines or portable monitors.
Onboard Water Tanks and Sustained Flow
A fire truck’s onboard water tank limits how long it can sustain water flow without an external source. Here are typical tank sizes:
- Municipal Pumper: 500 to 1,000 gallons
- Tanker Truck: 1,500 to 3,000 gallons
- Wildland Engine: 300 to 500 gallons
If a truck pumps at 1,000 GPM from a 1,000-gallon tank, it would exhaust its supply in about one minute unless it’s connected to a hydrant or other water source. In most urban settings, hydrants are used to ensure a continuous water supply. In rural areas, water tenders or shuttle operations may be necessary to sustain high flow rates.
Advanced Pumping Techniques
In some situations, fire crews may use a technique called relay pumping, where multiple fire engines are spaced out between a water source and the fire. Each engine boosts the pressure and maintains flow, allowing water to be transported over long distances without loss of pressure. This method is especially useful in rural or remote areas without hydrants.
Another method is drafting, where a fire engine draws water from a static source like a pond or river. While this can be slower to set up, once operational, it can provide a sustained flow, though the actual GPM may be lower due to suction limitations and elevation differences.
Fire Pumps and NFPA Standards
The National Fire Protection Association (NFPA) sets standards for fire pump performance. According to NFPA 1901, a fire apparatus must be capable of delivering:
- 100% of rated capacity at 150 PSI
- 70% of rated capacity at 200 PSI
- 50% of rated capacity at 250 PSI
This ensures that pumps can perform under a range of pressure requirements. For example, if a truck is rated at 1,500 GPM, it must still deliver 1,050 GPM at 200 PSI and 750 GPM at 250 PSI.
Conclusion
So, how fast can a fire truck pump water? The short answer: Anywhere from 50 GPM to over 3,000 GPM, depending on the truck and the situation. Standard municipal fire engines typically pump 1,000 to 2,000 GPM, which is sufficient for most urban firefighting needs. Specialized trucks and configurations can deliver much higher flow rates when required.
The speed and efficiency of water delivery are crucial for firefighting effectiveness. Fire departments carefully select their equipment based on the environments they serve, ensuring that their pump capacities meet both day-to-day requirements and the rare, large-scale emergencies. Whether fighting a house fire or suppressing a blaze at an airport, the ability to move thousands of gallons of water in minutes is what makes fire trucks indispensable heroes on wheels.
