Fire trucks are iconic vehicles known for their critical role in emergency services, particularly during fires, rescues, and other disaster scenarios. Among the various types of fire trucks, those equipped with aerial ladders stand out due to their impressive reach and functionality. These ladders, often seen extended high above buildings during emergencies, are not just mechanical marvels—they are lifesaving tools. A common question many people have is: How high is a fire truck aerial ladder? The answer involves a range of considerations, including the type of ladder, the specific fire truck design, and the intended use of the equipment.
Understanding Aerial Ladder Fire Trucks
Before diving into specific heights, it’s helpful to understand what aerial ladder fire trucks are. An aerial ladder fire truck, also known as a ladder truck or aerial apparatus, is a specialized vehicle equipped with a mechanically extendable ladder mounted on a turntable. This turntable allows the ladder to pivot 360 degrees, enabling firefighters to access various angles during operations.
These trucks are often used for:
- Reaching the upper floors of tall buildings
- Ventilating roofs during structure fires
- Performing high-angle rescues
- Delivering water streams from elevated positions
There are different configurations of aerial apparatus, including straight ladders (often referred to as “stick” ladders) and articulated ladders with 1 or more joints, allowing for greater flexibility. Some fire departments also use aerial platforms or tower ladders, which have a bucket or platform at the end of the ladder for personnel and equipment.
Typical Heights of Aerial Ladders
The height of an aerial ladder can vary significantly depending on the model, manufacturer, and specific fire department needs. However, most aerial ladders on modern fire trucks fall within a typical range.
Standard Height Range
- Standard aerial ladders: 70 to 100 feet (21 to 30 meters)
- Mid-range ladders: 100 to 110 feet (30 to 34 meters)
- High-reach aerial ladders: 115 to 137 feet (35 to 42 meters)
Some of the most commonly used aerial ladders extend up to 100 feet, which is typically enough to reach the 7th to 10th floor of a building, depending on floor height and setbacks.
Specialized High-Reach Ladders
For cities with high-rise buildings, fire departments may employ high-reach aerial ladder trucks or aerial platforms that go well beyond the standard 100 feet.
- 137-foot (42-meter) aerial ladders: One of the tallest commonly used ladders in the U.S. and Europe, capable of reaching up to 12 or more stories.
- Platform trucks with articulating booms: Some can reach up to 150 feet (45 meters), although these are less common and generally used in specialized urban or industrial settings.
Manufacturers such as Rosenbauer, Pierce, E-ONE, and Magirus have developed high-reach aerial ladders with impressive height capabilities. For example, the Magirus M68L aerial ladder can reach 68 meters (223 feet), one of the tallest in the world, and is used in cities with skyscrapers or large industrial facilities.
Factors That Influence Ladder Height
Several key factors determine the appropriate ladder height for a fire truck:
1. Urban Density and Building Heights
Cities with tall buildings require taller aerial ladders to perform effective rescues or reach rooftops for ventilation and suppression. Fire departments in places like New York City, Tokyo, or Dubai invest in taller aerial units.
2. Street Layout and Accessibility
Sometimes, firefighters cannot park the truck directly next to a building. If the vehicle is parked at a distance, the ladder must reach not only vertically but also horizontally, reducing effective height. Therefore, longer ladders offer more flexibility.
3. Operational Needs
A taller ladder can deliver water streams from elevated angles, provide better observation points, and assist with rescues from taller structures, construction cranes, or industrial towers.
4. Equipment Weight and Truck Design
Longer ladders require more structural reinforcement and powerful hydraulic systems, which increase vehicle weight. Fire departments must balance height needs with vehicle maneuverability and cost.
Safety and Stabilization

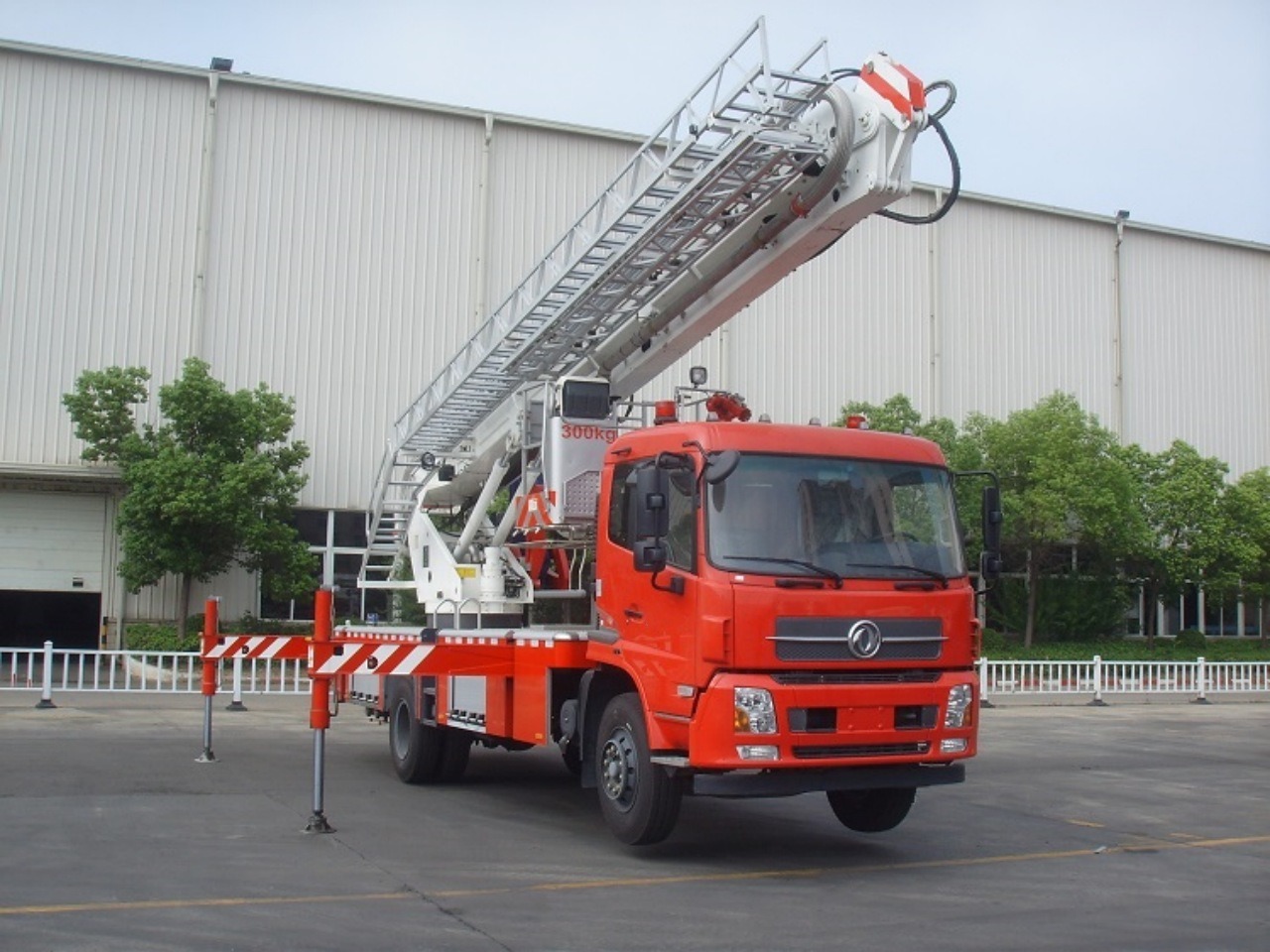

As ladder height increases, so do the challenges associated with stabilizing the truck and ensuring firefighter safety. Outriggers are extended from the truck’s sides to stabilize the apparatus before the ladder is raised. Modern fire trucks are equipped with sensors and leveling systems to ensure the ladder remains secure even at maximum extension.
Wind, load weight, and ladder angle all affect how high the ladder can be safely extended during an operation. Most aerial ladders are designed to support one to three firefighters, depending on height and angle.
Ladder vs. Aerial Platform Heights
While both ladder trucks and aerial platforms can reach impressive heights, there are functional differences:
- Aerial ladders allow rapid access and are lighter, making them suitable for tight urban areas.
- Aerial platforms offer enclosed baskets for firefighter safety and better equipment transport, but are generally heavier and slower to deploy.
In terms of height, both can reach similar ranges, although platforms are often favored in high-rise operations due to stability and safer working conditions.
Conclusion
So, how high is a fire truck aerial ladder? The answer varies depending on the fire department‘s needs, the truck design, and the operating environment. Most aerial ladders range from 70 to 100 feet, with specialized models reaching up to 137 feet or even 200+ feet in rare cases. These ladders are vital tools in firefighting and rescue operations, providing access, safety, and water delivery from heights unreachable by other means.
As urban landscapes continue to grow vertically, fire departments will increasingly rely on high-reaching aerial apparatus to meet new challenges. The height of a fire truck’s ladder is not just a number—it’s a testament to engineering, safety, and the critical need to save lives at any elevation.
