In the critical moments of a fire emergency, especially in multistory buildings, one of the most essential pieces of equipment that firefighters rely on is the fire truck ladder. Designed to reach high elevations quickly and provide safe access or egress, these ladders can be the difference between life and death. But exactly how many stories can a fire truck ladder go? The answer varies based on the type of ladder, the fire truck‘s configuration, and the specific model in question. On average, fire truck ladders can reach anywhere from 3 to 20 stories, and sometimes even more.
Understanding Fire Truck Ladder Types
To fully grasp the reach of fire truck ladders, it’s important to understand the different types of ladders used in firefighting operations:

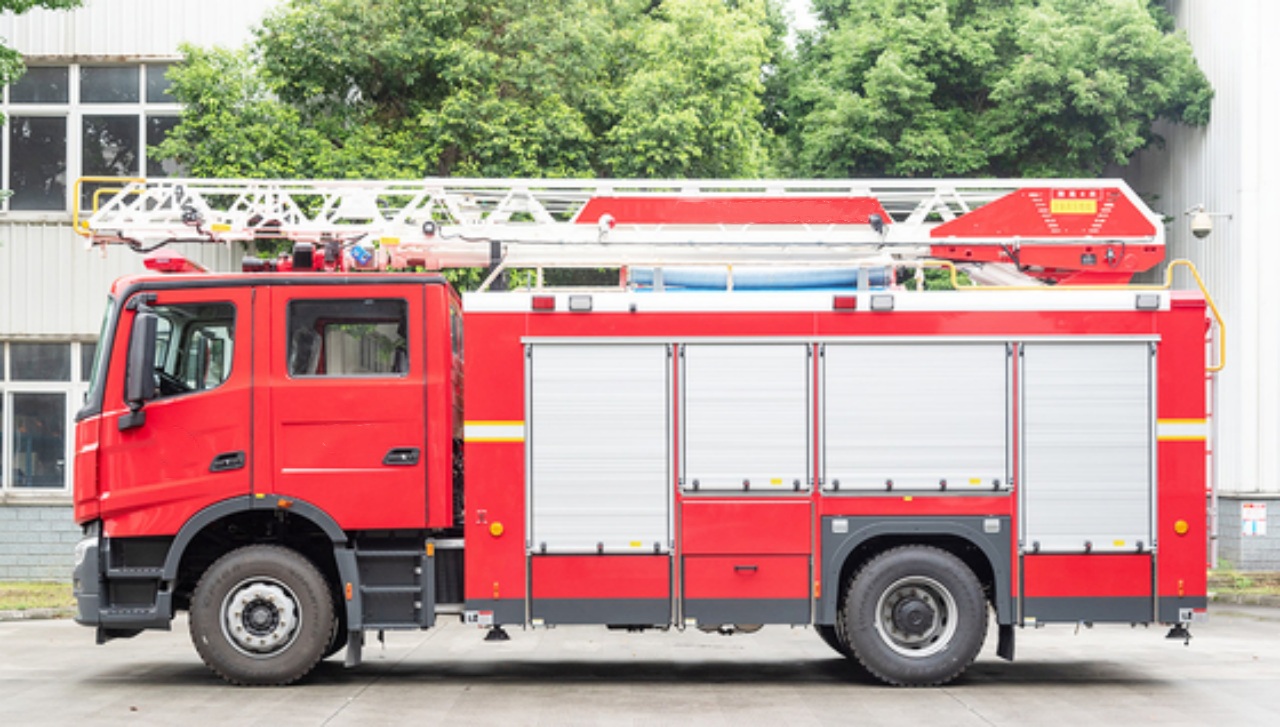

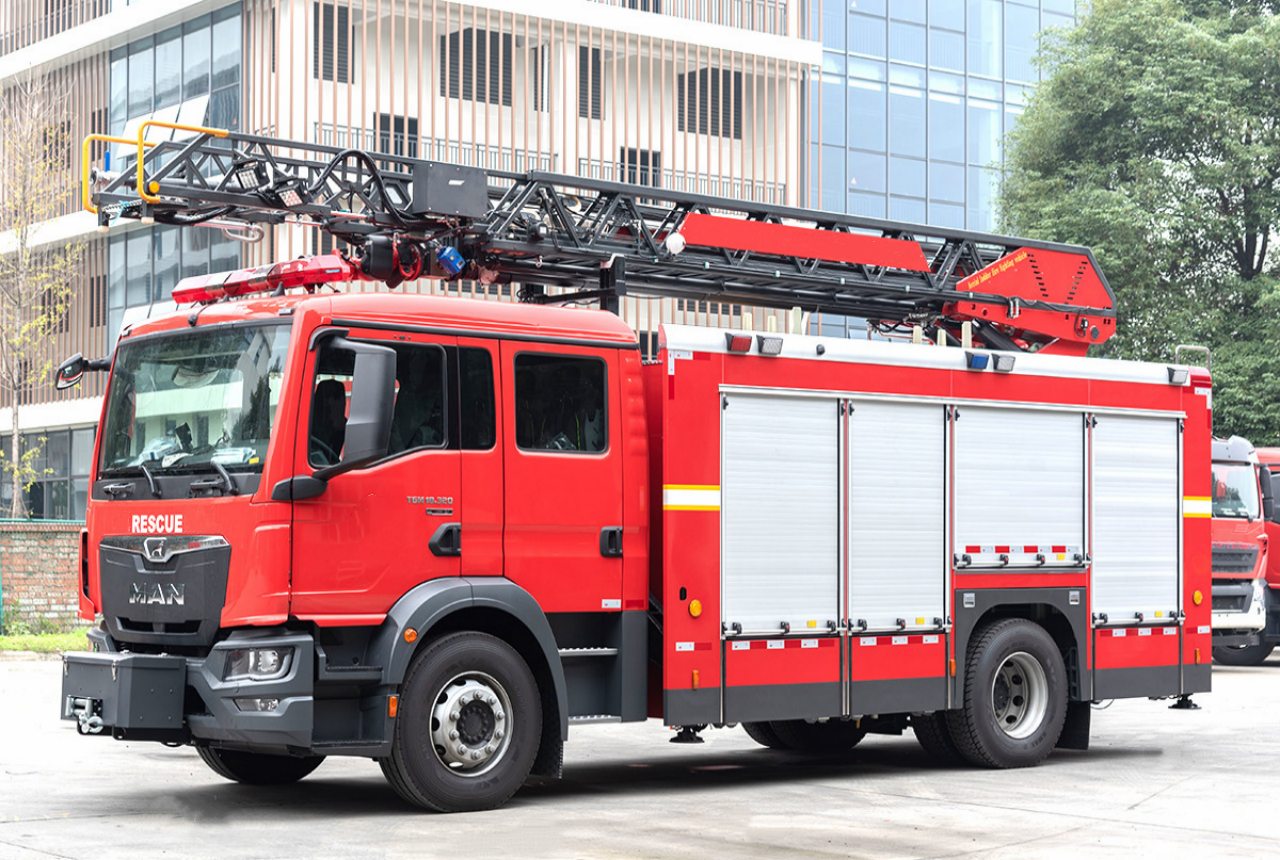

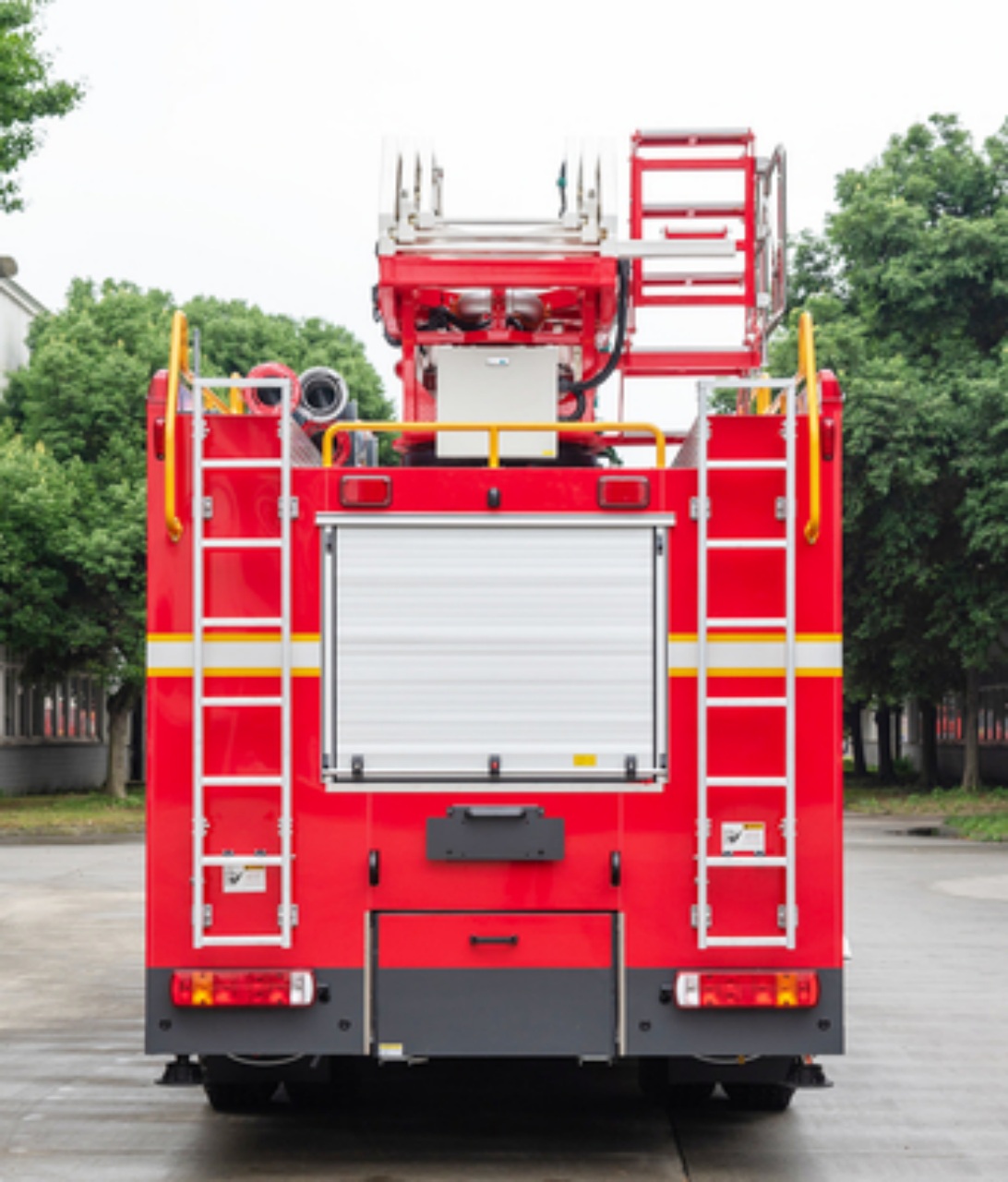

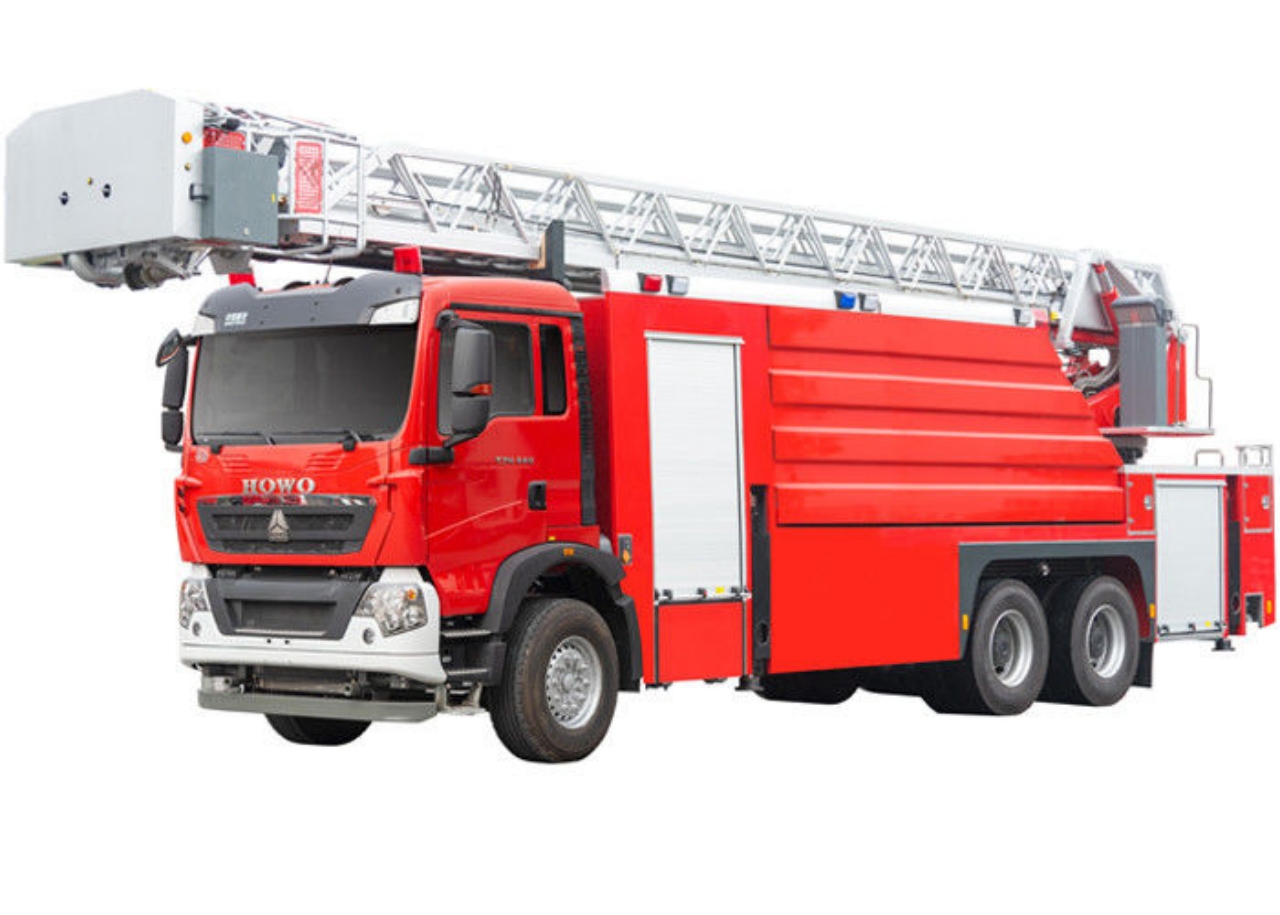

- Straight Aerial Ladders (Truck-Mounted)
These are rigid, extendable ladders mounted on turntable platforms atop the truck. They are hydraulically operated and often referred to as “aerials.” The most common length of these ladders is 100 feet (30 meters), although some models can extend to 135 feet (41 meters) or more. - Aerial Ladder Platforms (Tower Ladders)
These combine a ladder with a large, bucket-like platform at the top for transporting firefighters and victims. They generally reach between 85 and 100 feet. - Tiller Trucks (Tractor-Drawn Aerials)
These long vehicles have articulated steering and typically carry aerial ladders similar in height to straight aerials (up to 100–107 feet), but with enhanced maneuverability. - Quint Fire Trucks
A “quint” combines five functions: Pump, water tank, fire hose, ground ladders, and an aerial device. The aerial ladder on a quint typically ranges from 75 to 105 feet.
Converting Ladder Height to Building Stories
A standard building story measures about 10 feet (3 meters), although this can vary based on the building’s design (commercial floors are often taller). Using the 10-foot rule as a general guideline:
- A 75-foot ladder reaches roughly 7 to 8 stories
- A 100-foot ladder can reach 9 to 10 stories
- A 135-foot ladder can access 12 to 14 stories
Therefore, most conventional fire truck ladders are designed to access up to 10 stories comfortably. However, certain specialized apparatuses can reach even higher, often used in cities with a significant number of high-rise buildings.
Special High-Reach Aerial Ladders
To combat fires in tall buildings, manufacturers have developed specialized fire trucks with exceptionally long aerial ladders:
- Bronto Skylift F116 HLA – One of the tallest aerial platforms, this machine boasts a reach of 367 feet (112 meters), equivalent to 35 to 40 stories.
- Magirus M68L – With a working height of 223 feet (68 meters), this platform reaches approximately 20 to 22 stories.
- Metz L56 – A 184-foot (56-meter) ladder reaching 16 to 18 stories.
These ultra-high reach ladders are rare, expensive, and typically stationed in large metropolitan areas with many skyscrapers.
Factors That Affect Ladder Reach
While theoretical reach is important, the actual effectiveness of a fire truck ladder depends on multiple operational factors:
- Setback Distance
Fire trucks often can’t park directly next to a building due to obstacles, terrain, or safety zones. The more horizontal distance (setback) from the base of the building, the less vertical reach the ladder achieves. This geometry can reduce the number of accessible stories. - Building Access Points
The presence of balconies, rooftops, or setbacks can either help or hinder access. For example, buildings with tiered designs may require longer ladders despite not being taller. - Wind and Weather Conditions
Strong winds or icy surfaces can affect ladder stability and the safety of extending to full length. - Load Limitations
The maximum number of people or the equipment weight the ladder can support can also affect its usable height, especially when carrying multiple firefighters or rescuing victims.
Ladder Use in High-Rise Fires
Even with the most advanced aerial ladders, there are practical limits. Most firefighting strategies for high-rise buildings emphasize internal suppression using standpipes, stairwells, and interior tactics rather than relying solely on external ladders. This is especially true for buildings over 10 stories tall, where interior access is more reliable.
However, ladders still play a crucial role in:
- Rescuing individuals on lower to mid-level floors
- Ventilating smoke through upper windows
- Providing elevated water streams to upper stories
- Acting as observation or command posts
Comparing Global Standards
The reach capabilities of fire truck ladders also vary internationally:
- In Europe, ladder trucks often follow DIN standards, with common sizes being 30m, 45m, and higher for specialized units.
- In North America, the National Fire Protection Association (NFPA) outlines standards such as NFPA 1901 for aerial devices, often recommending a 100-foot ladder as a typical maximum for urban fire departments.
Developing countries or rural regions may use shorter ladders, often maxing out at 55 to 75 feet due to budget constraints or lack of demand for high-rise firefighting.
Conclusion: How Many Stories Can a Fire Truck Ladder Reach?
In summary, a standard fire truck ladder reaches between 7 to 10 stories, depending on the ladder’s length and the situation. Specialized apparatuses can stretch that limit up to 20, 30, or even 40 stories in some of the most advanced systems available today. However, external ladders are not the sole strategy for high-rise firefighting. They are one part of a comprehensive approach involving internal suppression systems, building codes, and tactical planning.
As urban environments grow taller and more complex, fire departments will continue to innovate and invest in aerial systems with greater reach, flexibility, and efficiency. Nonetheless, the core principle remains the same: Ensuring access, safety, and rapid response in any vertical challenge.
