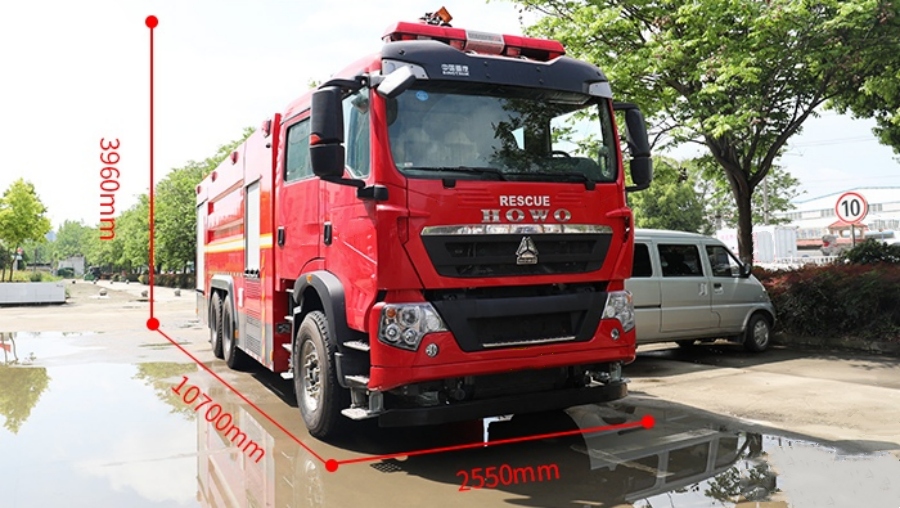

The overall Sinotruk HOWO EURO VI 32M aerial water tower fire truck length is 10.7 meters, width is 2.55 meters, and height is 3.96 meters. The fire truck features a bright fire-red body, which is very eye-catching—this is the standard color scheme for most fire trucks.

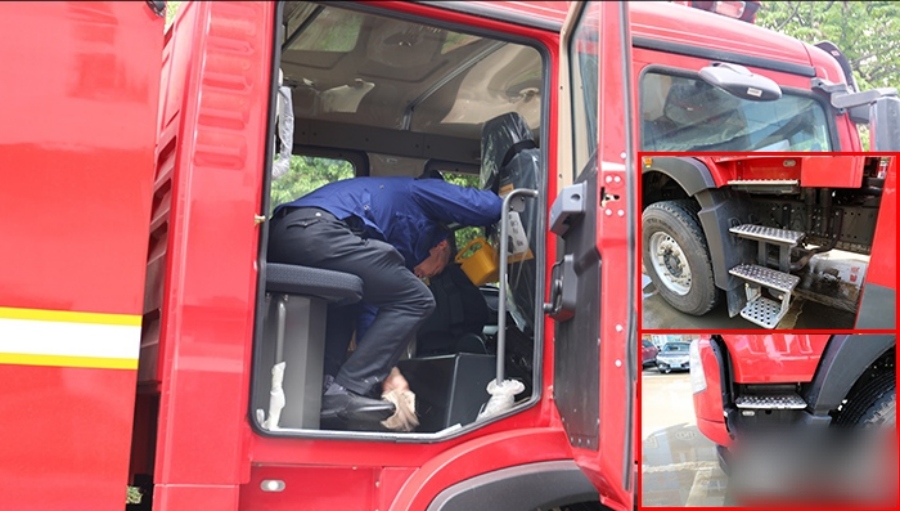

The cab is a SINOTRUK HOWO TX double-row cab, with a standard seating capacity of 2+4 persons. Both the front and rear cab doors are equipped with 4-layer hollow step boards. The hollow design provides anti-slip functionality while also preventing mud on shoes from being carried into the cab.

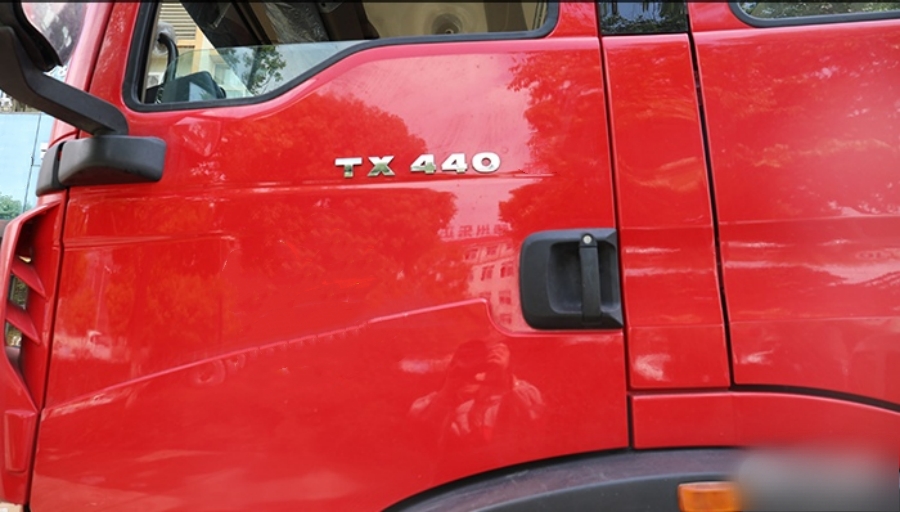

The chrome badge on the cab side reads “TX 440,” which indicates the model of the cab, the engine horsepower. From this information, we know the vehicle is equipped with an MC11.44-60 engine, delivering a maximum power output of 324 kW and a maximum torque of 2,100 N·m. The intake system is turbocharged with intercooling, which helps improve fuel efficiency.
The front axle tires are produced by Triangle Tire Company, model 385/65R22.5. A label on the front wheel arch shows the standard tire pressure as 900 kPa. The rear tandem axle also uses Triangle tires, but the model is 12.00R20, with a labeled standard tire pressure of 850 kPa. Fire trucks typically feature tire pressure labels for easy pressure checks during operation.

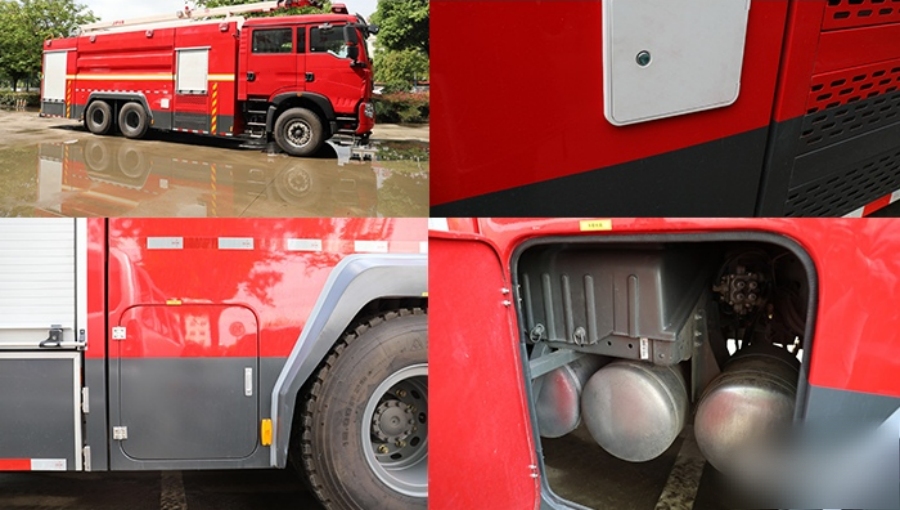

Due to the superstructure of the fire truck, most chassis components are hidden inside the body. However, essential elements like the fuel tank and battery, which require regular refueling or maintenance, have dedicated access panels—making servicing both safe and aesthetically pleasing.

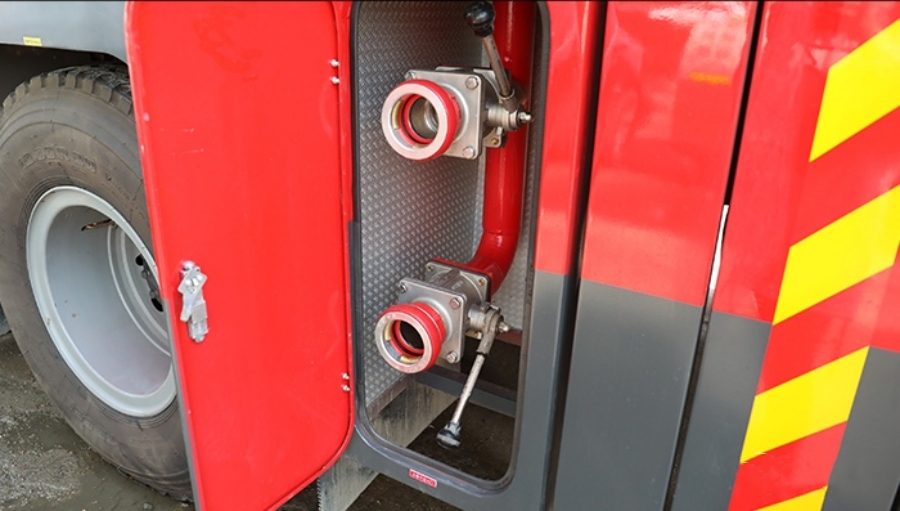

The external water-filling port is located on one side of the rear body compartment and features a concealed design. Opening the small door reveals 2 water inlet ball valves, which are used in conjunction with the truck’s onboard suction hoses.

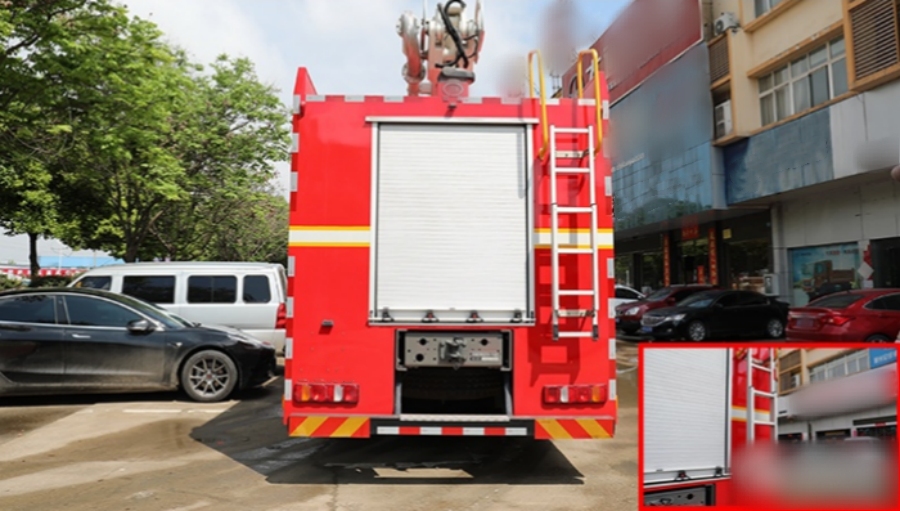

At the rear of the vehicle is a foldable safety ladder that assists firefighters in climbing up to inspect the fire equipment mounted on the roof. The ladder is made of high-quality materials, offering strong load-bearing capacity and excellent durability.

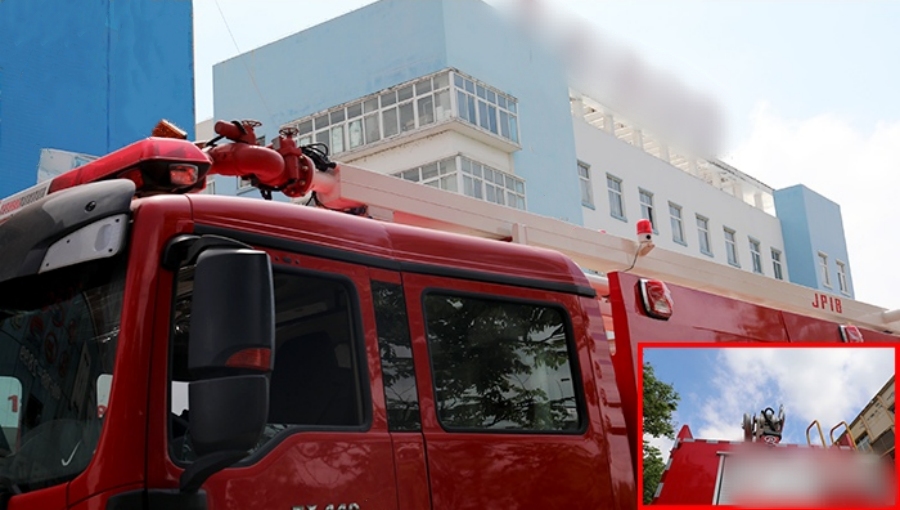

Mounted on top of the fire truck body is a foldable, telescopic, or modular boom arm with a turntable and firefighting jet system. This device can be lifted to a height of 18–32 meters, with a maximum working outreach of 9 meters, and a water jet range of 20 meters or more when fully elevated.
