In the world of firefighting and emergency response, speed, versatility, and the ability to reach otherwise inaccessible areas are essential. One of the most vital pieces of equipment enabling this is the aerial appliance. These specialized vehicles play a crucial role in modern fire services, particularly in urban environments with tall buildings or complex structures. But what exactly is an aerial appliance, and how does it work? This article explores the definition, types, uses, and key features of aerial appliances, offering a detailed understanding of their function in emergency response operations.
Definition of an Aerial Appliance
An aerial appliance is a type of firefighting vehicle that includes an extendable boom or ladder mechanism mounted on a truck chassis. These appliances are designed to provide firefighters with access to elevated areas, such as high-rise buildings, and to deliver water or personnel to hard-to-reach places during fire or rescue operations.
Unlike standard fire engines, aerial appliances are not solely focused on transporting water or pumping it through hoses. Instead, their primary utility lies in their height advantage and mechanical reach. Aerial appliances enable firefighters to conduct elevated rescues, ventilate roofs, direct water from above, and gain an overview of the scene from a high vantage point.
The Purpose of Aerial Appliances
The primary purposes of aerial appliances are:
- Rescue operations at height, especially when people are trapped on upper floors of buildings.
- Fire suppression from above – directing water or foam onto the fire from elevated positions.
- Ventilation and access – allowing firefighters to cut ventilation holes in roofs or access upper stories.
- Scene lighting and surveillance – some units are equipped with lights and cameras for nighttime or complex operations.
Their ability to reach heights between 15 to over 60 meters (50 to 200 feet), depending on the mode, makes them essential in urban fire services.
Types of Aerial Appliances
There are several different types of aerial appliances, each tailored to specific roles. The most common types include:

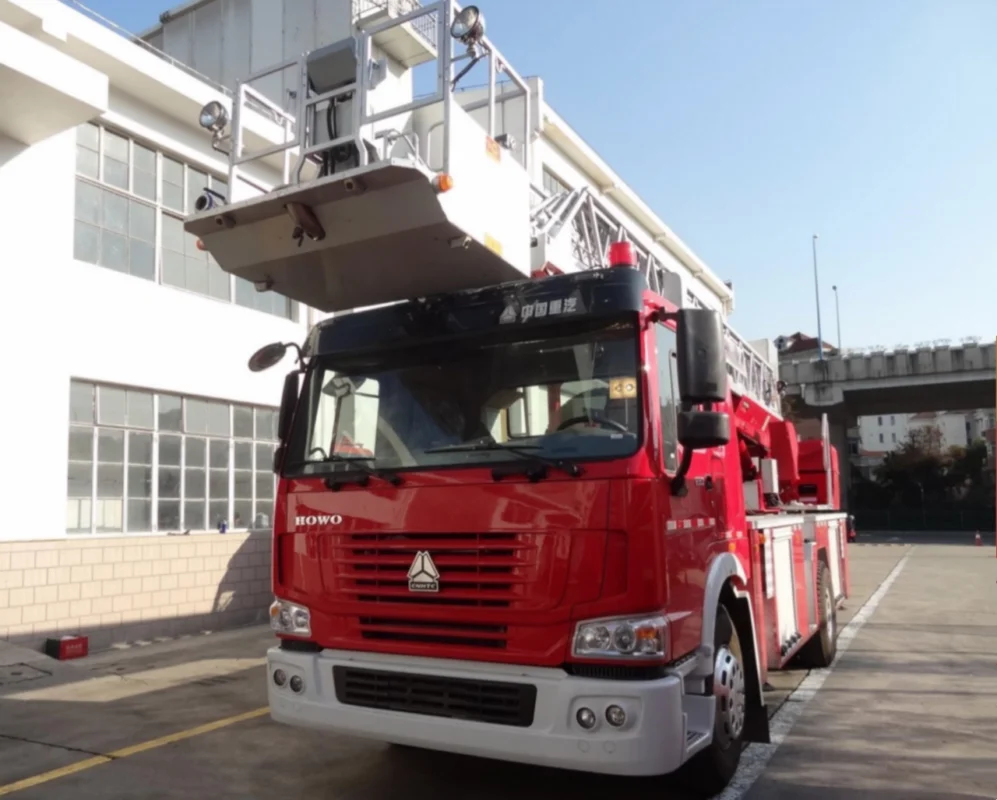

1. Aerial Ladder Platform (ALP)
An ALP consists of a hydraulic or mechanical ladder mounted on a turntable, often with a cage or basket at the top. The basket can carry firefighters and equipment to elevated positions safely. Modern ALPs have remote controls, water monitors, and sometimes even breathing apparatus systems installed in the basket.
Key features:
- Extendable ladder with cage
- Water monitor or nozzle at the tip
- Remote control capabilities
Common uses:
- Rescuing people from high-rise buildings
- Delivering water from an elevated position
- Roof access and ventilation

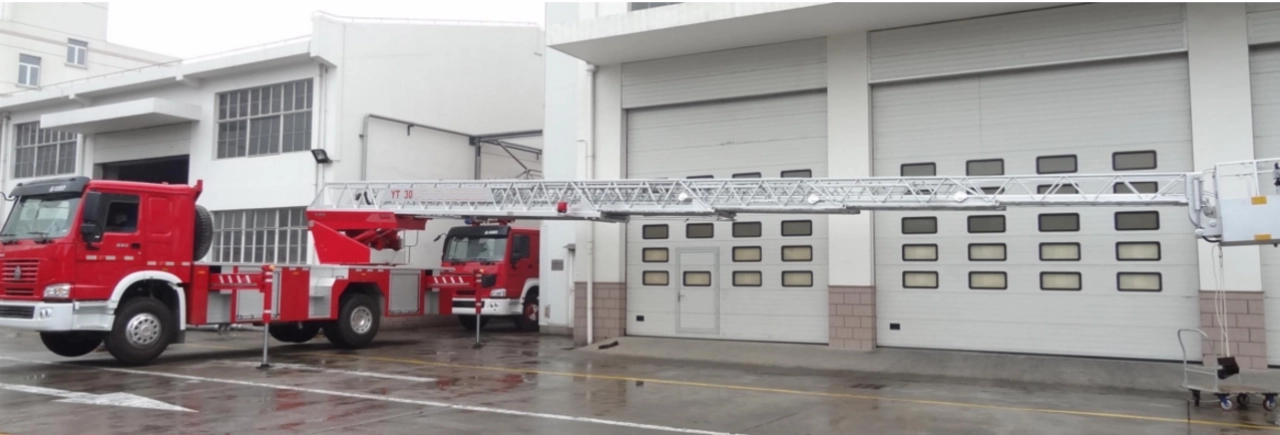

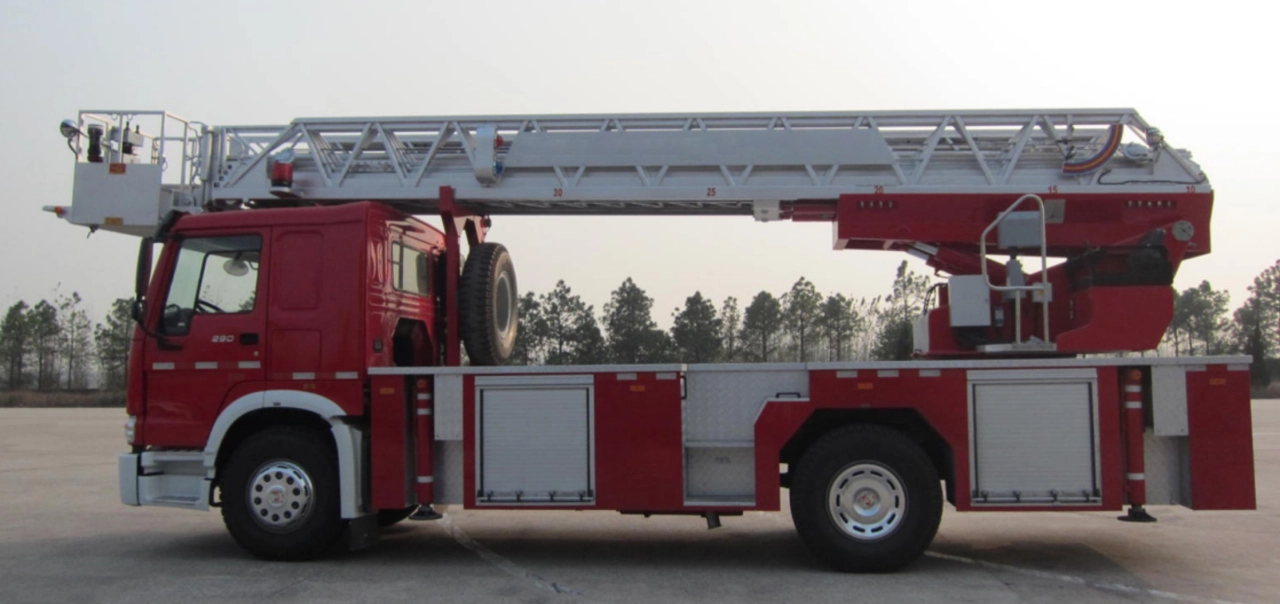

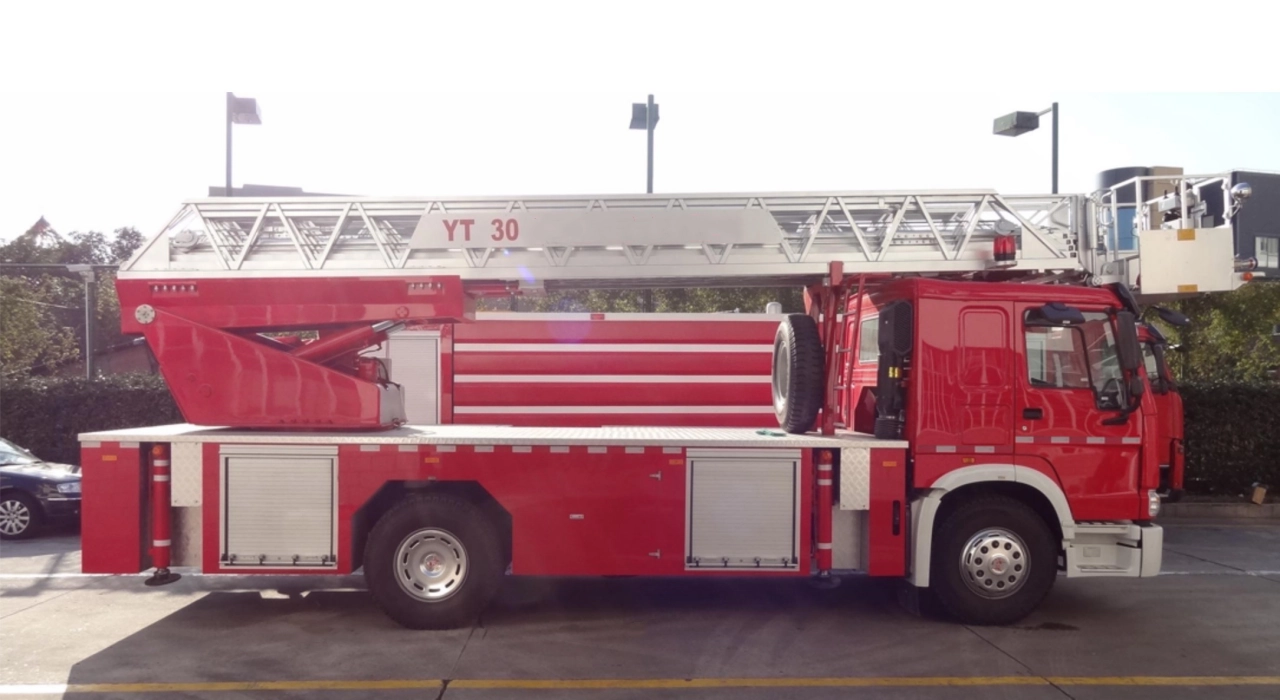

2. Turntable Ladder (TTL)
This is the traditional ladder truck. The ladder is mounted on a rotating platform (turntable), which allows it to be positioned in any direction. While it may lack a basket, it remains an essential tool for high-access work.
Key features:
- Long extendable ladder (often up to 30 meters or more)
- Can be used for direct climbing
- Typically lightweight and maneuverable
Common uses:
- Gaining access to upper stories
- Roof work and ventilation
- Backup escape routes for firefighters
3. Hydraulic Platform (HP)
Hydraulic platforms (often called “cherry pickers” in non-firefighting contexts) consist of a boom arm with a platform at the end. Unlike ladders, they offer smooth vertical and horizontal movement and are especially stable under load.
Key features:
- Stable, telescopic boom
- Large platform for tools and crew
- Excellent maneuverability
Common uses:
- Large-scale rescues
- Targeted water delivery
- Aerial observation
4. Quint
The name “Quint” comes from its 5 functions: Pump, water tank, fire hose, ground ladders, and aerial device. It combines features of both a fire engine and an aerial appliance. It’s ideal for smaller departments that need multifunctional vehicles.
Key features:
- Multi-role: both a fire engine and an aerial
- Compact for urban or suburban use
- Useful for initial attack and support
Common uses:
- First response in small communities
- Structure fires in mid-rise buildings
- Backup for ladder access
Operation and Crew
Aerial appliances are typically operated by trained fire personnel who specialize in aerial tactics. A standard aerial crew includes:
- Driver/operator: Responsible for positioning the vehicle and operating the boom or ladder.
- Aerial technician: Manages control of the platform or ladder and may operate nozzles or tools.
- Rescue personnel: Firefighters who perform actual rescue or firefighting tasks from an aerial position.
The vehicle must be stabilized using hydraulic outriggers before the boom or ladder is extended. Stability is crucial, especially when operating at maximum extension or carrying heavy loads.
Water Delivery Capabilities
Modern aerial appliances are often equipped with water monitors or deck guns mounted at the top of the ladder or platform. These allow water or foam to be directed onto fires from above. Some models can deliver over 1,000 liters per minute, depending on water pressure and pump capacity.
In many cases, water is supplied via hoses from a nearby fire engine or hydrant. Some aerials (especially Quints) include onboard water tanks and pumps, though these are usually smaller than those found on dedicated pumper trucks.
Safety Features
Safety is paramount in aerial operations, and most modern appliances are outfitted with features such as:
- Automatic leveling systems
- Load sensors to prevent overloading the ladder or platform
- Emergency descent systems
- Fall arrest harnesses for firefighters
- Thermal cameras and lighting for improved visibility at night or in smoke
Advanced models may also include onboard computers that monitor boom extension, angle, wind speed, and vehicle stability.
Use in Non-Fire Scenarios
While aerial appliances are best known for their role in firefighting, they are also used in other emergency and non-emergency situations:
- Rescues from cliffs or construction sites
- Assisting with high-angle rope rescue operations
- Lighting and observation during major public events
- Industrial facility inspections
Their flexibility and reach make them valuable tools in a wide variety of emergency service contexts.
Conclusion
An aerial appliance is much more than just a big ladder on a truck. It is a critical piece of equipment that provides firefighters and rescue teams with the ability to combat fires, conduct rescues, and manage emergency scenes from above. As urban areas become denser and buildings grow taller, the role of aerial appliances continues to expand. Their blend of height, mobility, and mechanical precision makes them an indispensable asset in modern firefighting and emergency management.
Whether battling a high-rise fire or rescuing someone from a precarious ledge, aerial appliances ensure that no place is out of reach for the brave men and women of the fire service.
