Aerial ladders are vital pieces of equipment used by fire departments and emergency response teams around the world. These extendable ladders, mounted on specialized trucks, provide essential access to high-rise buildings, rooftops, and other elevated locations during rescue operations and firefighting efforts. One of the most critical aspects of an aerial ladder’s operation is its angle of elevation—a factor that directly influences the ladder’s reach, stability, and operational safety. This article explores the concept of the aerial ladder angle, how it affects performance, the engineering principles behind it, and the best practices for its use in the field.
Understanding the Angle of the Aerial Ladder
The angle of an aerial ladder refers to the angle formed between the ladder and the horizontal plane (ground level) when it is deployed. It is commonly measured in degrees, ranging from 0° (completely horizontal) to 90° (completely vertical). This angle plays a crucial role in determining how far the ladder can reach horizontally (extension) and how high it can go vertically (elevation).
For example, a ladder deployed at a 70° angle will extend upward more than it will reach outwards, while a ladder at 45° balances vertical height and horizontal outreach. Firefighters and equipment operators must carefully choose the correct angle for the task at hand, factoring in building height, access points, obstacles, and safe operating practices.
Optimal Operating Angles
Aerial ladders are typically operated within a recommended angle range to ensure safety and effectiveness. Most manufacturers design aerial ladders to function optimally within an angle of 70° to 75°. This range provides a good compromise between vertical height and stability, which is particularly important when dealing with the significant weight of the ladder and any personnel or equipment it supports.

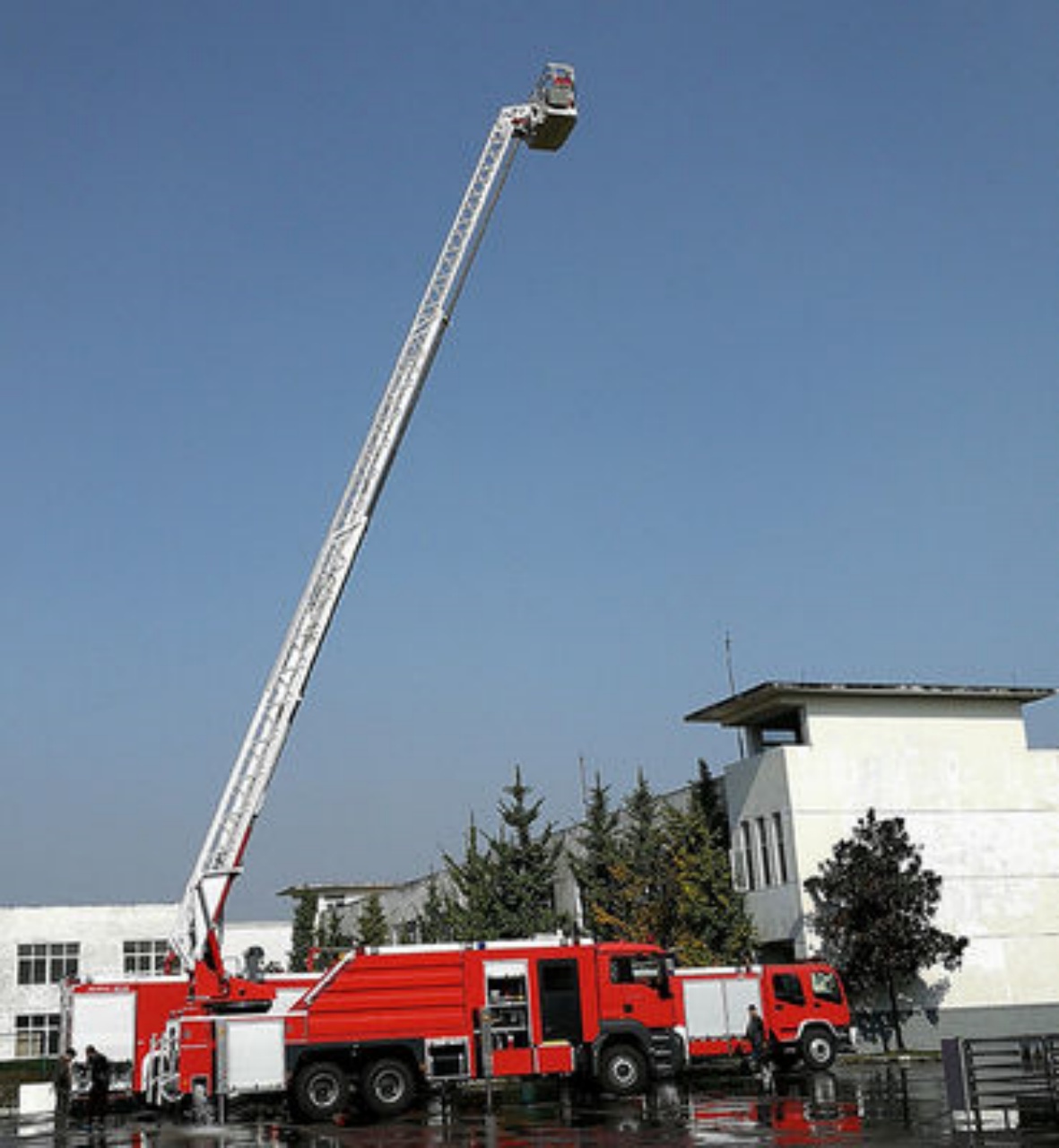

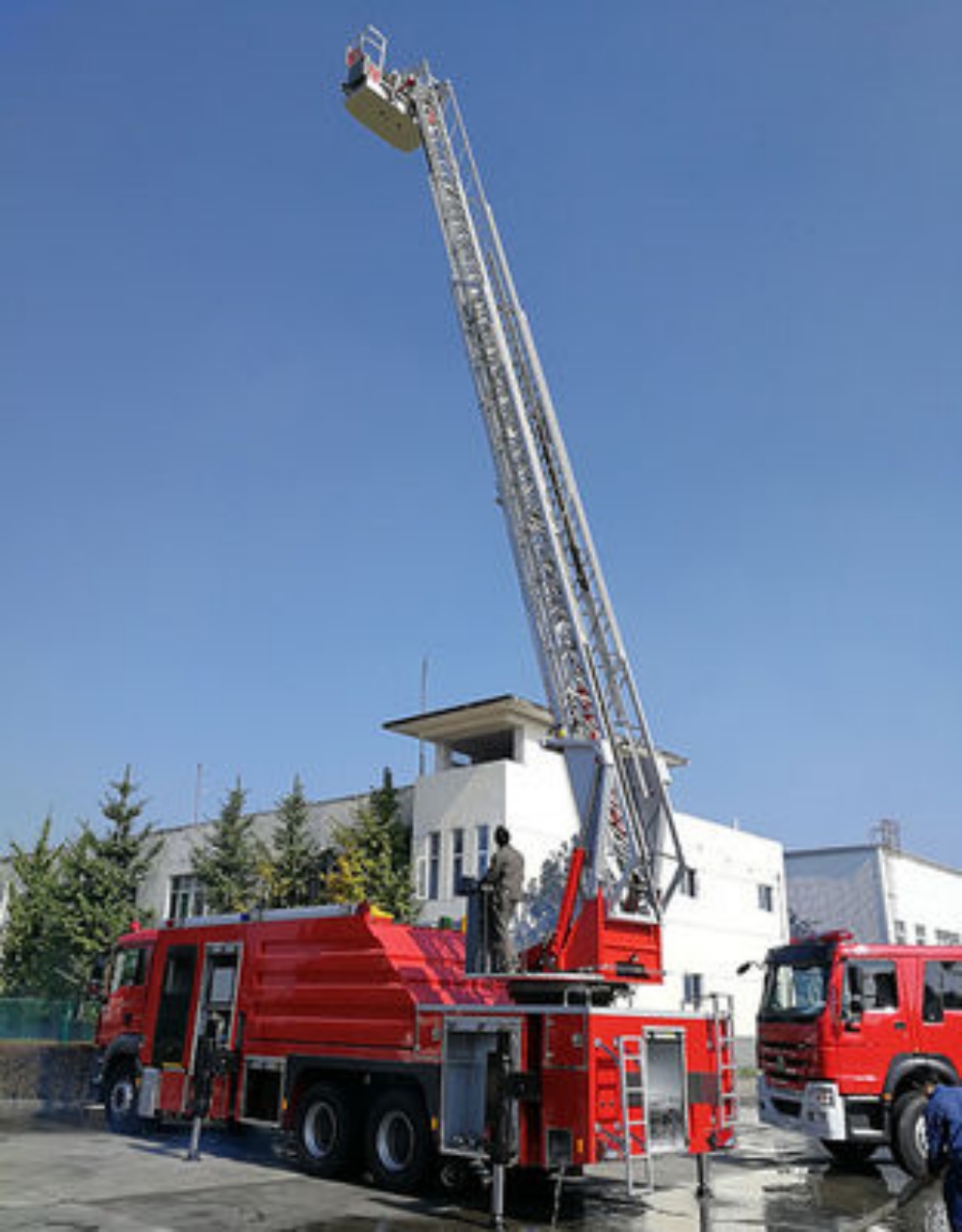

- At 75°: This steep angle maximizes vertical height, which is ideal for high-rise rescues or rooftop firefighting.
- At 60°–70°: This more moderate angle is commonly used for window rescues or for directing water streams at upper floors.
- Below 60°: Operating at shallower angles increases horizontal reach but reduces vertical height and may compromise stability, requiring additional stabilization methods.
These angles are not arbitrarily chosen—they are the result of extensive engineering, field testing, and adherence to safety standards set by organizations like the National Fire Protection Association (NFPA).
Engineering and Design Considerations
The mechanical design of aerial ladders is based on a combination of hydraulics, counterbalance systems, structural integrity, and load distribution. The angle of elevation plays a critical role in how these factors interact:
- Load Distribution: As the ladder angle decreases, the amount of horizontal stress on the ladder and its support system increases. This places more pressure on the turntable and stabilizers, which are engineered to handle specific stress loads.
- Center of Gravity: A higher angle raises the center of gravity, which can improve stability in many cases, especially if the ladder is extended vertically without heavy horizontal outreach.
- Hydraulic Pressure: The ladder is lifted and held in position using hydraulic rams. These rams must be strong enough to support the ladder at its maximum angle and fully extended length, often up to 100 feet or more.
- Wind and Environmental Conditions: As the angle changes, the ladder becomes more susceptible to crosswinds, especially when extended horizontally. Engineers design ladder sections to resist bending and swaying under these conditions.
Safety Standards and Guidelines
Safety is paramount when operating aerial ladders, especially concerning angle selection. Various guidelines exist to ensure safe usage:
- NFPA 1901 provides performance requirements for automotive fire apparatus, including aerial devices. It mandates that ladders must support specific loads at given angles and extensions.
- Operator training manuals often emphasize maintaining a minimum safe operating angle, generally not less than 70° unless under specific controlled conditions.

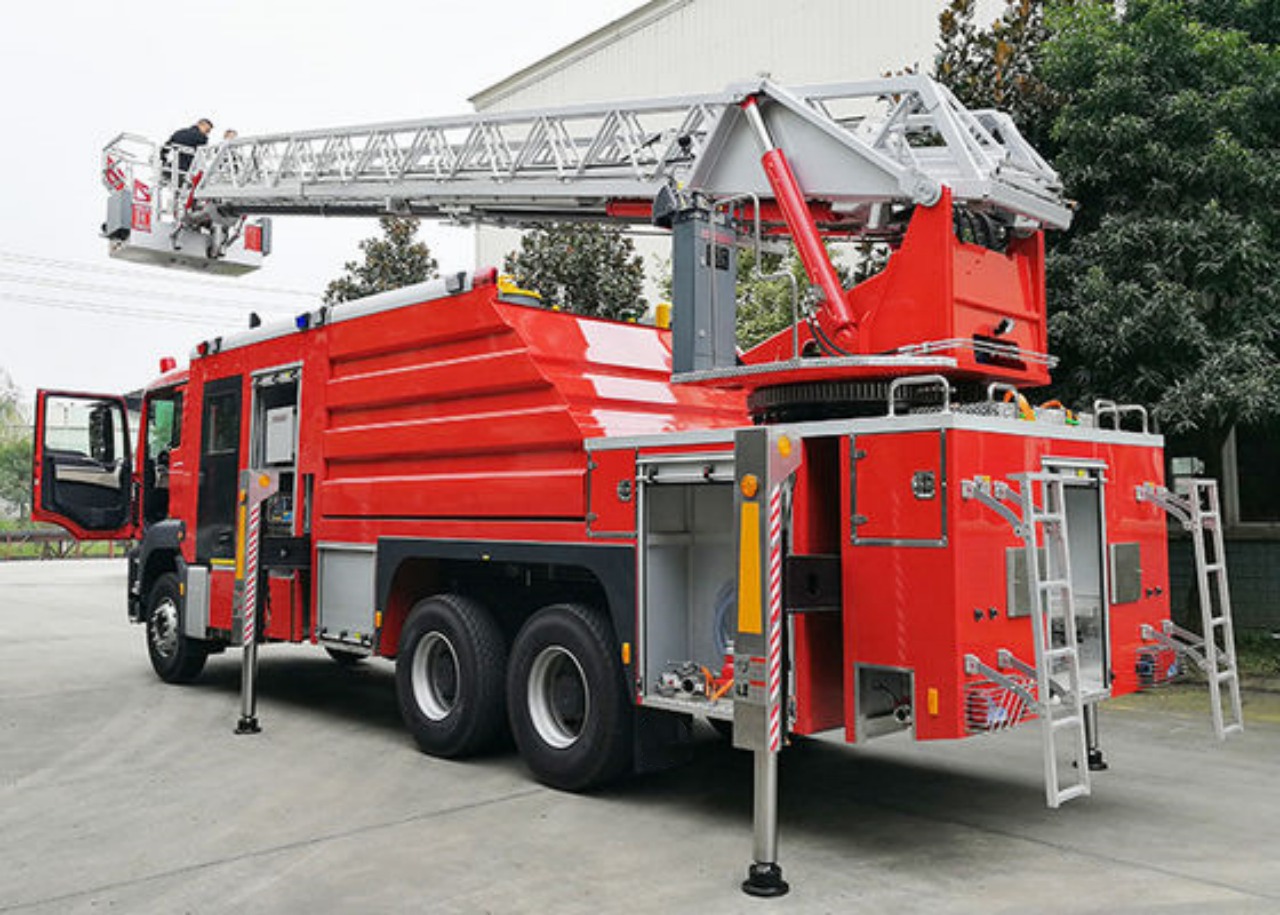

- Outriggers and stabilizers must be fully deployed and level before any ladder is raised, especially at low angles, to prevent tipping or collapse.
Many modern fire trucks are equipped with angle sensors and automatic leveling systems to aid in safe ladder deployment. These systems can alert the operator if the angle falls outside safe operational parameters.
Practical Applications of Ladder Angles
Understanding and adjusting the aerial ladder angle is crucial during real-world emergency scenarios. Some examples include:
- Rescue Operations: When rescuing victims from high-rise windows or balconies, a steep angle (70°–75°) helps position the ladder close to the building while minimizing sway.
- Fire Suppression: When attacking a fire with a hose line from the ladder, angles between 60°–70° provide a good balance between height and distance, allowing crews to direct water into upper-story windows or rooftops.
- Ventilation: For rooftop access to ventilate a structure, ladders may be set at higher angles to facilitate firefighter movement and tool transport.
- Aerial Surveillance or Lighting: In some cases, ladders are used to elevate cameras or lights for scene monitoring. In these cases, a wider range of angles may be acceptable.
Training and Operator Skill
Successfully and safely operating an aerial ladder requires thorough training and familiarity with the equipment’s limitations. Operators learn to:
- Evaluate the terrain and truck positioning before deploying the ladder.
- Calculate the best ladder angle for specific operations.
- Use angle indicators and load charts provided by manufacturers.
- Adjust angles dynamically based on ongoing conditions.
Tactical decisions regarding ladder angle are also influenced by crew size, wind speed, building layout, and access obstacles such as power lines or trees.
Technological Advancements
Modern aerial ladder systems have seen significant advancements in recent years, particularly in automation and digital monitoring. Features that improve angle management include:
- Digital angle indicators
- Real-time load monitoring
- Stabilizer interlocks
- Remote-controlled ladder positioning
Some systems automatically calculate the safest angle and extension based on input from onboard sensors, enhancing operational safety and efficiency.
Conclusion
The angle of an aerial ladder is a fundamental aspect of its operation. It influences everything from reach and height to stability and safety. Understanding how this angle works—and how to manage it effectively—is essential for firefighters, emergency responders, and apparatus operators. Whether rescuing individuals from upper floors or dousing flames from above, the proper ladder angle ensures that the task is safely and effectively performed. With the right training, tools, and respect for engineering limits, operators can harness the full potential of these remarkable machines.
