When it comes to firefighting, rescue operations, and handling emergencies at heights, the terms “tower truck” and “ladder truck” often come up. These 2 types of specialized vehicles are critical in saving lives and property, but they are not the same. Though they share some similarities, the differences between a tower truck and a ladder truck are important to understand, especially for fire departments deciding which vehicle best suits their needs.
In this article, we will explore what a tower truck and a ladder truck are, examine their key features, and outline the differences between the 2. Whether you’re a firefighter, a fire apparatus enthusiast, or simply curious about emergency vehicles, this guide will help clarify the distinctions.
Understanding the Basics
Both tower trucks and ladder trucks are types of aerial apparatus used by fire departments. Their primary function is to provide access to elevated locations, deliver water streams at height, and support rescue operations. However, they achieve these tasks in slightly different ways based on their design.

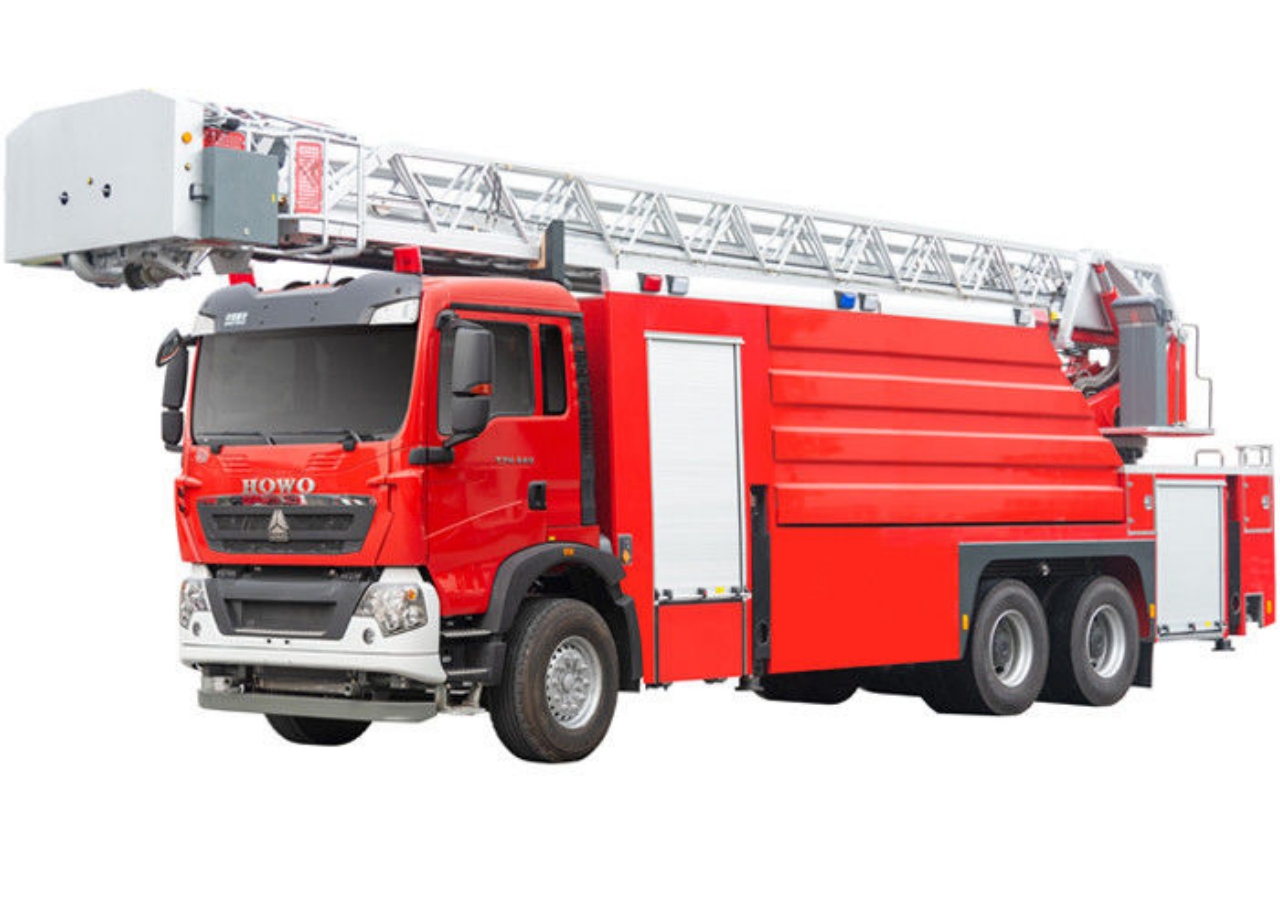

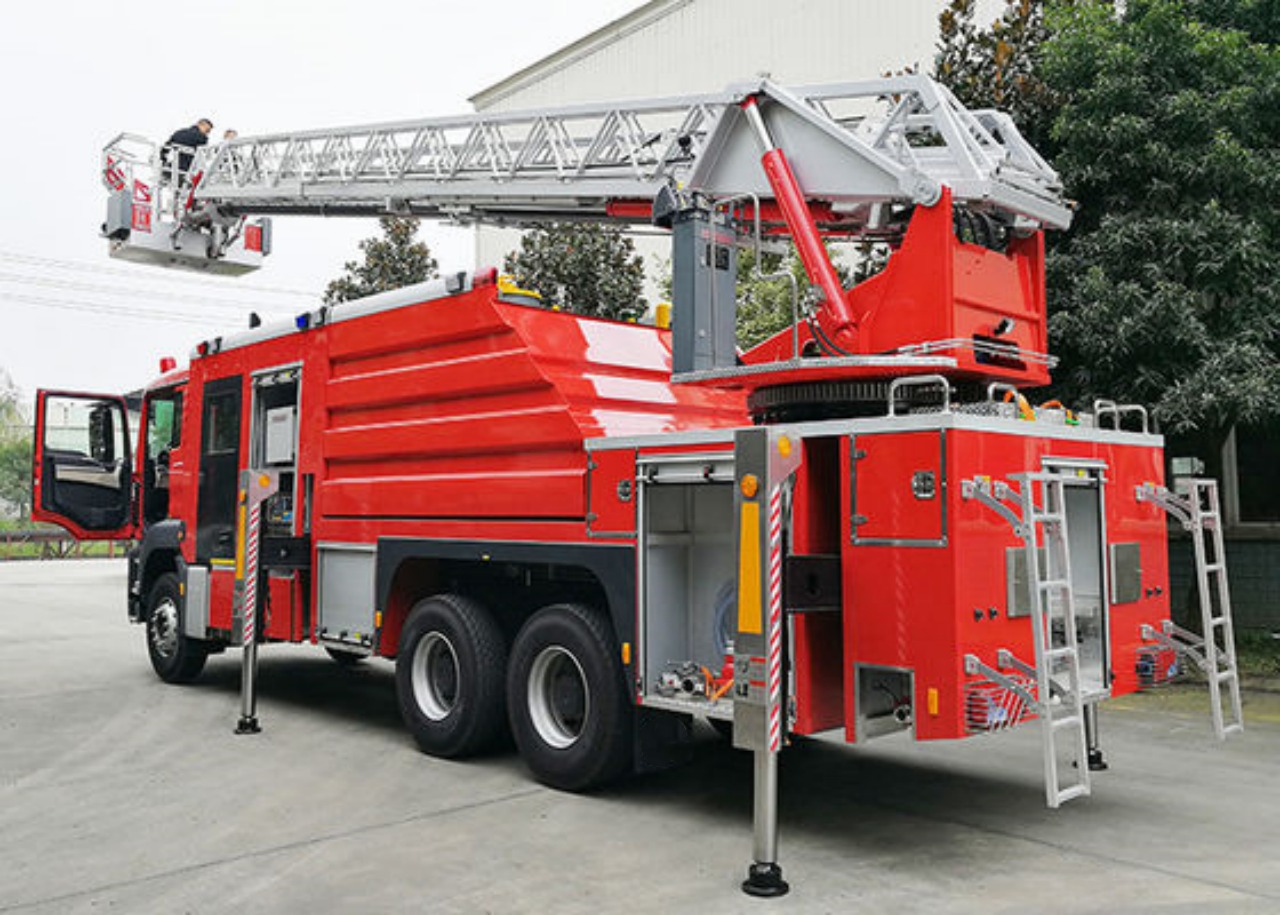

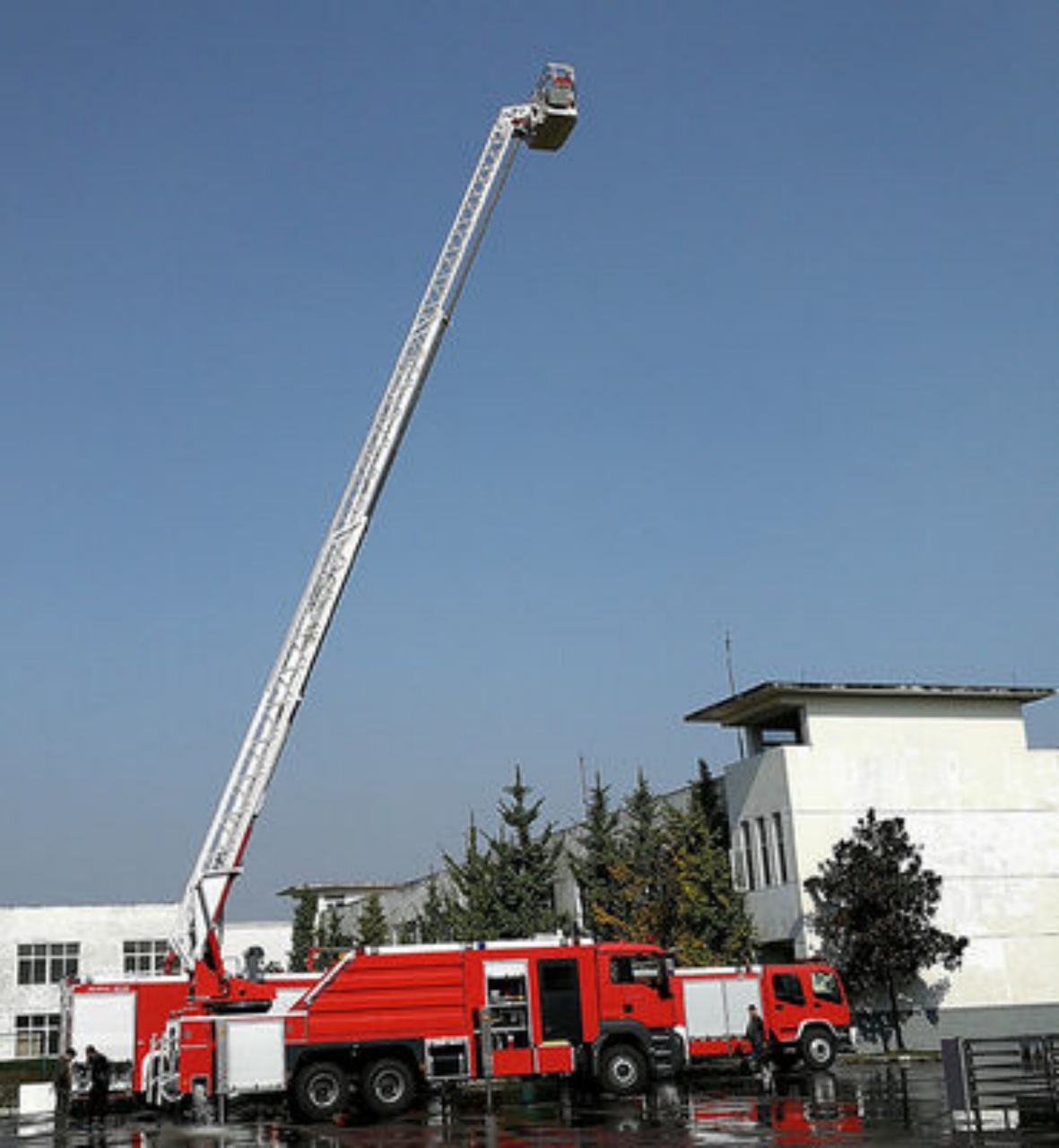

What is a Ladder Truck?
A ladder truck, also known as an aerial ladder truck, is equipped with a long, extendable ladder mounted on a rotating turntable. This ladder can reach significant heights—sometimes 100 feet or more—and is typically straight with sections that telescope out. Ladder trucks are primarily designed to give firefighters access to high places like upper floors of buildings, rooftops, and windows for ventilation or rescue purposes.
Ladder trucks may or may not carry water. Some are equipped with a pre-piped waterway and a nozzle at the tip of the ladder (called a “quint” if it combines pumping, water tank, fire hose, ground ladders, and an aerial device). However, traditional ladder trucks are more focused on access and rescue than on firefighting directly.
Key features of a ladder truck include:
A long, straight aerial ladder.
Rotating turntable for 360-degree ladder movement.
Outriggers for vehicle stabilization during ladder use.
Limited to no onboard water pump or tank (depending on the model).
Ground ladders are stored on the truck for additional access.

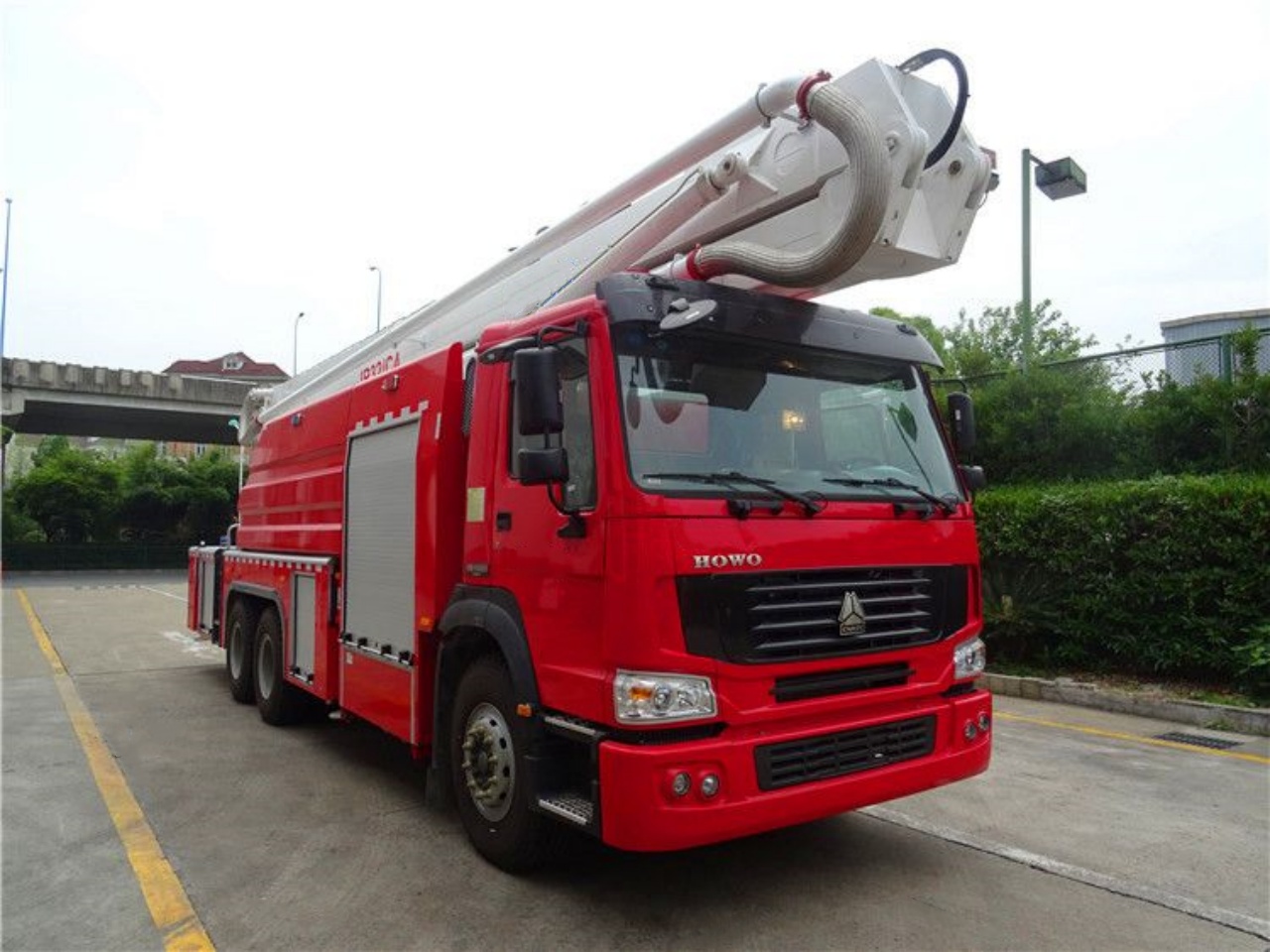

What is a Tower Truck?
A tower truck, often called a tower ladder, is a specific type of aerial device that features a large, enclosed or open bucket (platform) at the end of the extendable boom. This platform allows firefighters to work safely and comfortably at height. Tower trucks typically have a wider working area and more versatility when operating at or near buildings.
Tower ladders are usually equipped with pre-piped waterways and can deliver heavy water streams directly from the platform. The platform often holds multiple firefighters and their equipment, offering a stable base for extended operations.
Key features of a tower truck include:
A platform (bucket) at the end of the boom.
Telescopic, articulated, or combined boom designs.
Integrated waterway with powerful nozzles.
360-degree rotation and extended side-to-side reach.
Heavy-duty stabilizers to handle the weight and forces involved.
Key Differences Between Tower Trucks and Ladder Trucks
While both vehicles are essential tools for emergency services, their differences shape how they are used in various situations.
1. Access Method
Ladder Truck: Firefighters climb the ladder to reach high locations. Climbing may require significant physical effort, and operations can be limited by weather conditions (e.g., slippery ladders).
Tower Truck: Firefighters ride inside the bucket to the target height. This offers a safer, more comfortable means of access, especially when carrying equipment or rescuing victims.
2. Fire Attack Capabilities
Ladder Truck: Water delivery is less emphasized unless the truck is a quint. Many ladder trucks prioritize access and ventilation over direct fire attack.
Tower Truck: Designed for aggressive firefighting, tower trucks often feature high-capacity nozzles mounted on the platform for water or foam streams. This allows for a powerful fire attack from a safe distance.
3. Rescue Operations
Ladder Truck: Rescues require climbing the ladder with or without victims. In some cases, this can be risky, especially for the injured or immobile.
Tower Truck: Rescues are made easier by loading victims into the bucket and lowering them gently to the ground.
4. Reach and Flexibility
Ladder Truck: Offers significant vertical reach but can be limited horizontally unless repositioned.
Tower Truck: Platforms can often maneuver better side-to-side, covering a broader operational footprint without moving the vehicle.
5. Size and Weight
Ladder Truck: Generally lighter and quicker to deploy. They are better suited for narrow urban streets and tight spaces.
Tower Truck: Heavier due to the platform, water system, and boom structure. They require stronger roadways and larger areas for stabilization.
6. Cost
Ladder Truck: Typically less expensive than tower trucks. The simpler design and lighter construction reduce initial and maintenance costs.
Tower Truck: More expensive due to the complex boom system, platform, and integrated water delivery capabilities.
When to Choose One Over the Other
The decision between a ladder truck and a tower truck often depends on the specific needs of a fire department or the common types of emergencies in a given area.
Urban Fire Departments: Departments in cities with many high-rise buildings may favor tower trucks because of their rescue capabilities and powerful water streams.
Suburban or Rural Fire Departments: These may prefer ladder trucks because they are faster, lighter, and easier to deploy in mixed environments with smaller buildings.
Budget Constraints: Departments with limited budgets might lean toward ladder trucks because they are less costly to purchase and maintain.
Specialized Needs: If frequent high-angle rescues, large-scale fires, or extended aerial operations are expected, the additional capabilities of a tower truck may be invaluable.
Conclusion
Both tower trucks and ladder trucks are vital parts of modern firefighting and rescue operations. While they might appear similar at first glance, understanding the differences can greatly impact a department’s effectiveness and efficiency.
Ladder trucks offer quick, straightforward access to height and are excellent for ventilation and search operations. Tower trucks, with their platforms and integrated water streams, provide a safer and more versatile option for large-scale firefighting and complex rescues.
Each type has its place in emergency services, and often, fire departments will operate both to ensure they are prepared for any situation that comes their way. As technology continues to advance, we can expect to see even more hybrid designs combining the strengths of both, but the fundamental differences will likely remain.
