When planning city streets, driveways, parking lots, and other access routes, the turning radius of emergency vehicles becomes a critical consideration, especially for fire trucks. These large, complex vehicles need sufficient space to maneuver safely and efficiently during emergencies. So, what is the minimum turning radius for a fire truck? This question has practical implications for urban design, emergency response planning, and public safety. In this article, we’ll explore the concept of turning radius, the different types of fire trucks and their specific requirements, and how the minimum radius is determined and applied in real-world scenarios.
Understanding Turning Radius
The turning radius (also called the turning circle) of a vehicle refers to the smallest circular turn that the vehicle can make. It’s measured from the center of the turning circle to the outer edge of the vehicle’s path. For large vehicles like fire trucks, the turning radius is typically larger than that of passenger cars due to their extended length and wheelbase.
There are 2 common measures of turning radius:
Curb-to-curb radius: The smallest turn a vehicle can make without its wheels jumping the curb, assuming no obstacles outside the curb line.
Wall-to-wall radius: A more conservative estimate that includes necessary clearance to prevent overhang or body components from hitting adjacent objects like walls or posts.
Why Fire Truck Turning Radius Matters
Fire trucks are not just large—they’re often long, wide, and carry heavy equipment. Their maneuverability directly affects their ability to access tight alleys, cul-de-sacs, residential neighborhoods, and commercial areas during emergencies.
If a fire truck cannot navigate a turn, reach a building entrance, or turn around in a confined space, the delay could result in greater damage to property or loss of life. That’s why local building codes, fire safety regulations, and road design standards often specify minimum requirements for fire apparatus access, including road width, turning radii, and clearance.
Types of Fire Trucks and Their Turning Radius
The turning radius varies significantly depending on the type and configuration of the fire truck. Below are some common types of fire apparatus and their typical turning radii:

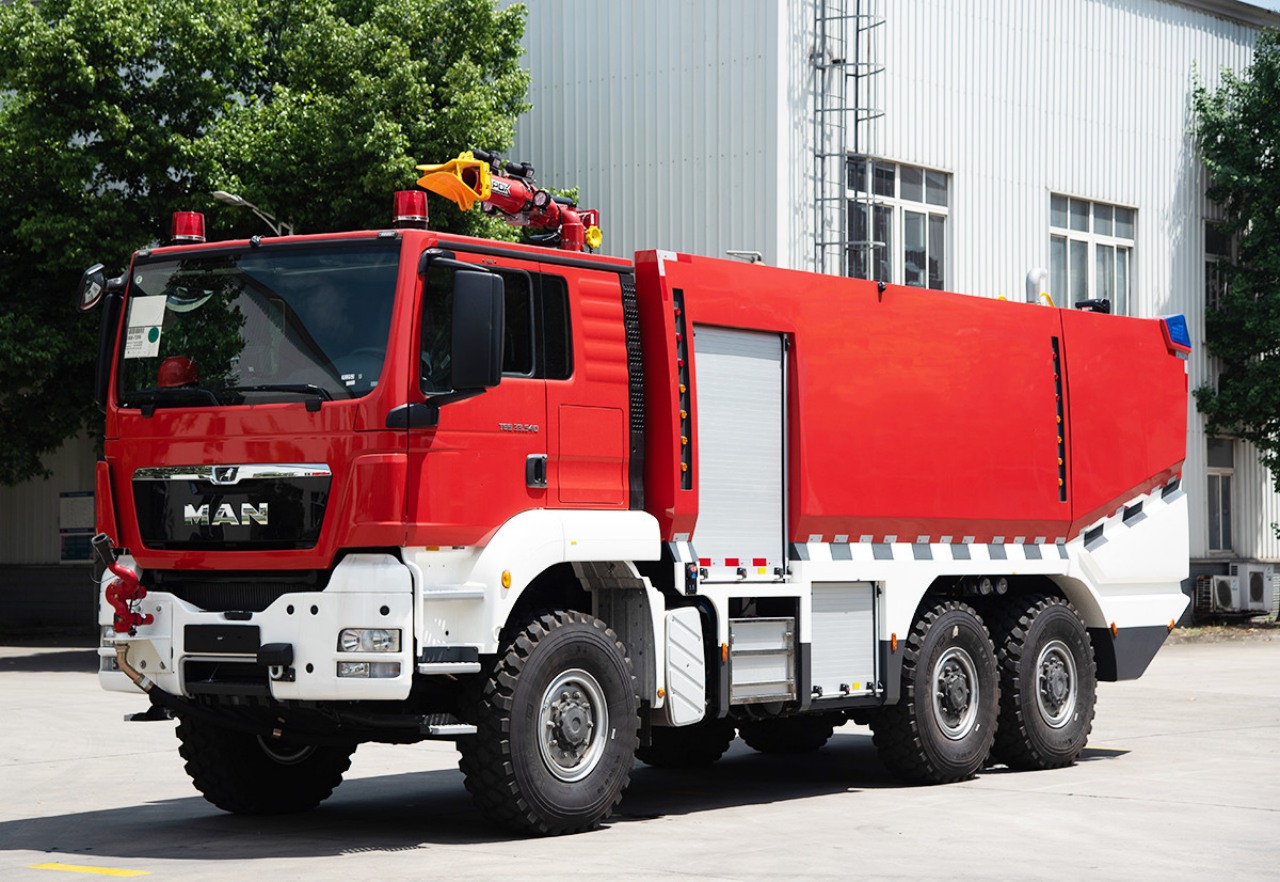

Larger than municipal apparatus, these are built for rapid response in open-air fields.
NFPA Standards and Design Guidelines
The National Fire Protection Association (NFPA) provides guidelines for fire apparatus design in its NFPA 1901 standard. While the NFPA doesn’t dictate an absolute minimum turning radius, it does specify performance requirements and recommends that manufacturers design vehicles with turning performance suitable for urban and rural deployments.
Similarly, urban planners and architects refer to the International Fire Code (IFC) and local fire department regulations to ensure roadways and access points are designed to accommodate emergency vehicles. For example:
IFC 503 recommends a minimum turning radius of at least 28 feet (8.5 m) for fire access roads.
Some jurisdictions increase this to 35–50 feet (10.7–15.2 m) for larger apparatus like ladder trucks.
Fire Truck Turning Templates and Modeling
To determine whether a fire truck can safely make a turn in a given space, engineers and architects use vehicle swept path analysis. This involves modeling the path a truck takes, including the space occupied by both its front and rear overhangs during a turn.
CAD-based tools such as AutoTURN or Swept Path Analysis (SPA) in Civil 3D allow precise simulation of a fire truck’s path through curves, cul-de-sacs, parking lots, or driveways. These tools incorporate data such as:
Vehicle wheelbase and axle spacing
Steering angle and lock-to-lock time
Overhang dimensions and swing-out effects
Required clearance envelopes
By inputting specifications of a specific fire truck model, planners can assess whether access roads and driveways meet clearance requirements.
Real-World Examples
Let’s consider a couple of case studies that highlight the importance of turning radius:
1. Urban Development in Narrow Streets
In cities with historic or densely packed neighborhoods, such as Boston or San Francisco, access for large ladder trucks can be problematic. Municipalities often opt for smaller aerials with tighter turning radii or require rear-steer tiller trucks.
2. Suburban Cul-de-sac Design
Many suburban neighborhoods feature circular cul-de-sacs. If the radius is too tight, fire trucks may have to back in or out, increasing response time and risk. A minimum outside turning radius of 45 feet (13.7 m) is often recommended for such designs.
Challenges and Solutions
As cities grow denser and parking becomes more constrained, ensuring adequate turning space for emergency vehicles becomes harder. Here are a few solutions:
Tiller Trucks: These long ladder trucks have a separate rear driver, allowing extremely tight turns despite lengths over 60 feet.
Compact Apparatus: Some fire departments invest in smaller, highly maneuverable fire engines or multi-purpose response units for urban environments.
Shared Access Plans: In multi-family or commercial developments, emergency access may be shared with service roads or parking lots, provided turning radius requirements are met.
Conclusion
The minimum turning radius for a fire truck depends on the type of vehicle, its design, and the operational context. While smaller fire engines may need as little as 28 feet, larger aerial apparatus can require turning radii exceeding 50 feet. Understanding these requirements is essential for urban planning, roadway design, and emergency preparedness.
By adhering to local and national guidelines, using modern modeling tools, and working in collaboration with fire departments, communities can ensure that fire trucks can reach any location promptly and safely, ultimately saving lives and protecting property.
