What is the Most Common Size of an Aerial Ladder?

isuzu 54m aerial ladder fire truck

Aerial ladder trucks are among the most iconic and essential tools in the fire service, instantly recognizable by their towering ladders extending into the sky during emergency operations. These ladders allow firefighters to access high-rise buildings, perform rescues, and apply water streams from elevated positions. Among the many questions asked about these specialized apparatuses, one of the most frequent is: What is the most common size of an aerial ladder?

To fully understand the answer, we need to delve into the world of fire truck design, the operational demands of modern firefighting, and the standards that guide aerial ladder lengths.


Understanding Aerial Ladder Fire Trucks

Aerial ladder trucks—often simply called “aerials”—are designed with extendable ladders mounted on a rotating turntable. These ladders can reach significant heights, allowing access to upper floors and rooftops, especially in urban and commercial areas. Many aerials also feature water delivery systems, known as ladder pipes or monitors, to direct powerful streams from above.

There are generally 2 main types of aerial ladder configurations:

  1. Straight aerial ladders: Basic ladders with no platform at the tip.
  2. Aerial platforms (tower ladders): Equipped with a basket or platform at the tip for safer access and greater versatility.

22M Aerial Ladder Fire Engine

Common Sizes of Aerial Ladders

While aerial ladders come in a variety of lengths, the most common size falls in the 100-foot (30-meter) range. This has become something of a “standard” size for many fire departments across the United States and other developed nations. Here’s a closer look at how aerial ladder sizes are categorized:

Standard Size Range

  • 75 feet (23 meters): Often referred to as the “medium” aerial. These are typically used in smaller communities or areas with lower building heights.
  • 100 feet (30 meters): The most commonly used and most requested size by fire departments. It strikes a balance between reach, maneuverability, and cost-effectiveness.
  • 105 to 110 feet (32–34 meters): Some manufacturers build aerials slightly beyond 100 feet for added capability.
  • 125 feet (38 meters) and beyond: Reserved for departments serving cities with very tall buildings or specialized rescue requirements. Examples include 137-foot ladders and up to 300-foot units in rare global cases.

Why is 100 Feet the Most Common?

Several practical and operational factors make the 100-foot aerial ladder the preferred choice:

1. Optimal Reach for Urban Environments

In many cities, buildings range from 3 to 10 stories tall. A 100-foot ladder provides sufficient vertical reach and horizontal outreach to access these levels, especially when parked at an angle or setback due to obstructions or street width.

2. Balance Between Size and Maneuverability

A ladder longer than 100 feet becomes increasingly difficult to maneuver, especially in congested urban streets. The 100-foot aerial offers a practical length that does not excessively compromise the truck’s turning radius or parking ability.

3. Cost-Effectiveness

While longer ladders offer greater reach, they also significantly increase the cost of the fire truck. A 100-foot aerial is cost-efficient relative to its operational value, making it a viable option for departments of all sizes.

4. Standardization and Equipment Compatibility

A 100-foot ladder has become a standard in terms of training, tactics, and operational planning. Firefighters are trained with this length in mind, and departments often design standard operating procedures (SOPs) around its use.

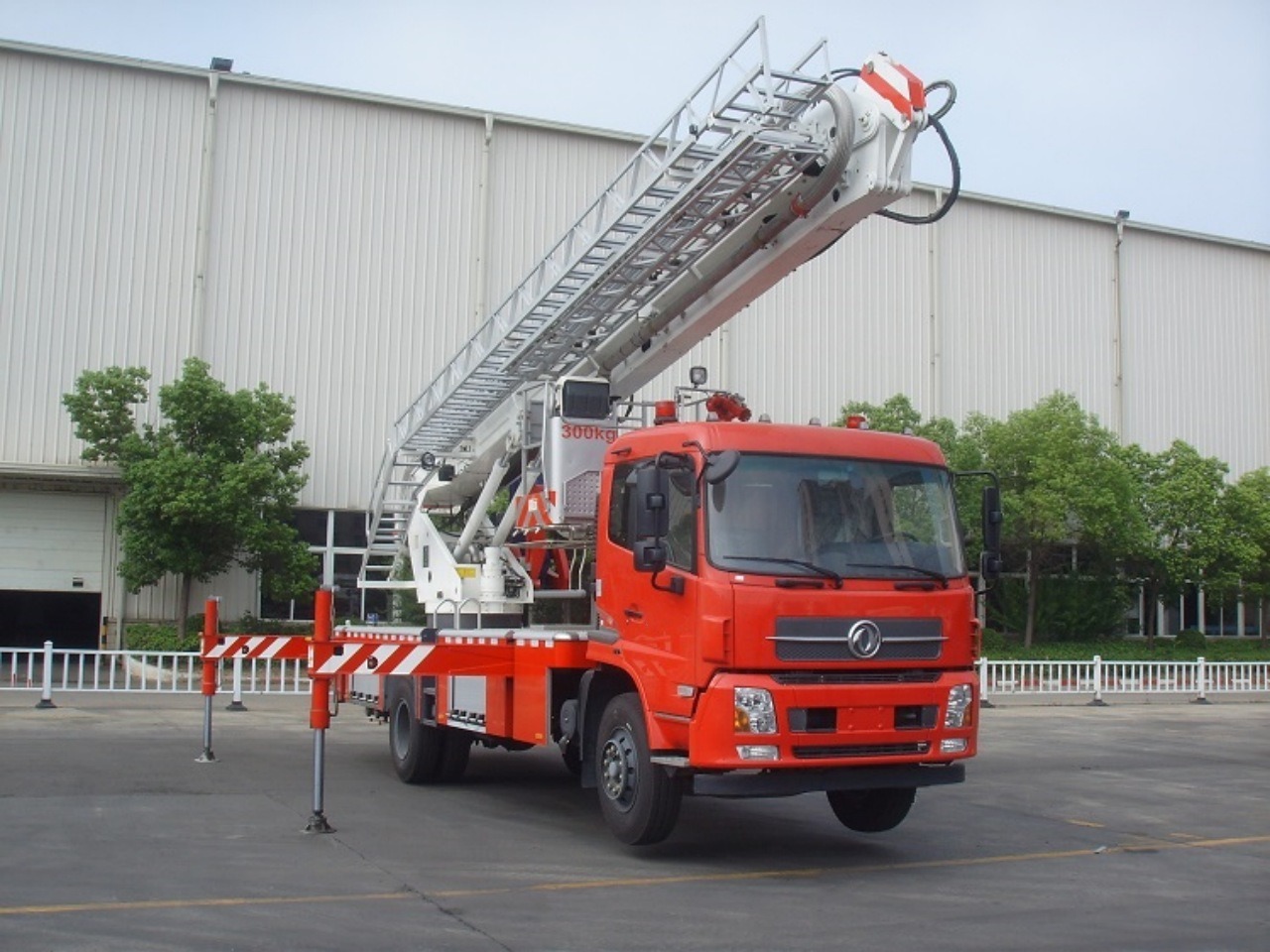

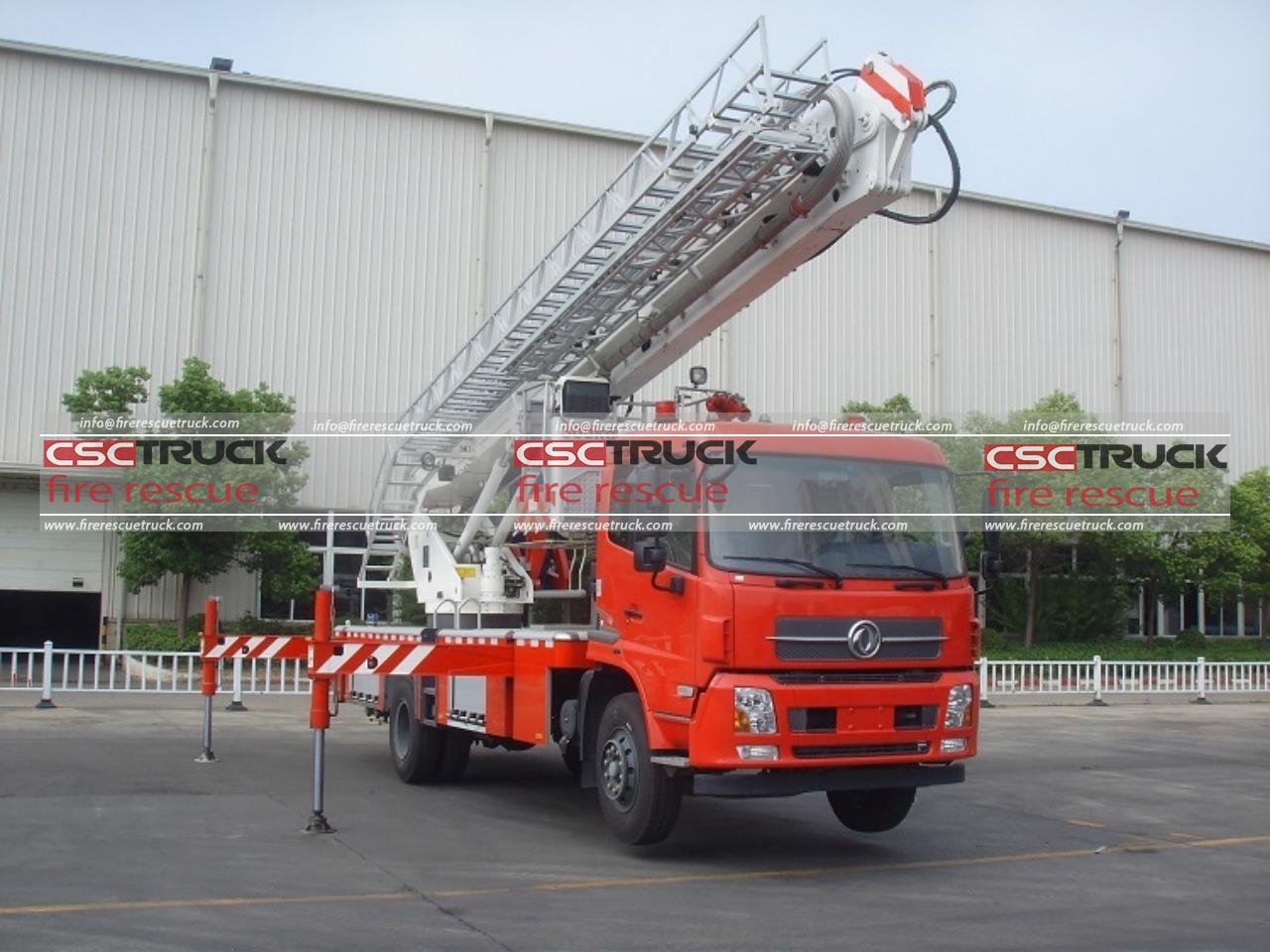

22M Aerial Ladder Fire Engine (2)

Technical Specifications of a 100-Foot Aerial Ladder

To understand why this size is so popular, let’s examine some general specifications of a 100-foot aerial ladder fire truck:

  • Ladder Length: 100 feet (30.5 meters) when fully extended.
  • Elevation Angle: Typically from  -5° to +75° or more.
  • Horizontal Reach: Around 90 feet, depending on the ladder’s angle.
  • Waterway: Many 100-foot aerials come with a pre-piped waterway capable of delivering 1,000–2,000 GPM (gallons per minute).
  • Vehicle Length: Around 40–45 feet (truck length, not ladder).
  • GVWR (Gross Vehicle Weight Rating): Can exceed 60,000 lbs, depending on equipment.

Use Cases of a 100-Foot Aerial Ladder.

This ladder length is used in a variety of operational scenarios:

  • Rescue from upper floors during apartment or office building fires.
  • Ventilation operations are used to remove smoke from high levels.
  • Elevated water stream application for fire suppression on rooftops or upper floors.
  • Access for technical rescues, such as workers trapped on cranes or window washers.

The ladder may also be used horizontally to bridge gaps or reach across obstacles like rivers, ditches, or industrial equipment.

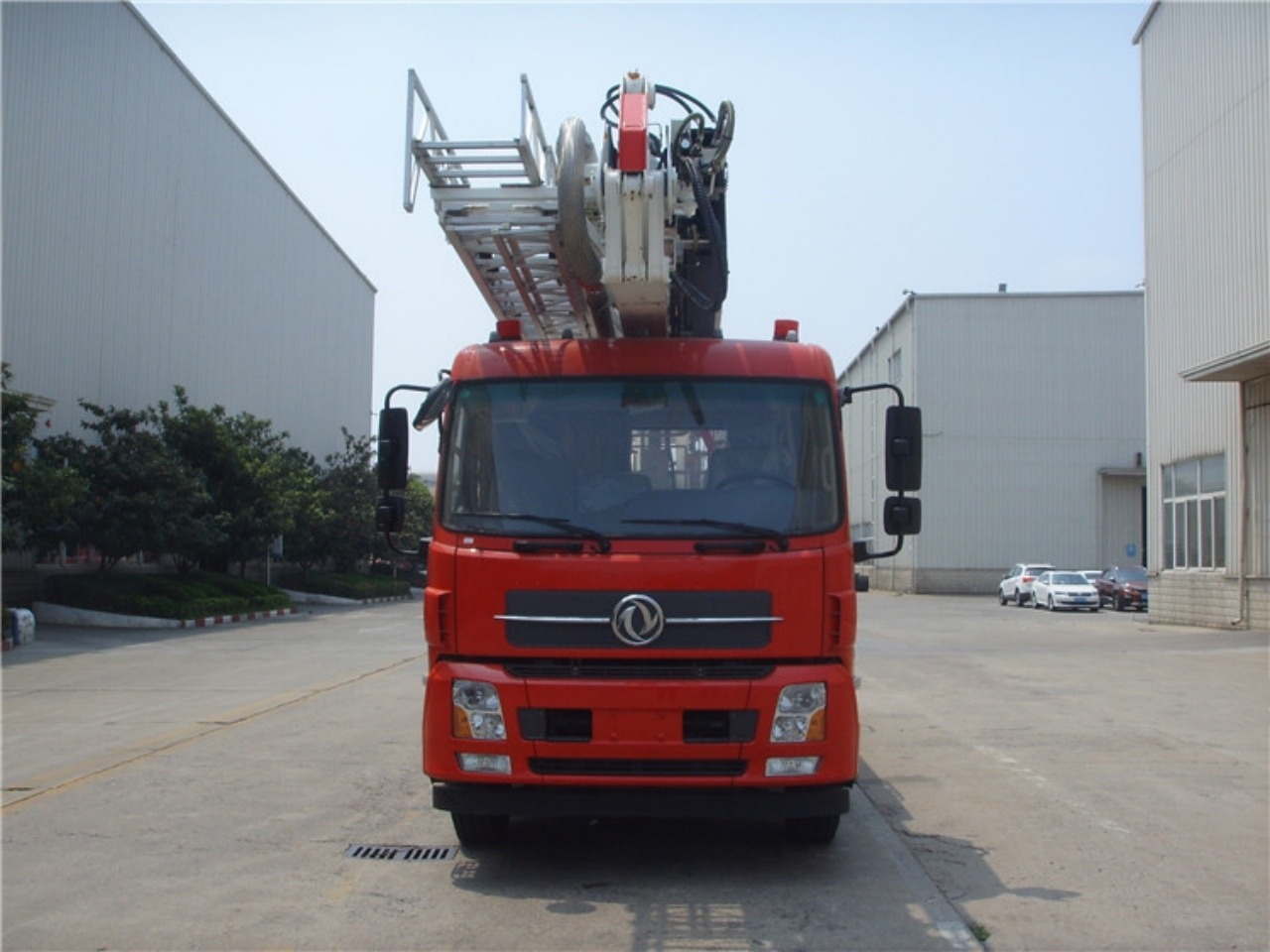

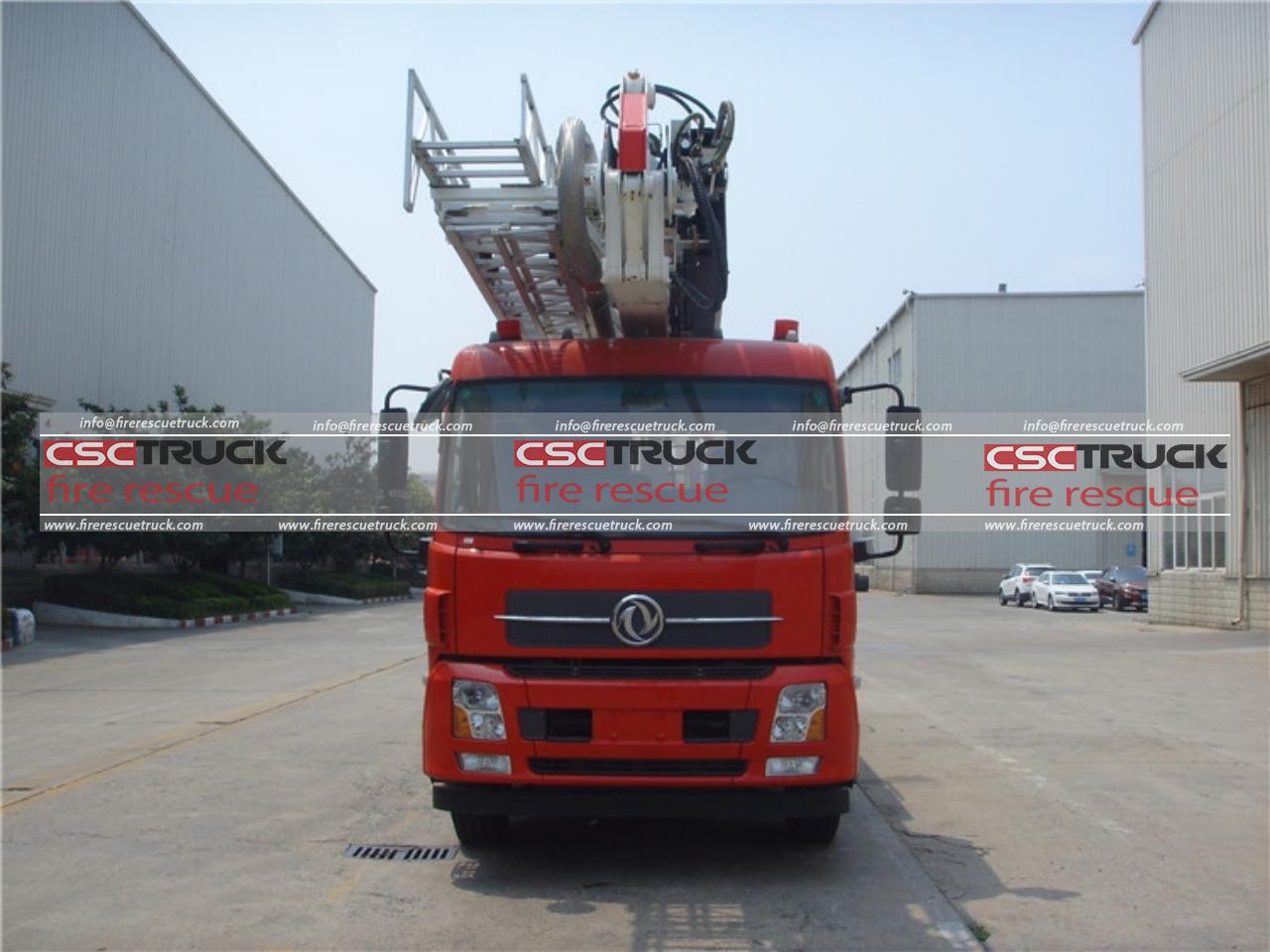

22M Aerial Ladder Fire Engine (3)

Manufacturer Trends and Preferences

Leading fire apparatus manufacturers such as Pierce, E-One, Rosenbauer, Seagrave, and Sutphen have all developed 100-foot aerials as a core offering. Some notable product lines include:

  • Pierce Ascendant 100’ Aerial Tower: Known for a lighter design allowing smaller chassis compatibility.
  • E-One Metro 100 Aerial: Built for dense urban operations.
  • Rosenbauer T-Rex: A unique articulating platform with reach comparable to a 100-foot ladder.

Many of these models offer customization options, including rear-mount, mid-mount, and tiller configurations, which further help departments adapt to local terrain and infrastructure.


International Considerations

In other countries, especially in parts of Europe and Asia where streets are narrower and building codes differ, the ladder sizes may vary. In Germany, for example, the 30-meter aerial ladder (equivalent to 98.4 feet) is the standard per DIN 14002 standards. Many European fire trucks also employ compact, mid-mount aerials on smaller chassis for maneuverability.

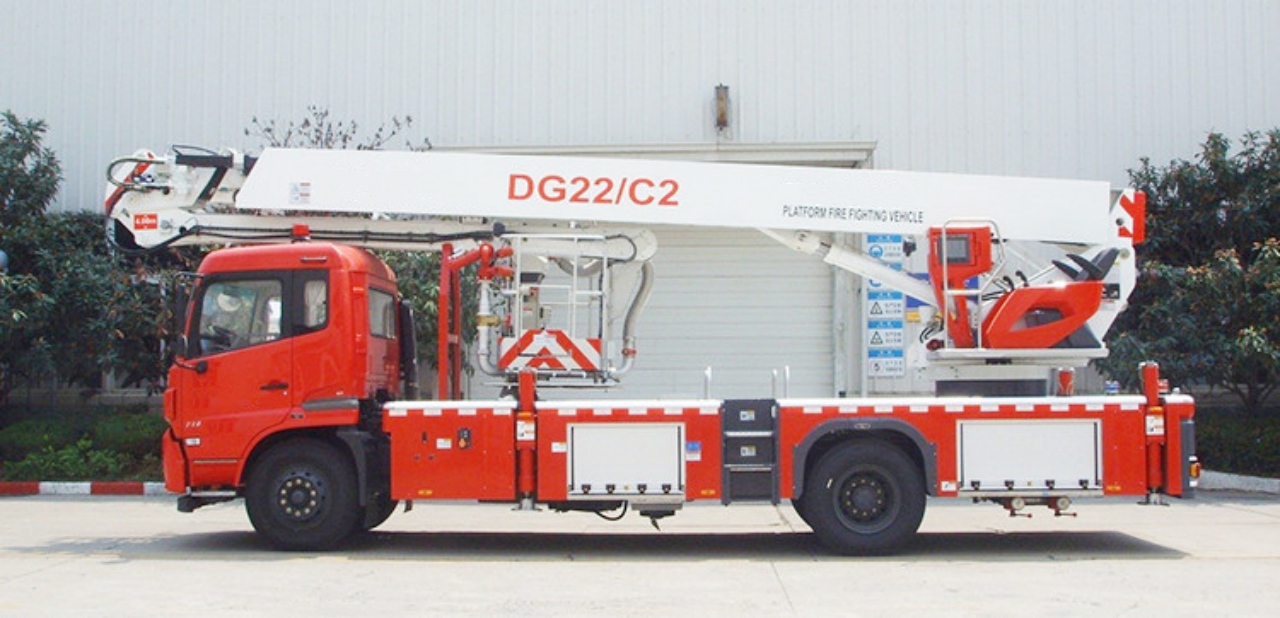

22M Aerial Ladder Fire Engine (4)

Conclusion

While aerial ladders come in a variety of lengths tailored to local needs, the 100-foot aerial ladder has emerged as the most common size due to its versatile reach, practicality, and adaptability. It serves as a reliable tool for a broad range of firefighting and rescue operations and has become a standard choice for fire departments around the world.

As urban landscapes evolve and building heights continue to increase, the fire service may see a gradual shift toward longer aerials in select cities. However, the 100-foot ladder remains the backbone of modern fireground operations—a symbol of reach, readiness, and rescue.

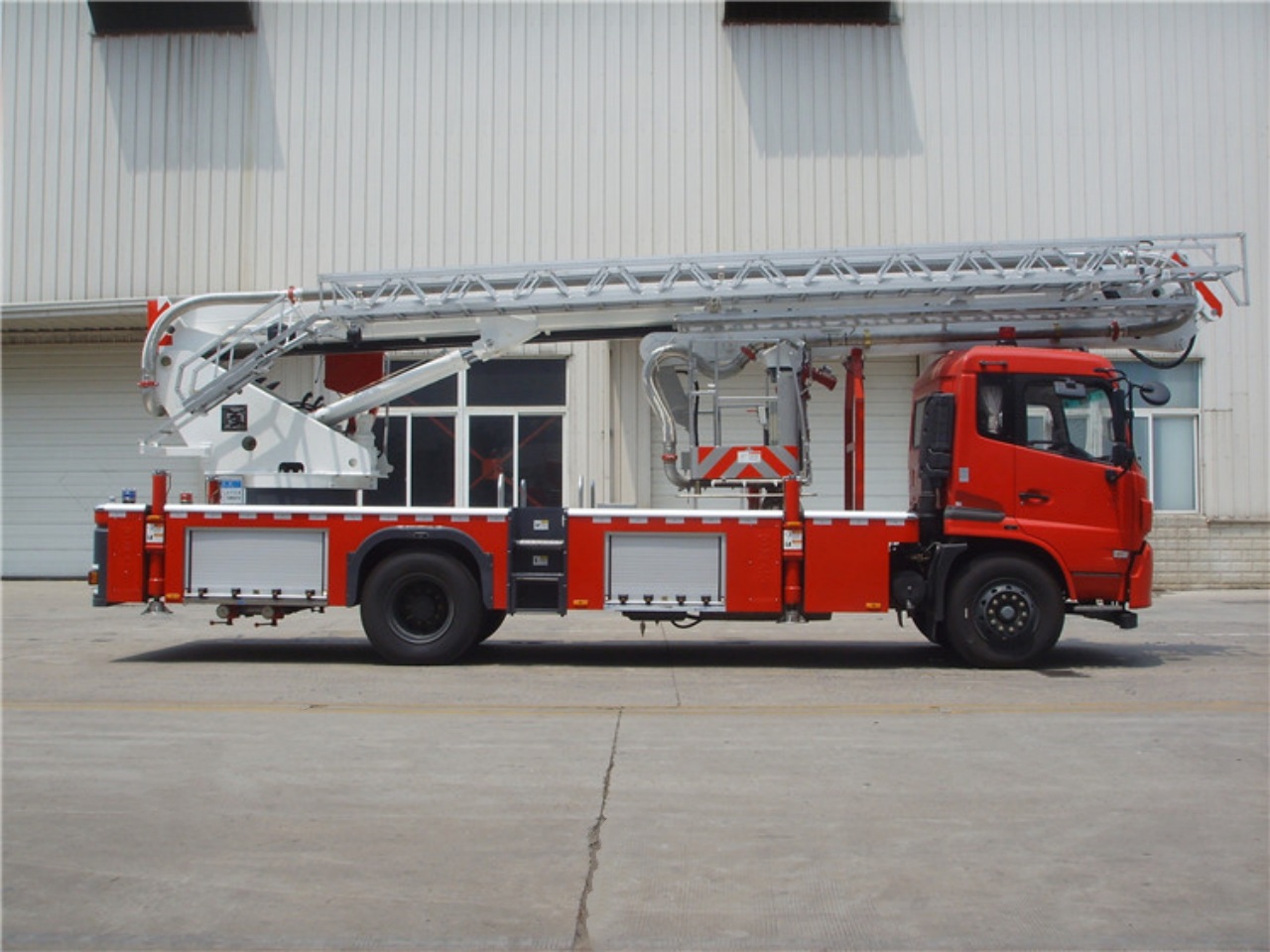

22M Aerial Ladder Fire Engine (5)
