What is the Pressure of a Fire Truck Water Pump?

ISUZU 5000 Liters Water Fire Truck

Fire trucks are one of the most iconic and essential vehicles in emergency services, designed for rapid response to fires and other critical situations. At the heart of a fire truck’s firefighting capability lies its water pump, which allows firefighters to deliver large volumes of water with great force. Understanding the pressure of a fire truck’s water pump is crucial not only for effective firefighting but also for ensuring safety and operational efficiency. This article explores the function, pressure ranges, types, and applications of fire truck water pumps in detail.


Understanding Fire Truck Water Pumps

A fire truck water pump is a mechanical device used to draw water from an onboard tank, hydrant, or natural source and deliver it through hoses to extinguish fires. Most fire trucks are equipped with centrifugal pumps, which are known for their ability to move large volumes of water efficiently. The performance of these pumps is usually described in terms of both flow rate (gallons per minute or liters per minute) and pressure (pounds per square inch or PSI, or bar in metric systems).

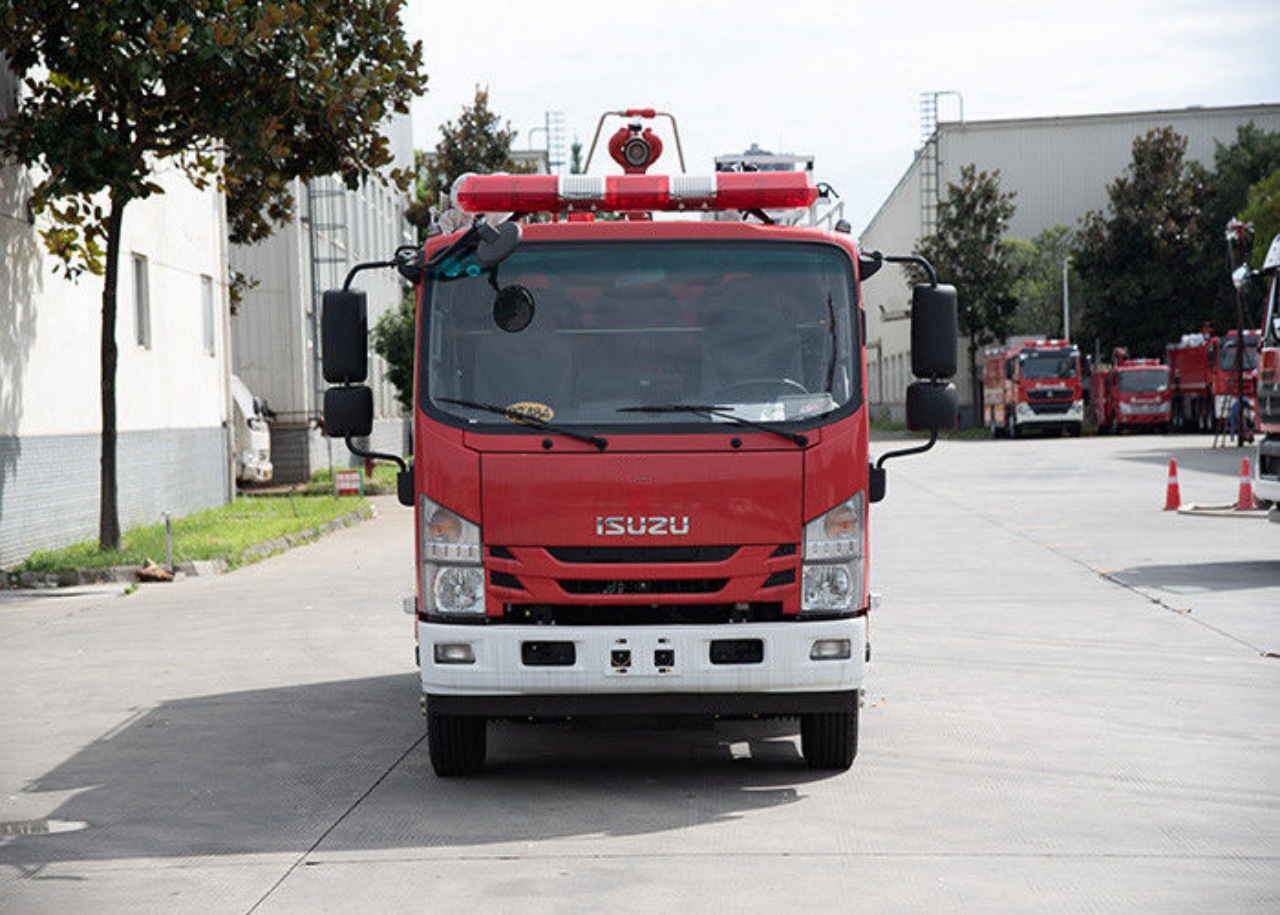

ISUZU 3000 Liters Water Tanker Small Fire Truck (3)

Typical Pressure Ranges of Fire Truck Water Pumps

Fire truck pumps can operate across a wide range of pressures depending on their design and intended application. Here are the typical pressure categories:

  • Low-Pressure Operation (100–150 PSI / 7–10 Bar):
    Most structural firefighting scenarios require pressures in this range. It’s sufficient for supplying hand-held hose lines and managing standard building fires.
  • Medium-Pressure Operation (150–250 PSI / 10–17 Bar):
    Medium pressure is used when higher elevation or longer hose lengths are involved. This range ensures water can travel further without a significant loss of flow rate.
  • High-Pressure Operation (250–400+ PSI / 17–28+ Bar):
    High-pressure pumps are essential for special firefighting tactics such as high-rise firefighting, industrial fires, or wildland fires. Some specialized fire trucks, especially those designed for urban high-rise or tunnel firefighting, may operate at even higher pressures—up to 600 PSI (41 Bar) or more.

Factors Affecting Pump Pressure

The pressure delivered by a fire truck’s pump is influenced by several factors:

  1. Pump Design and Type:
    Centrifugal pumps are standard, but some units use positive displacement pumps for very high-pressure needs, such as in CAFS (Compressed Air Foam Systems).
  2. Engine Power:
    The horsepower of the fire truck’s engine affects how much pressure the pump can generate, especially under continuous operation.
  3. Water Source and Elevation:
    Drawing water from a lower elevation or distant hydrant can reduce effective pressure due to head loss and friction in hoses.
  4. Hose Diameter and Length:
    Smaller or longer hoses introduce greater friction loss, requiring higher pump pressures to compensate and maintain effective nozzle pressure.
  5. Nozzle Requirements:
    Different firefighting nozzles are designed to operate at specific pressures to produce desired spray patterns (fog, straight stream, etc.).

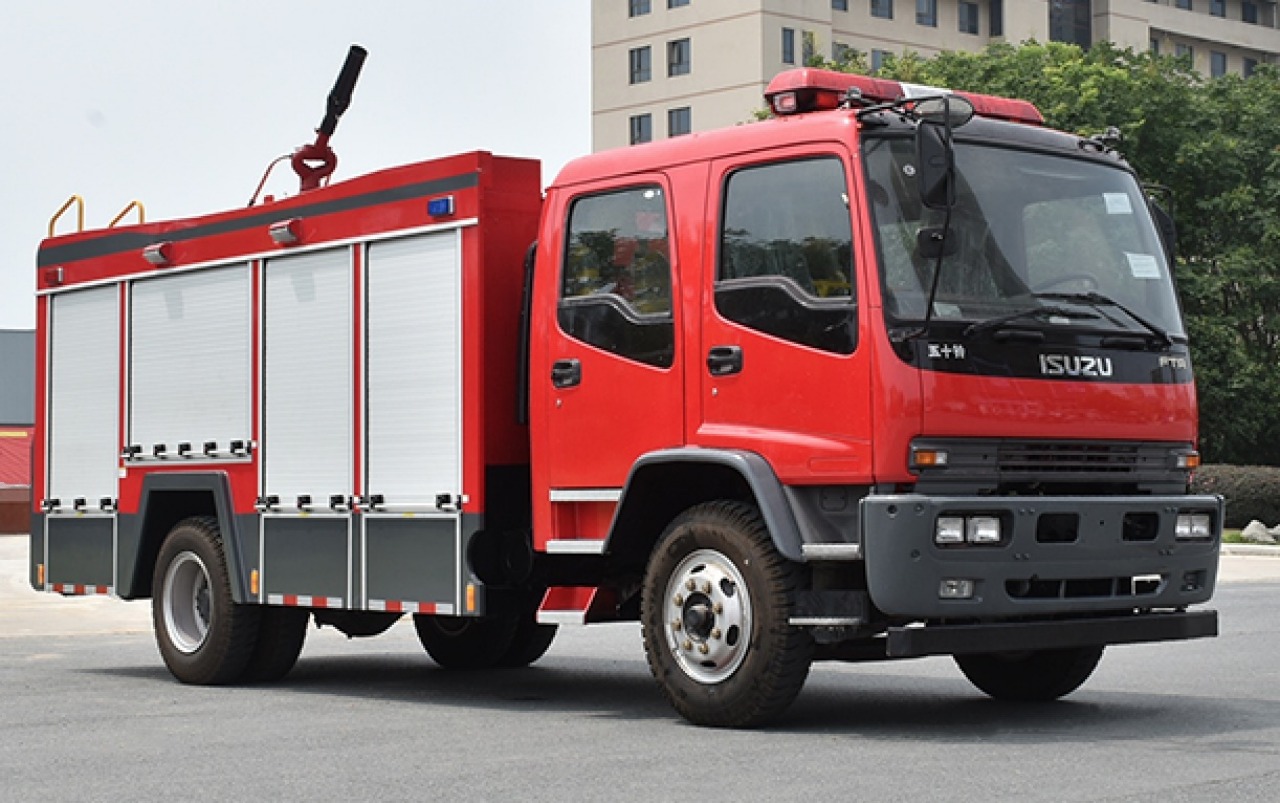

ISUZU 5000 Liters Water Fire Truck (2)

Components Supporting Pump Pressure

To maintain the desired pressure and control water flow, fire truck pump systems include several important components:

  • Relief Valves: Prevent over-pressurization that could damage equipment or injure personnel.
  • Pressure Governors: Automatically adjust the pump throttle to maintain constant pressure even if flow demand changes.
  • Priming Systems: Especially important for drafting operations, priming systems remove air from the pump to allow water to flow.
  • Gauges and Controls: Allow the pump operator to monitor and adjust pressure and flow in real-time.

Types of Fire Truck Pump Configurations

  1. Single-Stage Pumps:
    These have one impeller and are simpler in design. They are common in municipal fire trucks and offer sufficient pressure for most operations.
  2. Two-Stage Pumps:
    Two impellers allow for higher pressure or higher flow, depending on the mode (volume or pressure). They are used for more demanding applications like high-rise firefighting.
  3. High-Pressure Pumps:
    Some specialized fire apparatus, such as airport crash tenders or wildland fire engines, include high-pressure booster pumps for targeted high-pressure applications.

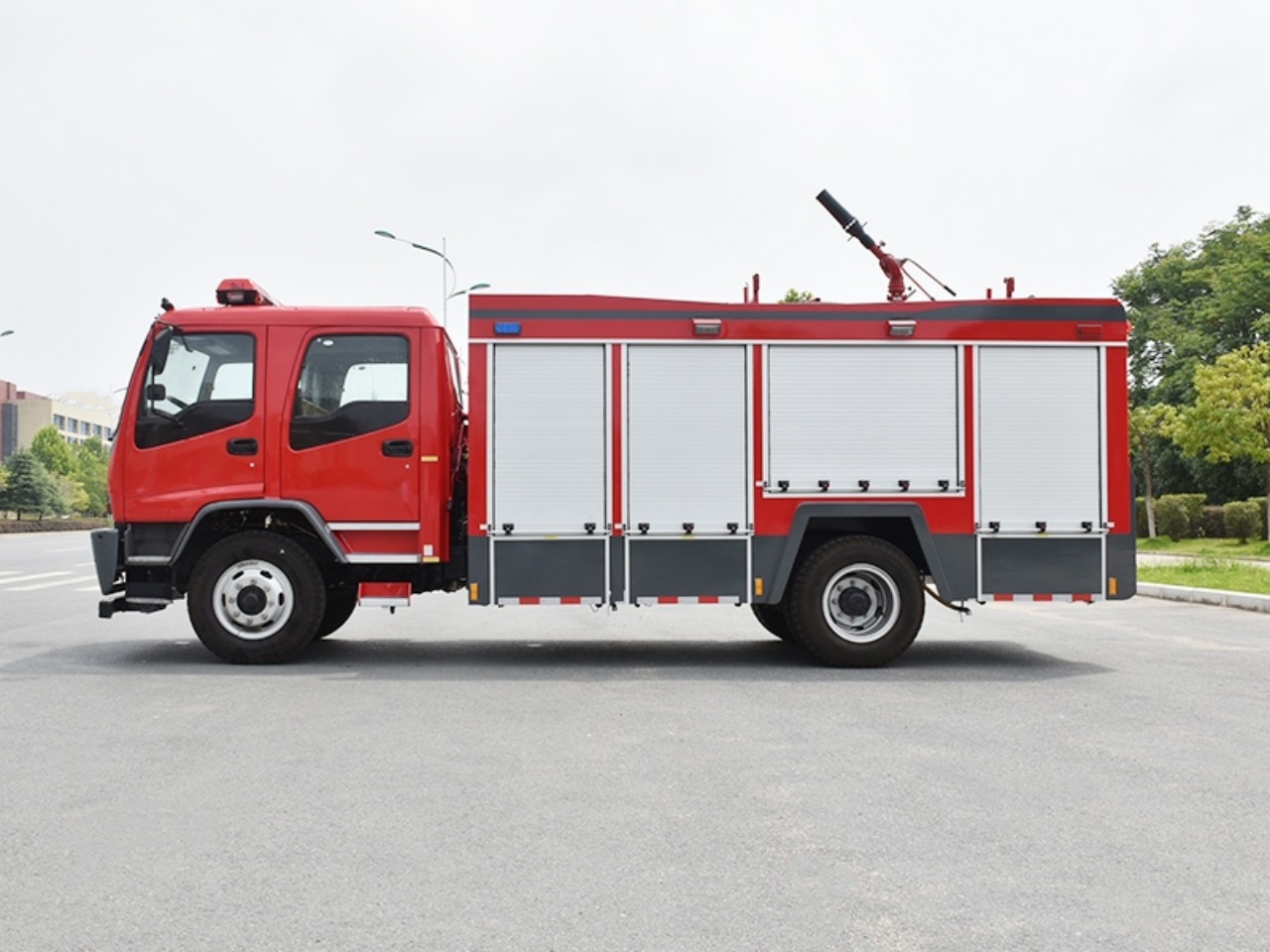

ISUZU 5000 Liters Water Fire Truck (3)

Why Pressure Matters in Firefighting

The ability to deliver water at the right pressure can determine the success or failure of firefighting efforts. Here’s why:

  • Penetration and Reach: Higher pressure enables water to reach upper floors of buildings or penetrate deep into fire zones.
  • Effective Cooling: Proper pressure ensures that water droplets are fine enough to absorb heat quickly, cooling the fire more efficiently.
  • Safety of Firefighters: Low pressure can compromise stream effectiveness, while excessive pressure can cause hose whip or nozzle instability, risking injuries.

Examples from Real-World Fire Trucks

To provide context, here are some examples of fire truck water pump specifications from various manufacturers:

  • Pierce Enforcer Pumper:
    Equipped with a Waterous or Hale midship pump capable of 1,500 to 2,000 GPM at 150 PSI. Optional high-pressure pump sections allow operation at up to 400 PSI.
  • Rosenbauer Panther ARFF:
    Designed for airport use, its pump delivers 2,200 GPM at 240 PSI, with integrated high-pressure foam system capabilities.
  • Scania Wildland Fire Truck:
    Features a pump that delivers up to 145 PSI (10 bar) for quick-deployment, high-pressure hose reels ideal for rural and forest environments.

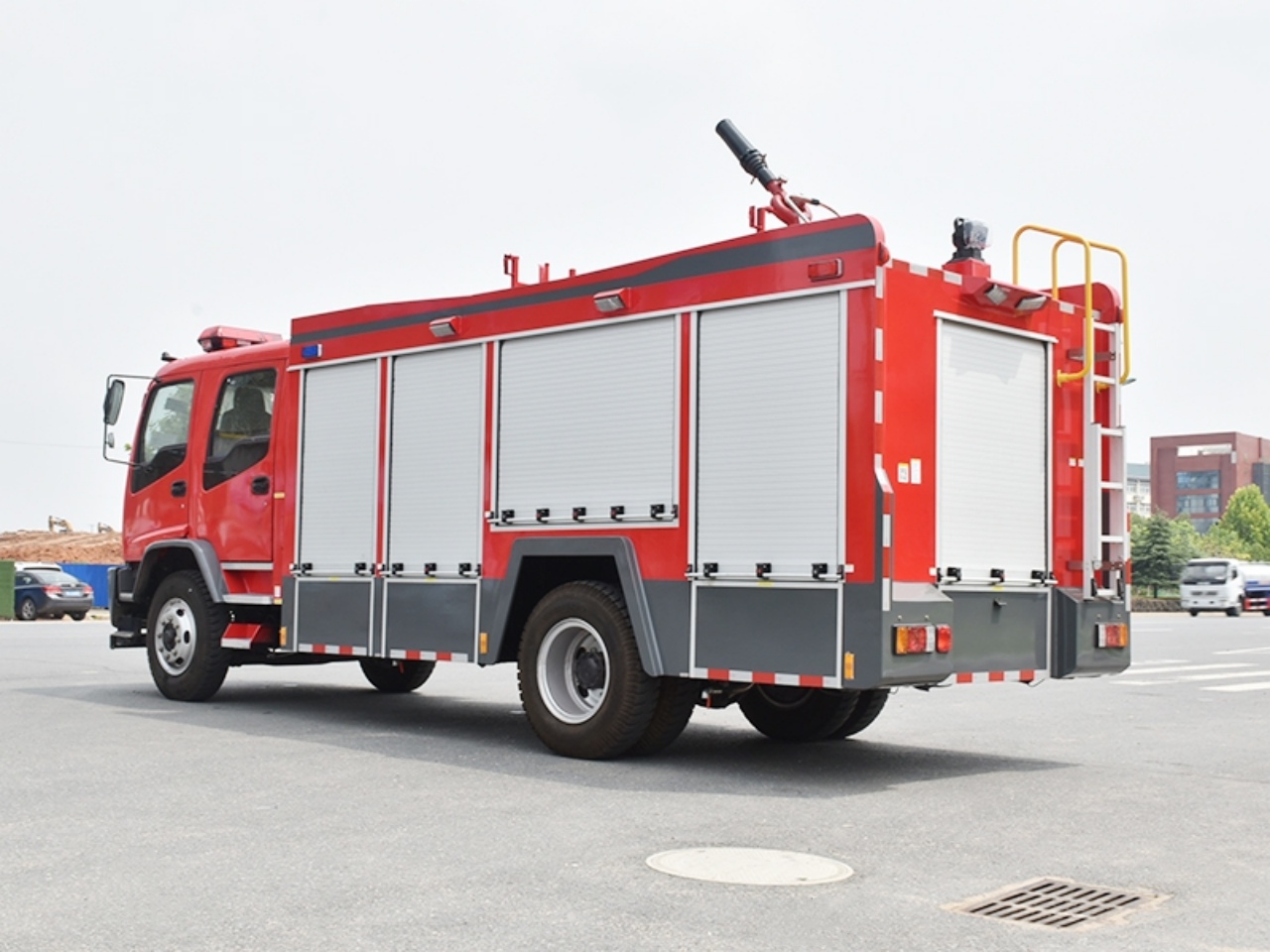

ISUZU 5000 Liters Water Fire Truck (4)

Maintaining and Testing Fire Truck Pumps

Pump pressure must be regularly tested and maintained to ensure readiness:

  • Annual Pump Testing: NFPA 1911 standards mandate that fire departments conduct annual flow and pressure testing.
  • Preventive Maintenance: Includes checking seals, impellers, valves, and pressure gauges to prevent performance loss or failure.

Conclusion

The pressure of a fire truck‘s water pump is a critical specification that directly impacts the effectiveness of firefighting operations. Most pumps operate in the 100 to 250 PSI range, though specialized pumps may exceed 400 PSI for demanding applications. Understanding these pressure dynamics allows fire departments to choose the right apparatus, use equipment safely, and adapt to various fire scenarios effectively. As firefighting technology evolves, so too do pump capabilities, ensuring that fire trucks remain powerful allies in the fight against fire.

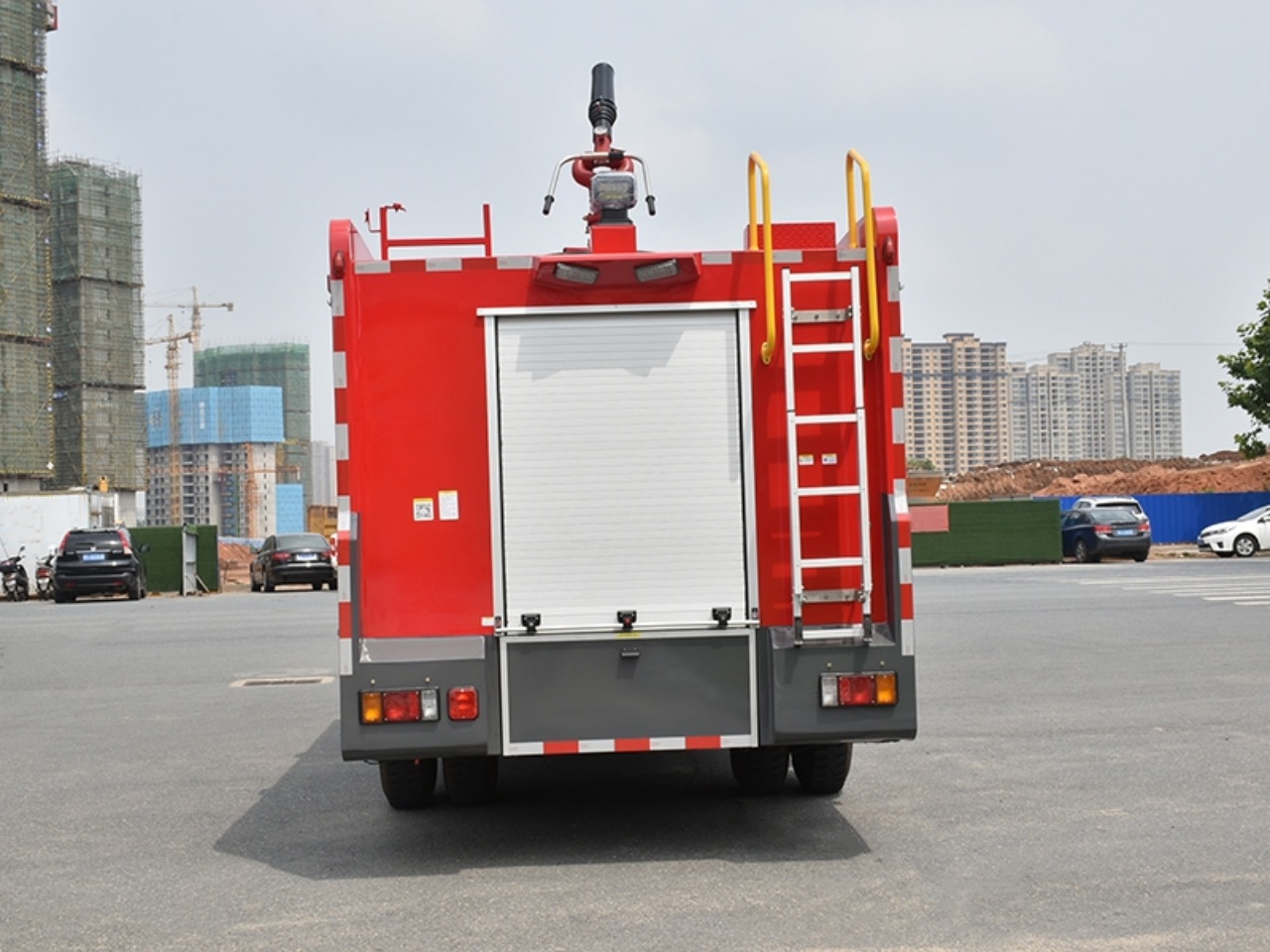

ISUZU 5000 Liters Water Fire Truck (5)
