When you see a fire engine speeding down the road with its lights flashing and sirens blaring, you probably picture firefighters racing to save lives and protect property from flames. But what powers their firefighting efforts at the scene isn’t just water — it’s the fire engine’s pump. Understanding the pump capacity of a fire engine is crucial to comprehending how firefighting operations are carried out effectively. In this article, we’ll delve into what pump capacity means, the typical ranges for fire engines, factors that influence pump performance, and how it impacts fire suppression operations.
Understanding Pump Capacity
Pump capacity refers to the amount of water a fire engine’s pump can deliver per minute, typically measured in gallons per minute (GPM) or liters per minute (LPM), depending on the region. This metric is a critical aspect of a fire engine’s performance, as it determines how much water can be projected at a fire, how many hoses can be operated simultaneously, and how long firefighting can be sustained under pressure.
At its core, the pump is the heart of a fire engine’s firefighting capability. Without a reliable and adequately powerful pump, a fire truck would be of limited use at a fire scene.
Types of Fire Engine Pumps
Before exploring capacity, it’s important to recognize that fire engines may use different types of pumps:
- Centrifugal Pumps – These are the most common, using an impeller to increase the velocity of water and convert it into pressure. Most modern fire trucks are equipped with single-stage or two-stage centrifugal pumps.
- Positive Displacement Pumps – Used in some portable applications, these pumps deliver a fixed amount of water per stroke. They are excellent for priming and are often used to start the flow in centrifugal systems.
- High-Pressure Pumps – Some specialized fire engines are fitted with high-pressure pumps for penetrating deep into structural fires, wildland environments, or industrial applications.
Typical Pump Capacities of Fire Engines
Pump capacity varies depending on the size and purpose of the fire engine. Here are some common categories:
1. Municipal Fire Engines (Pumper Trucks)
Standard municipal fire engines, often referred to as pumper trucks, are typically equipped with pumps that have capacities ranging from 1,000 to 2,000 GPM (3,785 to 7,570 LPM). The most common standard in the U.S. is 1,500 GPM (5,678 LPM).
This range is ideal for residential and commercial structural fires. It provides sufficient flow to operate multiple attack hoses and to support aerial ladders when necessary.
2. Industrial Fire Engines
Industrial fire engines serve factories, chemical plants, and refineries where the risk is higher and demands more robust fire suppression. These fire trucks may be equipped with high-capacity pumps ranging from 2,000 to 3,000+ GPM (7,570 to over 11,000 LPM). Some specialized units can go even higher, particularly when designed to protect petrochemical facilities.
3. Wildland Fire Engines
Brush or wildland fire engines are built for off-road firefighting and have smaller, lightweight pumps with capacities from 150 to 500 GPM (568 to 1,892 LPM). While their output is lower, they’re designed for maneuverability and quick response in difficult terrain.

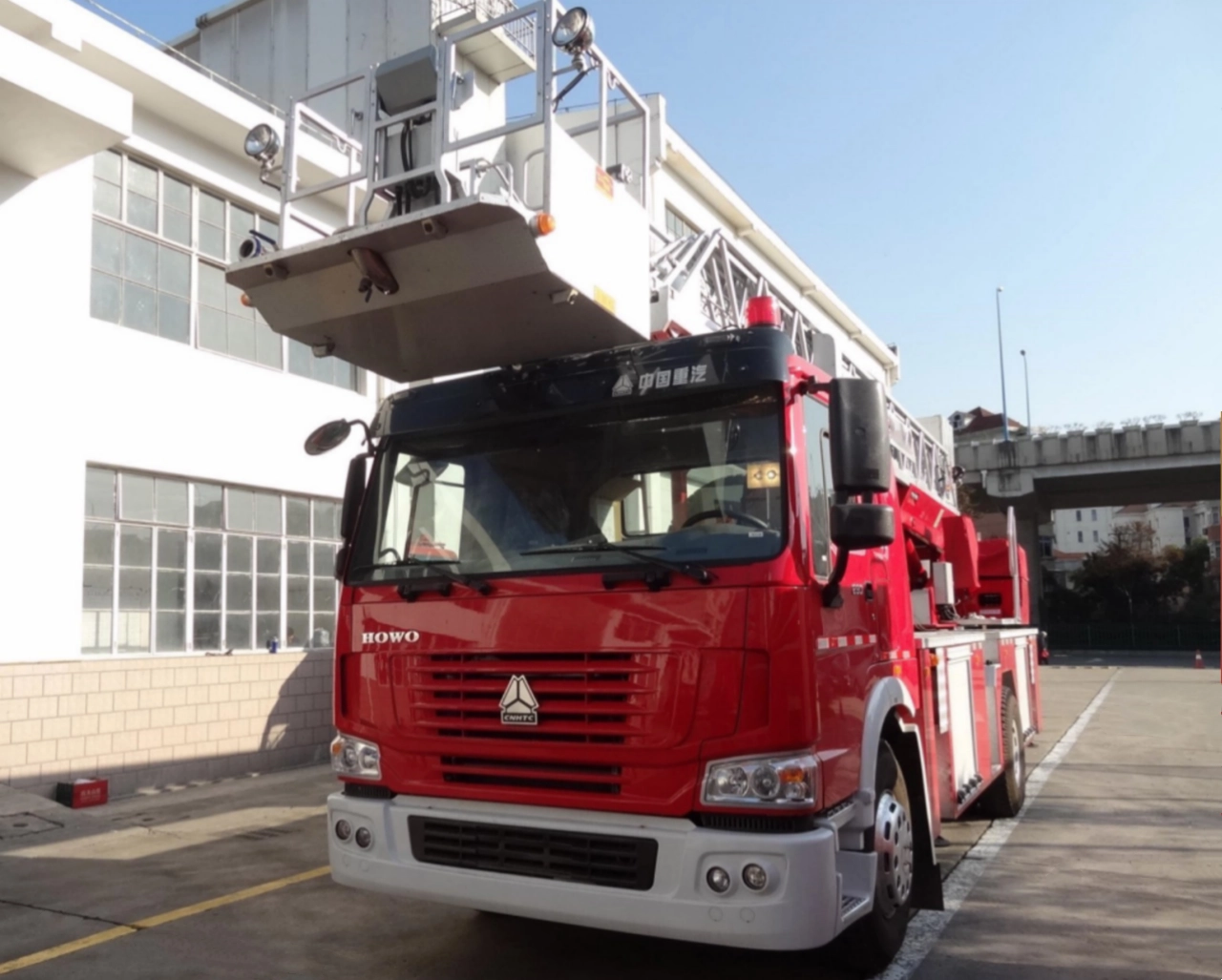

4. Aerial Ladder Trucks with Pumps (Quints)
These hybrid vehicles combine the functions of a ladder truck and a pumper. Their pump capacities are generally in the range of 1,250 to 2,000 GPM (4,730 to 7,570 LPM), enabling them to both deliver water and provide elevated access for rescue and ventilation.
Factors Affecting Pump Performance
While rated pump capacity provides a baseline, actual performance can be influenced by several factors:
1. Water Source Availability
Pump performance is limited by how much water is available. A fire hydrant with low flow or a dry drafting situation from a pond will reduce the output regardless of the pump’s rating.
2. Engine Power
The fire engine’s diesel engine drives the pump, and insufficient horsepower can limit how well the pump operates at high pressures or extended durations.
3. Pump Condition and Maintenance
A well-maintained pump operates at peak efficiency. Worn seals, impellers, or cavitation can all reduce capacity. Regular testing is essential to ensure readiness.
4. Altitude and Temperature
At higher elevations, reduced atmospheric pressure affects water intake and pump priming. Cold temperatures can lead to freezing or increased fluid viscosity, impacting performance.
5. Hose Diameter and Length
Long or narrow hoses create friction loss, reducing the pressure and effective flow rate at the nozzle. Pump operators must calculate friction loss and adjust accordingly.
Pump Testing and Certification
Fire engine pumps are tested and certified by organizations like the National Fire Protection Association (NFPA) and Underwriters Laboratories (UL) in the U.S., and similar bodies globally.
NFPA 1901, for instance, specifies that fire pumps must meet their rated capacity at 150 psi, 70% at 200 psi, and 50% at 250 psi, all for 20 minutes continuously. This ensures that the pump can operate under a variety of pressure demands.
The Role of Pump Operators
A powerful pump is only as effective as the operator controlling it. Pump operators are trained to:
- Calculate the required pressure and flow.
- Monitor water levels and pump performance.
- Adjust valve positions and throttle settings.
- Respond to changing fire conditions.
In complex fire scenarios, such as high-rises or large commercial fires, the operator’s skill can significantly impact the success of the firefighting operation.
Technological Advancements in Fire Pumps
Modern fire pumps come with enhanced features like:
- Electronic pressure governors automatically maintain desired pressure levels.
- Real-time flow meters and diagnostics.
- Foam proportioning systems are integrated into the pump for Class A and B fire suppression.
- Remote control panels for safer and more convenient operation.
These advancements help improve the efficiency and effectiveness of firefighting efforts while reducing manual workload and risk.
Conclusion
The pump capacity of a fire engine is a vital specification that dictates how much water can be moved, how many lines can be run, and ultimately, how effectively firefighters can do their job. From standard 1,500 GPM municipal trucks to specialized industrial rigs exceeding 3,000 GPM, pump size and capability are tailored to the needs of the community or industry they serve.
While pump capacity is a crucial number, it’s just one piece of a larger system that includes the engine, hose, water source, operator, and overall strategy. As fire threats evolve with urban growth, climate change, and industrial complexity, so too will the technology and capacities of fire engine pumps, always striving to keep pace with the demands of modern firefighting.
