When evaluating fire apparatus or other aerial equipment, one of the most important specifications to understand is the working height of the aerial ladder. This term is often cited in sales brochures, technical sheets, and operational documents, but for those unfamiliar with the nuances of ladder terminology, the actual reference point for this measurement can be unclear. This article explores what “working height” means, how it is measured, and why this matters for fire departments and operators.
Understanding Aerial Ladders and Their Use

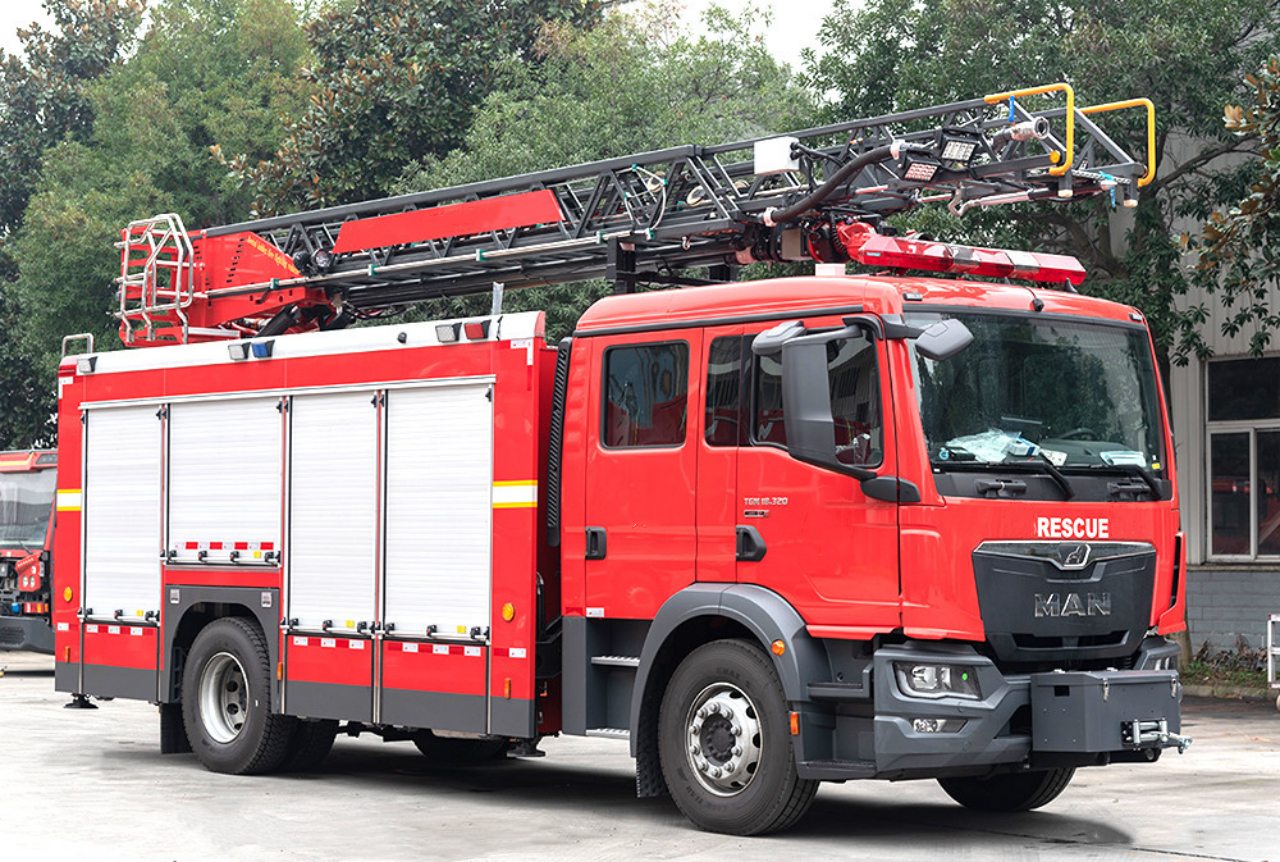

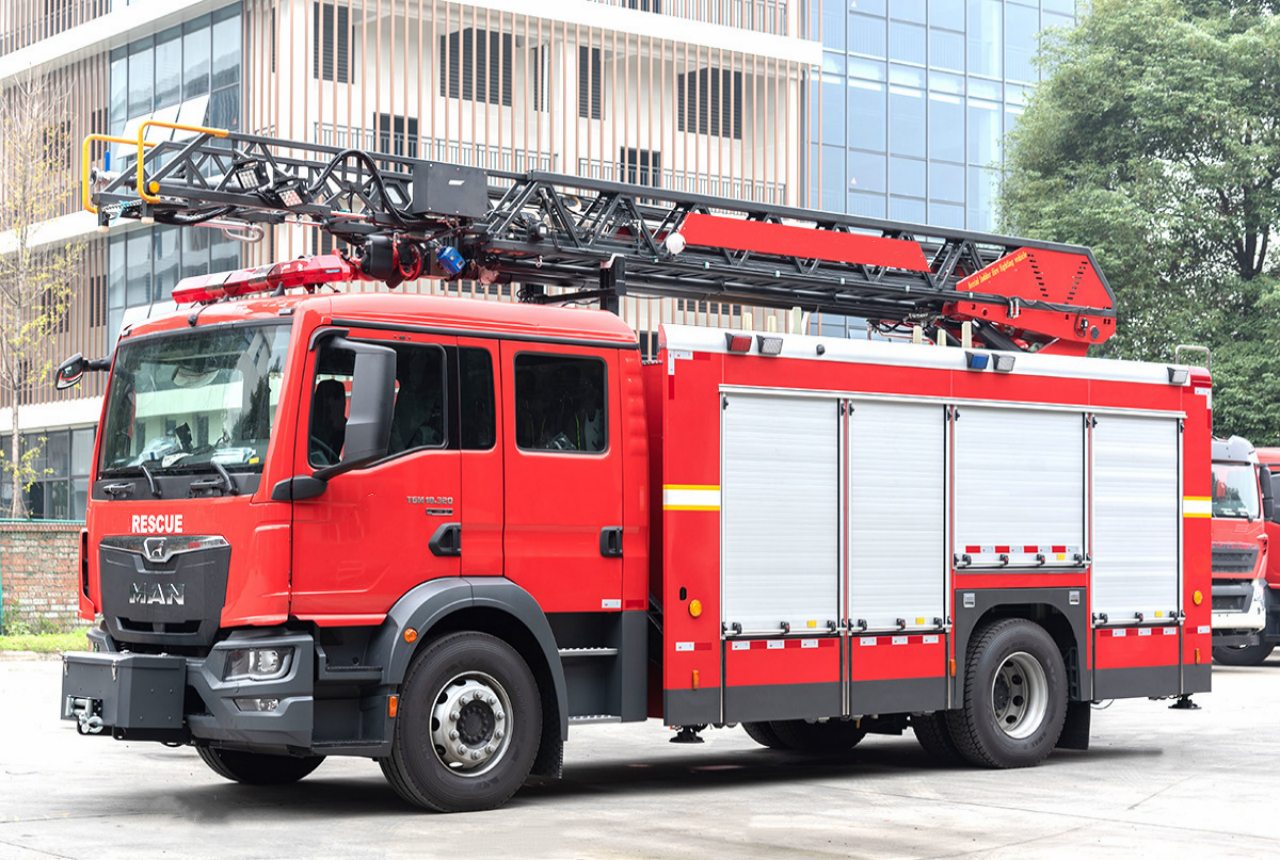

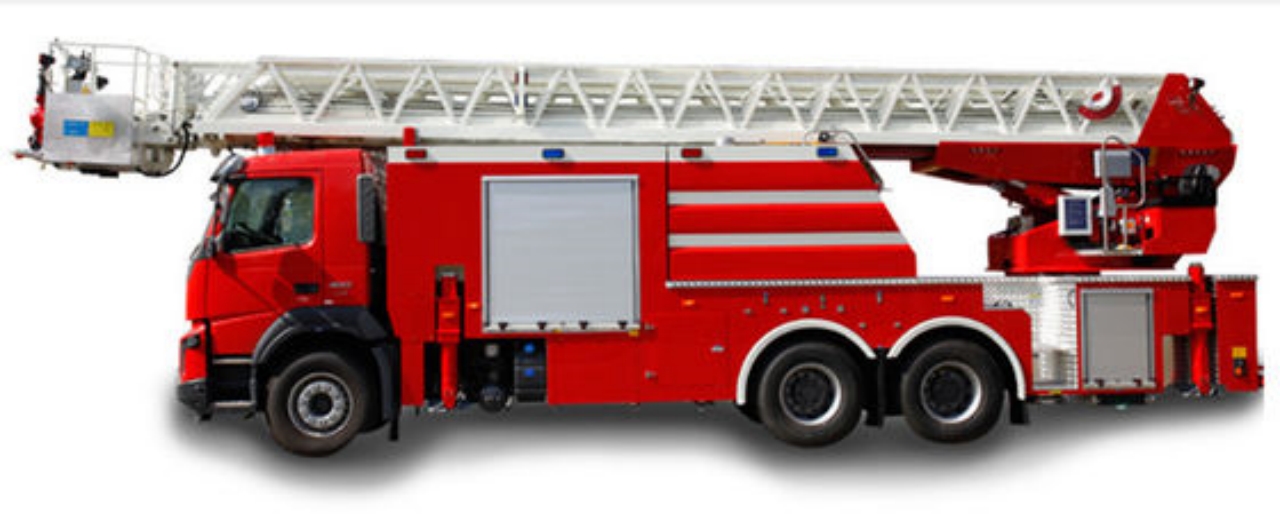

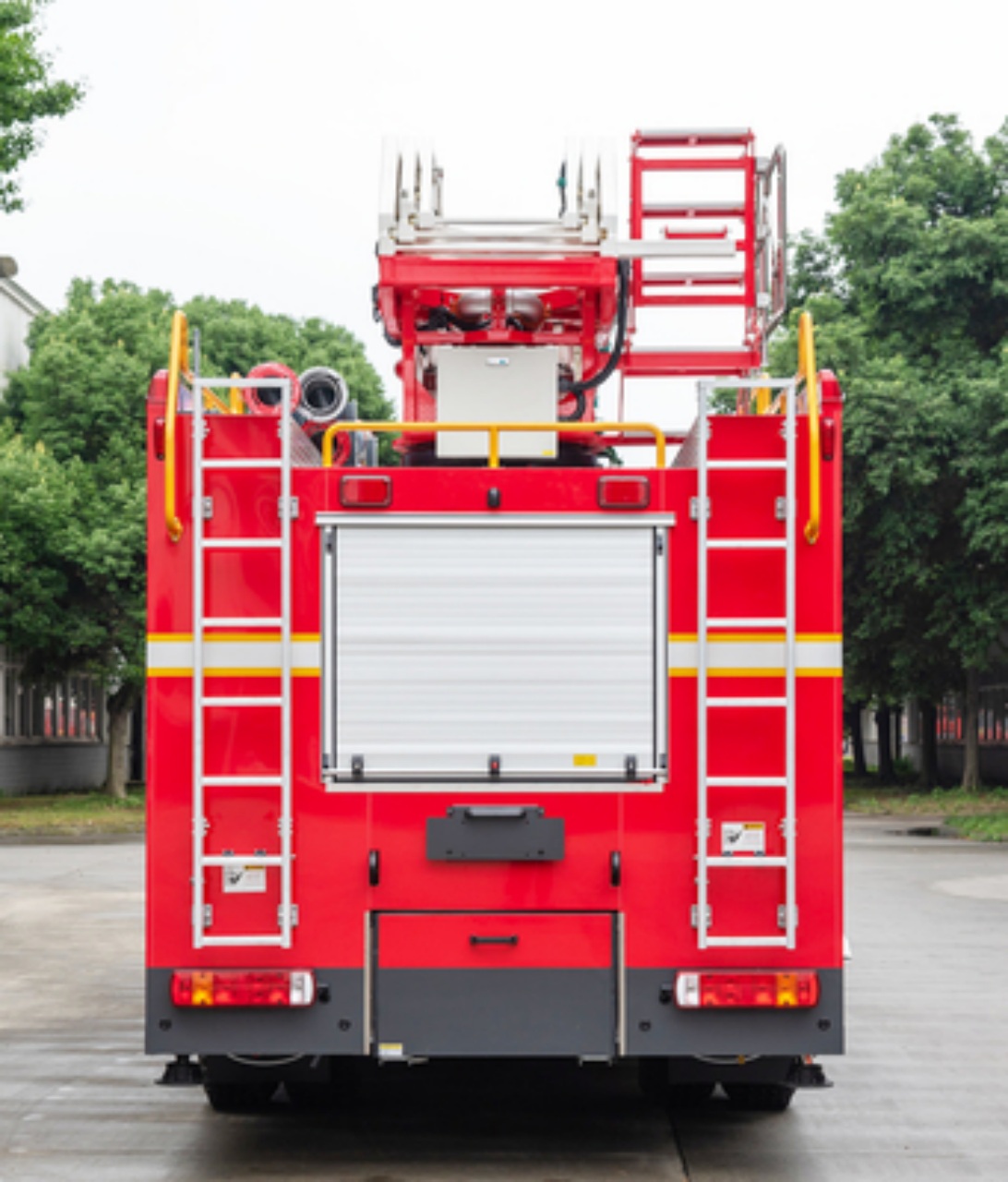

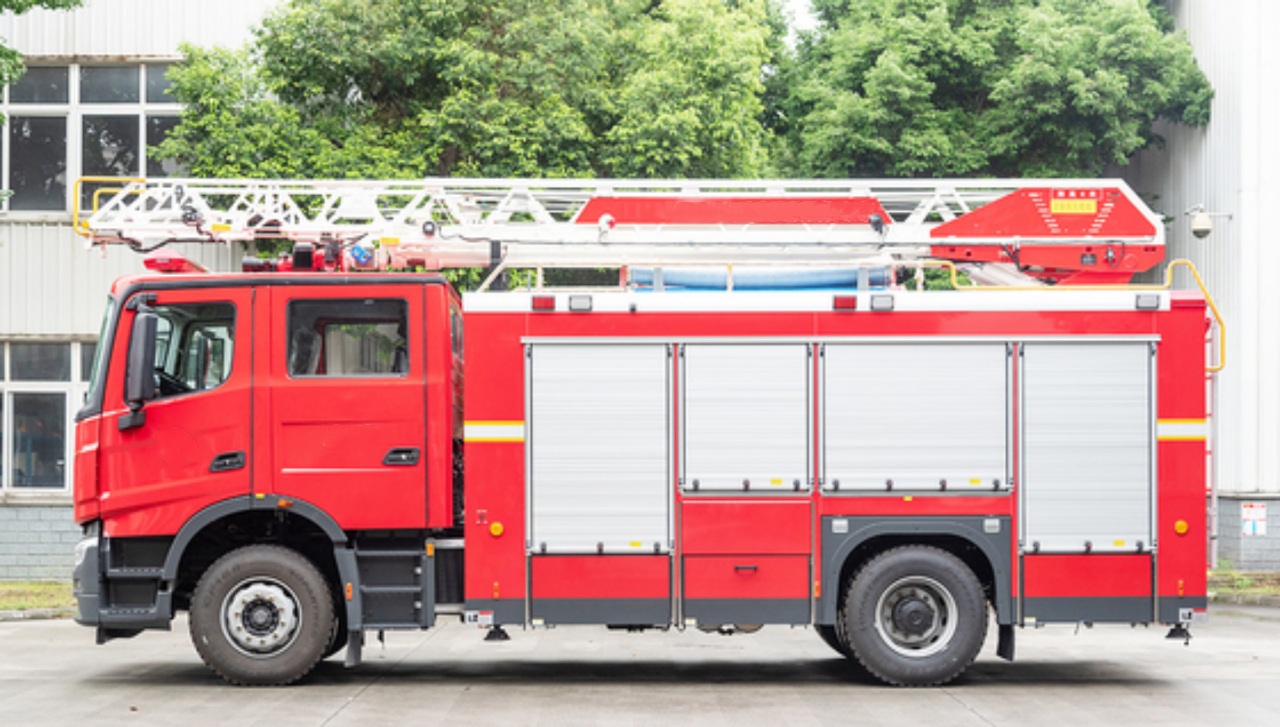

Aerial ladders are mounted on fire trucks or specialized chassis to provide vertical and horizontal access to elevated positions during firefighting, rescue operations, maintenance of tall structures, or inspection tasks. These ladders are crucial for accessing upper floors of buildings, rooftops, windows, or hard-to-reach locations.
Aerial ladders can be found on various apparatus types, including:
Straight aerial ladders
Tiller trucks (tractor-drawn aerials)
Platform ladders (aerial platforms)
Quint trucks (combining pump, hose, and aerial capabilities)
Each of these types may list a different working height depending on its design and application.
Defining “Working Height”
Working height is commonly defined as the maximum vertical distance from the ground to the highest point a firefighter or worker can safely access using the aerial ladder. This term is used in product descriptions and specifications to indicate the operational reach of the equipment.
However, it’s important to note that working height is not the same as the ladder length. The ladder length refers to the physical length of the ladder when fully extended, while the working height considers where the measurement begins and often includes an assumption about how the user is standing or working.
Where Is Working Height Measured From?
The standard method for measuring the working height of an aerial ladder is:
From the ground level to a point 6 feet above the highest rung or platform when the ladder is fully extended and set at the optimal climbing angle (usually around 70 to 75 degrees).
This 6-foot addition reflects a reasonable approximation of a firefighter’s reach while standing on the ladder. It assumes that a firefighter can work or reach approximately 6 feet above the highest point of physical support (usually the top rung).
Example
Let’s say an aerial ladder is 100 feet long. When fully extended and raised at a standard angle, the actual vertical height of the top rung might be around 94 to 96 feet due to the angle and pivot point on the truck. By adding a 6-foot working reach, the manufacturer may list the working height as 100 feet.
Key Measurement Components
To fully understand working height, it helps to break it down into parts:
Starting Point (Base Level):
This is generally considered the ground level or street level where the aerial apparatus is parked. It does not start at the turntable or mounting point on the truck unless otherwise noted.
Ladder Extension and Angle:
Most aerial ladders are used at an operational angle of 70 to 75 degrees. The physical vertical reach will be less than the ladder’s full length due to this angle.
Reach Allowance:
The 6-foot addition is an industry-standard assumption that accounts for the reach of an average firefighter when standing on the last safe rung.
Platform Variants:
In aerial platforms or tower ladders, the working height is typically measured from ground level to a point 6 feet above the platform floor when it is fully extended.
Standards and Guidelines
The National Fire Protection Association (NFPA) plays a key role in standardizing how aerial devices are described and tested. Specifically, NFPA 1901, the Standard for Automotive Fire Apparatus, includes guidelines on how aerial ladder lengths and working heights should be specified and measured.
NFPA encourages consistency across manufacturers to ensure departments can compare equipment accurately and make informed purchasing decisions.
Other relevant standards include:
ANSI A92.2 for vehicle-mounted elevating and rotating aerial devices (typically used in utility industries).
ISO standards and EN standards in Europe may have slightly different measurement norms.
Why Working Height Matters
Understanding where the working height is measured from is essential for several reasons:
1. Operational Planning
Fire departments need to know whether a particular aerial ladder can reach the roof or upper windows of structures in their jurisdiction. Misunderstanding the working height could result in underestimating or overestimating the equipment’s capabilities.
2. Purchasing Decisions
When comparing different apparatus options, 2 ladders might both be listed as 100 feet in working height, but 1 might have a shorter physical ladder. Knowing how each manufacturer calculates the working height allows buyers to compare apples to apples.
3. Training and Safety
Firefighters must be trained on what the true maximum safe climbing height is. Just because a ladder can reach a certain elevation doesn’t mean it’s safe to stand or operate at that point without proper precautions.
4. Rescue Reach
During rescues from upper floors, balconies, or roofs, knowing the maximum reliable reach of the ladder helps avoid dangerous last-minute improvisations.
Common Misconceptions
“The ladder is 100 feet, so I can work 100 feet off the ground.”
Not necessarily. The ladder’s physical length might be 100 feet, but due to the angle of deployment, the actual vertical reach could be less. The “working height” includes an estimated reach beyond the top rung, which may or may not be safe in all circumstances.
“All manufacturers measure working height the same way.”
While there is general consistency (especially among reputable manufacturers complying with NFPA standards), some variation can exist in how numbers are rounded or reported. Always consult detailed spec sheets and not just marketing materials.
Conclusion
The working height of an aerial ladder is measured from ground level to a point 6 feet above the highest rung or platform floor, accounting for the firefighter’s reach. This standardized measurement helps ensure fire departments and emergency services can reliably assess whether a piece of equipment meets their operational needs.
Understanding this measurement is critical for apparatus procurement, safe operations, tactical planning, and effective firefighting and rescue missions. Fire departments should always ask manufacturers for detailed specifications and, if possible, conduct live demonstrations or testing to verify performance under real-world conditions.
