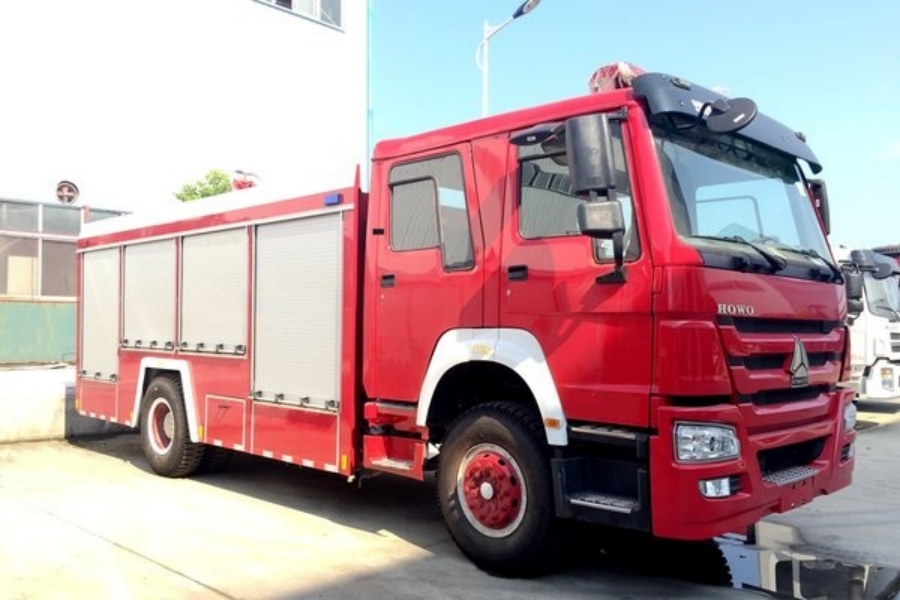

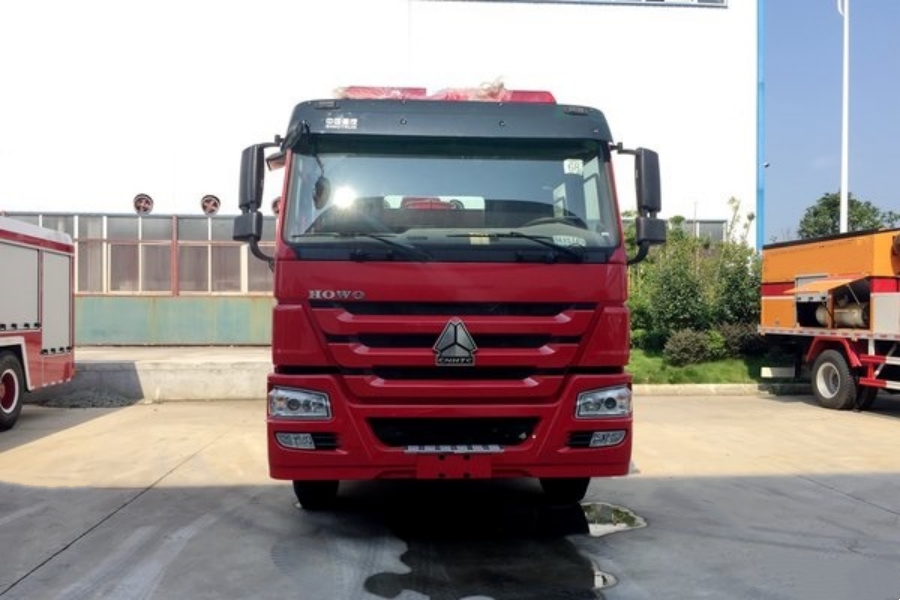

● Main Firefighting Vehicle Overview
The main firefighting vehicle is the most commonly used heavy-duty fire truck.
| Item | Specification |
|---|---|
| Base Chassis | HOWO ZZ5207N4617E5 |
| Vehicle Composition | Crew cab + Vehicle body |
| Body Layout | Front: Equipment compartment, Middle: Water tank, Rear: Pump compartment |
| Tank Material | High-quality carbon steel |
| Water Tank Capacity | 8,000 kg |
| Fire Pump Model | CB10/60 vehicle-mounted fire pump |

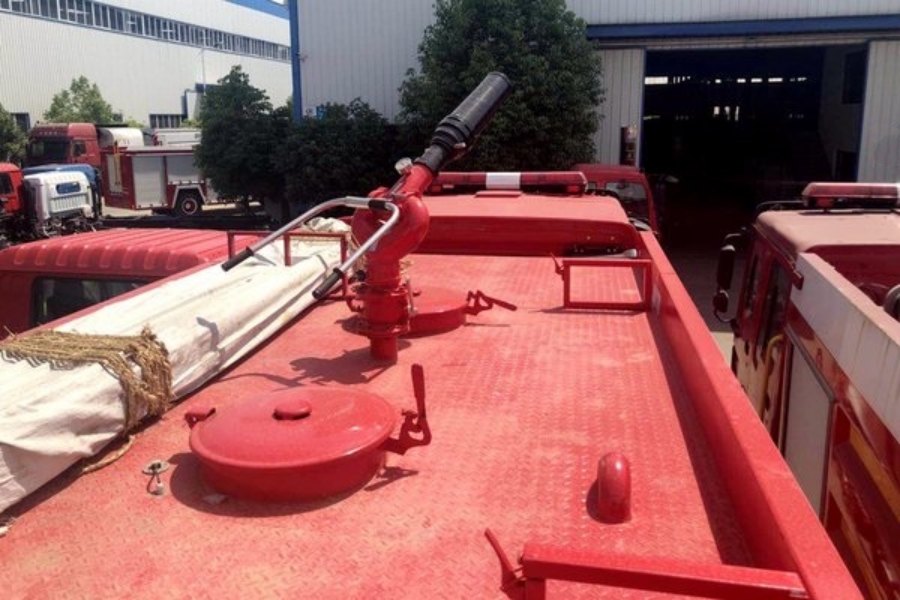

| Fire Monitor Model | PS50 roof-mounted fire monitor |
As a primary firefighting unit, the water tank fire truck is characterized by high power, high speed, and large water capacity. It features an extended cab for enhanced comfort, centralized controls, and ease of maintenance. It is widely applicable in urban fire departments, petrochemical industries, factories, mining enterprises, ports, and docks, capable of fighting large-scale oil fires and general material fires. It serves as an ideal piece of large-scale firefighting equipment.
The vehicle’s firefighting performance complies with GB7956 standards; the chassis is certified under the national compulsory product certification system. The engine emission meets the requirements of GB17691-2005 Stage IV. Both the fire pump and monitor are tested by the National Fire Equipment Quality Supervision and Inspection Center. Firefighting connectors conform to GB12514-2006 standards. The complete vehicle is 3C certified and meets motor vehicle registration regulations.
● Main Technical Specifications
| Specification | Details |
|---|---|
| Dimensions (L×W×H) | 8780 × 2500 × 3460 mm |
| Gross Vehicle Weight | 19,800 kg |
| Water Tank Capacity | 8,000 kg |
| Maximum Speed | 90 km/h |
| Approach/Departure Angles | ≥16° / ≥13° |
| Engine Model | SINOTRUK D10.28-50 |
| Engine Power | 280 hp |
| Engine Displacement | ~10 liters |
| Drive Configuration | 4×2 |
| Transmission Model | 9JS119 |

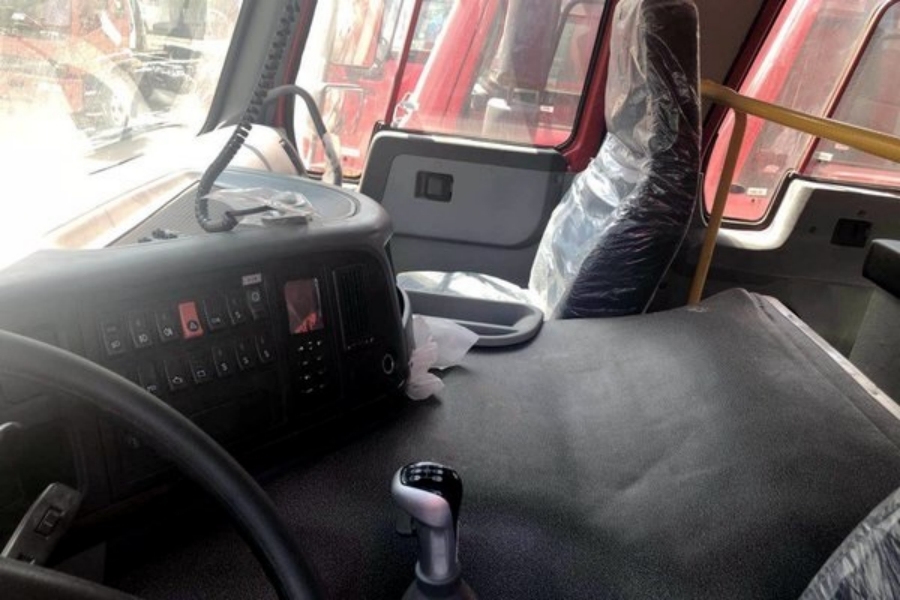

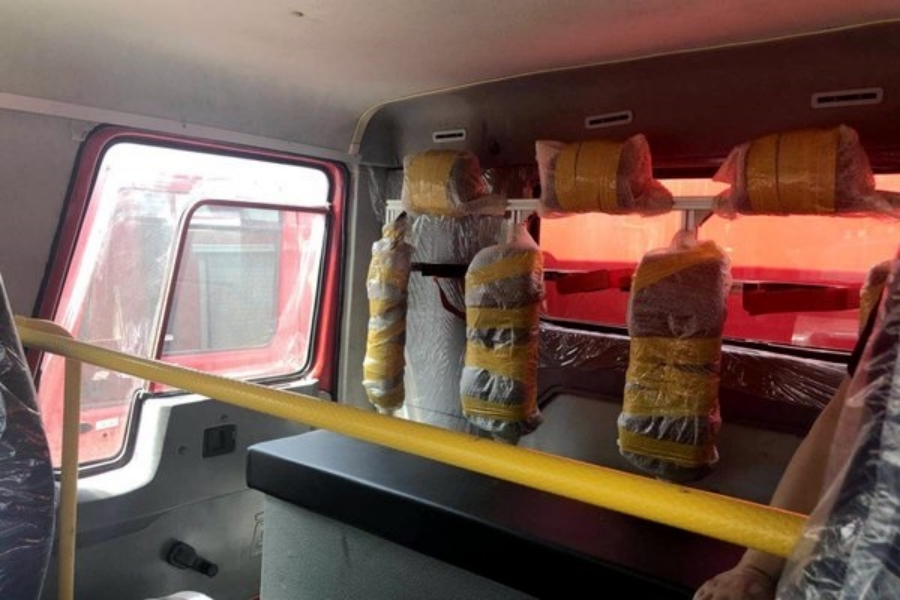

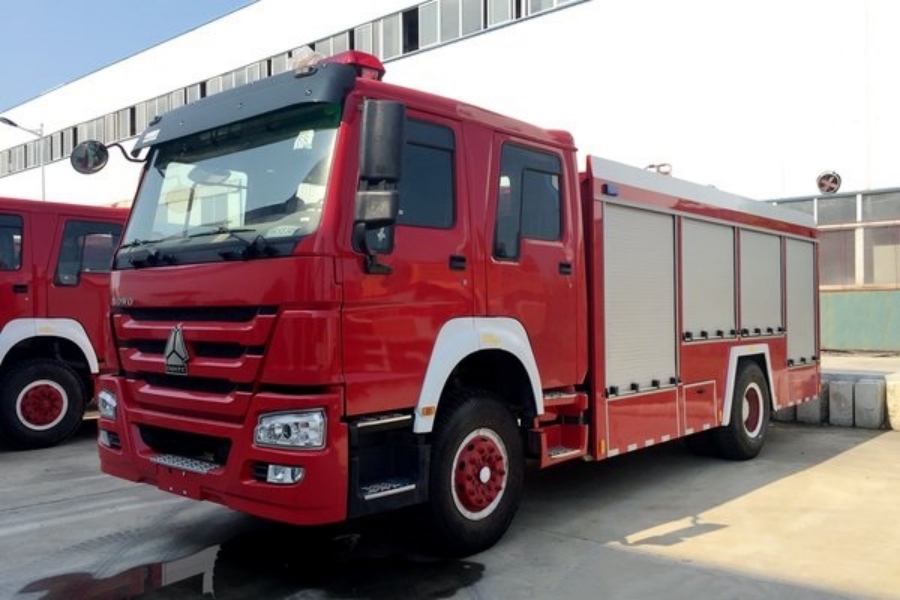

The crew cab is modified into a double-row configuration, with front and rear seats accommodating up to 6 personnel (including the driver). A dedicated control panel and emergency light control box are mounted on the original dashboard. The rear seat backs are equipped with 4 fixed SCBA holders. The cab is tiltable for convenient engine maintenance. The vehicle uses a full-power sandwich-type PTO system, enabling simultaneous driving and water pumping.
● Pump Compartment & Equipment Cabinet
The main frame uses Q235 high-quality perforated steel in a fully welded structure. Exterior panels are made from welded carbon steel or smooth aluminum bonded with high-strength adhesive.

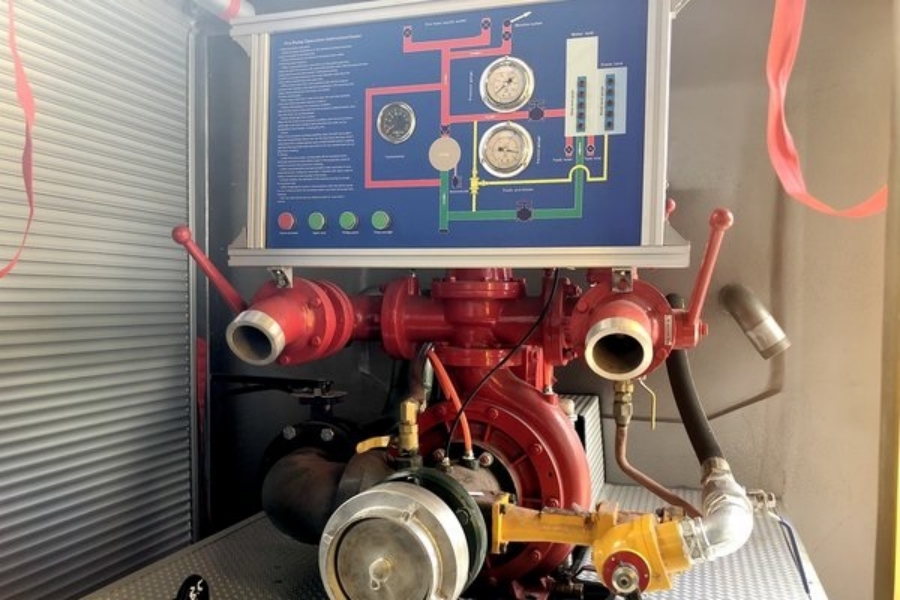

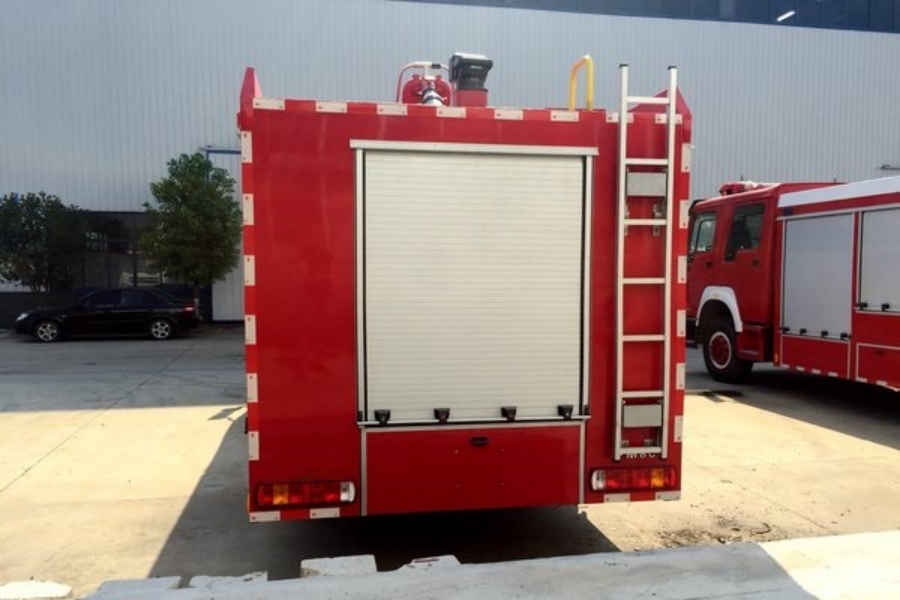

The pump compartment is located at the rear, with aluminum alloy roller shutters on both sides and the back, all equipped with interior lighting. Non-slip footboards are installed on both sides. Compartments beside the footboards can hold commonly used tools. A rear ladder provides access to the roof.

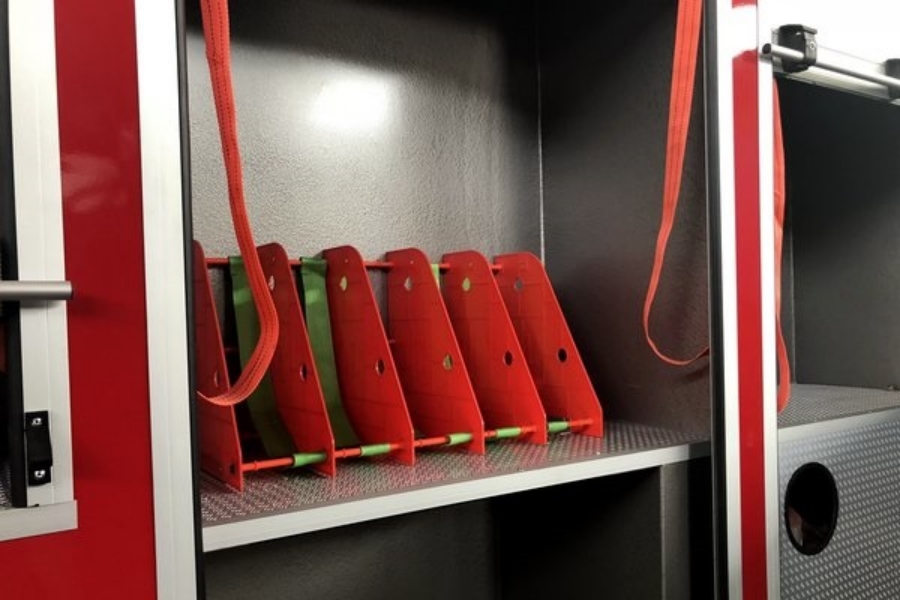

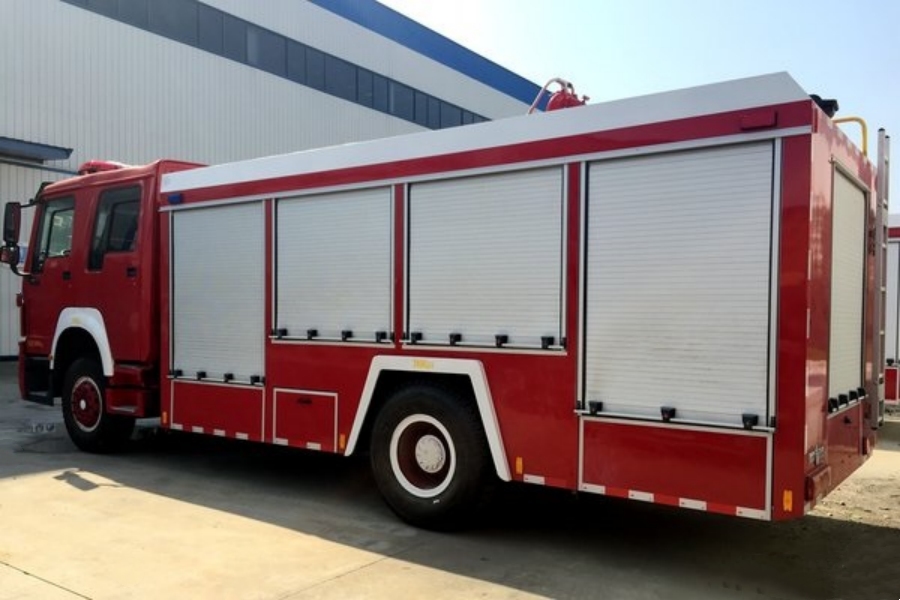

The equipment cabinet is located behind the crew cab, also with aluminum alloy roller shutters on both sides, interior lighting, and non-slip footboards. Pull-out trays and storage boxes are integrated within the perforated steel structure for flexible tool arrangement. Ample space is reserved for custom equipment placement.
The roof is walkable and features anti-slip treatment. Thermal insulation is achieved via an independent diesel heater (optional based on customer needs).
The 8-ton water tank is made of carbon steel treated with a complete phosphating process. The design thickness is 4:4:3 mm (bottom: side: baffle). The tank is rigidly mounted to the chassis frame.
| Component | Specification |
|---|---|
| Manhole | One DN430 manhole with a quick-locking mechanism |
| Overflow Port | One DN50 overflow outlet |
| Drainage Outlet | One DN40 drainage outlet with ball valve |
| Filling Ports | One DN80 port with a cap on each side |
| Fire Pump | CB10/60 vehicle-mounted fire pump, low-pressure type |
| Fire Monitor | PS50 vehicle-mounted type |
| Rotation | 360° horizontal rotation |
| Elevation Angle | ≥ +70° |
| Depression Angle | ≤ -15° |
| Flow Rate | 48–64 L/s |
| Max Range | 60 meters (using water as the medium) |
● Firefighting Control System
| Category | Details |
|---|---|
| Control System | 2-part system: Cab Controls and Pump Compartment Controls |
| Cab Controls | – Master electrical switch- Air system switch- Water pump PTO engage/disengage- Emergency lights & sirens- Lighting & signal devices |
| Pump Controls | – Valve operation switches- Parameter display- Status indicators |
| Electrical System | – Independent circuit layout- High-quality domestic components- Separate circuits for electric and pneumatic systems |
| Lighting System | – Operates on 24V- Dedicated lighting in: Crew cab, pump room, equipment compartments- Illuminated control panels with indicator lights |
| Warning Lights | – 2 red-blue strobe lights are mounted on each side of the vehicle. |
The signal system includes a full-width lightbar on top of the cab and an electronic siren with continuous frequency modulation, with the control unit positioned below the driver’s dashboard.
For scene illumination, a rear-mounted searchlight is installed on the superstructure.
Flipping footboards feature LED safety warning lights, and LED strips are installed along the edges of compartment shutters and the pump room for nighttime operation. These help prevent accidental bumps or scratches in low visibility conditions.
The vehicle exterior is coated with imported paint, in bright red as the primary color.
Firefighting equipment layout and installation follow standard guidelines. Equipment is arranged compactly and securely, allowing for retrieval within 2 actions. Based on operational procedures, items are positioned for easy access, enabling multiple operators to work simultaneously without interference. All items are fixed using anti-corrosion, anti-vibration, anti-detachment, anti-scratch, rotary, sliding, or pull-type specialized holders with clear labeling.
