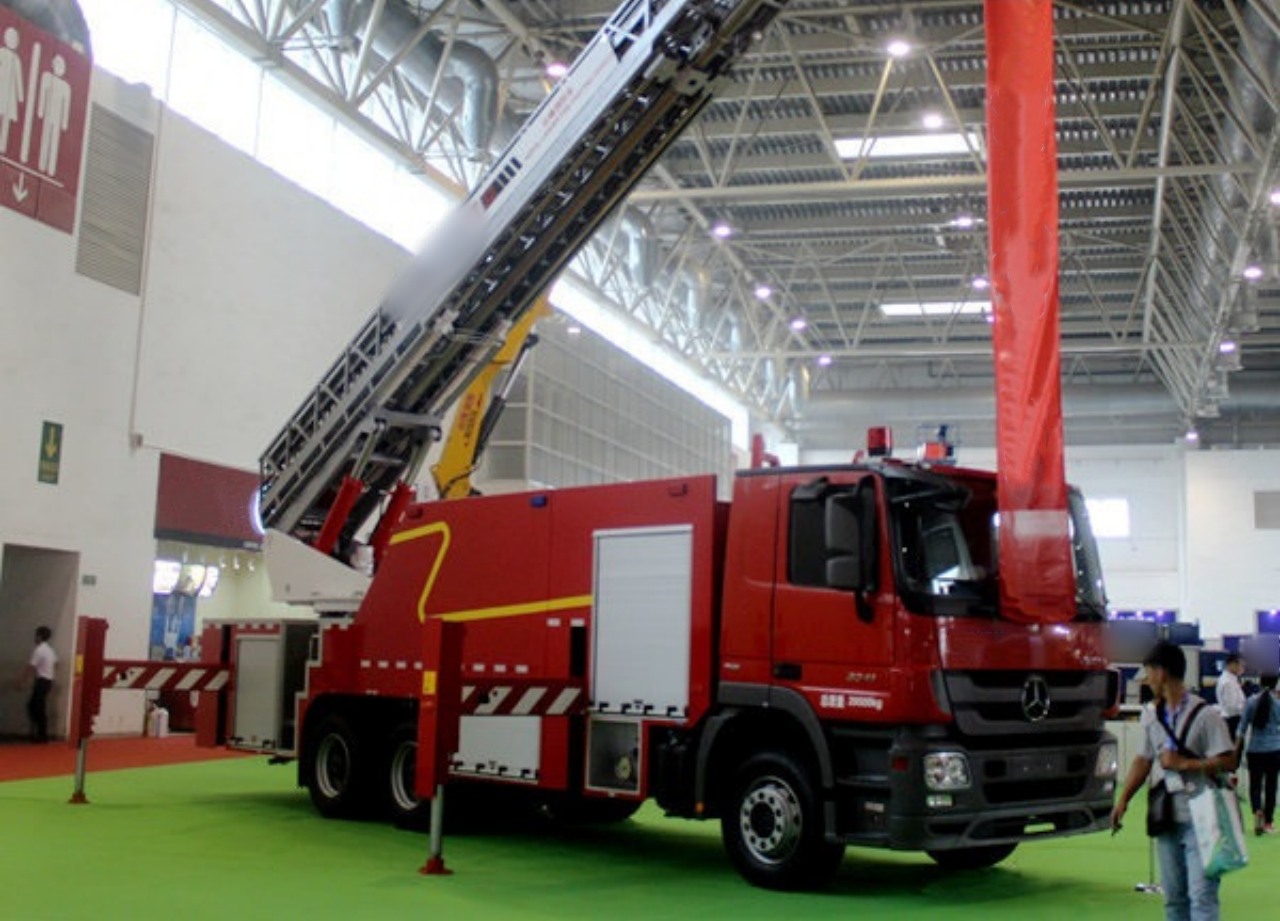

● YT32 Aerial Ladder Fire Truck Built on Mercedes-Benz Chassis
As a member of the rescue fire truck family, the aerial ladder fire truck plays a crucial role in high-rise building rescues. Equipped with firefighting devices, it allows firefighters to perform elevated fire suppression and rescue operations.
| Specification | Details |
|---|---|
| Model | YT32 Aerial Ladder Fire Truck |
| Chassis | Mercedes-Benz 3341 (Imported) |
| Drive Configuration | 6×4 |
| Engine Power | 300 kW |
| Top Speed | 90 km/h |
| Overall Dimensions (L×W×H) | 11,280 × 2,500 × 3,850 mm |
| Water Tank Capacity | 3,000 liters |
| Foam Tank Capacity | 2,000 liters |
| Water Pump System | Imported high-power supply system |
| Water Cannon Range (Water) | 70 meters |
| Water Cannon Range (Foam) | 65 meters |
| Application | Firefighting and rescue in high-rise buildings |

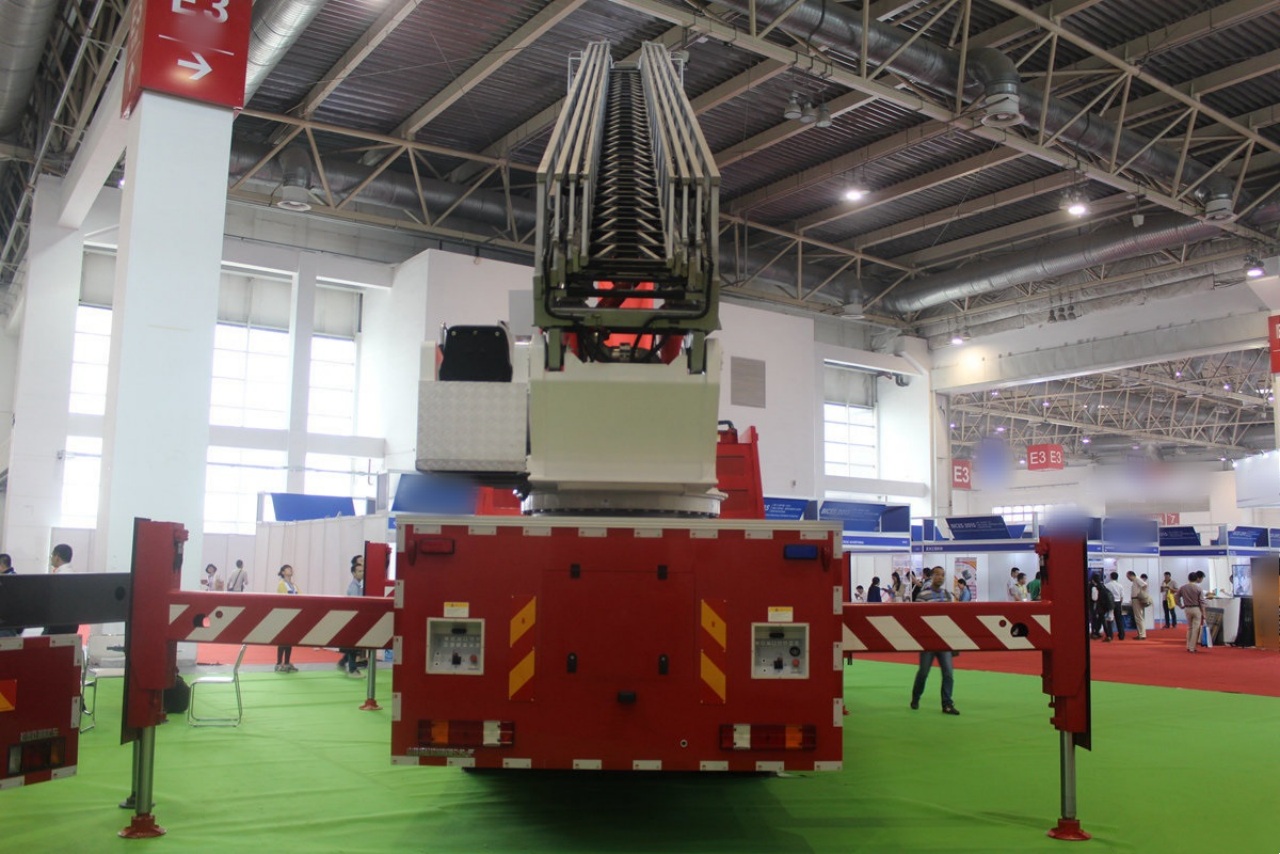

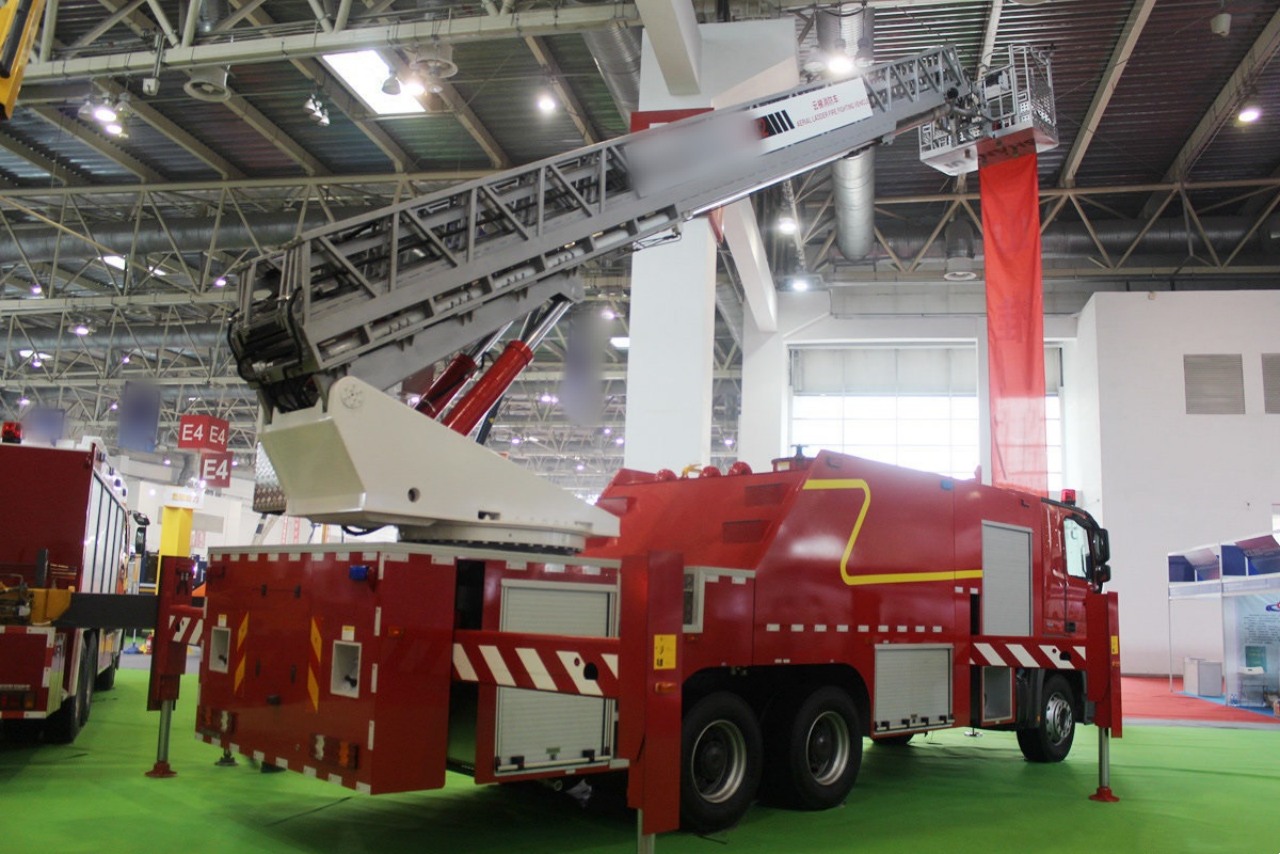

The fire truck features a straight-arm telescopic ladder, known for its efficient and rapid extension capabilities. It is fitted with an electro-hydraulic proportional control system, enabling fast and reliable deployment. The rated working height reaches 32 meters, and the maximum working outreach is 21 meters. It also includes a soft-leg alarm system, with a dedicated control panel for the outriggers located at the rear of the vehicle.

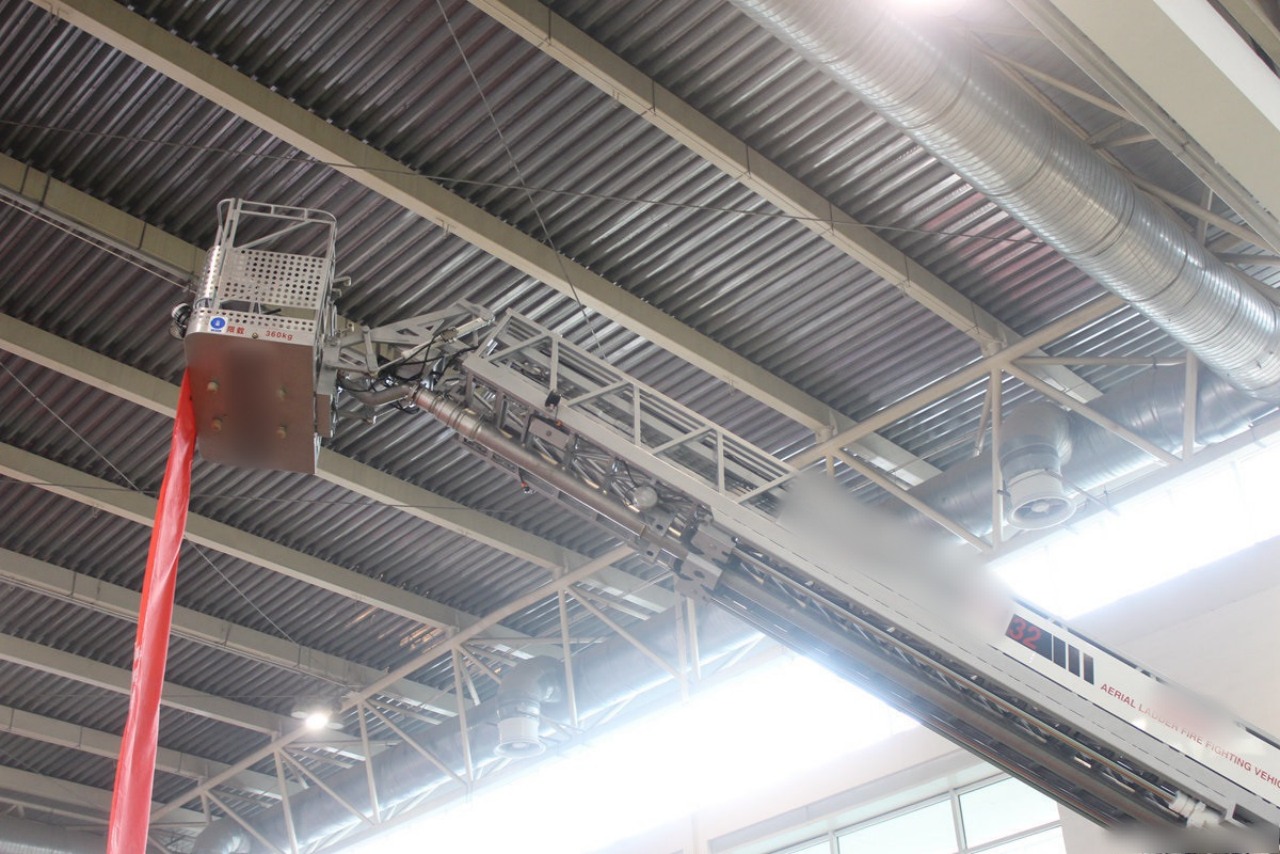

At the top of the ladder is an aerial work platform, capable of transporting multiple individuals simultaneously. Since the aerial ladder truck primarily serves to transport personnel and rescue supplies to high places and evacuate individuals trapped in high-rise buildings, the design incorporates a one-touch deployment and stowage function, significantly improving operational efficiency during rescue missions.

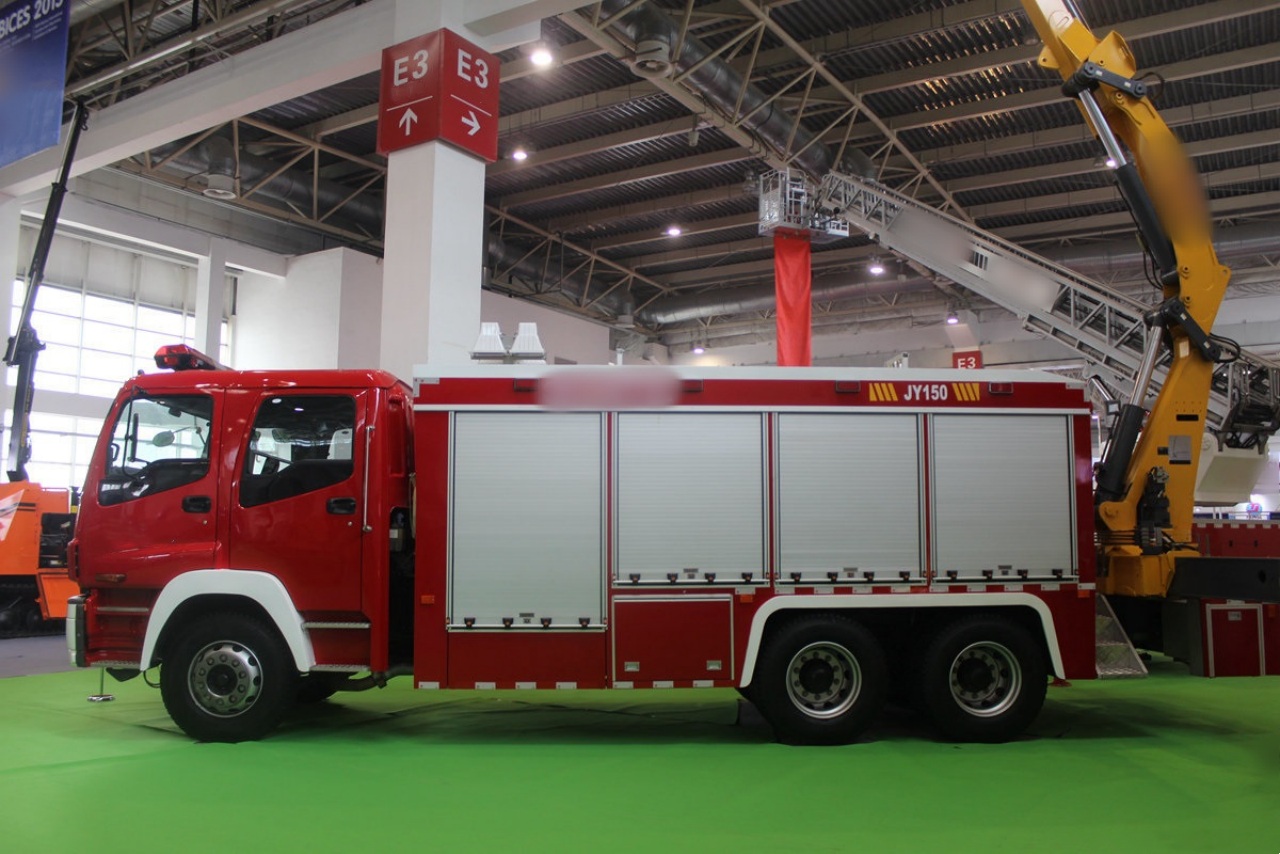

● JY150 Rescue Fire Truck Built on Isuzu Chassis
This rescue fire truck distinguishes itself with an integrated crane system, making it exceptionally versatile for emergency response operations. Designed as a multifunctional rescue vehicle, it combines lifting, self-rescue, and towing, obstacle clearing, power generation, and illumination capabilities in 1 platform. It also accommodates a wide variety of rescue equipment, including demolition tools and fire source detectors, earning it the classification of a specialized duty fire truck.
| Specification | Details |
|---|---|
| Chassis | Isuzu |
| Drive Configuration | 6×4 |
| Engine Power | 265 kW |
| Top Speed | 85 km/h |
| Lighting System | High-intensity roof-mounted lights |
| Crane Model | SQ10ZK3Q (rear-mounted) |
| Crane Lifting Height | Up to 8 meters |
| Crane Max Lifting Capacity | 10,000 kg (10 tons) |
| Primary Functions | Heavy lifting, debris handling, equipment relocation, vehicle recovery |
Altogether, this rescue fire truck is not only a transport unit but a mobile emergency operations center—capable of handling complex rescue scenarios with efficiency, strength, and adaptability.
