BRIEF

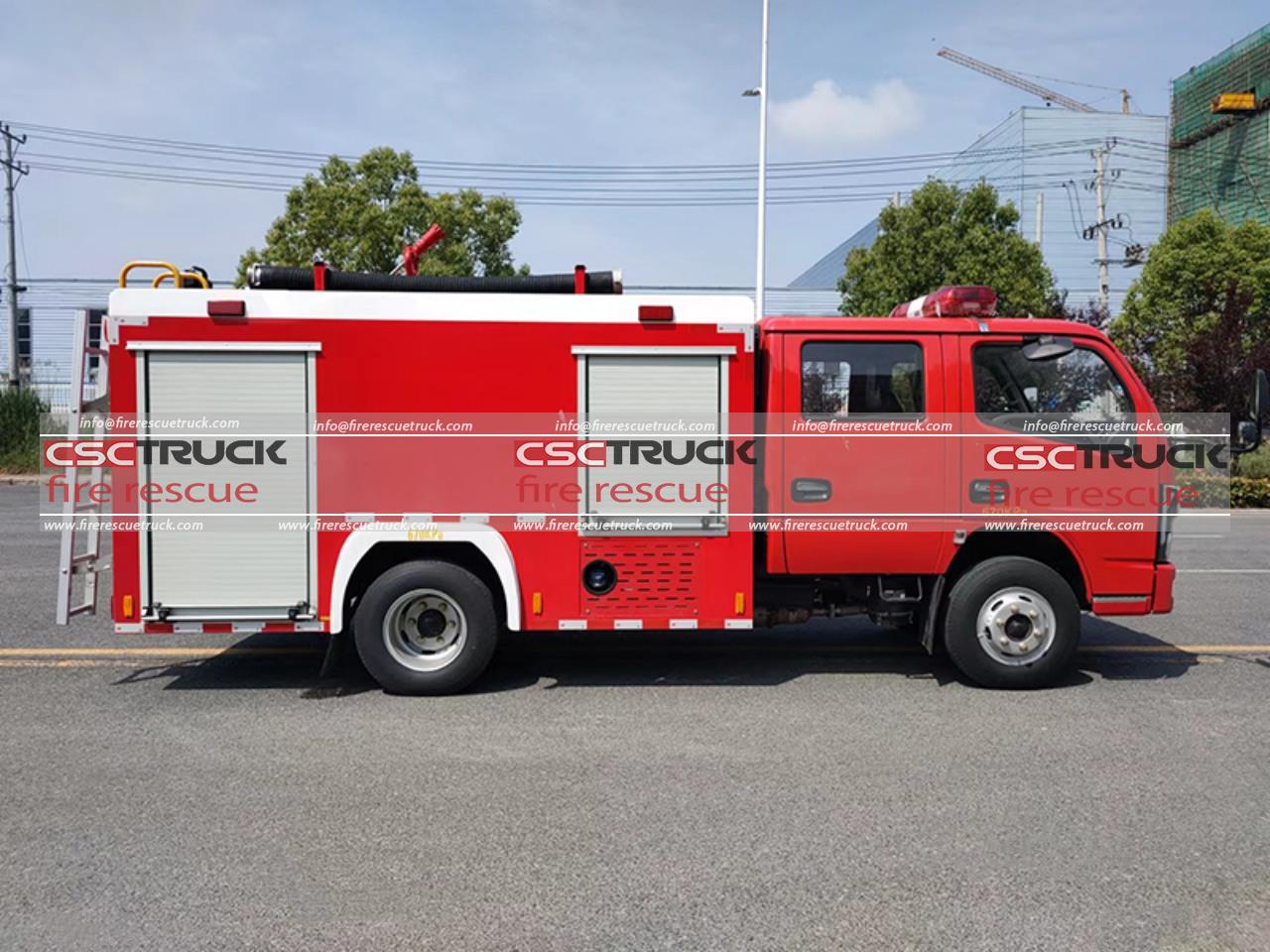

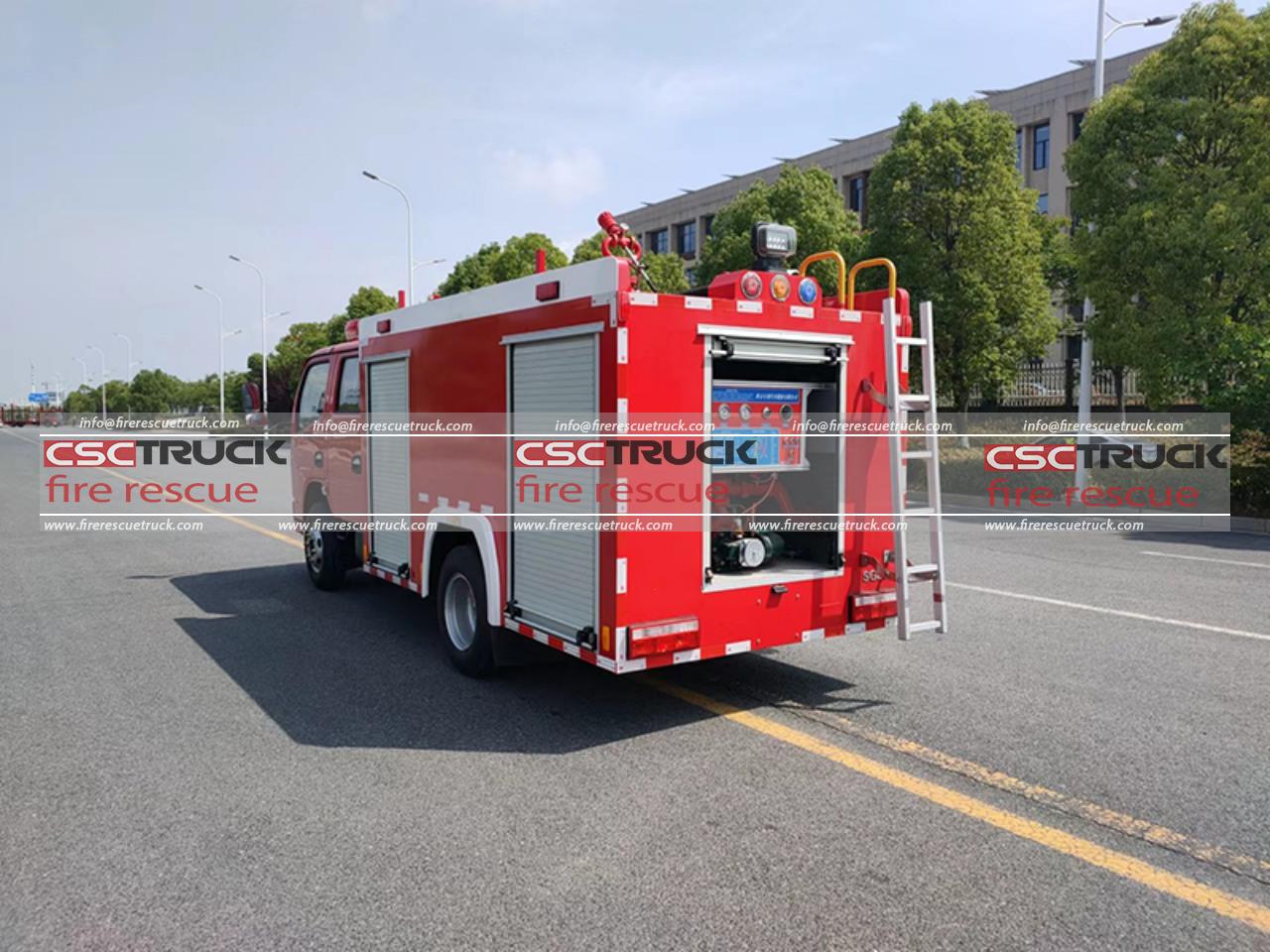

The 2 CBM small water tanker fire truck, manufactured by CSCTRUCK Fire Rescue Truck, is a compact yet highly capable firefighting solution designed for quick intervention in urban, rural, and industrial environments. Engineered for agility and efficiency, it is equipped with a 2 cubic meter (2,000 L) water tank, making it ideal for first-response operations, narrow streets, and areas where larger fire engines cannot easily maneuver.
Built on the Dongfeng/EQ1075DJ3CDF chassis, the tanker fire truck features a reliable 4×2 drive configuration, ensuring smooth handling and stable performance on paved and moderately uneven roads. Its Q23-115E60 engine delivers 85 kW of power, compliant with the EURO VI emission standard, providing clean, efficient operation while supporting a maximum driving speed of 100 km/h. This balance of speed and power enables rapid deployment to emergency sites.
For fire suppression, the truck is equipped with a CB10/20 fire pump, capable of providing a steady water flow for firefighting tasks. Complementing the pump is the PS20 water monitor, which offers a water jet range of at least 48 meters, allowing crews to combat fires from a safe distance. The compact pump and monitor system ensures that the vehicle remains lightweight while maintaining professional-grade firefighting performance.
The 2 CBM small water tanker fire truck is especially suited for residential communities, warehouses, schools, markets, and small industrial plants where fast response and mobility are critical. Its compact footprint minimizes turnaround times and allows access to tight alleys and rural lanes. With its robust construction, eco-friendly engine, and effective firefighting equipment, this vehicle delivers a practical and economical solution for organizations seeking a reliable light-duty fire suppression unit.
FEATURES
- Compact 2 CBM Water Tank
- Equipped with a 2-cubic-meter stainless-steel water tank, ideal for quick-response firefighting in narrow streets, residential areas, or industrial facilities.
- Reliable Dongfeng Chassis
- Built on the Dongfeng EQ1075DJ3CDF chassis with a 4×2 drive type, offering stable handling, excellent maneuverability, and dependable performance on urban and rural roads.
- Efficient Q23-115E60 Engine
- Powered by an 85 kW (115 hp) engine meeting EURO VI emission standards, providing eco-friendly operation with smooth acceleration and a maximum driving speed of 100 km/h.
- High-Performance Fire Pump & Monitor
- Features a CB10/20 water pump for strong and steady water delivery, paired with a PS20 water monitor capable of reaching water ranges of ≥48 m, ensuring effective fire suppression at distance.
- Lightweight and Easy Operation
- Compact design and ergonomic control layout allow for fast deployment and simplified operation, making it well-suited for small-scale firefighting, cleaning, or emergency water supply tasks.
SPECIFICATION
| Item | Specification |
|---|---|
| Product Brand | Dongfeng |
| Producer | CSCTRUCK Fire Rescue Truck |
| Product Name | 2 CBM Small Water Tanker Fire Truck |
| Gross Vehicle Weight (kg) | 7,000 |
| Tank Volume (m³) | 2.000 |
| Rated Load (kg) | 2,000 |
| Overall Dimensions (mm)(LxWxH) | 5,990 × 1,980 × 2,660 |
| Curb Weight (kg) | 4,625 |
| Cargo Compartment Size (mm) | N/A |
| Rated Passenger Capacity | — |
| Cab Seating Capacity (persons) | 2 + 3 |
| Approach / Departure Angle (°) | 19 / 16 |
| Front / Rear Overhang (mm) | 1,055 / 1,627 |
| Axle Load (kg) | 2,300 / 4,700 |
| Maximum Speed (km/h) | 100 |
| Remarks | Optional cab with chassis. Tank volume: 2.0 m³; tank size: 960 × 1,880 × 1,150 mm. Integrated side/rear protective structure, rear guard clearance: 425 mm. ABS manufacturer: Xiangyang Dongfeng Longcheng Machinery Co., Ltd., Model: ABS/ASR-24V-4S/4M. Main fire equipment: CB10/20 fire pump, PS20 fire monitor, water jet range ≥48 m. |
Chassis Technical Specifications
| Item | Specification |
|---|---|
| Chassis Model | EQ1075DJ3CDF |
| Chassis Name | Cargo Truck Chassis |
| Brand | Dongfeng |
| Manufacturer | Dongfeng Motor Co., Ltd. |
| Axles | 2 |
| Tires | 6 |
| Wheelbase (mm) | 3,308 |
| Tire Size | 7.00R16, 7.00R16LT 14PR |
| Leaf Springs | 6/6+5, 3/3+3, 6/4+3, 6/5+2, 6/3+3 |
| Front Track (mm) | 1,521 |
| Rear Track (mm) | 1,498 / 1,586 / 1,670 |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2018 EURO VI |
| Engine Model | Q23-115E60 |
| Engine Manufacturer | Anhui Quanchai Power Co., Ltd. |
| Engine Displacement (ml) | 2,300 |
| Engine Power (kW) | 85 |
