BRIEF

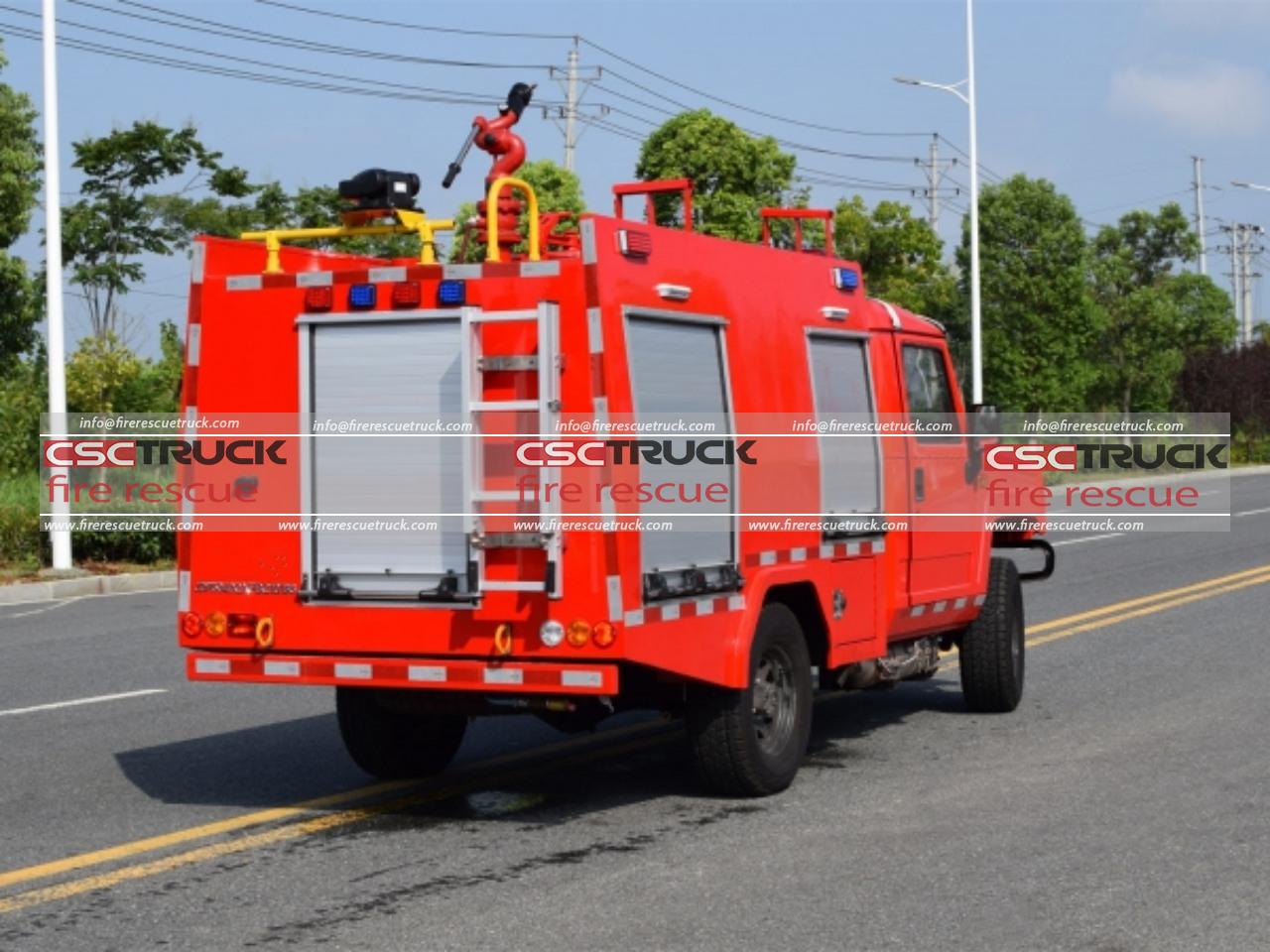

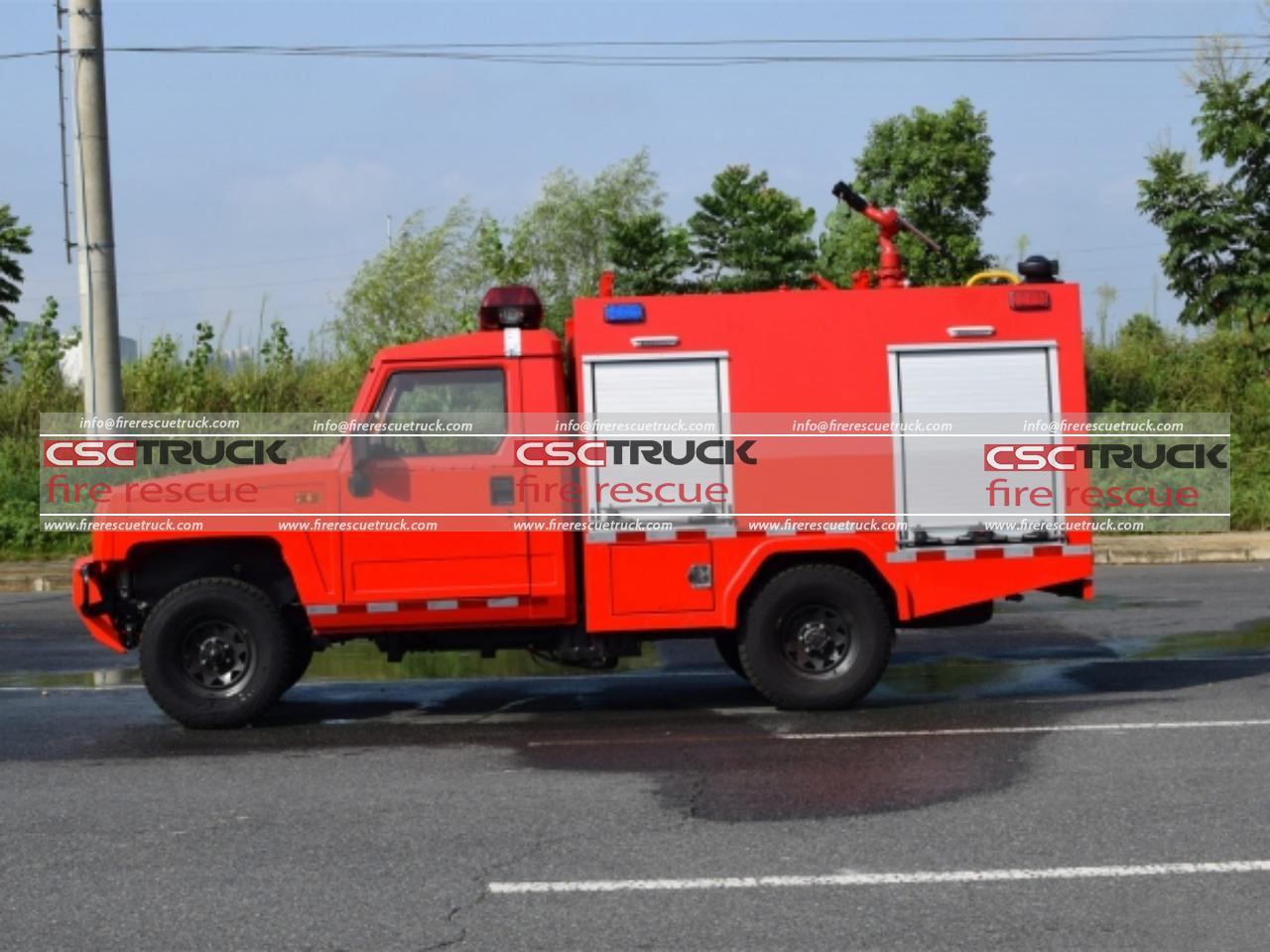

The BAIC 4×4 1-ton water tender fire truck, produced by CSCTRUCK Fire Rescue Truck, is a compact yet powerful solution for rapid fire suppression and emergency response in challenging environments. Built on the rugged BAIC/BAW2043HHS42D chassis, this vehicle combines agility, durability, and firefighting efficiency, making it ideal for urban streets, industrial facilities, rural communities, and off-road terrains.
Designed with a 4×4 drive system, the tanker fire truck offers exceptional traction and stability, ensuring dependable performance on unpaved roads, steep inclines, or muddy conditions. Its 103 kW engine, compliant with EURO VI emission standards, delivers robust power while maintaining environmental responsibility. The vehicle achieves a maximum speed of 100 km/h, enabling quick deployment to fire scenes.
At its core, the off-road truck carries a 1-ton water tank, providing ample capacity for first-attack firefighting missions. It is equipped with a CB10/20 fire pump, offering a rated flow of 20 L/s at 1.0 MPa and a maximum suction depth of 7 m, allowing operators to draw water from natural sources such as ponds or rivers. For enhanced operational capability, a PS8/20W fire monitor is mounted on the vehicle, delivering a 20 L/s rated flow with a water jet range exceeding 50 m, ensuring effective fire suppression at a safe distance.
Compact dimensions and ergonomic design make the BAIC water tender easy to maneuver in narrow streets or confined areas where larger fire trucks may be unsuitable. Its straightforward layout simplifies operation and maintenance, supporting fast response and reduced downtime.
With its blend of off-road mobility, reliable pumping performance, and environmental compliance, the BAIC 4×4 1-ton water tender fire truck stands out as an efficient and versatile firefighting asset for municipal departments, industrial safety teams, and emergency services worldwide.
FEATURES
- Compact 4×4 Off-Road Capability – Built on a BAIC/BAW2043HHS42D chassis with 4×4 drive, it offers strong off-road performance and a maximum speed of 100 km/h.
- Efficient Water Pump System – Equipped with a CB10/20 water pump delivering 20 L/s at 1.0 MPa, with a maximum suction depth of 7m, ensuring a reliable water supply in firefighting operations.
- High-Pressure Fire Monitor – The PS8/20W fire monitor offers a 20 L/s flow rate and a water range of> 50 m for effective long-distance fire suppression.
- Environmentally Friendly Engine – Powered by a 103 kW engine meeting EURO VI emission standards, combining power with reduced environmental impact.
- Practical Water Tank Capacity – 1-ton water tank designed for quick response and mobility, ideal for small- to medium-scale fire incidents.
SPECIFICATION
| Item | Data |
|---|---|
| Product Name | BAIC 4×4 1t Water Tender Fire Truck |
| Product No. | CSCWTFT001 |
| Gross Vehicle Weight (kg) | 4,200 |
| Tank Volume (m³) | 0.955 |
| Rated Load (kg) | 955 |
| Dimensions (mm)(LxWxH) | 5,310 × 1,880 × 2,580 |
| Curb Weight (kg) | 3,095 |
| Cargo Compartment Size (mm) | – |
| Rated Passengers | – |
| Approved Towing Mass (kg) | – |
| Cab Seats | 2 |
| Load Utilization Coefficient | – |
| Approach / Departure Angle (°) | 40 / 22 |
| Front / Rear Overhang (mm) | 775 / 1,420 |
| Axles | 2 |
| Wheelbase (mm) | 3,035 |
| Axle Load (kg) | 1,305 / 2,895 |
| Max Speed (km/h) | 100 |
| Others | Water tank 0.955 m³, dimensions 575×1,750×990 mm; optional rims; integrated side guards; rear guard material Q235, section 50×100 mm, bolted; ground clearance 495 mm; rear extension 80 mm; ABS by Dingjia (Tianjin) Auto Electronics, model DJABS-Y-03; main devices: Fire pump, fire monitor. |
Chassis Technical Parameters
| Item | Data |
|---|---|
| Chassis Model | BAW2043HHS42D |
| Chassis Name | Off-road Cargo Vehicle Chassis (Category II) |
| Brand | Ruisheng |
| Manufacturer | Beijing Automobile Works Co., Ltd. |
| Dimensions (mm)(LxWxH) | 4,880 × 1,830 × 1,950 |
| Tires | 4 |
| Leaf Springs | 9 / 8+8 |
| Front Track (mm) | 1,540 |
| Rear Track (mm) | 1,540 |
| Fuel | Diesel |
| Emission Standard | GB17691-2018 Stage VI |
| Engine Model | YCY24140-60A |
| Engine Manufacturer | Guangxi Yuchai Machinery Co., Ltd. |
| Displacement (ml) | 2,360 |
| Power (kW) | 103 |
Fire Pump
| Item | Data |
|---|---|
| Model | CB10/20 |
| Type | Normal-pressure centrifugal |
| Rated Flow | 20 L/s @ 1.0MPa |
| Rated Outlet Pressure | 1.0MPa |
| Max Suction Depth | 7m |
| Priming Device | Piston vacuum pump |
| Priming Time | ≤35 s at max suction depth |
Fire Monitor
| Item | Data |
|---|---|
| Model | PS8/20W |
| Manufacturer | Chengdu Weist Fire Machinery Co., Ltd. |
| Rotation | 360° horizontal |
| Elevation / Depression | –15° to +45° |
| Flow | 20 L/s |
| Range | ≥50 m (water) |
