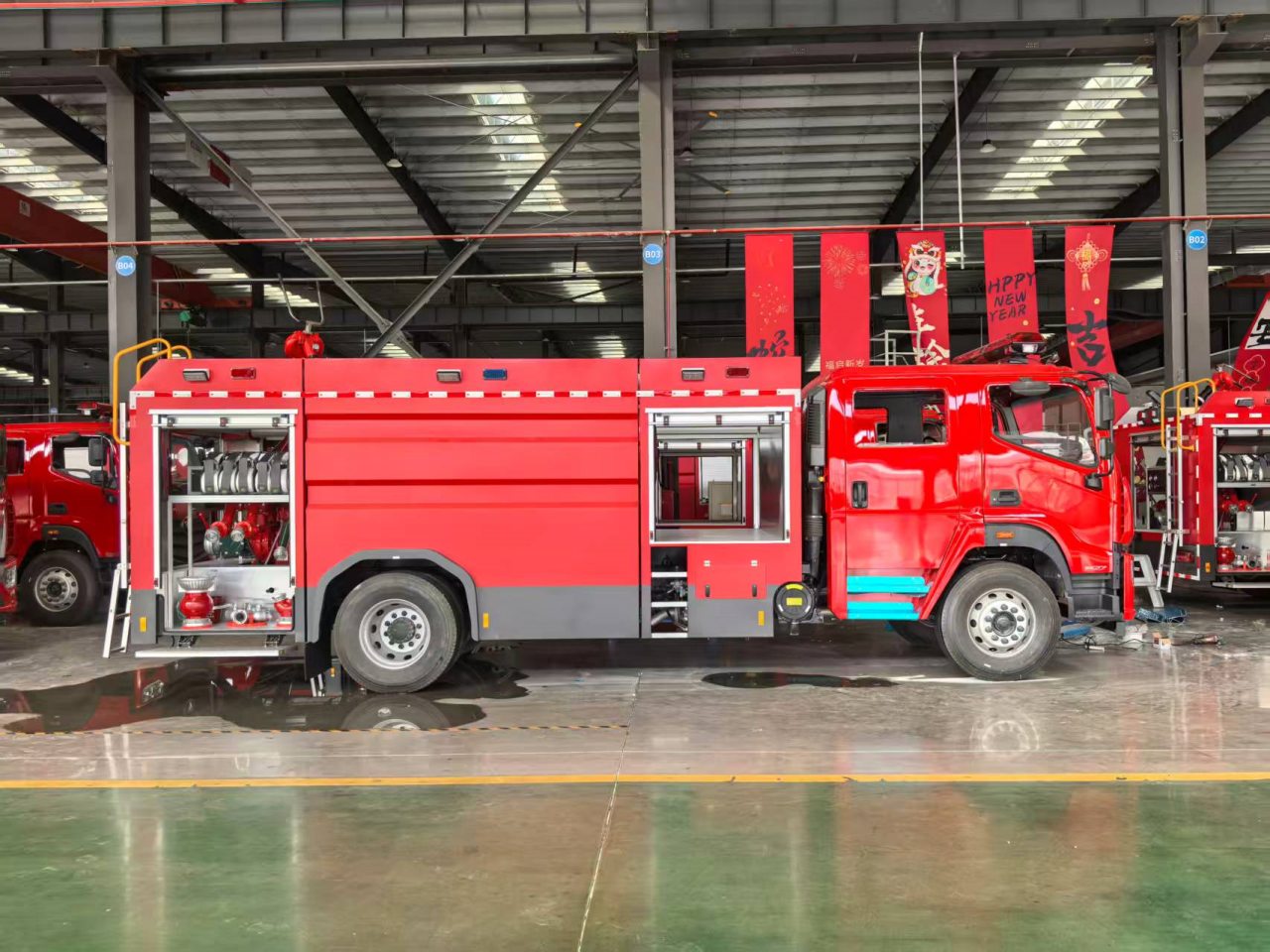

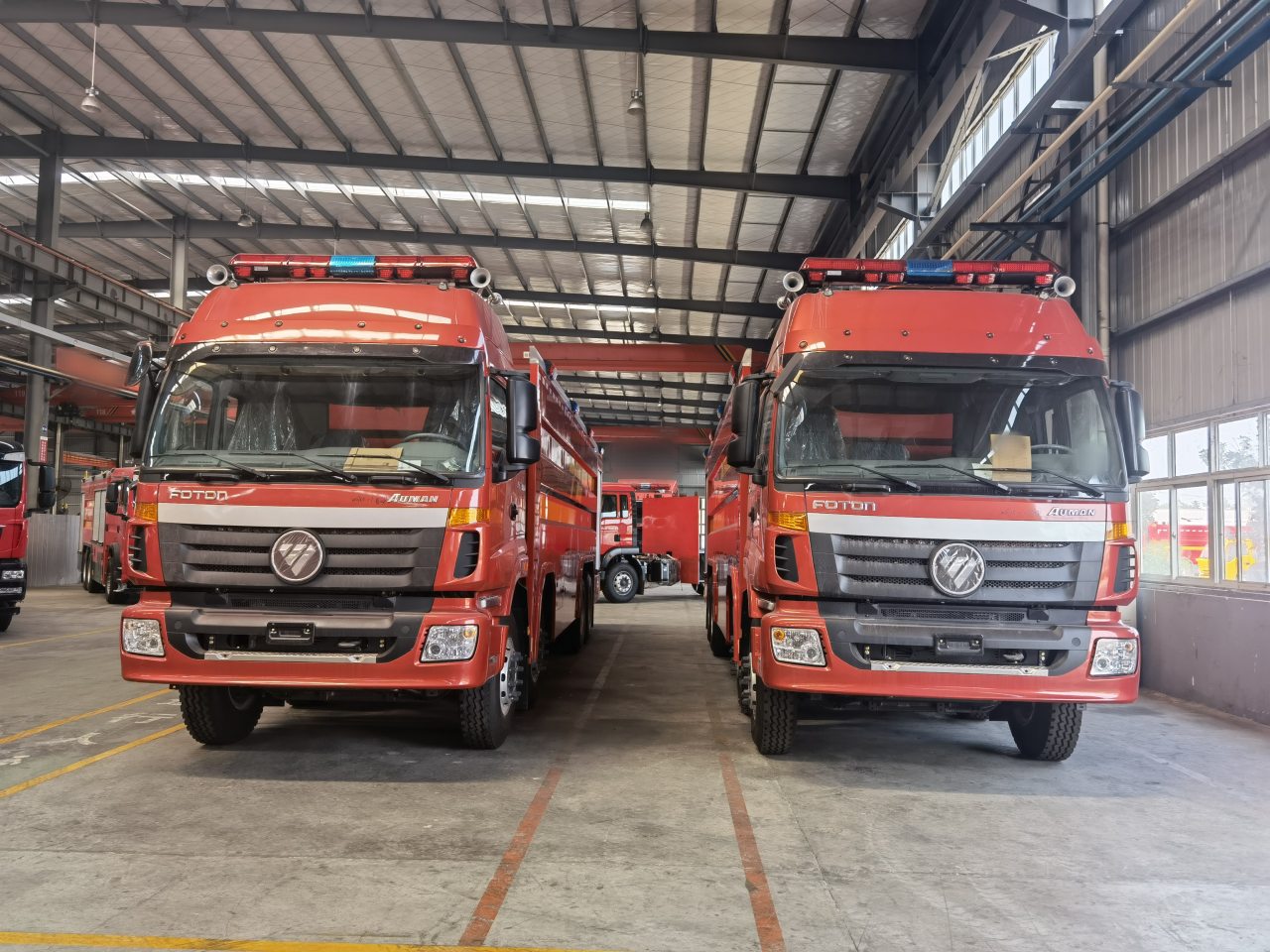

FOTON Auman 5000L Small Water Tender Fire Truck

BRIEF



The Foton Auman 5000L small water tender fire truck, manufactured by CSCTRUCK Fire Rescue Truck, is designed for agile and efficient fire response in various terrains and conditions. With a compact yet robust 5,000-liter water tank mounted on a Foton Auman chassis, this vehicle excels in maneuverability and reliability.

Powered by the YC4S160-50 engine, which delivers 160 horsepower and adheres to EURO 5 emission standards, the truck ensures both power and environmental responsibility. Its 4×4 drive type enhances traction and mobility, crucial for accessing remote or challenging fire scenes.

Equipped with a CB10/40 fire pump, capable of delivering 40 liters per second at 1.0 MPa pressure, the tanker fire truck efficiently delivers water to extinguish fires swiftly. The PS 8/40W fire monitor extends operational capability with a 40 liters per second discharge rate at the same pressure, reaching up to 65 meters, ensuring effective firefighting even at a distance.

The carbon steel water tanker ensures durability and reliability, essential for withstanding the demands of firefighting operations. With a rated flowing capacity of 2,400 liters per minute, this fire truck combines powerful firefighting capabilities with precision and effectiveness.

Overall, the Foton Auman 5000L small water tender fire truck is an indispensable asset for fire departments needing a compact yet potent vehicle capable of rapid response and efficient firefighting across various urban and rural environments.



FEATURES



1. Robust 4×4 All-Wheel Drive Configuration
   Built on a FOTON Auman chassis with a 4×4 drive type, this fire truck is capable of navigating difficult terrains and remote rescue areas, ensuring reliable off-road firefighting operations.
2. Powerful and Efficient Engine
   Equipped with a YC4S160-50 engine that delivers 160 horsepower and meets EURO 5 emission standards, the vehicle strikes a balance between strong performance and environmental compliance.
3. High-Capacity Water System
   The truck features a 5,000-liter carbon steel water tank paired with a CB10/40 fire pump capable of 40L/s flow at 1.0MPa pressure, ensuring a consistent and powerful water supply for firefighting.
4. Advanced Fire Monitor
   Fitted with the PS 8/40W fire monitor, which delivers 40L/s at 1.0MPa with a ≥65-meter throw range, this system allows for effective long-distance fire suppression and precision targeting.
5. Durable Construction and Components
   The carbon steel tank, combined with professional-grade fire pump and monitoring systems, makes this truck a rugged and reliable solution for municipal and industrial firefighting missions.



SPECIFICATION



Technical Specification
Truck	Make/Model Line	FOTON	4X4 LHD
	Gearbox	6TS55
	Engine Model		YC4S160-50
	Horsepower	160hp
	Front/Rear loading	4.4T+8T
	Tire Size	12.00R20with 1spare  tire
	Wheelbase	4,600mm

Cabin	Mode	double cab
	People	2+4 person
	Material	High-quality Q235 carbon steel
	The seats	The seats in the rear section should be made in the form of a locker with mounts for breathing apparatus for fire-fighters in the quantity of 4 units and 4 units of reserve tanks, and equipped with safety belts for all members of the truck crew. The seat cushions of the TCC should be foldable to ensure access to lockers under the seats.

Water tanker	Capacity	5,000 Liters
	Shape	Round Cylindrical
	Material	Carbon steel
	Thickness	Shell: 5mm
	Reinforcing ribs	Installed on the surface of the sewer tanker to increase the strength of the tank.
	Tank Testing	The tank is hydrostatically tested.
Fire Pump	Make/Model	CB10/40
	Origin	China
	Normal Pressure	40L/[email protected]
	Rated flowing	2,400L/M
	Outlet Pressure	1.00MPa
Fire monitor	Make/Model	PS 8/40W
	Origin	China
	Normal Pressure	40L/[email protected]
	Rated flowing	2,400L/M
	flowing Range	≥65m
Pipe system	Material	High-quality steel pipe
	Pipeline inlet	1 unit DN100 inlet behind the pump room
	Filling pipe	1 unit DN65 port on each side of the water tank (2 units)
		1 unit DN65 pump filling the water tank.
	Pipeline outlet	1 unit DN65 on each side of the pump room (2 units), with a valve
	Cooling pipe	Cooling pipe and control valve for PTO

Electrical equipment
Auxiliary lighting	Firemen’s room, pump room, and equipment box are respectively provided with lights, operating instrument panel is provided with lighting, indicators.

Strobe light	Red and blue strobe lights are installed on both sides of the body.
Warning device	Long row of all-red alarm lights mounted on the roof of the cab.
	An alarm with a control box in front of the driver.
Projector	Install a 35W projector at the rear of the upper structure.
Painting	The exterior and interior of the tank are painted with high-quality paint.
Accessories
No.	Item	Standardards	QTY
1	Suction Pipe	DN150x 4m	2
2	Water Filter	FLF DN150	1
3	Water separator	FII8065x3-1.6	1
4	Water collector	JII150/80×2-1.0	1
5	Suction Pipe Spanner	FS100	2
6	Overground Hydrant Spanner	QT-DS1, 400mm	1
7	Underground Hydrant Spanner	860mm	1
8	Fire hose	16-65-20	6
9	Fire hose	16-80-20	2
10	Fire hose	16-65-5	1
11	Reducer union	KJK65/80	1
12	Hose bandage	DT-SB	4
13	Hose strap		4
14	Water-stream nozzle	QZG3.5/7.5	1
15	Diffuser nozzle	QHD6.0/8	1
16	Flowering water nozzle	QZH19	1
17	Air foam nozzle	QP4/0.7Z; 65	1
18	Outer pipette assembly	Φ40×2000	1
19	Shovel	1050mm	1
20	Crowbar	1060mm	1
21	Fire axe	390mm	1
22	Fire hammer		1
23	Portable ladder	TE60	1
24	Extinguisher	3kg/ABC	1

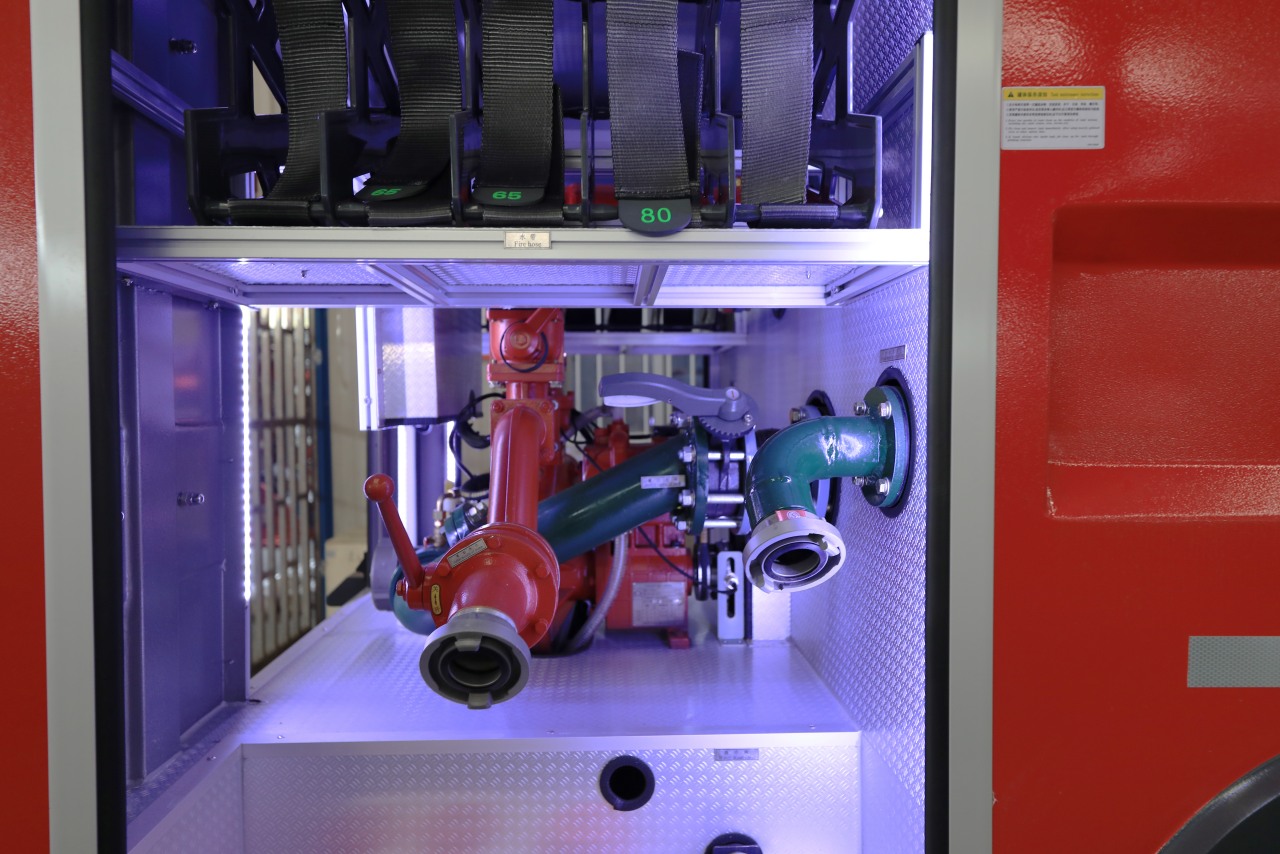

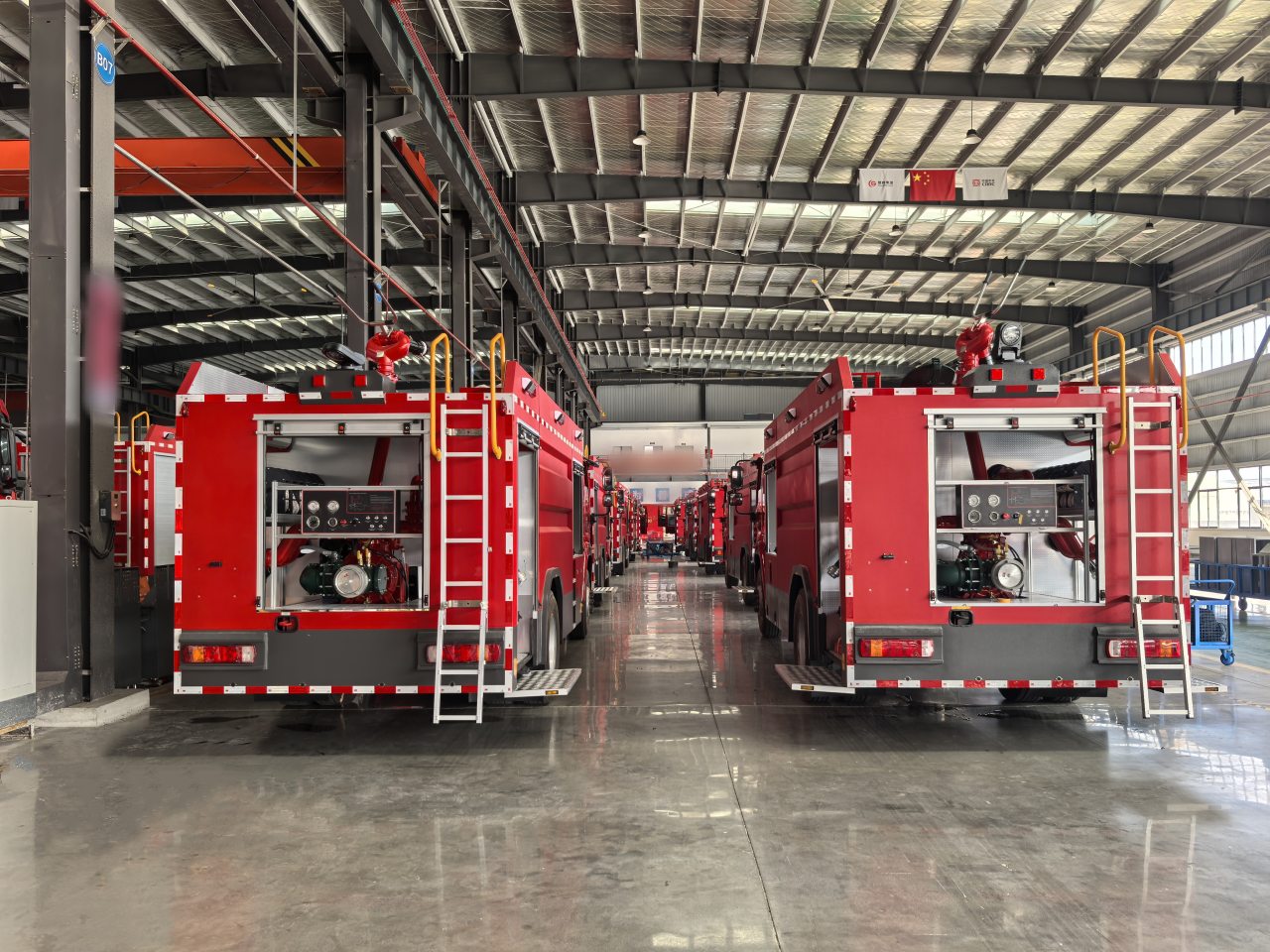

Pump room

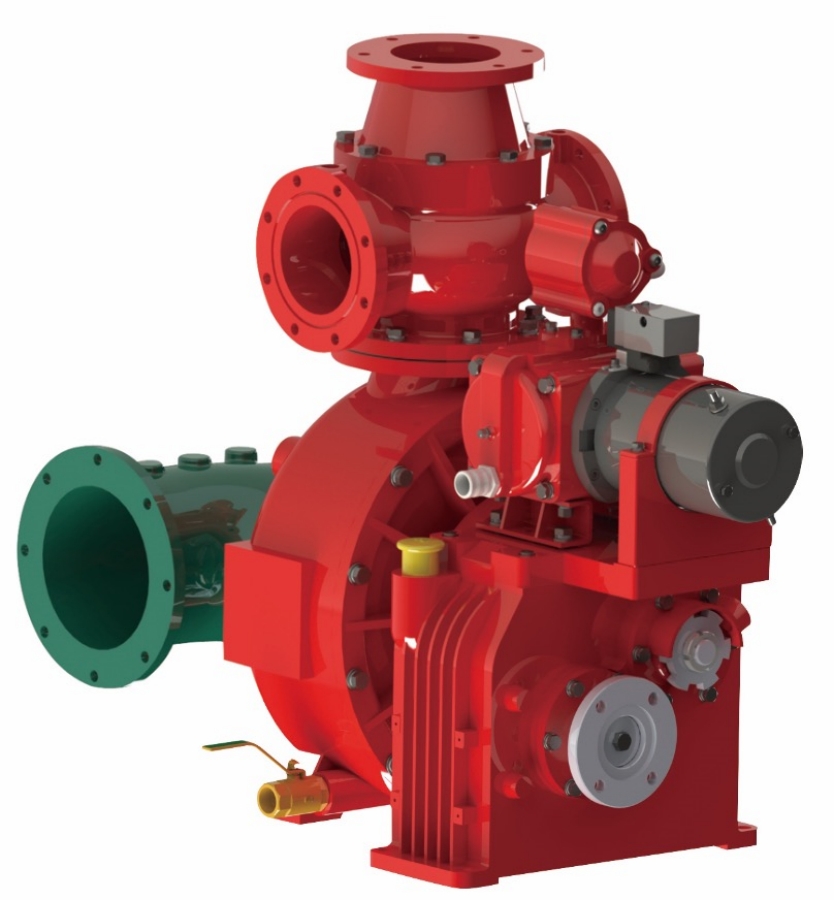

Fire pump

Fire monitor

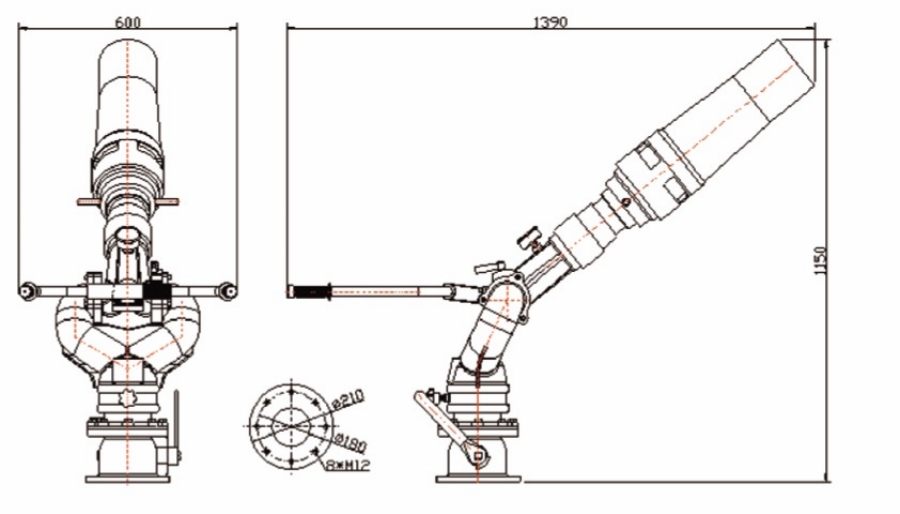

Fire monitor(1)

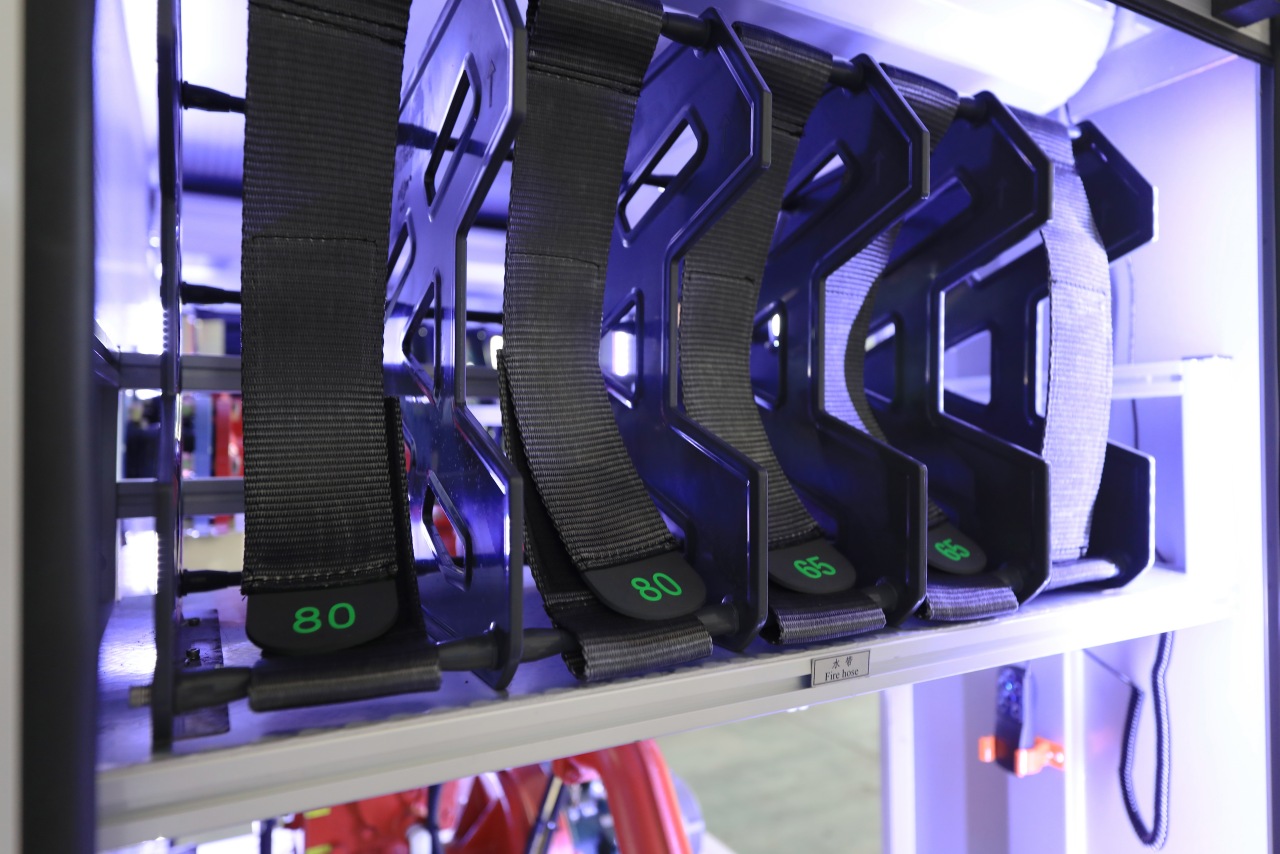

Fire horse

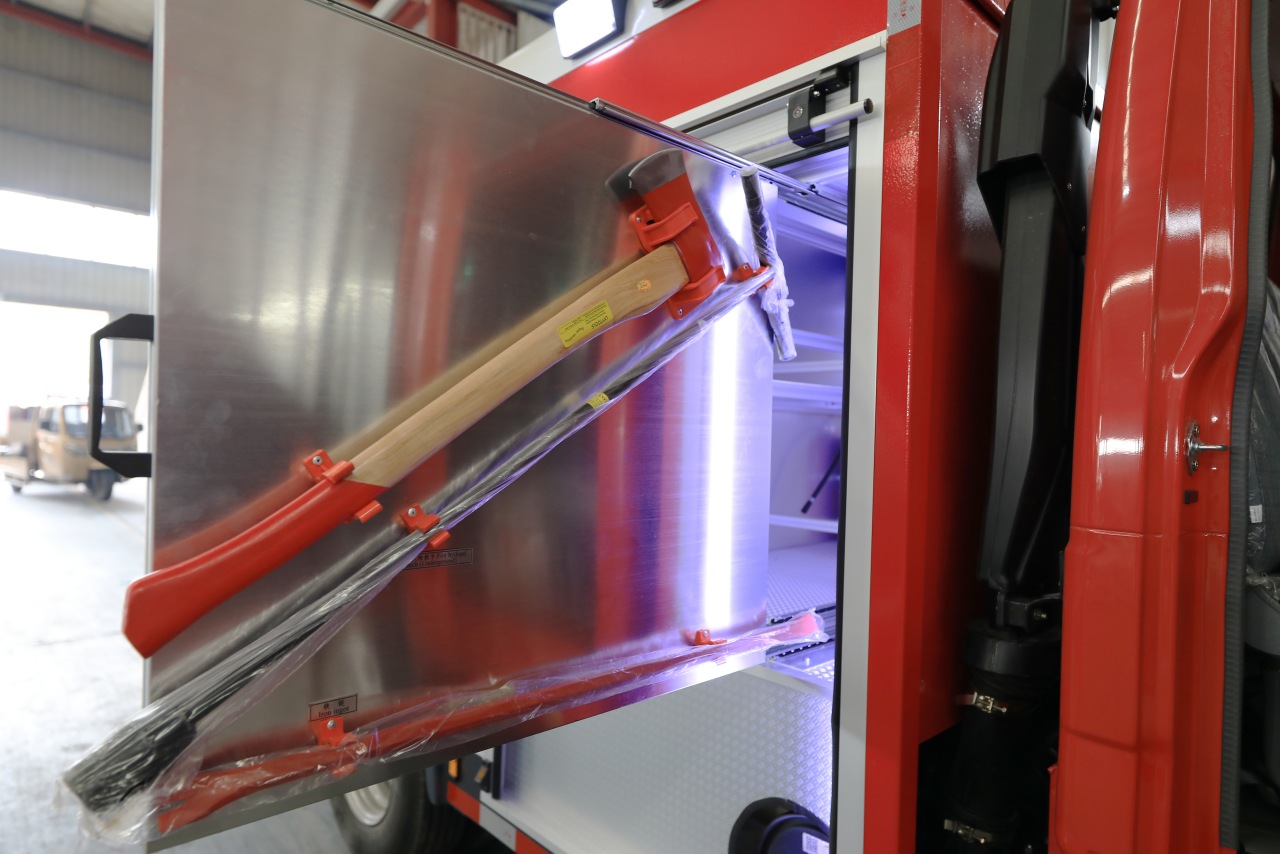

Fire hydrant

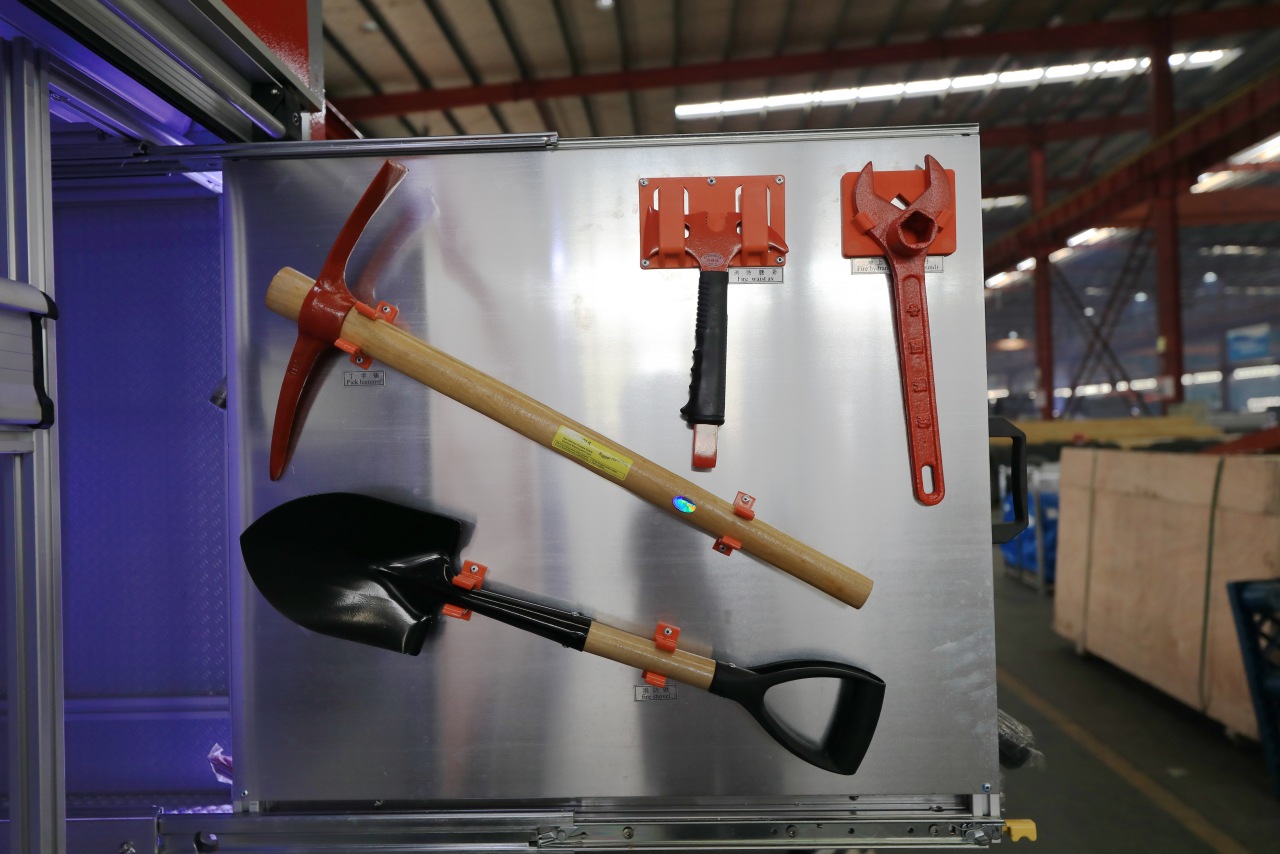

Ax, hammer, and shovel

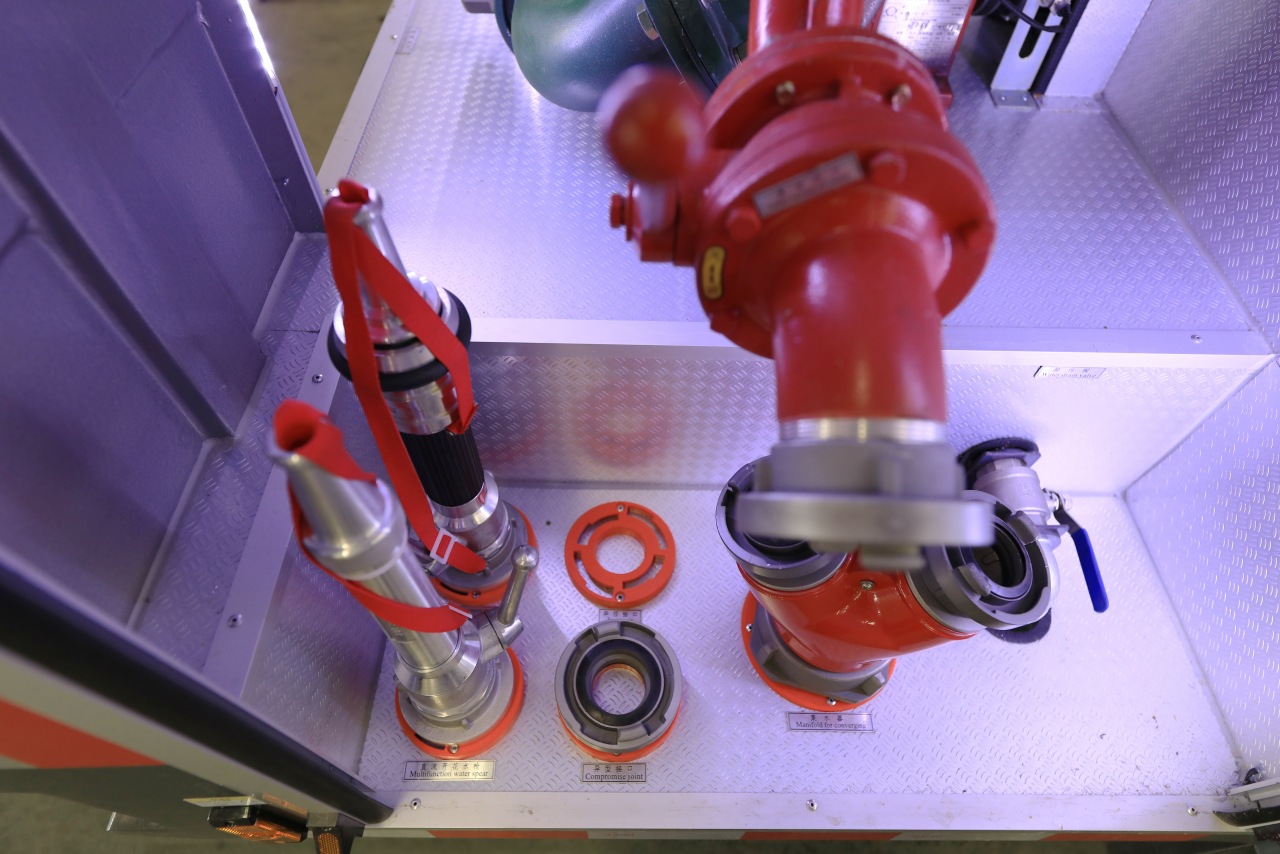

A water gun and a compromise joint, and a manifold converging

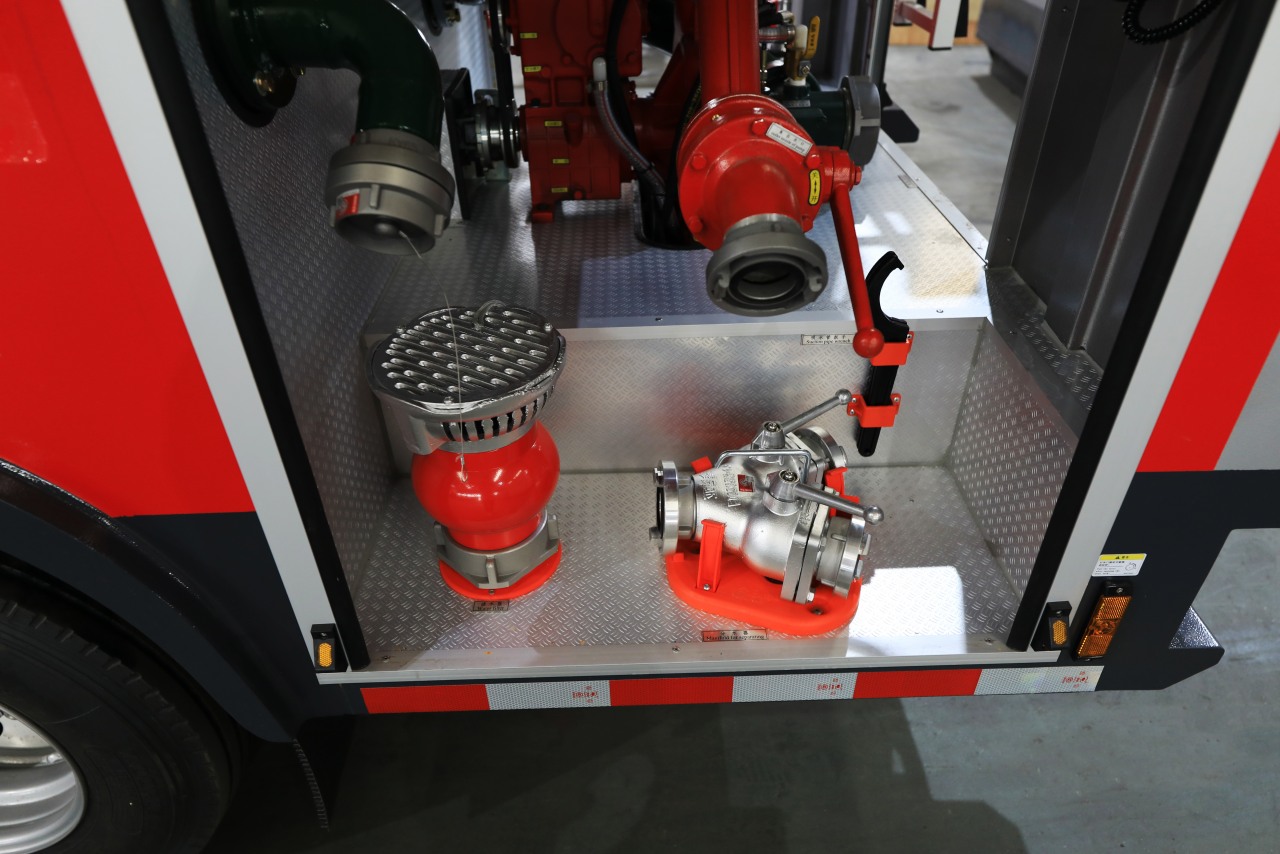

Water filter and manifold for separating
