BRIEF

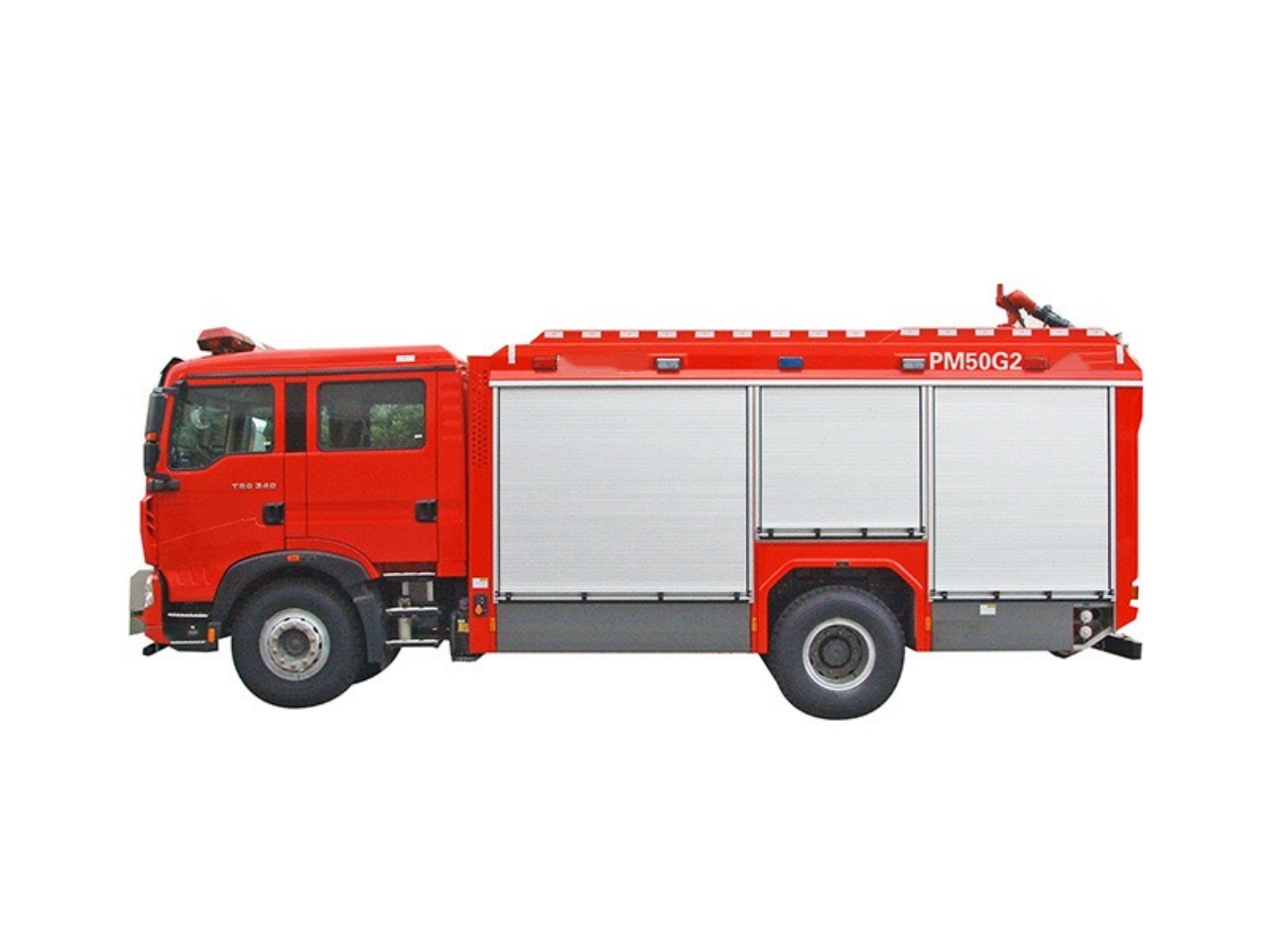

The HOWO water foam fire truck produced by CSCTRUCK Fire Rescue Truck combines the capabilities of both a water tank and foam tank fire truck, making it ideal for urban firefighting. It enhances fire suppression efficiency by mixing water with foam in a precise ratio, enabling more effective firefighting. In addition to its core fire-extinguishing role, the HOWO water foam fire truck is equipped with advanced features such as a lighting system, traction system, emergency rescue tools, and protective equipment. This makes it a versatile and multi-functional vehicle, capable of handling various tasks including fire fighting, illumination, rescue operations, towing, and safety protection, ensuring comprehensive response to emergencies.
FEATURES
● Robust Independent Firefighting Capability
The vehicle utilizes a SINOTRUK T5 chassis with a double-row cab, offering strong dynamic performance and reliable safety. It accommodates 6 passengers and is designed for efficient, centralized firefighting deployment.
● Efficient and Safe Firefighting System
Equipped with a fully integrated automatic foam system, the fire truck ensures quick and easy operation. It also features an electric remote-controlled water monitor for enhanced efficiency and safety.
● Advanced Safety Features and Intelligence
The vehicle is equipped with various safety protection devices to ensure safe and reliable operation during driving, rescue, and firefighting. Multi-layer equipment box structures are illuminated with light bars, ensuring proper lighting for each compartment.
● Intelligent Water Tank Self-Inspection (Automatic Water Intake)
The intelligent water tank system features automatic water level control, allowing the filling nozzle to open or close based on the tank’s liquid level. This prevents overfilling and ensures a continuous, uninterrupted water supply for firefighting.
● Automatic Water Supply System
The system can automatically control and adjust engine speed, pump pressure, and outlet valve position. It ensures a remote water supply by maintaining a constant set pressure and flow rate for seamless firefighting operations.
SPECIFICATION
| Item | Unit | Parameter |
| Overall length | mm | 9,025 |
| Overall height | mm | 3,700 |
| Overall width | mm | 2,500 |
| Total weight | kg | 16,200 |
| Extinguish the ant-rated load weight | ||
| Water | kg | 4,300 |
| Foam | kg | 500 |
| Max. travel speed | km/h | ≥100 |
| Max. net power | kW | 245 |
| Power density | – | 15.1 |
| Monitor | ||
| Water monitor-rated flow | L/S | 48 |
| Fire-rated pressure | MPa | ≤1 |
| Range | ||
| Water | m | ≥60 |
| Foam | m | ≥55 |
| Water pump | ||
| Fire-rated flow | L/S | ≥60 |
| Fire-rated pressure | MPa | ≥1 |
