BRIEF
The ISUZU 4WD 6000 liters water foam fire truck, produced by CSCTRUCK Fire Rescue Truck, is a high-performance firefighting vehicle designed for efficient and reliable emergency response. Built on a durable ISUZU chassis with a 4×4 drive type, this truck is equipped to handle diverse and challenging terrains. The truck features a powerful 4HK1-TC60 engine, delivering 205 horsepower and meeting Euro 4 emission standards, ensuring both performance and environmental compliance.
The fire truck includes a 5,000-liter water tank and a 500-liter foam tank, both constructed from 304 stainless steel, which offers excellent corrosion resistance and ensures longevity. The round cylindrical design of the tanks optimizes space and weight distribution.
For firefighting capability, the fire truck is fitted with a Hale/Prima p2 4010 fire pump, capable of delivering a maximum flow rate of 6,200 to 7,700 liters per minute, depending on whether it is operating at low or high pressure. This robust pump ensures the rapid deployment of water and foam to extinguish fires effectively. The truck also features an Akron/PLK8/48B-5177 fire monitor, which operates at a working pressure of 1.0 MPa and has a rated flow of 48 liters per second, offering precise and powerful fire suppression.
Overall, the ISUZU 6000 liters water foam fire truck is a versatile and dependable solution for fire departments, designed to meet the rigorous demands of modern firefighting operations.
FEATURES
1. High-Capacity Tanks: The truck is equipped with a 6,000-liter water tank and a 500-liter foam tank, allowing for substantial firefighting capability.
2. Powerful Engine: It is built on an ISUZU chassis with a 4HK1-TC60 engine, delivering 205 horsepower, compliant with Euro 4 emission standards.
3. Robust Pumping System: The fire truck features a Hale/Prima p2 4010 fire pump, capable of a maximum flow rate ranging from 6,200L/min to 7,700L/min, from low to high pressure.
4. Durable Construction: The tank is made from 304 stainless steel and has a round cylindrical design, ensuring durability and corrosion resistance.
5. Advanced Fire Monitor: The truck is equipped with an Akron/PLK8/48B-5177 fire monitor, capable of delivering a flow rate of 48 liters per second at a working pressure of 1.0 MPa, ensuring effective firefighting performance.
SPECIFICATION
| Truck | Make/Model Line | ISUZU | 4X4 LHD | |||
| Chassis Model | ISUZU | QL1180JQFRCY | ||||
| Engine Make | ISUZU | 4HK1-TC60 | ||||
| Horsepower | 205HP | |||||
| Front /Rear loading | 6.3T+13T | |||||
| Tire Size | 295/80R22.5 with 1spare tire | |||||
| Wheelbase | 4,500mm | |||||
| White color, 6 persons allowed, air conditioning, power assist, radio, MP3, etc. | ||||||
| Cabin | Mode | Double cab | ||||
| People | 2+4 person | |||||
| Material | High-quality Q235 carbon steel | |||||
| The seats | The seats in the rear section should be made in the form of a locker with mounts for breathing apparatus for firefighters in the quantity of 4 units and 4 units of reserve tanks, and equipped with safety belts for all members of the truck crew. The seat cushions of the TCC should be folded to ensure access to lockers under the seats. | |||||
| Water tanker | Capacity | 5,000Liters | ||||
| Shape | Round Cylindrical | |||||
| Material | 304 stainless steel | |||||
| Thickness | Shell: 5mm | |||||
| Reinforcing ribs | installed on the surface of the sewer tanker to increase the strength of the tank | |||||
| Tank Testing | The tank is hydrostatically tested. | |||||
| Foam tanker | Capacity | 500Liters | ||||
| Shape | Round Cylindrical | |||||
| Material | 304 stainless steel | |||||
| Thickness | Shell: 5mm | |||||
| Reinforcing ribs | Installed on the surface of the sewer tanker to increase the strength of the tank | |||||
| Tank Testing | The tank is hydrostatically tested. | |||||
| Fire Pump | Brand | Hale | ||||
| Make/Model | Prima p2 4010 | Prima p2 4010 | ||||
| Origin | U.S.A | |||||
| Priming Performance Range | To 7.5m | |||||
| Priming Speed | 2,500rpm | |||||
| Max. Suction Pressure | 12bar | |||||
| Max. recommended speed | 3,600rpm | |||||
| Minimum idle speed | 900rpm | |||||
| Maximum Outlet Pressure | 17bar | |||||
| Low Pressure | ||||||
| Maximum Outlet Pressure – | 54.5bar | |||||
| High Pressure | ||||||
| Max. Flow – Low Pressure | 6,200 l/min | |||||
| Max. Flow – High Pressure | 7,700 l/min |
| Fire Monitor | Make/Model | PLK8/48B-5177 | ||||
| Brand | Akron | |||||
| Origin | USA | |||||
| Monitor Type | Electric control, remote control | |||||
| Working pressure | 1.0MPa | |||||
| Rated flowing | 48L/s | |||||
| Spray distance | Water ≥ 70 m , Foam ≥ 60 m | |||||
| Spray method | DC, flowering | |||||
| Rotation angle | Horizontal 0~340 °, Tilt -45 ° ~ 12 |
| Pipe system | Material | High-quality steel pipe | ||||
| Pipe Line inlet | 1 unit DN100 inlet behind the pump room | |||||
| Filling pipe | 1 unit DN65 port at each side of the water tank (2 units) | |||||
| 1 unit DN65 pump filling the water tank. | ||||||
| Pipe Line outlet | 1 unit DN65 at each side of the pump room (2 units), with a valve | |||||
| Cooling pipe | Cooling pipe and control valve for PTO | |||||
| Compartment | Material | Aluminum alloy | ||||
| Structure | The outer frame with a special aluminum alloy with a frame overall welded structure, the skeleton, and the mask for aluminum alloy profiles, with a beautiful appearance and durability. The outer skin is bonded through an air-fed high-strength adhesive, and the inner floor is an anodized aluminum alloy plate. | |||||
| Equipment door | The use of light, high-quality aluminum alloy, with aluminum alloy large shutter doors (with pull rod door handle), open and close flexibility, good sealing, low noise, beautiful appearance, light, and reliability, all shutter doors can be a common key. | |||||
| Internal structure | The internal skeleton with aluminum lap technology maximizes the increase in space utilization and variability, makes full use of the limited space inside the compartment, and picks and places equipment conveniently and solidly. | |||||
| Roller shutter door | is made of high-strength composite material, mounted with a safe lock. The roller shutter will slide up automatically after pulling out the Lever from the holder. | |||||
| Stairs | Material | high-quality aluminum alloy | ||||
| Width | 50cm, bears more than 300kg, anti-slip design on the pedals with a double lock function. | |||||
| Location | on both sides of the compartment and the pump room | |||||
| Superstructure Electric Appliance | ||||||
| Warning Light and Alarm | The long-row alarm light is mounted above the cabin. The control switch is in the cabin and integrated with the Siren | |||||
| Strobe Light | It is mounted on a top aluminum frame at the front and end of the compartment. Its power switch is in the cabin. | |||||
| External Lighting | Long-life lamps are installed on both sides of the compartment for lighting at night. Its power switch is in the cabin. | |||||
| Storage Compartment Light | LED lights are installed in the storage compartment, and its main power switch is in the cabin. After opening the power switch, all LED lights in the storage compartment will be on; After closing the power switch, all LED lights in the storage compartment will be off. | |||||
| Side Indicator Light | Side indicator lights are on both sides of the compartment for vehicle width, indicating at night. Its power switch is in the cabin. | |||||
| Hose reel | ||||||
| To have two 60-meter 20mm diameter semi-rigid hose reels (each with a pistol grip jet/spray/fog control branch) located on each side of the rear compartment. The hose reel has manual winding with a hand wheel system. | ||||||
| Towing winch system: | ||||||
| Front hydraulic winch with a hook, 14 mm wire rope with a hook (32M long) has a manual operation option. The rear of the chassis should be fitted with two towing eyes, should be recessed, and not protrude beyond the bodywork. They must be formed to allow a 45-degree pull without damage to panels. | ||||||
| Painting | The exterior and interior of the tank are spray-painted with high-quality paint |
| Accessories | ||||||
| No. | Item | Standardards | QTY | |||
| 1 | Suction Pipe | DN150x 4m | 2 | |||
| 2 | Water Filter | FLF DN150 | 1 | |||
| 3 | Water separator | FII8065x3-1.6 | 1 | |||
| 4 | Water collector | JII150/80×2-1.0 | 1 | |||
| 5 | Suction Pipe Spanner | FS100 | 2 | |||
| 6 | Overground Hydrant Spanner | QT-DS1, 400mm | 1 | |||
| 7 | Underground Hydrant Spanner | 860mm | 1 | |||
| 8 | Fire hose | 16-65-20 | 6 | |||
| 9 | Fire hose | 16-80-20 | 2 | |||
| 10 | Fire hose | 16-65-5 | 1 | |||
| 11 | Reducer union | KJK65/80 | 1 | |||
| 12 | Hose bandage | DT-SB | 4 | |||
| 13 | Hose strap | 4 | ||||
| 14 | Water-stream nozzle | QZG3.5/7.5 | 1 | |||
| 15 | Diffuser nozzle | QHD6.0/8 | 1 | |||
| 16 | Flowering water nozzle | QZH19 | 1 | |||
| 17 | Air foam nozzle | QP4/0.7Z; 65 | 1 | |||
| 18 | Outer pipette assembly | Φ40×2000 | 1 | |||
| 19 | Shovel | 1050mm | 1 | |||
| 20 | Crowbar | 1060mm | 1 | |||
| 21 | Fire axe | 390mm | 1 | |||
| 22 | Fire hammer | 1 | ||||
| 23 | Portable ladder | TE60 | 1 | |||
| 24 | Extinguisher | 3kg/ABC | 1 | |||
| Pictures for your reference: |

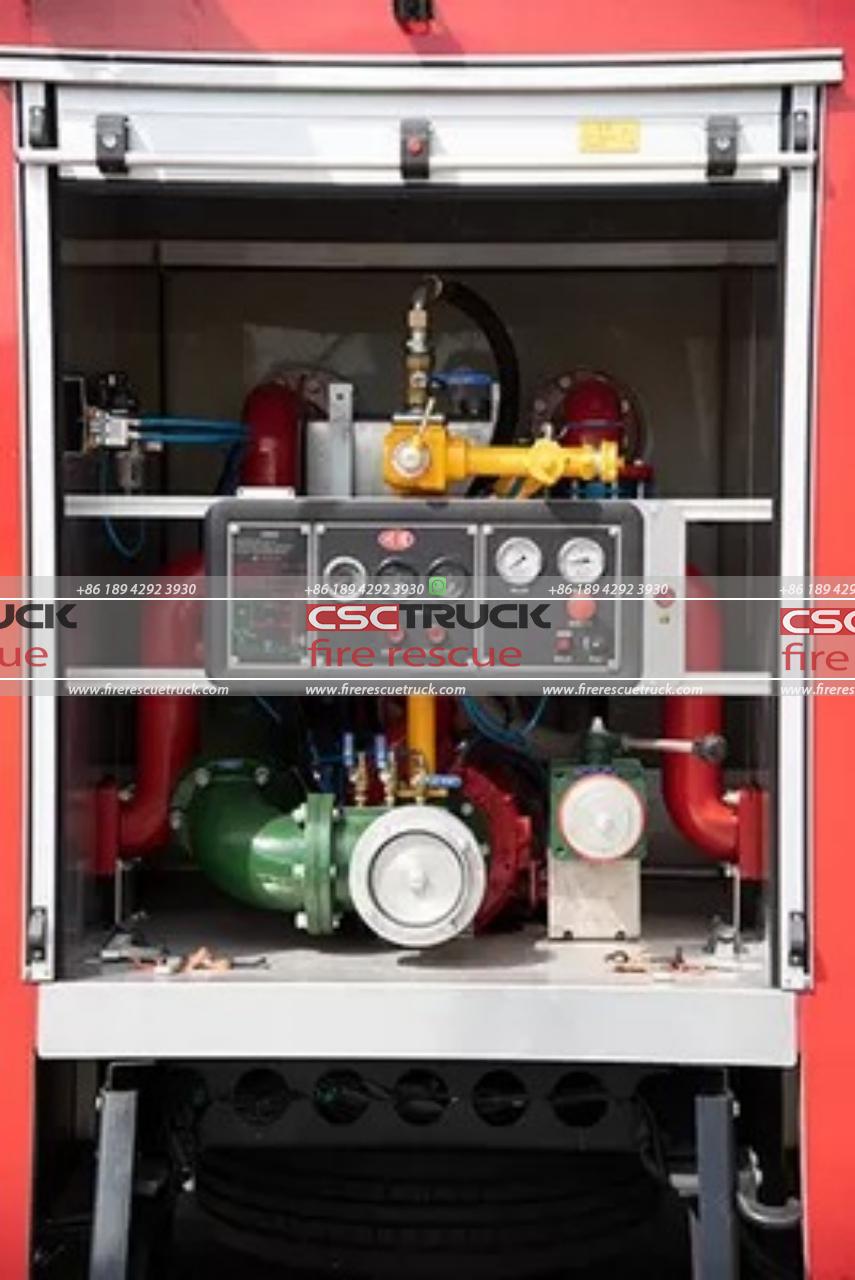

Pump room
Fire horse
Fire axe
Top.1 brand hose coupling with aluminum alloy material
Water filter and manifold for separating
