BRIEF
The SITRAK 40-People emergency rescue recreational vehicle is built on a domestic Sinotruk Sitrak Euro VI chassis and is purpose-designed to enhance field accommodation conditions while improving support capabilities for outdoor missions. It serves a wide range of applications, including military operations, public security special forces, firefighting, medical teams, disaster relief, and emergency rescue. Fully equipped inside, it meets the accommodation needs of 3–40 personnel in scenarios such as field rescue, medical aid, disaster recovery, and urgent incident response.
The rescue truck integrates a high-mobility category-II chassis with a dual-side expansion system, ensuring ample interior space for living and operations. It is equipped with independent water and power supply systems, a climate control and air conditioning unit, and comprehensive accommodation facilities, providing a safe and comfortable rest environment for personnel during extended field training or rescue missions.

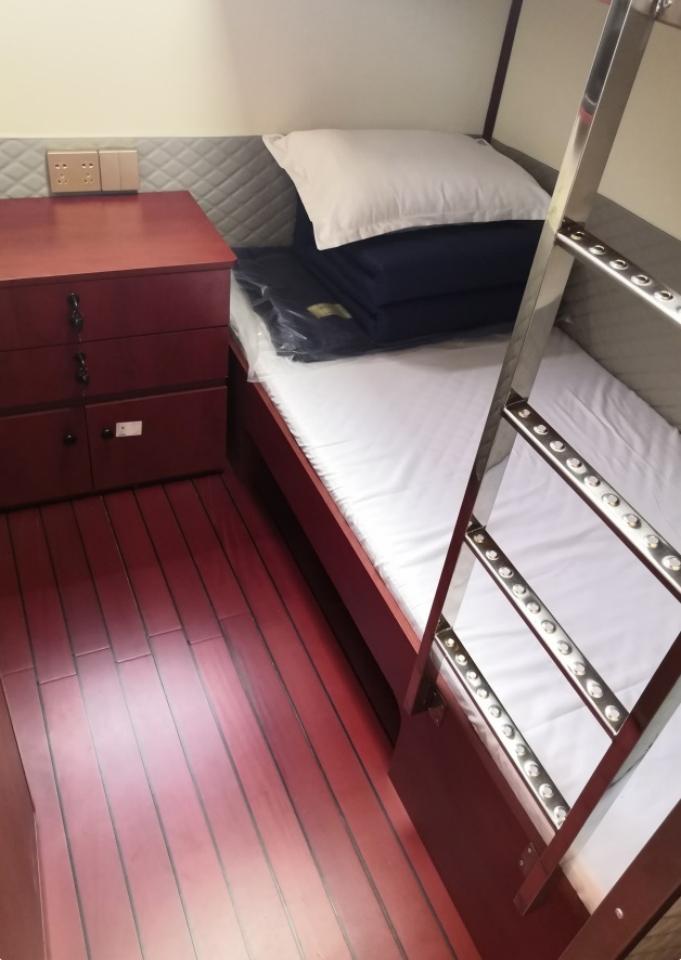

Designed for multi-functional field use, it supports accommodation, washing, and other outdoor living requirements. The main compartment includes sleeping berths and a sealed, non-openable roof to ensure durability and protection against the elements. Depending on the chassis configuration, an optional cab can be fitted.
For safety and operational reliability, the ABS controller is supplied by ZF Commercial Vehicle Control Systems (Qingdao) Co., Ltd., model 4460046300, with an optional EBS system (model EBS3) available from the same manufacturer. The vehicle’s side protection adopts a skirt structure, while the rear guard is made from cold-bent section steel Q235, welded for strength. The rear guard has a height of 160 mm, a width of 50 mm, and a ground clearance of 490 mm.
To meet operational requirements, an optional speed limiter can be installed, preset to 89 km/h. Combining durability, comfort, and advanced safety features, this SITRAK 40-People emergency rescue recreational vehicle is a dependable solution for sustained field support in challenging environments.
FEATURES
- Spacious and Expandable Interior – Built on a high-mobility category-II chassis with a dual-side expansion system, providing ample room for sleeping, living, and operational activities in the field.
- Independent Utilities – Equipped with its own water and power supply systems, as well as climate control and air conditioning, ensuring comfort and autonomy in remote environments.
- Comprehensive Living Facilities – Supports accommodation, washing, and other outdoor living needs, with sleeping berths and a sealed, weather-resistant roof for protection against harsh conditions.
- Enhanced Safety Systems – Features an ABS controller from ZF Commercial Vehicle Control Systems with optional EBS, skirt-style side protection, and a strong cold-bent steel rear guard for operational safety.
- Mission-Ready Performance – Optional speed limiter preset to 89 km/h, combined with robust construction and adaptable configurations, makes it ideal for long-duration rescue, military, and disaster relief missions.
SPECIFICATION
Category |
Specification |
---|---|
Overall Dimensions (mm) | 11,970 × 2,550 × 3,810 |
Cargo Compartment Dimensions (mm) | 9,700 × 2,500 × 3,210 |
Gross Vehicle Weight (Kg) | 18,000 |
Wheelbase (mm) | 7,100 |
Curb Weight (Kg) | 17,870 |
Maximum Speed (Km/h) | 105 |
Minimum Ground Clearance (mm) | 230 |
Cabin Seating Capacity (persons) | 2 or 3 |
Minimum Turning Diameter (m) | 24 |
Approach / Departure Angles (°) | 16/8 |
Front / Rear Overhang (mm) | 1,450 / 3,420 |
Axle Load (Kg) | 6,500 / 11,500 |
ABS System | ZF Commercial Vehicle Control Systems (Qingdao) Co., Ltd., Model 4460046300 |
Optional EBS System | ZF EBS3 from the same manufacturer |
Side Protection | Skirt structure |
Rear Guard Material | Cold-bent section steel Q235, welded |
Rear Guard Dimensions (mm) | Height: 160, Width: 50 |
Rear Guard Ground Clearance (mm) | 490. |
