When people think of fire trucks, one of the most iconic images that comes to mind is the towering, extended ladder reaching into the sky. Whether it’s for rescuing people trapped in high-rise buildings, accessing rooftops during fires, or providing elevated streams of water, the fire truck ladder is a crucial tool in firefighting operations. But how long is a fire truck ladder exactly? The answer isn’t as straightforward as it might seem because ladder lengths vary depending on the type of truck, its intended use, and the needs of the fire department.
In this article, we’ll dive deep into the different types of fire truck ladders, how long they typically are, what factors affect their length, and why these differences matter in real-world firefighting.
Understanding Fire Truck Ladders
First, it’s important to understand that not all fire trucks have the same type of ladder. Broadly, there are 2 major categories:

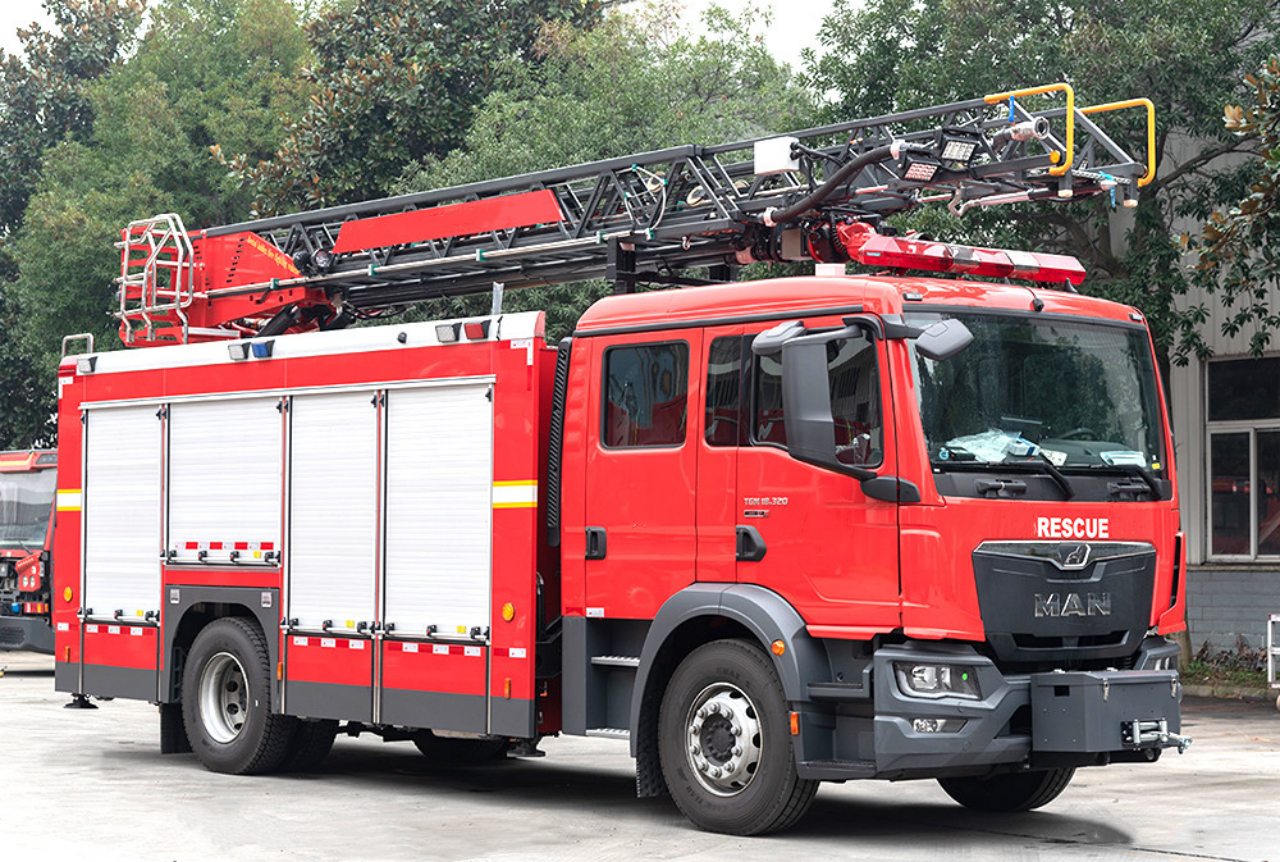

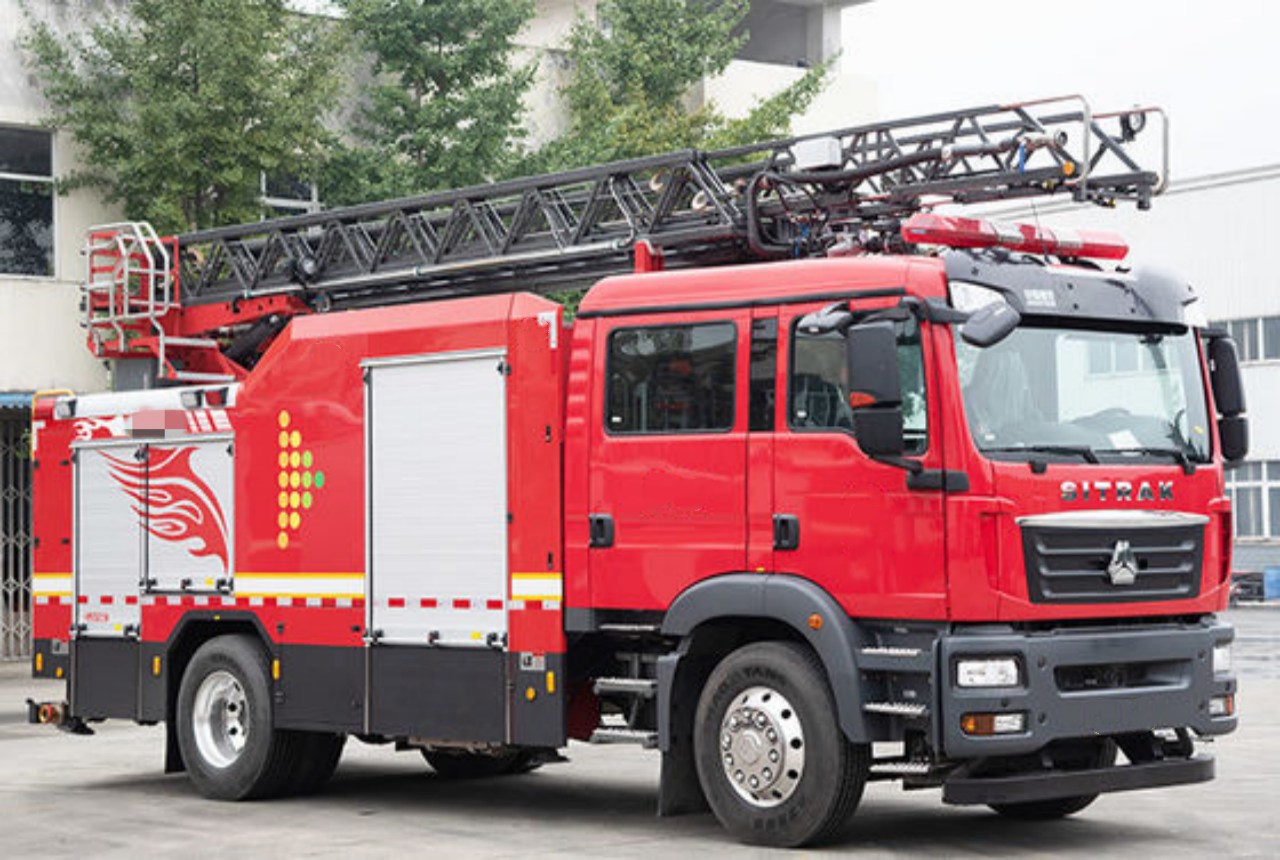

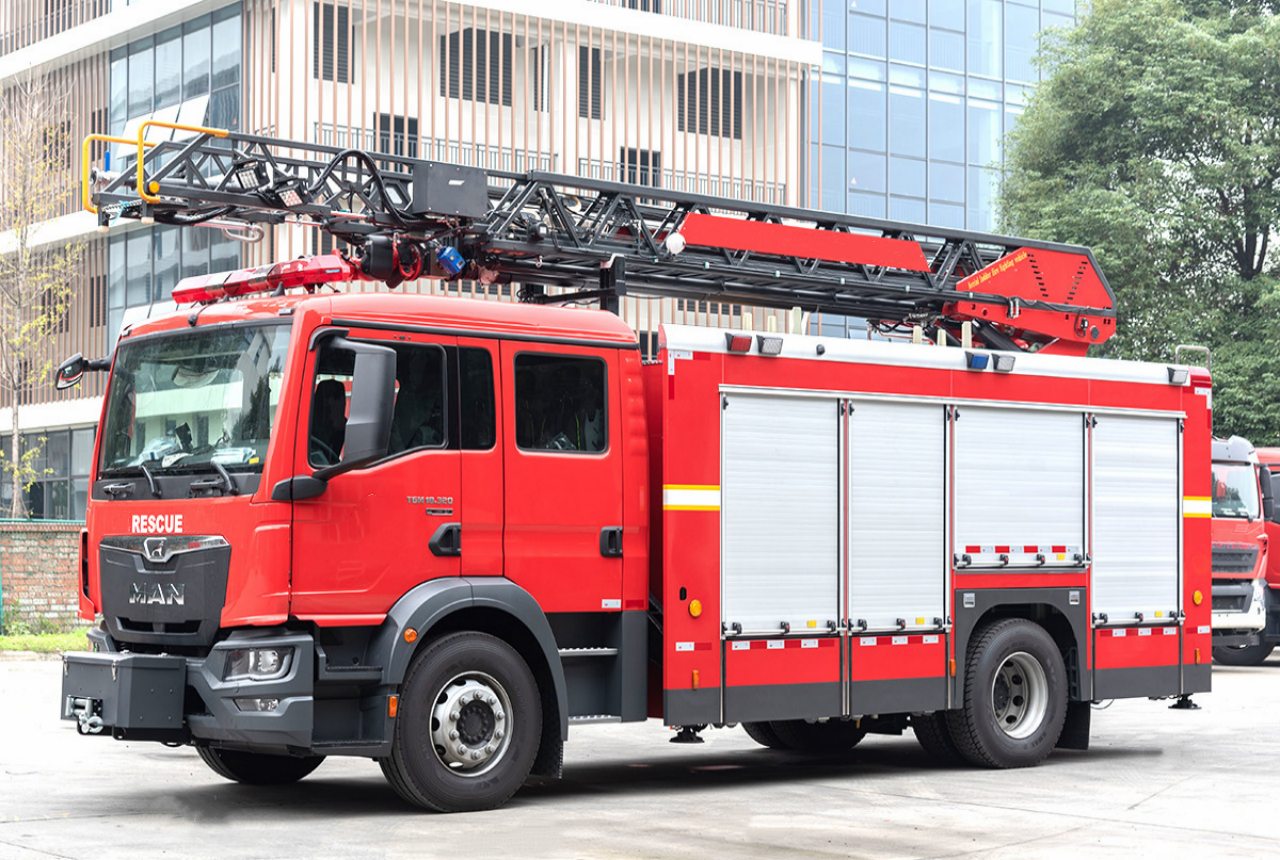

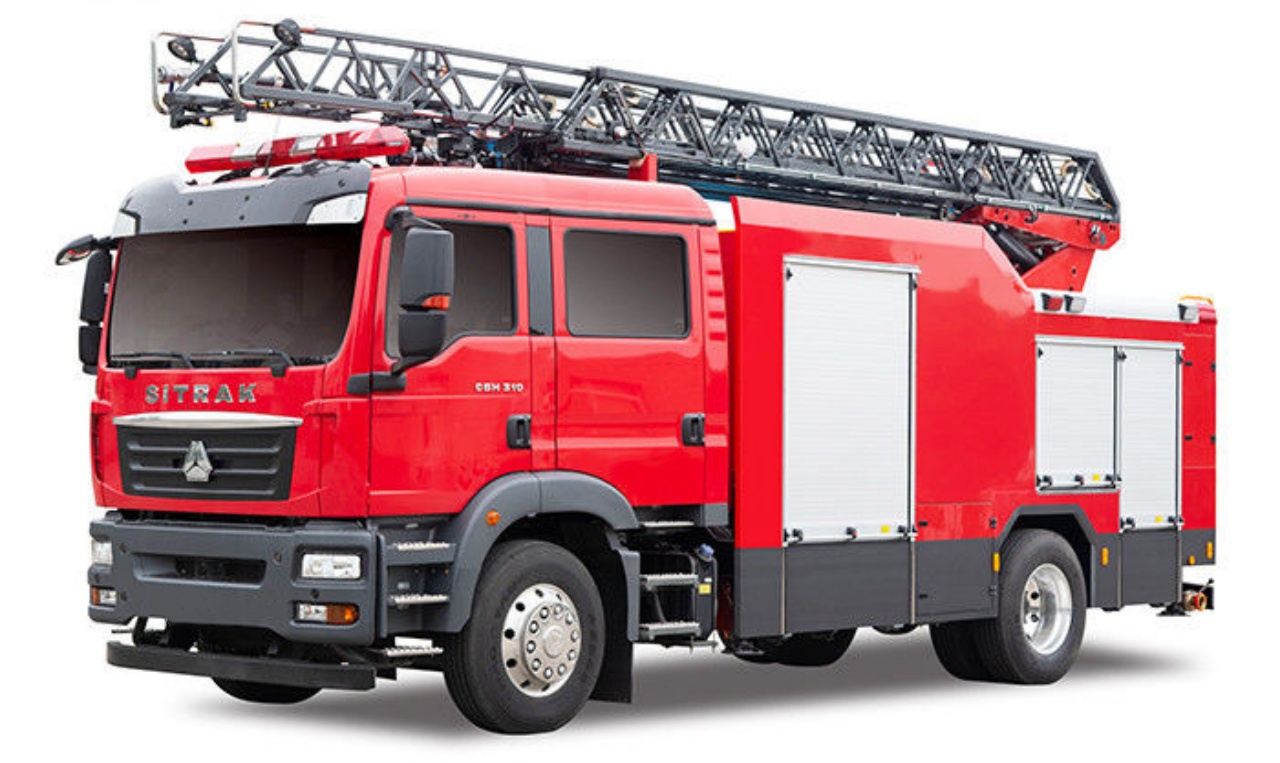

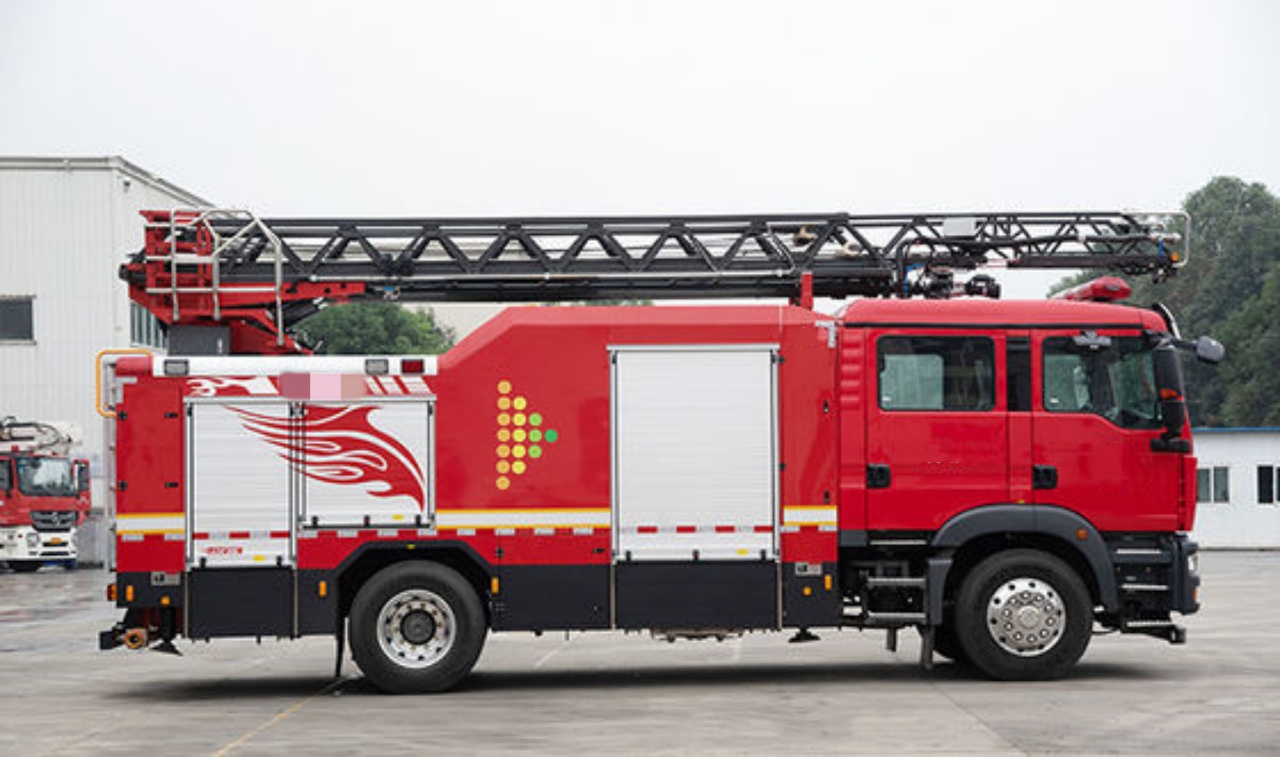

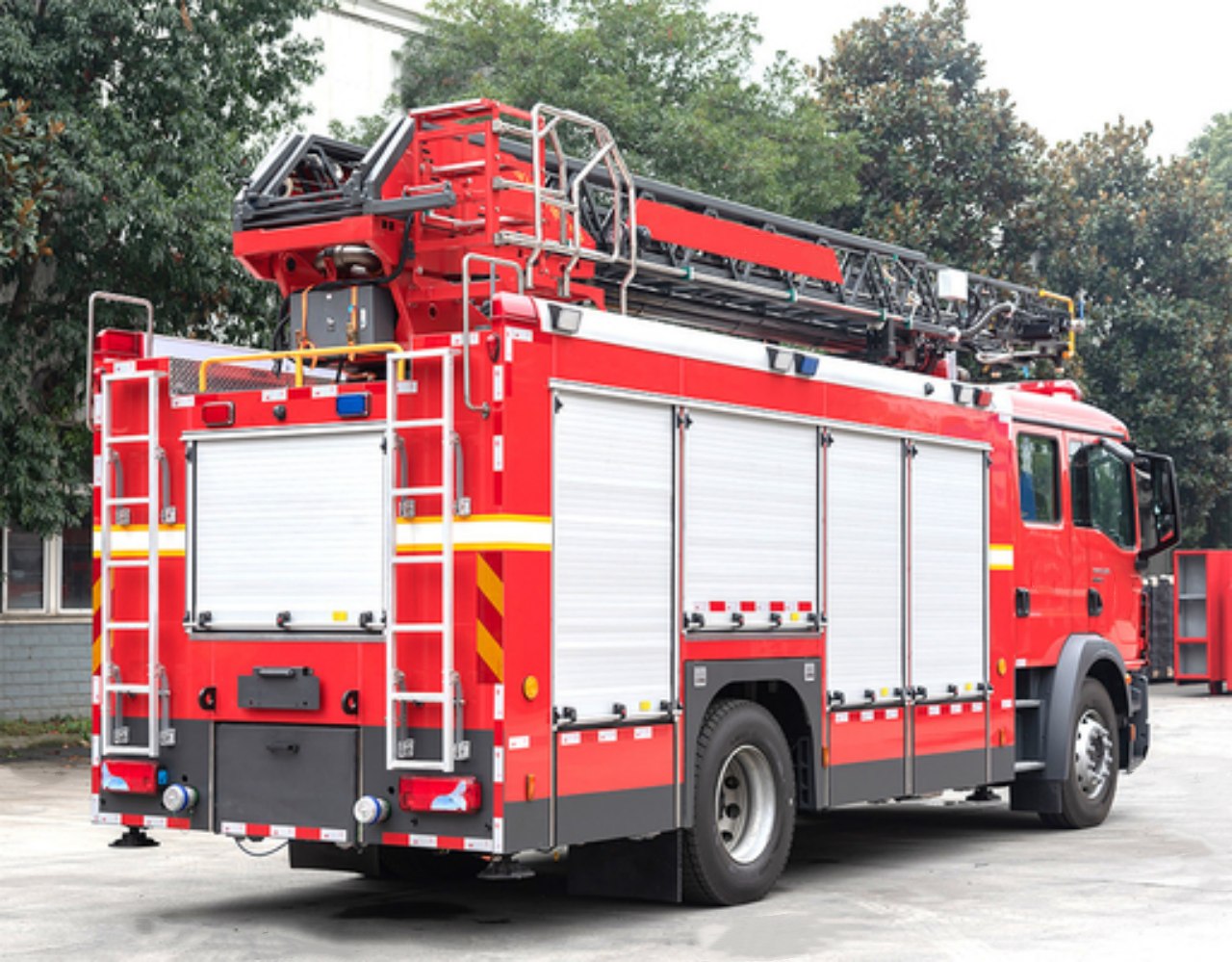

- Aerial Ladders: These are the permanently mounted, extendable ladders you often see on large fire trucks, called ladder trucks or aerial trucks.
- Ground Ladders: These are carried on the fire truck but are removable and can be manually positioned by firefighters.
For this article, we’ll focus mostly on aerial ladders, since they are the most recognizable and often the longest.
Typical Lengths of Fire Truck Ladders
The length of a fire truck’s aerial ladder can vary greatly based on the design and function of the truck. Here are some typical measurements:
- Standard Aerial Ladders: Most common aerial ladders range from 75 feet (23 meters) to 100 feet (30 meters) in length when fully extended.
- Quint Trucks: A “quint” is a 5-function truck that includes a ladder. Quint ladders are usually between 50 to 75 feet (15 to 23 meters).
- Tower Ladders (Aerial Platforms): These have a bucket at the top and often have slightly shorter ladders, typically 75 to 95 feet (23 to 29 meters), but provide greater stability and working space.
- High Reach Aerials (Snorkel trucks, Bronto Skylift, etc.): Some specialized aerial platforms can reach up to 135 feet (41 meters) or even higher.
- Ground Ladders on Trucks: Fire trucks also carry a variety of ground ladders, including ones that are 24 feet (7 meters), 35 feet (11 meters), and 45 feet (14 meters) in length.
The Longest Fire Truck Ladders in Use
If you’re wondering about the absolute longest ladders available, some specialized aerial apparatus can stretch impressively far:
- Bronto Skylift F-Series: These aerial platforms can reach up to 295 feet (90 meters), but these are extremely specialized vehicles and are not common in every fire department.
- Magirus M68L: Aerial ladder from Magirus can reach 223 feet (68 meters), making it one of the tallest true ladders in the world.
However, for typical urban or suburban fire departments, ladders of 100 feet are standard and sufficient for reaching 7–8 story buildings.
Factors Influencing Ladder Length
Several factors influence how long a fire truck ladder is:
1. Community Needs
Urban departments serving cities with many high-rise buildings need longer ladders than rural departments that primarily deal with 2-story homes.
2. Truck Size and Weight Restrictions
Longer ladders require larger trucks to support the structure safely. This means more weight and size, which can be problematic in cities with narrow streets or weight-restricted bridges.
3. Deployment Environment
Departments that serve mountainous or uneven terrain might need ladders that can operate effectively at steep angles rather than being simply long.
4. Budget Constraints
Longer, more complex ladders and trucks are more expensive, not just to buy but also to maintain.
5. Versatility
Some departments prefer slightly shorter ladders with more maneuverability, trading off extreme height for better access in tight spaces.
How Ladder Height is Measured
When we say a fire truck has a “100-foot ladder,” that measurement is typically:
- Straight-line extension from the base to the tip, fully extended.
- Not necessarily the vertical working height. If a ladder is raised at an angle, the maximum vertical height is somewhat less than the straight length.
Manufacturers often specify both the vertical reach and the horizontal reach to give fire departments a better idea of how the ladder can be used in different situations.
Why Ladder Length Matters
The right ladder length can mean the difference between reaching trapped occupants or having to find alternative, slower, and riskier rescue methods. For example:
- A 100-foot aerial ladder, extended at a safe working angle of 70 degrees, might only provide vertical access to about 80 to 90 feet.
- This is enough to reach the eighth or ninth floor of a standard building.
- Longer ladders are critical for modern urban firefighting, especially as cities continue to build taller structures.
Moreover, some ladders are equipped with pre-piped waterways, allowing firefighters to shoot water from the ladder’s tip without manually hauling hoses up the rungs — an important feature that longer ladders often integrate.
Real-World Examples
Let’s look at a few real-world fire trucks to better understand ladder lengths:
- Seagrave Marauder 100′ Aerial Ladder: Common in many U.S. fire departments, this truck’s ladder is perfect for most urban needs.
- Pierce Arrow XT 107′ Ascendant: This is a highly regarded mid-market ladder truck, offering slightly more reach without a significant increase in truck size.
- FDNY Tower Ladders: Typically around 75 feet, because their main function is elevated water streams and short-distance rescues.
Conclusion
So, how long is a fire truck ladder? The answer depends on the truck, its purpose, and the department’s needs, but 75 to 100 feet is the most common range for aerial ladders. Specialized units can reach far beyond that, touching the sky at 200 feet or more, but these are less common.
Ultimately, the fire truck ladder is one of the most critical tools in firefighting, allowing crews to save lives, attack fires from above, and protect communities in ways that would otherwise be impossible. Its design and length are carefully chosen to fit the needs of the people and places it serves.
The next time you see a fire truck extending its ladder into the sky, take a moment to appreciate the incredible engineering, planning, and bravery behind that seemingly simple action, because every foot of that ladder can make all the difference.
