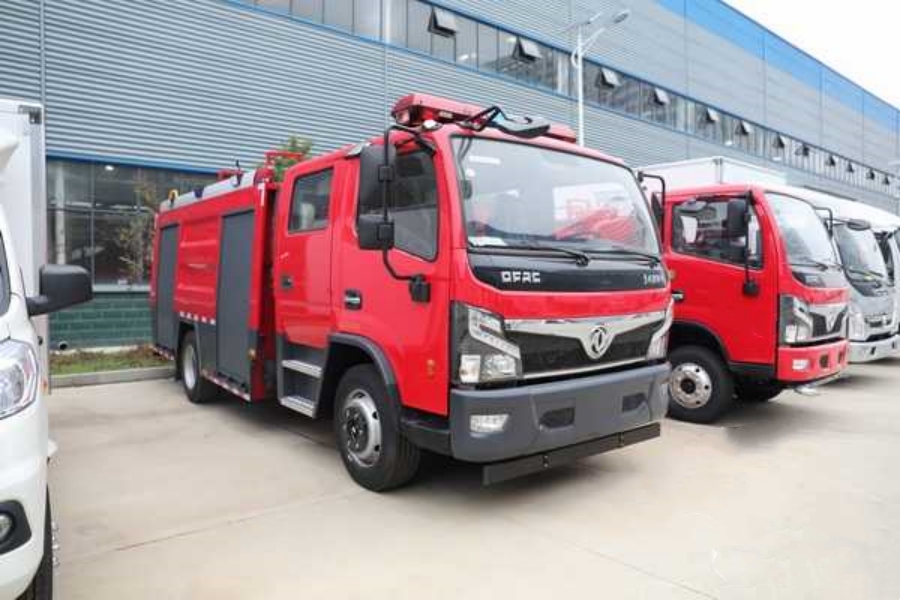

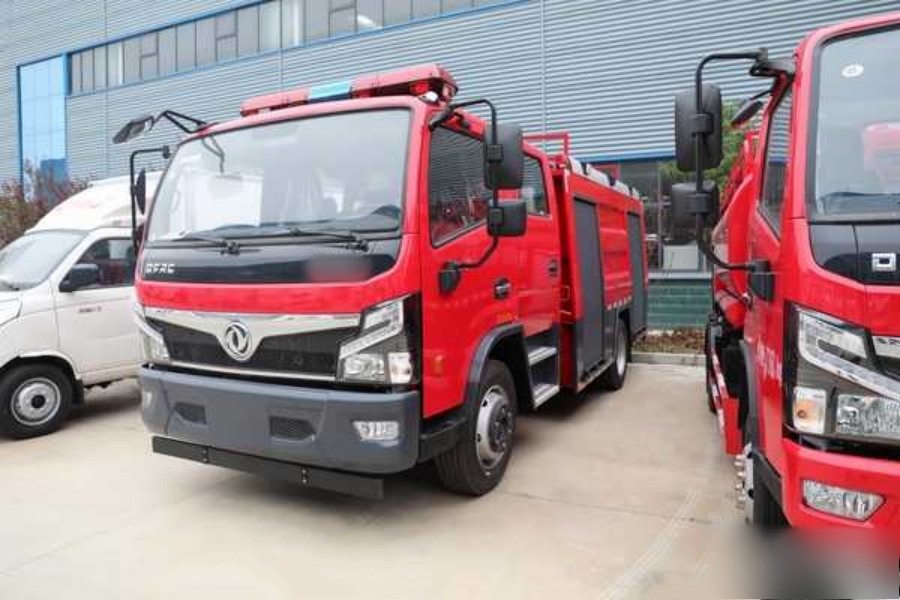

The Dongfeng Furuika Double-Row EURO VI foam fire truck is equipped with a Furuika double-row cab that can carry 3+3 crew members. It is powered by a Yuchai 165-horsepower engine and fitted with 245/70R19.5 tires. Standard configurations include ABS, power windows, and air conditioning.
Specification
Details
Vehicle Dimensions (L × W × H)
6,860 × 2,210 × 2,880 mm
Gross Vehicle Weight
10,400 kg
Rated Payload
4,000 kg
Curb Weight
6,950 kg
Tank Superstructure Capacity
3.980 m³
├─ Water Tank
3.000 m³
├─ Foam Tank
0.980 m³
Water Tank Dimensions
Front: 410 × 1000 × 1250 mm Rear: 975 × 2160 × 1250 mm
Foam Tank Dimensions
820 × 1,000 × 1,250 mm
Protective Structure
Integrated side and rear guard
Rear Guard Ground Clearance
438 mm
The superstructure compartment of the foam fire truck is built from high-quality steel, high-strength aluminum alloy profiles, and corrugated aluminum panels for both the interior and exterior cladding. Multiple aluminum alloy rolling shutter doors are installed around the compartment, each equipped with clear indicator plates for firefighting equipment, making tools easy to access.
The main specialized equipment includes a fire pump and a water cannon. The low-pressure fire pump, manufactured by a well-known firefighting equipment company, offers high rotational speed, large flow rate, compact structure, stable performance, and easy operation. The water cannon is installed on the roof of the compartment. It is from a reputable brand and features a large flow rate, long range, and flexible maneuverability.
