ISUZU Emergency UAV Drone Carrier Vehicle

BRIEF

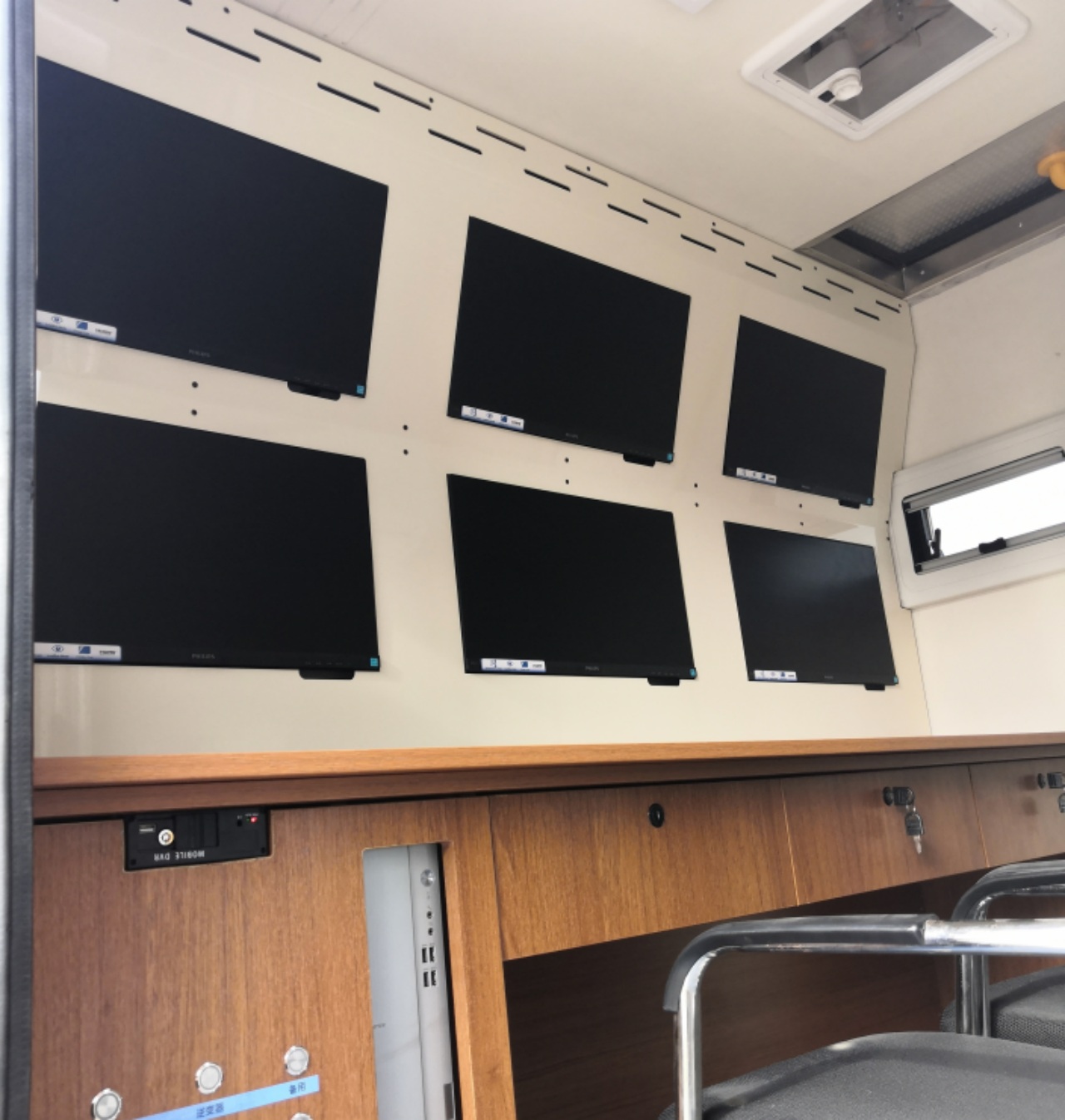

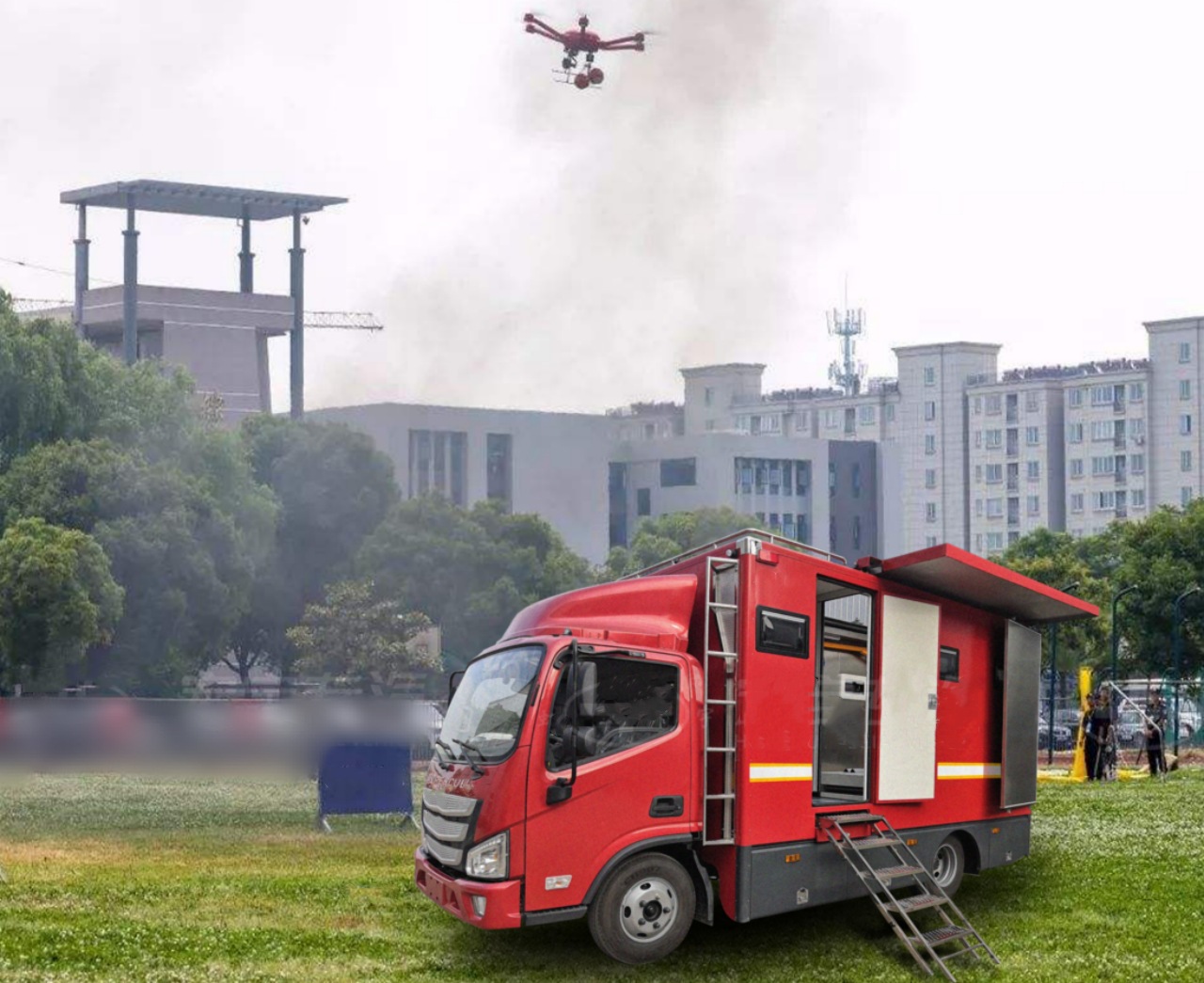

The ISUZU emergency UAV drone carrier vehicle is a highly versatile platform designed to integrate multiple UAV-related functions within a single unit. It features capabilities for UAV transport, on-site charging, and signal relay, ensuring seamless operation during field missions. The vehicle’s roof is equipped with a dedicated UAV lift platform, complemented by a side-opening sliding roof that facilitates smooth UAV takeoff and landing. At the rear, a hydraulic tailboard and an equipment cabinet allow for efficient UAV handling as well as the transport and deployment of support facilities. The front cabin serves as a fully functional UAV control room, providing operators with real-time video transmission and operational command capabilities. Together, these features establish the vehicle as a modern, professional support service platform.

Built on a Class II chassis from Qingling Motors Co., Ltd., the rescue fire truck is equipped to monitor weather changes in UAV mission areas and can establish temporary UAV takeoff and landing points. This enables it to serve as a mobile aerial command post, providing critical support across a range of emergency scenarios. Its operational applications include fire response, major public event monitoring, specialized police UAV operations, environmental surveillance, power line inspections, and post-disaster rescue missions.

Safety and structural integrity are ensured through side protection using a skirt panel design and rear protection constructed from cold-bent Q235-B steel with welded connections. Structural section dimensions measure 50 × 100 mm, with a ground clearance of 350 mm. The ISUZU emergency UAV drone carrier vehicle is fitted with advanced ABS systems, including the ABS-VI.E model from Guangzhou Ruilike Automotive Electronics Co., Ltd., and the ABS-E model from WABCO Automotive Control Systems (China) Co., Ltd.

The main specialized equipment comprises the cargo compartment, UAV control room, and military-grade UAV lift platform, primarily designed to handle police and survey equipment. Optional configurations include an ETC onboard device and customized cargo door positions, allowing the vehicle to adapt to diverse operational requirements while maintaining high levels of functionality, safety, and mobility.

FEATURES

1. Integrated UAV Operations: Combines UAV transport, on-site charging, signal relay, and real-time control, enabling seamless field missions.

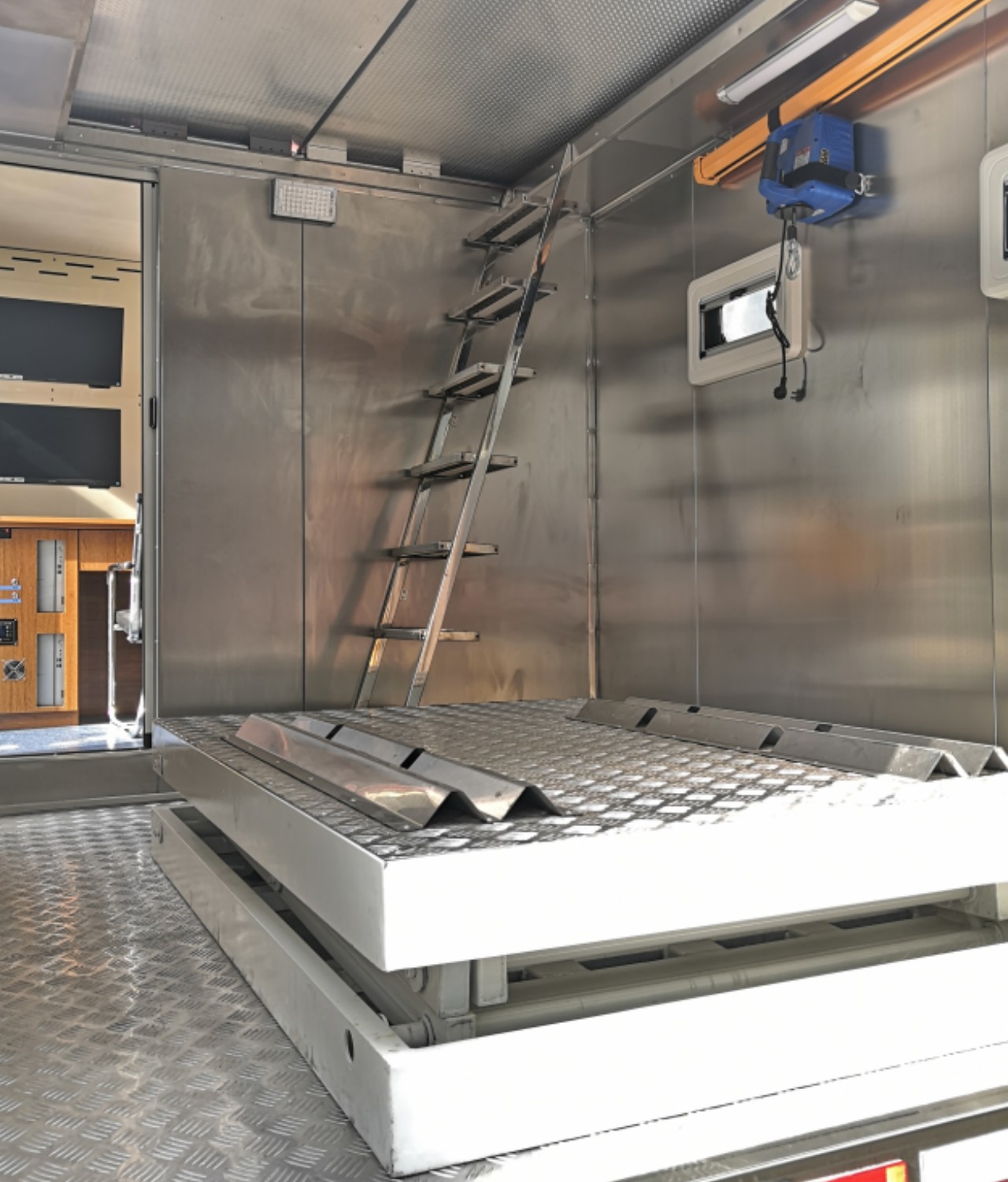

2. Specialized UAV Handling Systems: Equipped with a rooftop UAV lift platform and side-opening sliding roof for smooth takeoff and landing, plus a rear hydraulic tailboard and equipment cabinet for efficient UAV handling.
3. Mobile Command and Control: Front cabin functions as a UAV control room with real-time video transmission, allowing the vehicle to serve as a mobile aerial command post for emergency response and surveillance operations.
4. Robust Safety and Structural Design: Features side skirt panels, rear Q235-B steel protection, 50 × 100 mm structural sections, 350 mm ground clearance, and advanced ABS systems for operational safety and stability.
5. Flexible and Adaptable Equipment Layout: Includes a cargo compartment, UAV control room, and military-grade lift platform with optional configurations such as ETC devices and customized cargo doors to meet diverse mission requirements.
