Fire service ladders are critical tools in emergency response, allowing firefighters to rescue people from high places, access elevated structures, and perform ventilation or fire suppression from above. These ladders come in various types, including ground ladders and aerial ladders mounted on fire trucks. A fundamental question surrounding their design and operation is: What is the maximum load they can carry? The answer depends on numerous factors, including ladder type, design standards, materials used, and manufacturer specifications. This article explores the maximum load capacities of fire service ladders, the standards governing them, and the real-world implications for fire service operations.
Types of Fire Service Ladders
Before diving into load capacities, it’s essential to understand the primary types of ladders used in fire services:
Ground Ladders
These are portable ladders carried by firefighters and manually deployed. They include straight ladders, roof ladders (with hooks), and extension ladders. They are usually made from aluminum or fiberglass.

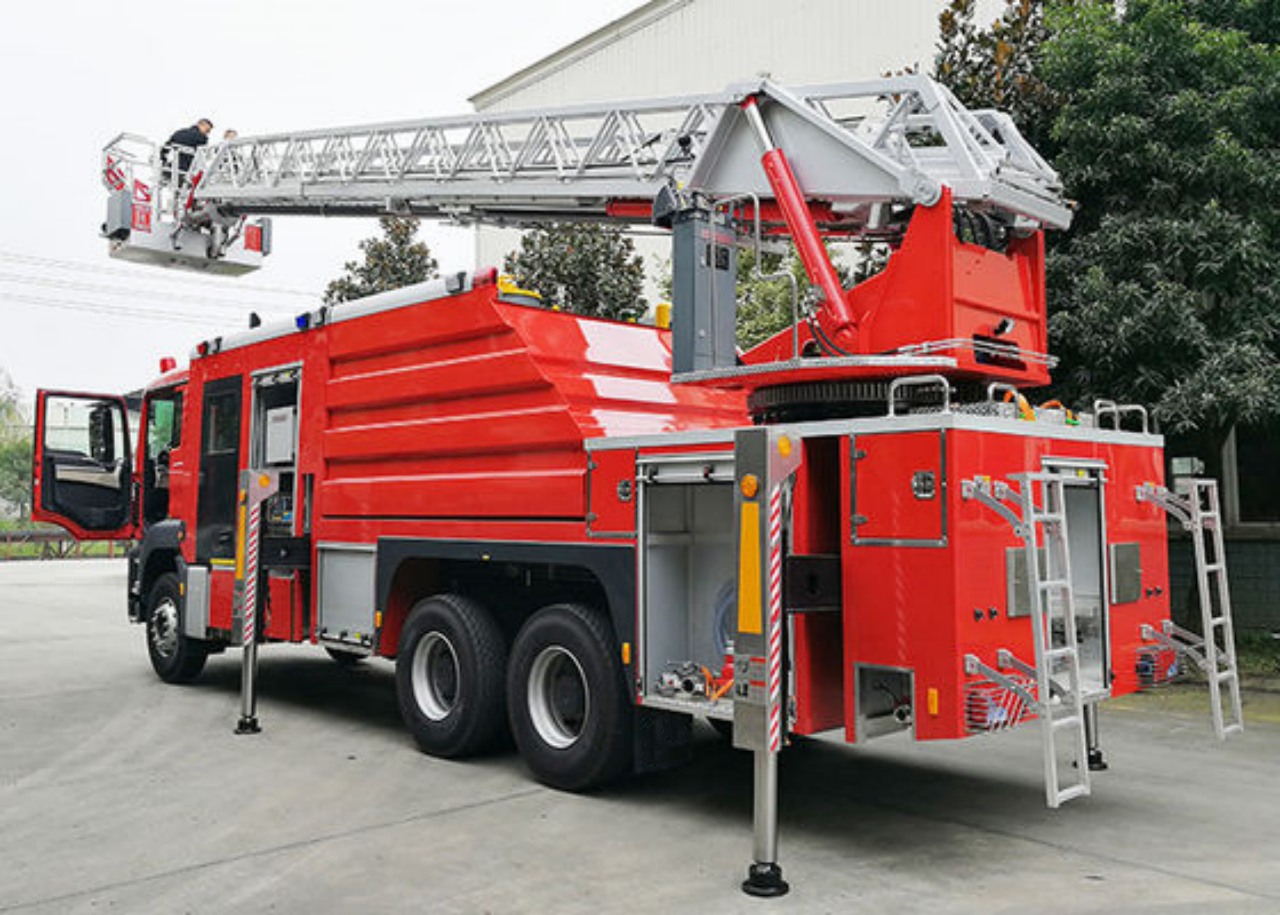

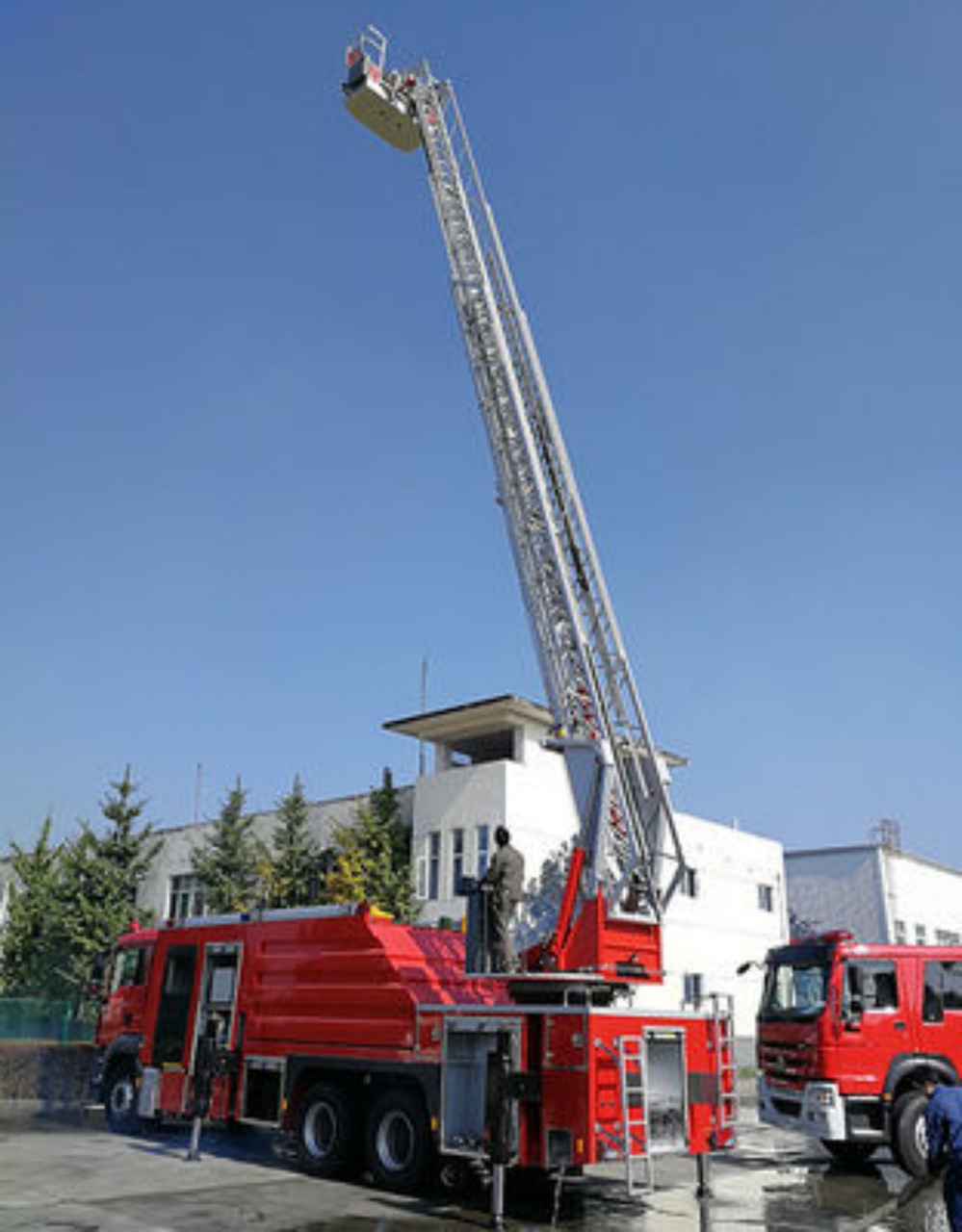

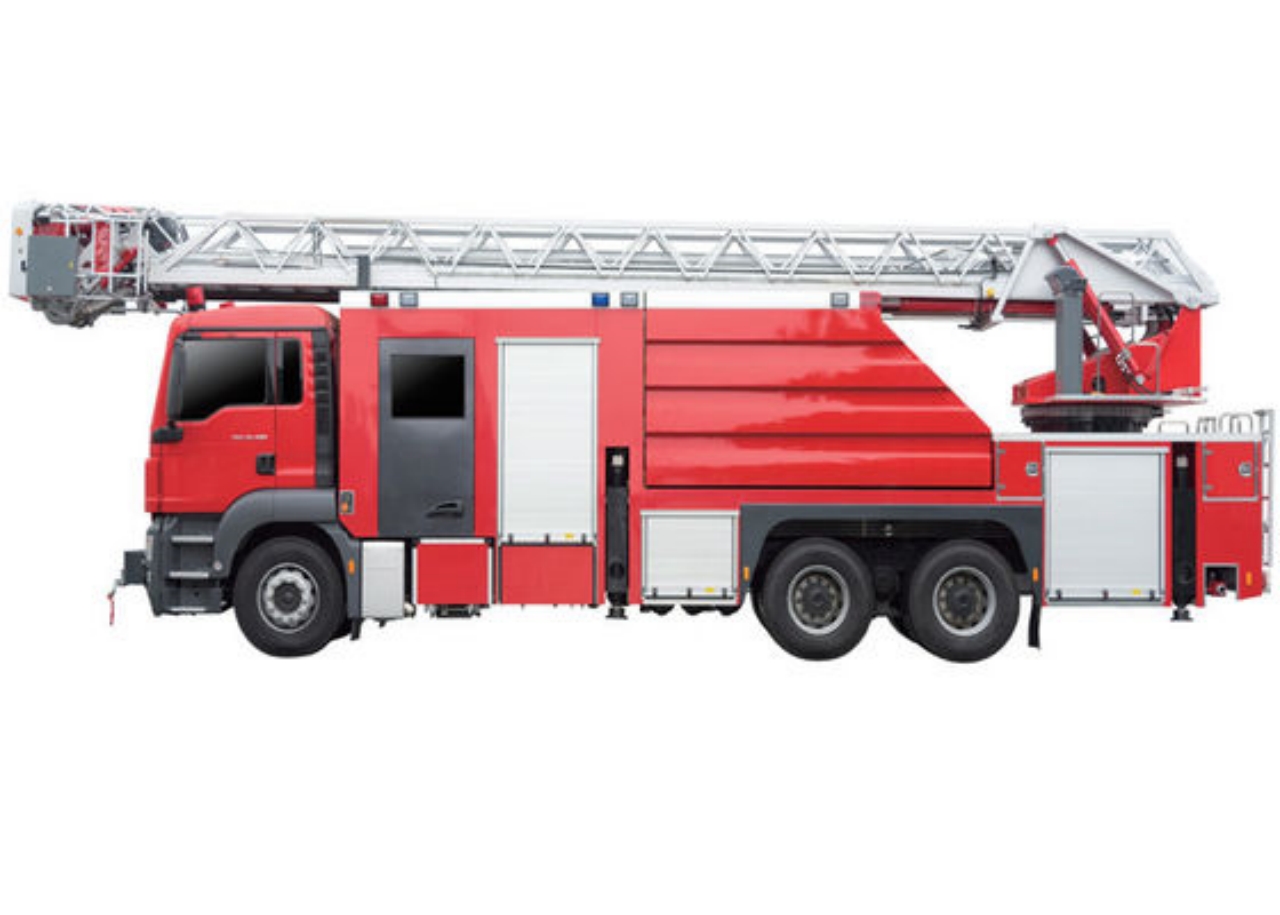

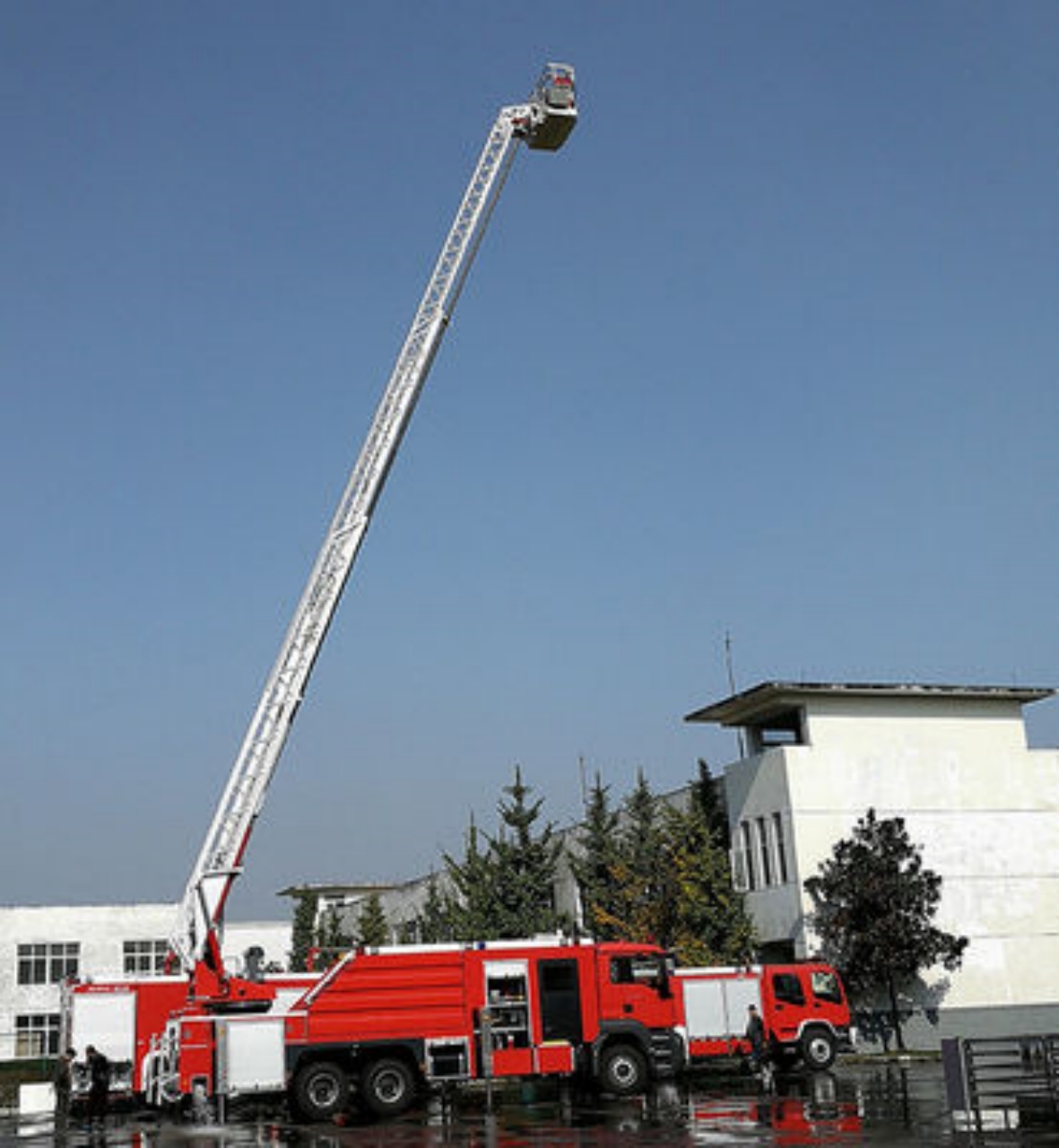

Aerial Ladders
Mounted on fire trucks, these ladders can extend to considerable heights (up to 100 feet or more). They are hydraulically operated and often equipped with platforms or baskets at the tip.
Tiller Ladders (Tractor-Drawn Aerials)
These feature a long aerial ladder mounted on a semi-trailer configuration, offering better maneuverability in tight urban environments.
Aerial Platforms (Tower Ladders)
These ladders include a platform or bucket at the end to carry firefighters and equipment, designed for both rescue and firefighting operations.
Design Standards for Load Capacity
The load capacity of fire service ladders is not arbitrary. It is defined by international and national standards to ensure safety, performance, and reliability. The most commonly referenced standards are:
NFPA 1931 and NFPA 1901 (U.S.)
The National Fire Protection Association (NFPA) provides the most widely used fire service ladder standards in the United States.
NFPA 1931: Standard for Manufacturer’s Design of Fire Department Ground Ladders.
NFPA 1901: Standard for Automotive Fire Apparatus, covering aerial devices.
EN 1147 (Europe)
European standard for portable ladders used by fire brigades.
AS/NZS 1892 (Australia/New Zealand)
Standard for portable ladders, with additional specifications for fire service use.
These standards define the test loads, structural integrity, and operational requirements for different ladder types.
Maximum Load for Ground Ladders
Ground ladders used by firefighters are designed to be both lightweight and strong. According to NFPA 1931, fire department ground ladders must support:
A minimum static load of 750 pounds (340 kg).
This is to simulate three firefighters, each weighing 250 pounds, including their gear.
Ladders must not exceed a specified amount of deflection under this load, ensuring both strength and stiffness.
However, while 750 pounds is the test standard, most modern ladders have a safety factor of at least 4:1, meaning the actual failure load is much higher, often around 3,000 pounds (1,360 kg) or more. Still, the working load limit is based on the tested standard to ensure safe usage.
Maximum Load for Aerial Ladders
Aerial ladders and platforms undergo more rigorous testing due to their complexity and higher usage demands. According to NFPA 1901, aerial devices must meet these minimum load requirements:
Aerial Ladders:
Must support at least 250 pounds (113 kg) at the tip when extended at any angle.
Most modern aerial ladders, however, are designed to handle 500 pounds (227 kg) or more at the tip, allowing two fully geared firefighters to operate simultaneously.
Aerial Platforms (Tower Ladders):
Platforms must support at least 750 pounds (340 kg).
Many current models are rated for 1,000 pounds (454 kg) or more, allowing multiple firefighters and equipment in the basket.
Additional loads, such as hoselines with water flow, add to the operational burden and are included in the ladder’s tested capacity.
The load capacity also depends on ladder positioning:
Horizontal outreach reduces load capacity due to greater torque on the base.
Steeper angles increase the effective load capacity.
Wind conditions and motion are also considered in safe operation limits.
Factors Affecting Load Ratings
Several variables influence the maximum load a fire service ladder can carry:
Material Strength
Most ladders are made from high-strength aluminum alloys. Fiberglass ladders are also used, particularly for electrical safety, but they are heavier. Aerial ladders often use steel or aluminum, depending on design preference and weight constraints.
Ladder Design
Truss construction is common for strength with minimal weight.
Reinforced rungs and side rails help distribute loads evenly.
Mounting and Stabilization
Aerial ladders rely on outriggers to stabilize the vehicle during use. Inadequate stabilization reduces load capacity and increases risk.
Length and Angle of Deployment
The longer the ladder extension and the shallower the angle, the lower the safe load due to increased mechanical leverage on the pivot point.
Wear and Age
Over time, structural fatigue, corrosion, and damage can reduce a ladder’s actual safe capacity. Regular testing and inspection are mandatory.
Operational Considerations
Fire departments must be acutely aware of ladder capacities during operations. Overloading can result in:
Structural failure
Ladder collapse
Risk of injury or death to personnel
Best practices include:
Training firefighters to recognize safe working limits.
Avoiding overloading with gear (e.g., tools, victims during rescue).
Regular ladder testing according to NFPA or local standards.
Visual inspections before deployment to spot damage or wear.
Conclusion
The maximum load for a fire service ladder varies based on its type, material, and design, but general benchmarks exist. Ground ladders are typically rated for 750 pounds, while aerial ladders and platforms may support between 250 to 1,000 pounds, depending on configuration and manufacturer specifications. Compliance with standards like NFPA 1931 and NFPA 1901 ensures ladders are rigorously tested and safe for real-world emergency use.
Ultimately, understanding the load capacity of fire service ladders is not just a matter of engineering—it’s a matter of life and death. Proper use, maintenance, and training can ensure these critical tools remain reliable assets in the life-saving work firefighters perform daily.
