BRIEF
The JMC 4WD fire command pickup truck produced by CSCTRUCK Fire Rescue Truck is a compact yet highly capable emergency response vehicle designed to support fire and rescue operations in diverse terrains. Built on the reliable JMC chassis and equipped with a 4×4 drive system, this vehicle ensures exceptional off-road performance, allowing it to reach incident scenes in remote or rugged locations with ease. Its powerful RZ4E Hi-Power engine delivers 120kW (163 horsepower), providing the necessary acceleration and endurance for rapid response missions.
Complying with the EURO 6 emission standard, the JMC 4WD fire command pickup truck not only delivers strong performance but also maintains environmentally responsible operation with reduced emissions. The vehicle can achieve a maximum speed of 175 km/h, enabling swift deployment in time-critical emergencies. To enhance operational efficiency during rescue missions, it is equipped with a K8000XF front-mounted rescue winch with a rated tension of 3,629 kg, ensuring effective towing and recovery capabilities for both personnel and equipment under challenging conditions.
In terms of visibility and communication, the fire truck features two 100W flashing lights integrated into its complete electrical system, offering powerful signaling capability during emergency responses. The ergonomic cabin layout provides a comfortable workspace for commanders, enabling effective coordination of firefighting teams and efficient control of field operations.
Overall, the JMC 4WD fire command pickup truck combines speed, power, and utility with advanced safety and communication features. It is purpose-built for command and control functions, ensuring that incident leaders have the mobility, reliability, and functionality required to manage emergency operations efficiently—whether in urban areas, industrial zones, or challenging rural environments. This vehicle stands as a robust and dependable solution for modern fire and rescue command applications.
FEATURES
- High-Performance Powertrain:
Equipped with the RZ4E Hi-Power engine delivering 120kW (163Hp), the truck ensures reliable power output and smooth performance even in demanding emergency conditions. - All-Terrain 4×4 Capability:
Built on a JMC chassis with a 4-wheel drive system, the vehicle provides excellent traction and stability across rough, off-road, or urban environments, making it ideal for rapid fire command deployment. - Advanced Emission Compliance:
The EURO 6 emission standard ensures cleaner operation, reduced environmental impact, and compliance with modern global environmental regulations. - Rescue Winch System:
Integrated with a K8000XF rescue winch offering a rated tension of 3,629kg, it enhances the vehicle’s functionality in emergency recovery, towing, or rescue operations. - Enhanced Lighting and Electrical System:
Fitted with two 100W flashing lights and a complete electrical system, the truck provides superior visibility and safety during night operations or in low-visibility rescue scenarios.
SPECIFICATION
1. Chassis of JMC |
|
| 1.1 | Chassis: JMC 4×4 |
| 1.2 | Engine:
2.1 Engine power: 120Kw (163Hp) 2.2 Engine model: RZ4E Hi-Power 2.3 Number of cylinders: 4 2.4 Emission Standard: Euro 6) 2.5 Transmission (type): 6-speed automatic 2.7 Torque (Nm): 360 2.7 Fuel tank capacity (L): 76 2.8 Fuel type: diesel |
| 1.3 | Drive Manner:4×4 |
| 1.4 | Max. Speed(km/h):175 |
| 1.5 | Cabin:
5.1 Structure: 4 doors, original double row cabin 5.2 Seats:2＋3 |
| 1.6 | Wheelbase(mm): 3,095 |
| 1.7 | Number of wheels: 4, tire size: 255/65 R17 |
| 1.8 | Length (mm): 5,295, width (mm): 1,860, height (mm): 2,210 |
| 1.9 | Standard configuration: ABS/EBD/EBA/ASR/ESP, 360-degree panoramic image, reversing radar, keyless start system, keyless entry function, tire pressure alarm, uphill assistance, steep slope descent, electric adjustment of the main and passenger seats, Dual airbags, electric windows, electric adjustment of rear-view mirrors, up and down adjustment of steering wheel, large 8-inch center console color screen, driving computer display, Bluetooth/car phone. In addition, a winch is installed at the front of the vehicle, and a rear trailer hook is installed at the rear of the vehicle. |
| 1.10 | Max. Weight: 2,475kg |
2. Superstructure |
|
| 2.1 | Structure: The carriage adopts a high-strength PP-C composite material welding structure, which is modified based on the original car body. |
| 2.2 | Equipment door:

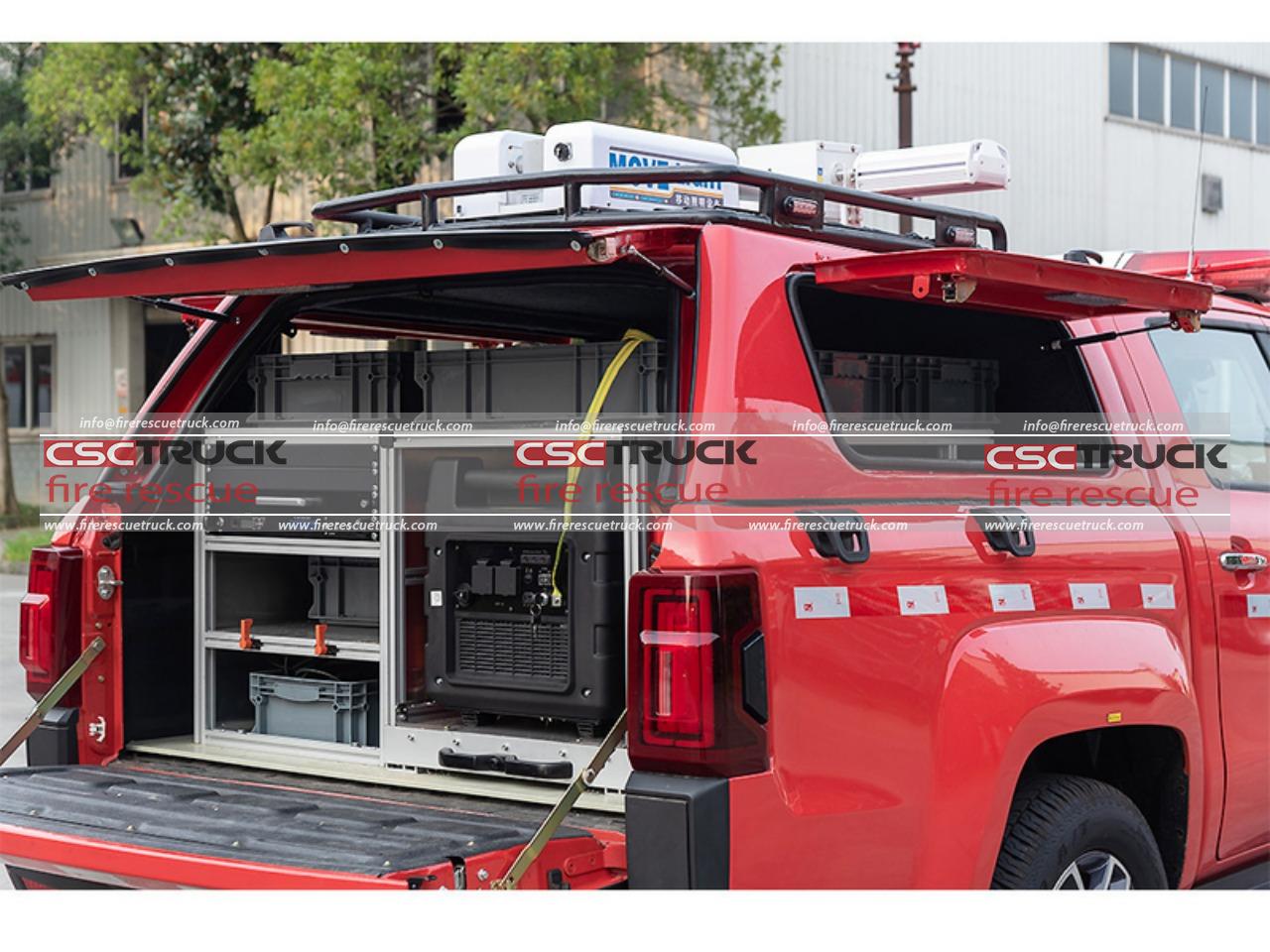

(1) There are 2 aluminum alloy rolling shutter doors on the left and right sides of the equipment box. The door frame is made of light, high-quality aluminum alloy, which is flexible to open and close, good at sealing, low noise, beautiful in appearance, light, and reliable. All rolling doors can be opened with one key. (2) The rear equipment box door adopts a gas spring up and down door. |
| 2.3 | Equipment layout: The left and right sides and the rear of the carriage can be equipped with hydraulic demolition, hydraulic support, detection, personal protection, and alert equipment. |
| 2.4 | Equipment Layout Principle:
★ Design equipment integration according to battle organization and battle deployment; ★ Design various equipment brackets according to ergonomic principles; ★ Place the equipment according to the logical relationship and frequency of use; ★ Stand on the ground or pedals, take and place fire-fighting equipment in 2 actions. |
3. Rescue Winch |
|
| 3.1 | Brand: Champion
Model: K8000XF Rated tension: 3,629Kg |
| 3.2 | Traction wire: ∮8X29M |
4. Complete Electrical System |
|
| 4.1 | Install 6 off-road lights on the front of the vehicle |
| 4.2 | The power of the alarm is 100W; the alarm and warning light circuits are independent additional circuits, and the control device is installed in the cab. |
| 4.3 | 2 flashing lights are provided on the upper part of each side of the carriage. |
| 4.4 | There are 2 lights at the back of the equipment box. |
5. Equipment along with Vehicle |
|
| 5.1 | 5 sets of special warning tapes |
| 5.2 | On-board toolbox 1 set. |
