BRIEF

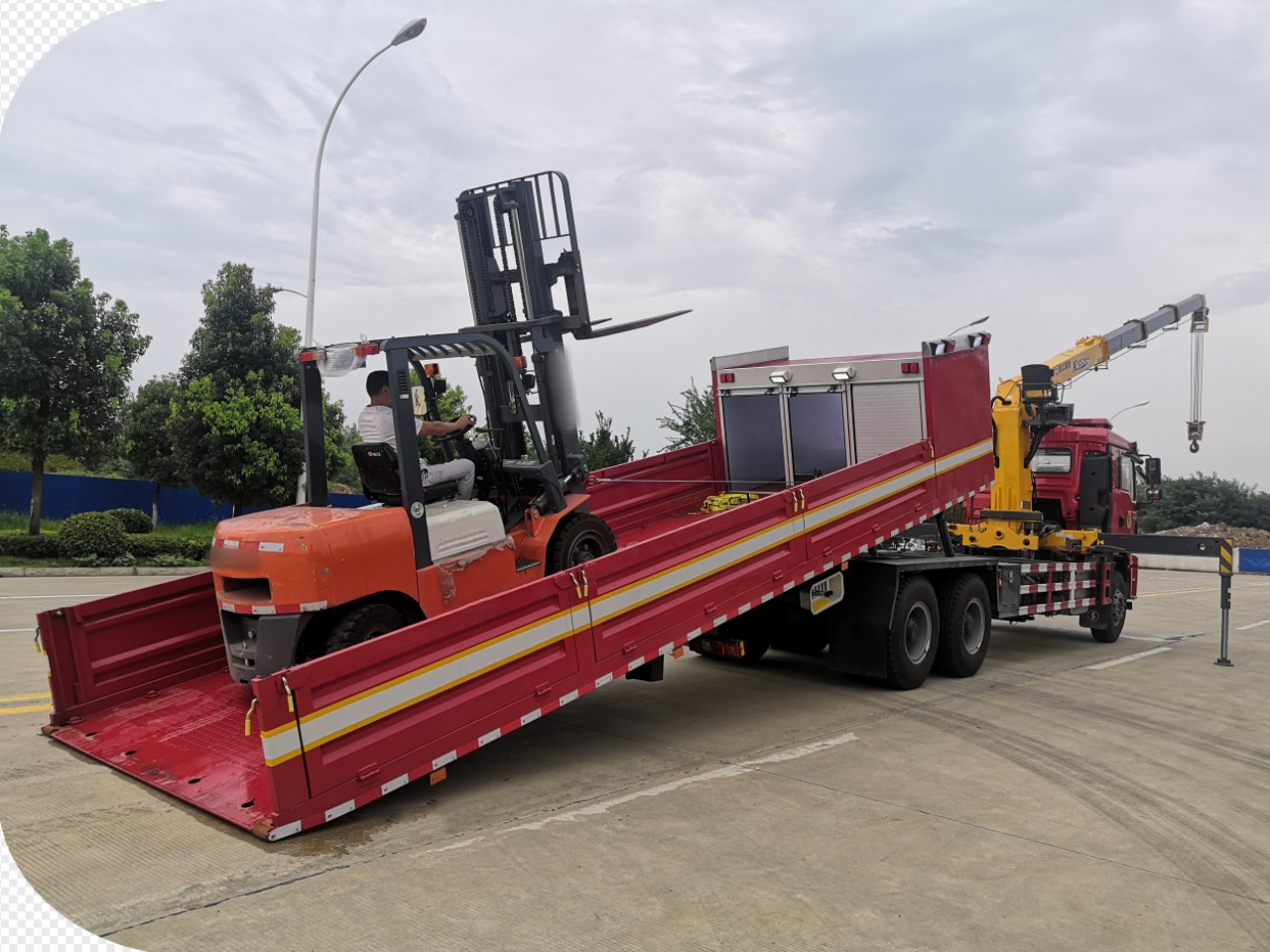

The SHACMAN emergency boat carrier 8t crane truck is a specialized logistics unit designed to meet rapid deployment and transport requirements in emergency response operations. It is modified from a SHACMAN Delong Class II chassis and further enhanced with a custom-built cargo compartment, a knuckle-boom truck-mounted crane, and other dedicated support equipment. These modifications allow the SHACMAN emergency boat carrier 8t crane truck to handle both transport and lifting tasks efficiently, ensuring versatility in the field.

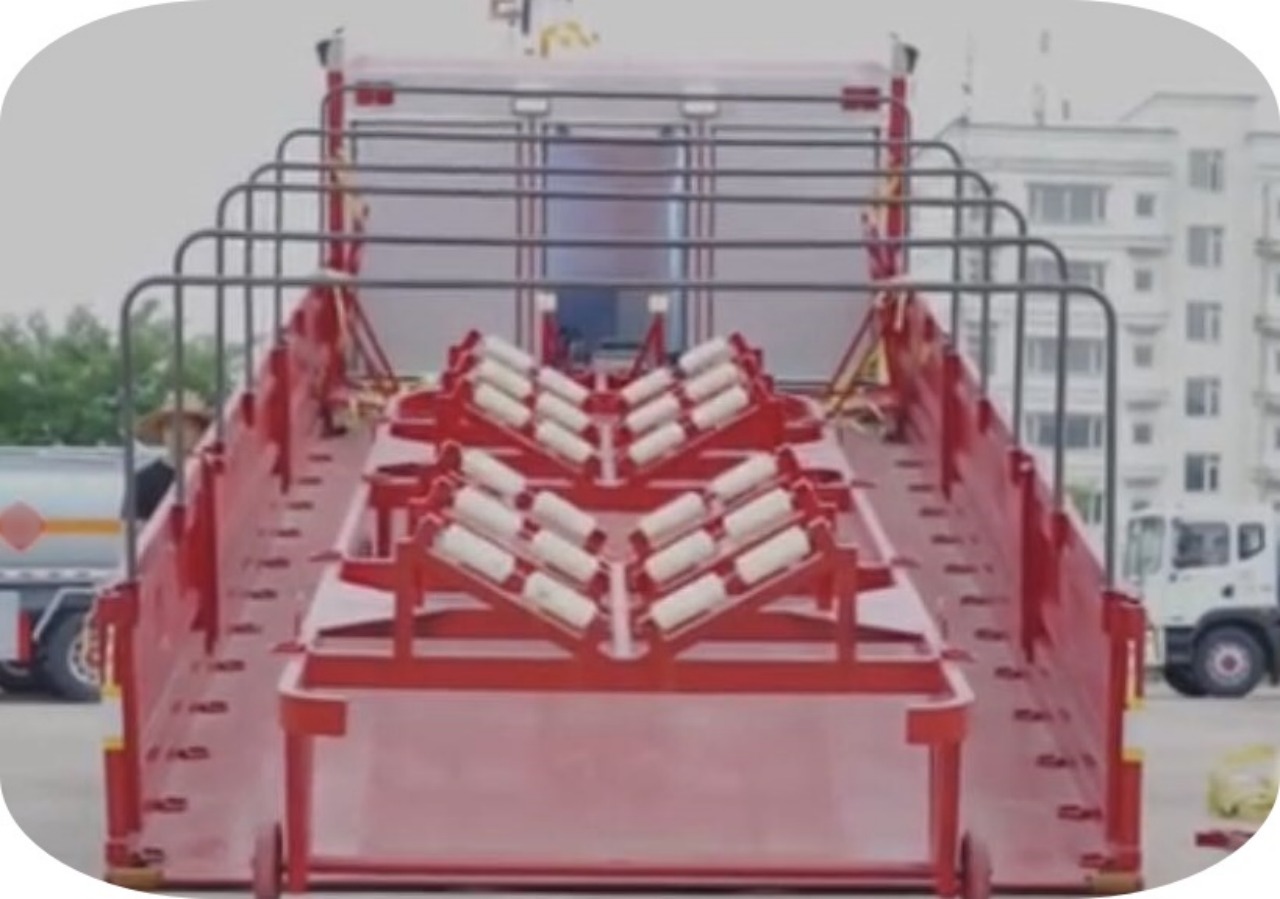

The cargo compartment measures 8.4 meters in length and features side and rear panels with a height of 600 mm. Each panel can be flipped up or down by 180 degrees and locked securely when raised upright. This design provides both flexibility and safety during loading and unloading operations. The structure is detachable, allowing adaptation for different mission needs. Inside the compartment, quick-install and detachable racks are provided to carry up to 4 assault boats. Each rack is fitted with lifting rings, while lashing rings on the floor allow them to be firmly secured. At the front end of the compartment, a detachable suspension bracket is installed to hold up to 4 outboard motors, mounted evenly on both sides.

For lifting operations, the rescue fire truck is equipped with an XCMG 8-ton straight-boom crane, offering a maximum working radius of 12 meters. This enables it to carry out boat deployment, equipment handling, and other hoisting tasks with ease. The truck’s overall dimensions are 11,960 mm in length, with a front overhang of 1,515 mm, a wheelbase of 5,800 + 1,350 mm, and a rear overhang of 3,295 mm. A speed limiter is installed, restricting the maximum driving speed to 80 km/h for safety.

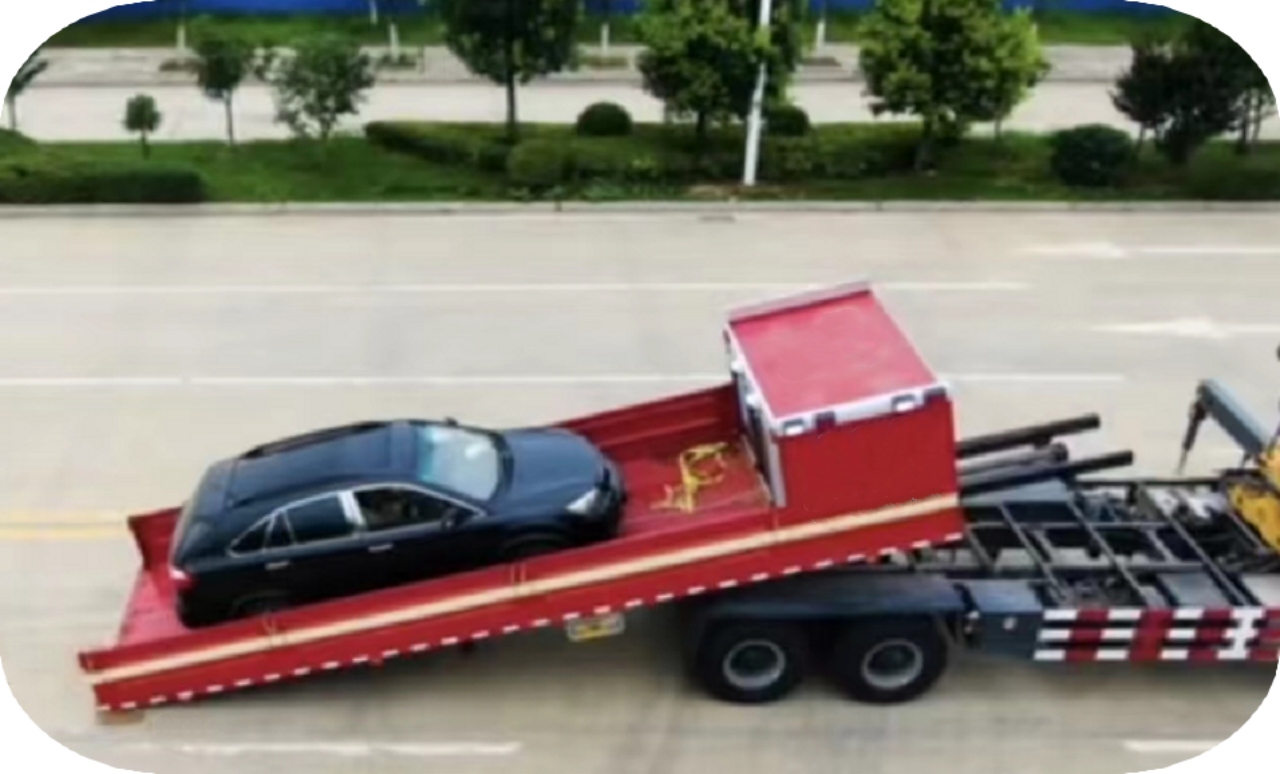

Additional options include different cab designs depending on the chassis, an ETC onboard unit, a satellite-positioning tachograph, and an optional wrecker-style flatbed hydraulic structure for the cargo compartment.

FEATURES

1. Integrated Transport & Lifting Capability – Built on a SHACMAN Delong Class II chassis, the vehicle combines a custom cargo compartment with an XCMG 8-ton crane, enabling it to transport assault boats and perform hoisting tasks such as boat deployment and equipment handling.
2. Flexible Cargo Compartment – The 8.4 m-long compartment features 600 mm-high side and rear panels that can be flipped 180° and locked upright. The detachable structure allows for easy adaptation to different mission requirements.
3. Specialized Boat & Equipment Racks – Quick-install racks inside the compartment hold up to 4 assault boats, with lifting rings for crane operations and lashing rings for secure transport. A detachable suspension bracket accommodates up to 4 outboard motors.
4. Robust Crane Performance – The mounted 8-ton straight-boom crane offers a maximum working radius of 12 meters, providing reliable lifting capacity for rescue boats, motors, and other heavy equipment in emergency operations.
5. Safety & Optional Configurations – A speed limiter restricts maximum speed to 80 km/h for safe road travel. Optional features include multiple cab configurations, an ETC onboard unit, satellite-positioning tachograph, and even a wrecker-style hydraulic flatbed cargo setup for added versatility.

SPECIFICATION
