BRIEF

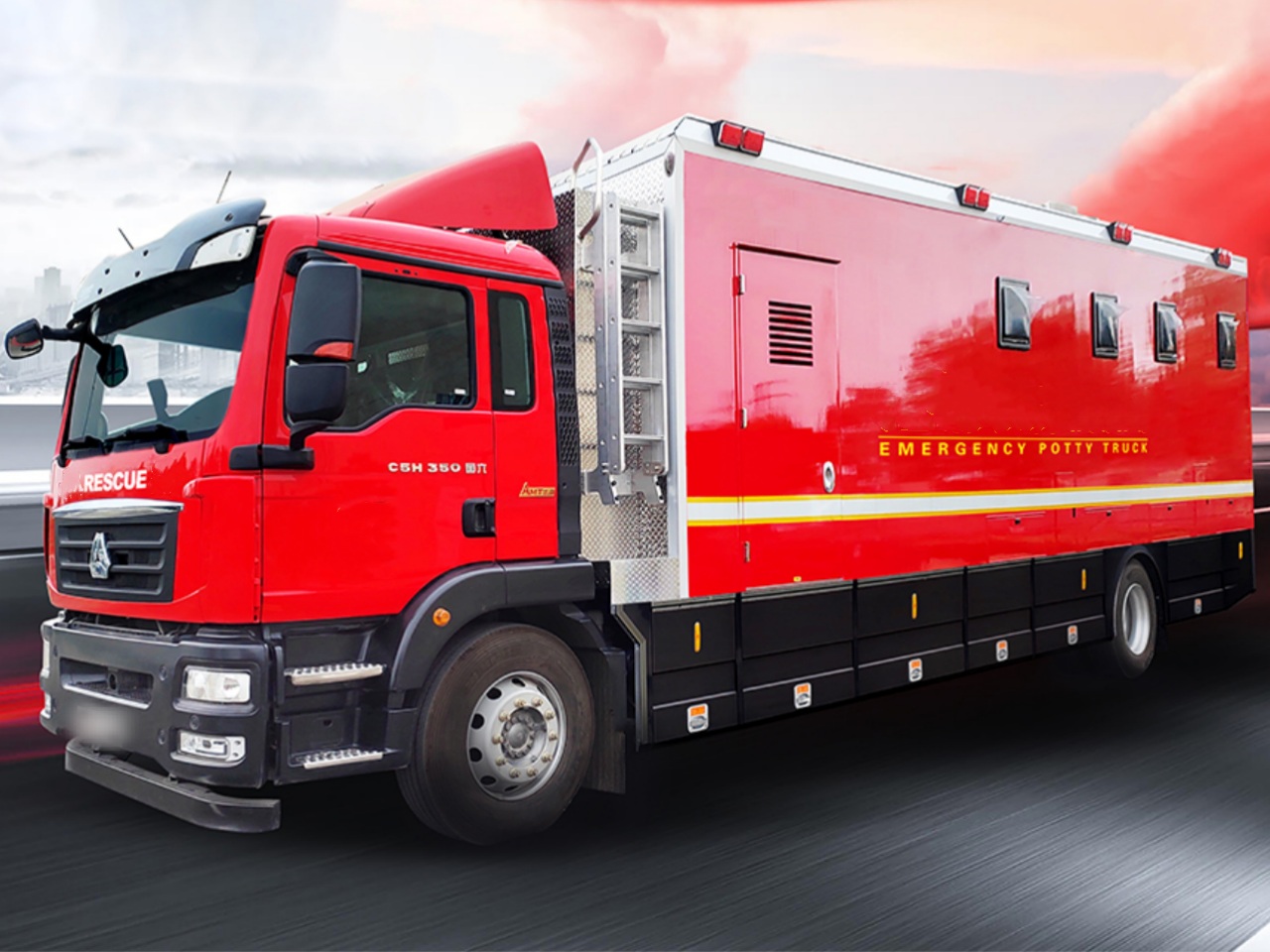

The SITRAK emergency rescue porta potty truck is built on a domestic Sinotruk SITRAK Euro VI chassis, designed to provide mobile sanitation facilities for outdoor emergencies. The compartment is carefully divided for optimal functionality: the front section houses the vacuum waste collection system and equipment room, while the middle section contains the onboard restroom. Inside, there are 12 individual toilets—6 on each side. The quantity and type of squat toilets, flush toilets, and urinals can be customized to meet specific user requirements, allowing the interior to be arranged in multiple configurations.

The layout is highly space-efficient and supports flexible mobility. Functional areas include a wash basin section, urinal area, squat toilet section, sitting toilet section, and equipment room. Depending on the setup, the SITRAK emergency rescue porta potty truck can comfortably meet the restroom needs of 8 to 16 users at a time. It is suitable for a wide range of outdoor applications, such as disaster relief, event support, construction sites, and other field operations where sanitation is required.

The compartment roof is fully sealed and non-openable, ensuring durability and hygiene. The cab configuration can be selected according to the chassis specifications. The rescue truck’s primary special components include the compartment body and integrated water tank. For braking control, the ABS uses a WABCO (Shanghai) Management Co., Ltd. controller, model 4460046300; optional EBS is available, model EBS3, also from WABCO.

The side protection adopts a skirt-type design, while the rear protection uses cold-bent steel (Q235-B) with welded construction. The rear guard measures 120 mm in height, 50 mm in width, and has a lower edge positioned 500 mm above ground level. An optional speed-limiting device can be installed, restricting the maximum speed to 89 km/h. With its robust construction, adaptability, and high sanitary standards, this SITRAK emergency rescue porta potty truck is an essential solution for rapid-deployment restroom facilities in the field.

FEATURES

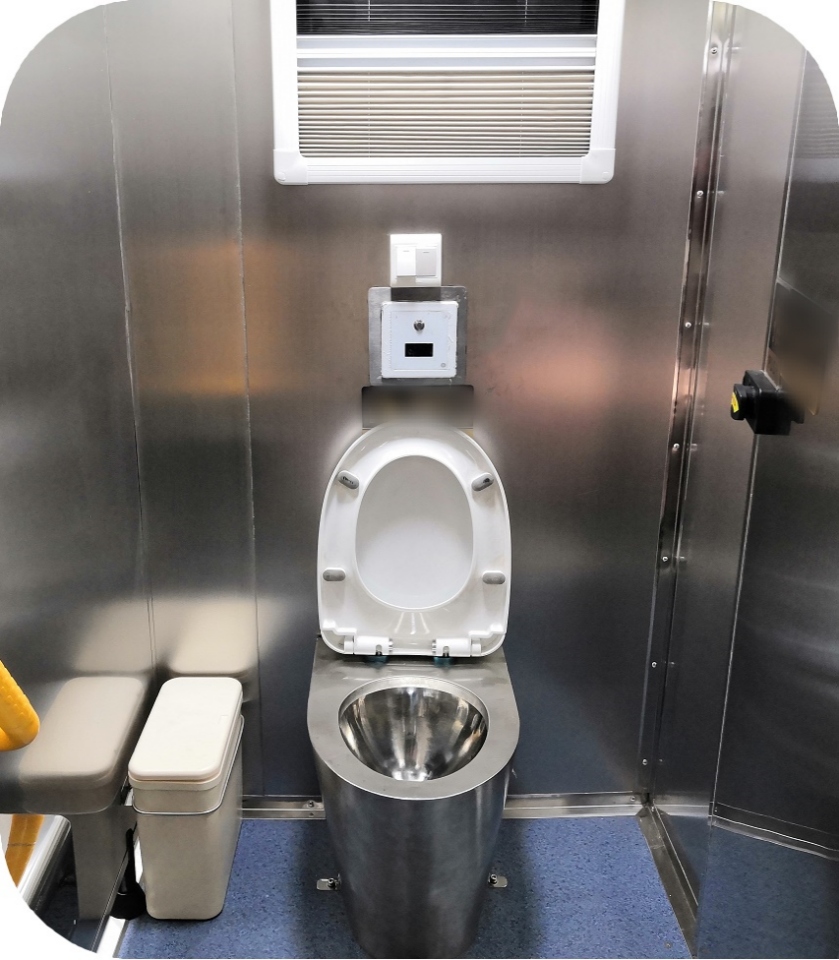

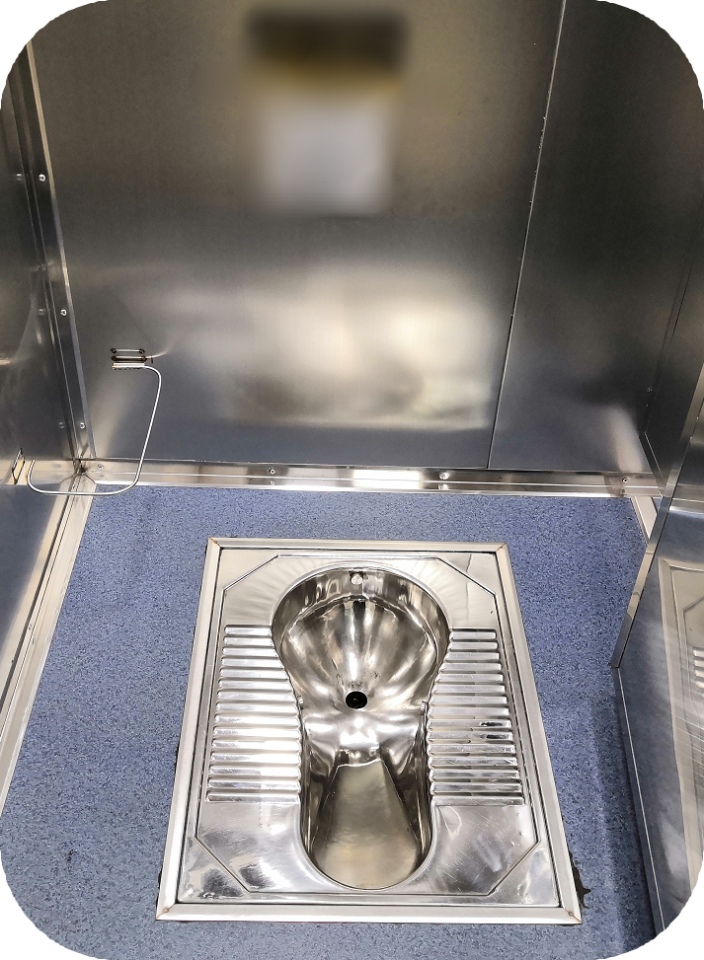

1. Customizable Sanitation Layout – Equipped with 12 individual toilets (6 per side), the interior can be configured with various combinations of squat toilets, flush toilets, and urinals to match specific operational needs.
2. Efficient Space and Functional Zoning – The compartment is divided into a vacuum waste collection system and equipment room at the front, and a restroom area in the middle, with dedicated sections for wash basins, urinals, squat toilets, and sitting toilets.
3. Durable and Hygienic Construction – Features a fully sealed, non-openable roof, robust side skirt protection, and rear protection made of cold-bent Q235-B steel, ensuring long-term durability and sanitary standards.
4. Advanced Braking and Safety Options – Standard ABS braking system with WABCO controller (model 4460046300) and optional EBS (model EBS3) for enhanced control; optional speed limiter restricts maximum speed to 89 km/h.
5. Adaptable for Various Field Operations – Ideal for disaster relief, large-scale event support, construction sites, and emergency rescue missions, providing rapid-deployment restroom facilities for 8–16 users at a time.
