BRIEF

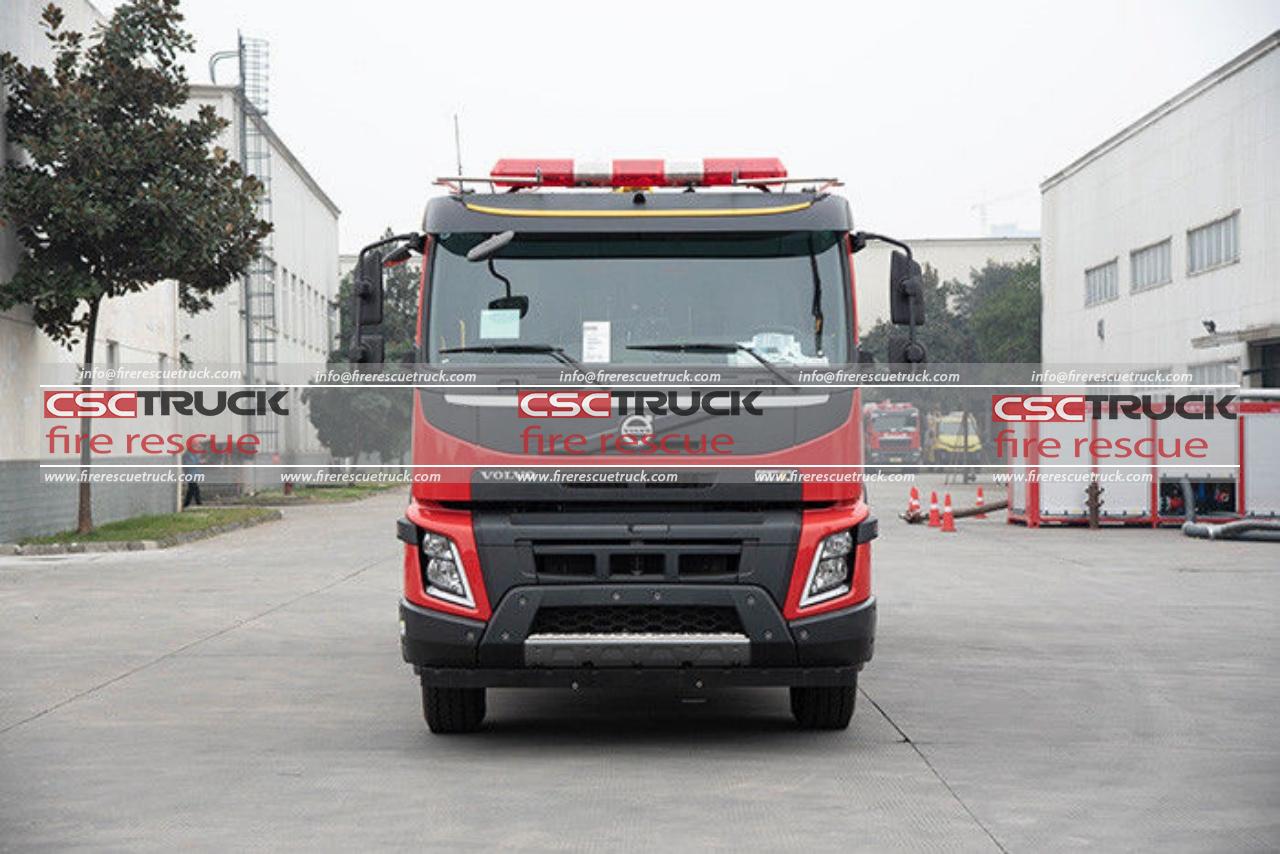

The Volvo 12,000L water tanker fire engine, produced by CSCTRUCK Fire Rescue Truck, is a high-performance firefighting vehicle engineered for both urban and industrial applications. Built on a robust Volvo chassis with a 6×4 drive configuration, this fire truck combines reliability, durability, and advanced firefighting capabilities. Its powerful 460HP engine meets the Euro 5 emission standard, ensuring strong performance while maintaining environmental compliance. With a total loaded weight of approximately 28,000kg, it maintains excellent mobility and stability across various terrains, reaching maximum speeds of 85–90 km/h.
Equipped with a 12,000-liter water tank, the tanker fire truck offers substantial water capacity for extended firefighting operations. Its high-efficiency water pump can deliver 100L/s at 10.3 bar pressure, while the suction height reaches 7 meters, allowing flexible water intake from natural sources. The fire monitor, designed for both manual and remote control operation, achieves a flow rate of 80L/s at 10 bar and a water shoot range of over 85 meters. Its 0°–340° horizontal rotation ensures broad coverage and precise targeting of fire zones, enabling rapid suppression in critical situations.
The Volvo 12,000L water tanker fire engine is widely applicable for municipal fire departments, industrial complexes, and emergency rescue operations in areas with limited water supply. It excels in tackling large-scale fires, including chemical, industrial, and urban fires, where both mobility and water delivery efficiency are critical.
Its key strengths lie in the combination of high water capacity, a powerful pumping system, a long-range fire monitor, and Volvo’s renowned reliability. The remote-controlled fire monitor adds operational safety by allowing firefighters to maintain distance from dangerous fire zones. Compact yet robust, this Volvo 12,000L water tanker fire engine represents a dependable solution for modern firefighting needs, ensuring rapid response, operational flexibility, and effective fire suppression in diverse emergency scenarios.
FEATURES
- High Capacity & Powerful Chassis – Equipped with a 12,000L water tank and a robust Volvo 6×4 chassis, ensuring stability and reliability during firefighting operations.
- Strong Engine Performance – Powered by a 460HP engine meeting Euro 5 emission standards, supporting speeds of up to 85-90 km/h for rapid response.
- Efficient Water Pump System – Features a water pump delivering 100L/s at 10.3 bar, combined with a 7m suction height for effective water intake.
- Advanced Fire Monitor – Fire monitor provides 80L/s at 10 bar with a water shooting range of ≥85m, featuring remote control operation and 0°~340° horizontal rotation for precise targeting.
- Optimized Firefighting Operations – Integrates high-capacity water storage, efficient pumping, and flexible water projection, making it suitable for large-scale firefighting and rescue missions.
SPECIFICATION
1. Volve Heavy Duty Water Tanker Fire Truck with 12000L Water
| No. | Main Items | Technical Parameters |
|---|---|---|
| 1.1 | Dimensions(LxWxH) | 10,300×2,500×3,600mm |
| 1.2 | Total Mass (Full Load) | Approx. 28,000kg |
| 1.3 | Number of Crew | 6 |
| 1.4 | Maximum Speed | 85–90km/h |
| 1.5 | Emission Standard | Euro 3–5 |
| 1.6 | Tank Capacity | 12000 Liters of Water |
| 1.7 | Fire Pump Flow Rate | 100L/s @ 1.03Mpa |
| 1.8 | Fire Monitor Flow Rate | 80 Liters/Second |
2. Superstructure of the Volvo 12000L Water Tanker Fire Engine
2.1 Aluminum Compartment
| No. | Main Items | Technical Parameters |
|---|---|---|
| 2.1.1 | Material | All made of high-strength aluminum alloy profiles |
| 2.1.2 | Structure | All-aluminum alloy frame, welded structure with bonded aluminum alloy plates |
| 2.1.3 | Roof Guard | Aluminum alloy, equipped with strobe warning lights, exterior lights, and interior LED roof lights |
| 2.1.4 | Ladder Frame | Multifunctional ladder frame installed on the top |
| 2.1.5 | Rear Ladder | Aluminum alloy safety ladder on the right rear side |
2.2 Electrical System
| No. | Main Items | Technical Parameters |
|---|---|---|
| 2.2.1 | Warning Light | Long row warning lights on top; controls in the cab |
| 2.2.2 | Equipment Box Lights | LED white lighting strips on both sides, linked with a rolling door switch |
| 2.2.3 | Strobe Lights | Installed on the upper part for warning |
| 2.2.4 | Exterior Lighting | LED lights on the upper part of the compartment |
| 2.2.5 | Roof Lighting | LED lights inside the top of the carriage |
| 2.2.6 | Side Indicator Light | Built-in yellow indicator lights on pedals |
3. Water Tank, Water Pump, and Roof Water Monitor
3.1 Centrifugal Water Pump
| No. | Main Items | Technical Parameters |
|---|---|---|
| 3.1.1 | Brand | Optional |
| 3.1.2 | Model | Optional |
| 3.1.3 | Flow Rate | 100L/s @ 10.3 bar |
| 3.1.4 | Vacuum Pump | Electric vacuum pump |
| 3.1.5 | Priming Manner | Automatic |
| 3.1.6 | Suction Height | 7m |
| 3.1.7 | Priming Time | ≤60s |
| 3.1.8 | Location | Rear-mounted |

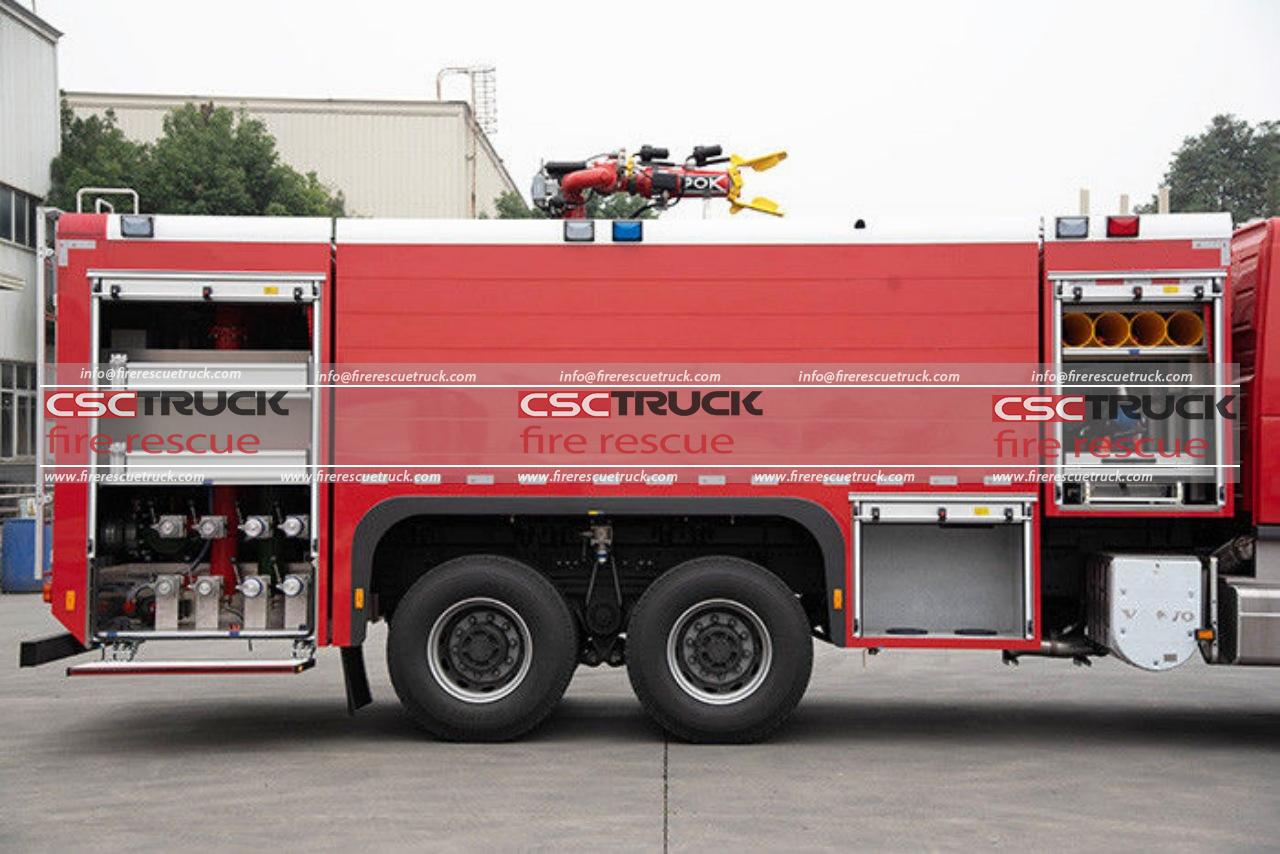

3.2 Roof Water Monitor
| No. | Main Items | Technical Parameters |
|---|---|---|
| 3.2.1 | Brand | Optional |
| 3.2.2 | Model | Optional |
| 3.2.3 | Flow Rate | 80L/s @ 10bar |
| 3.2.4 | Shoot Range | Water ≥85m |
| 3.2.5 | Location | On top of the tank |
| 3.2.6 | Control Manner | Remote control |
| 3.2.7 | Horizontal Rotation | 0°–340° |
| 3.2.8 | Pitch Rotation | -15°–60° |
3.3 Water Tank
| No. | Main Items | Technical Parameters |
|---|---|---|
| 3.3.1 | Capacity | Water 12,000 Liters |
| 3.3.2 | Material | PP composite material, corrosion-resistant and never rusts |
| 3.3.3 | Structure | 1 Tank Manhole; 1 Overflow/Pressure Relief Device; 1 Liquid Level Indicator; 1 Drain Outlet with Valve. |
