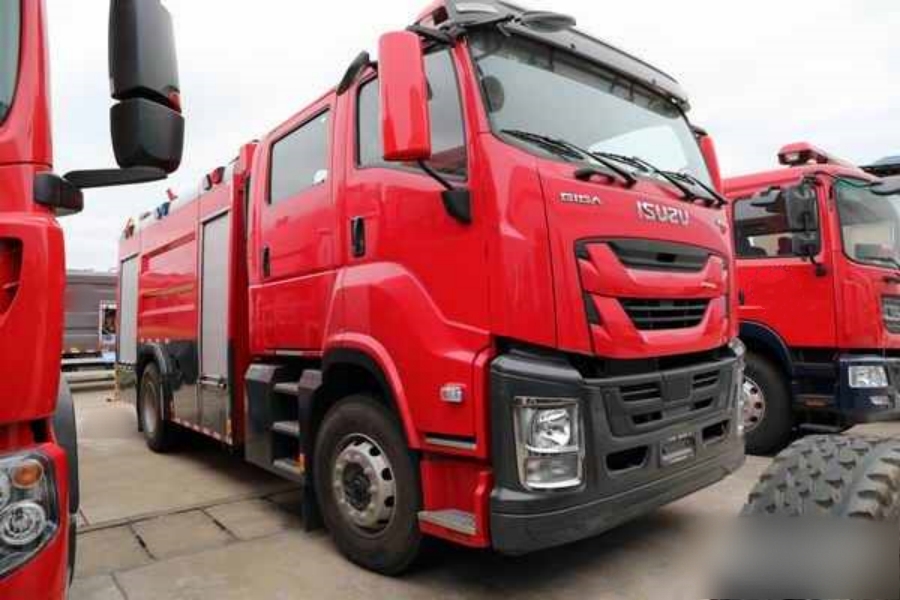

The ISUZU GIGA double-cab Euro VI foam fire truck features the new ISUZU GIGA double-cab, equipped with a 240-horsepower ISUZU engine, paired with an ISUZU-engineered 6-speed manual transmission. It comes with 295/80R22.5 tires and standard configurations including ABS, air conditioning with heating and cooling, central locking with keys, power windows, a multifunctional LCD instrument panel, and an air brake cut-off system.
Specification
Details
Overall Dimensions (L × W × H)
8,140 × 2,550 × 3,470 mm
Gross Vehicle Weight
17,000 kg
Rated Payload
6,600 kg
Curb Weight
10,025 kg
Mounted Tank Total Volume
6.6 m³
Water Tank Volume & Dimensions
4.65 m³ (1,680 × 2,400 × 1,200 mm)
Foam Tank Volume & Dimensions
1.95 m³ (710 × 2,400 × 1,200 mm)
Side Protection
Integrated side protection structure
Rear Protective Device Material
Q235A steel
Rear Protective Device Cross-section
100 × 120 mm
Rear Protective Device Connection
Bolted to the vehicle
Rear Guard Ground Clearance
398 mm

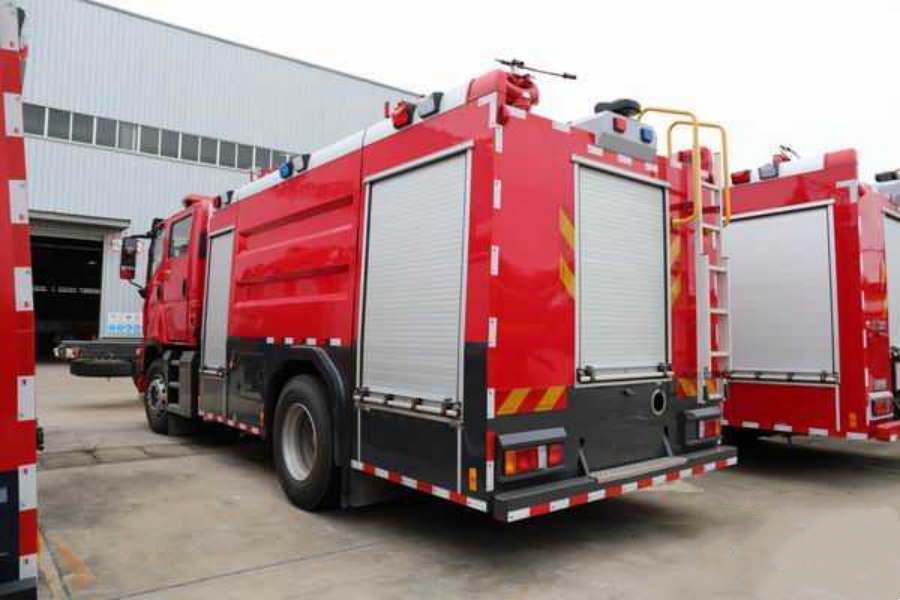

The ISUZU GIGA double-cab Euro VI foam fire truck consists of 2 main parts: the double cab and the body. The double cab seats 2 + 3 people. The body uses an exposed tank structure, with a front equipment compartment, a central tank, and a rear pump room. The central liquid tank is made of high-quality carbon steel and internally coated with epoxy primer and epoxy asphalt paint. The body is elastically connected to the chassis. Key specialized equipment includes a fire pump and a fire monitor. The fire pump has a water jet range of ≥55 meters, and the foam jet range is ≥50 meters.
This foam fire truck offers large liquid capacity, excellent maneuverability, and easy maintenance. It is widely applicable for public fire brigades, industrial enterprises, communities, docks, and other locations, capable of extinguishing large-scale oil fires as well as ordinary material fires.
