BRIEF
The 6-wheel, 24-person modular accommodation unit produced by CSCTRUCK Fire Rescue Truck is a specialized mobile solution designed to provide reliable field housing for emergency response teams, construction crews, and disaster relief operations. Built on a robust Dongfeng chassis with a 4×2 drive type, the vehicle offers dependable road performance, reaching a maximum speed of 105 km/h, while meeting stringent EURO VI emission standards for reduced environmental impact.

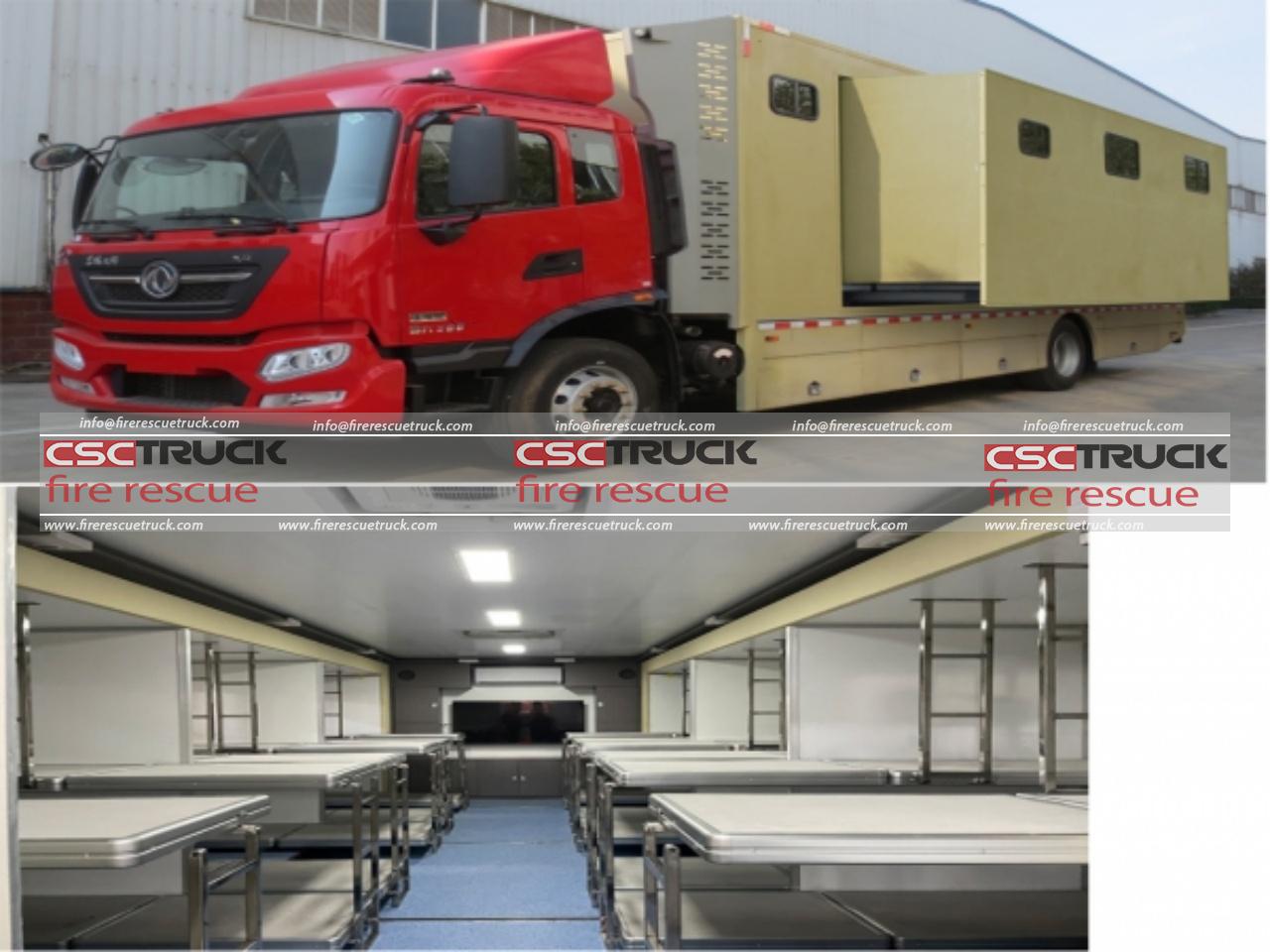

Inside, the rescue fire truck is engineered for comfort and efficiency. It features 12 bunk bed sets, allowing 24 people to be accommodated at once, with an optimized spatial layout that balances compactness and livability. Essential amenities such as an independent shower room, toilet, and washbasin provide hygienic daily use, while a forced ventilation system and dual-layer outward windows with automatic ventilation ensure fresh air circulation and temperature balance in all weather conditions.
To maintain operational independence in the field, the 6-wheel, 24-person modular accommodation unit is equipped with a 5 kW onboard generator, delivering a stable 220V rated voltage. This system provides continuous electrical power for 4 to 6 hours per fueling, supporting lighting, ventilation, and small appliances. Such self-sufficiency allows crews to remain functional in remote or disaster-affected areas where external power sources may be unavailable.
The modular accommodation design prioritizes quick deployment and mobility, serving as both a rest station and a base of operations. It reflects CSCTRUCK Fire Rescue Truck’s expertise in integrating comfort with practicality, ensuring personnel can recover effectively during demanding missions. Whether used in emergency rescue, large-scale field exercises, or temporary camp setups, this accommodation truck enhances both operational resilience and human well-being in the field.
FEATURES
- Excellent mobility with strong off-road capabilities.
- Expandable side cabins (manual or automatic) provide increased living space.
- Equipped with large water tanks for washing and a centralized sewage collection system.
- Integrated generator power supply with compatibility for external power input.
- Bunk bed layout complete with TV, air conditioning, and other essential living amenities.
SPECIFICATION
| Item | Specification |
|---|---|
| Product Brand | CSCTRUCK Fire Rescue Truck |
| Announcement Batch | 379 (Extended) |
| Product Name | 6 Wheelers 24-People Modular Accommodation Units |
| Product Model | CSCMAU024 |
| Gross Vehicle Weight (Kg) | 16,000 |
| Tank Volume (m³) | — |
| Rated Load Capacity (Kg) | 800 |
| Dimensions (mm)(LxWxH) | 10,600 × 2,550 × 3,960 |
| Curb Weight (Kg) | 15,070 / 15,005 |
| Cargo Compartment Size (mm) | — |
| Rated Passenger Capacity (persons) | — |
| Approved Trailer Mass (Kg) | — |
| Cab Seats (persons) | 2 / 3 |
| Saddle Max Load (Kg) | — |
| Approach / Departure Angle (°) | 16/8, 14/8 |
| Front / Rear Overhang (mm) | 1,400 / 3,400 |
| Axle Load (Kg) | 5,800 / 10,200 |
| Max Speed (Km/h) | 89 / 105 |

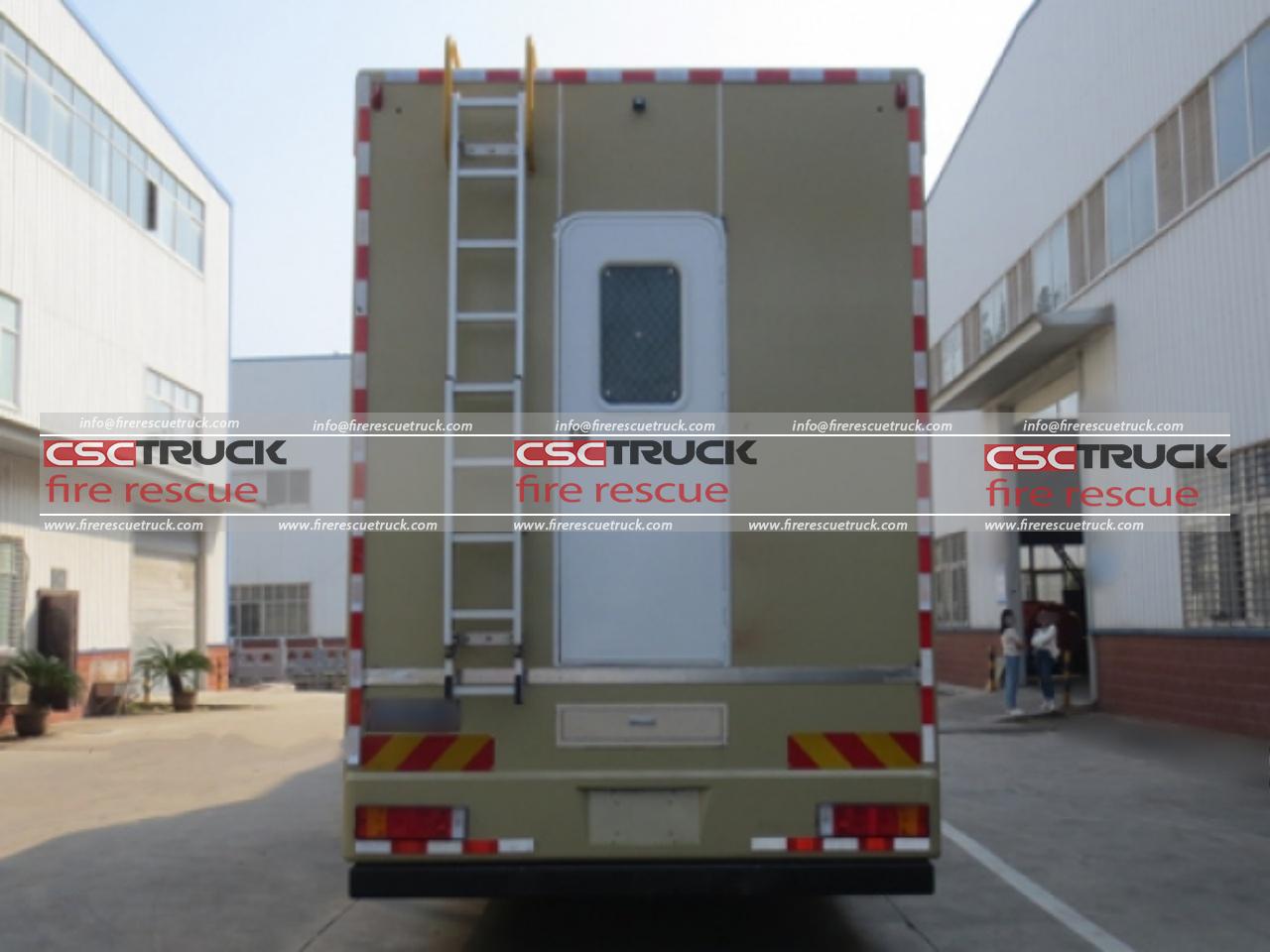

| Remarks | Optional cab per chassis, optional speed limiter (limit 89 km/h), optional interior layout; only uses chassis with 5800 mm wheelbase. Main special devices: beds, cabinets, TV, for field accommodation. The cabin is expandable on both sides only when parked. Side protection: integral structure. Rear guard: material Q235, bolted; cross-section 120×120 mm; ground clearance 460 mm. ABS models/suppliers: ABS 8 / Dongke Knorr Commercial Vehicle Braking Systems (Shiyan) Co., Ltd.; ABS-E 4S/4M / ZF Commercial Vehicle Systems (Qingdao) Co., Ltd.; J ABS / Jiaozuo Borui Control Tech Co., Ltd. Cabin equipped with office chairs (used only when stationary). |
Chassis Technical Parameters
| Item | Specification |
|---|---|
| Chassis Model | DFH5180XXYE8 |
| Chassis Name | Van Truck Chassis |
| Brand Name | Dongfeng |
| Manufacturer | Dongfeng Commercial Vehicle Co., Ltd. |
| Axles | 2 |
| Tires | 6 |
| Wheelbase (mm) | 5,800 / 7,150 |
| Tire Specifications | 10.00R20 18PR, 275/80R22.5 18PR, 11R22.5 18PR, 295/60R22.5 18PR, 315/60R22.5 20PR, 295/80R22.5 18PR |
| Leaf Springs | 8/10+8, 3/4+3, 8/2+-, 8/-, 3/2+-, 3/- |
| Front Track (mm) | 1934, 1860, 1910, 1915, 2000, 2020, 1980, 2040, 2060 |
| Rear Track (mm) | 1820, 1800, 1846, 1862, 1880 |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2018 EURO VI |
Engine Options
| Engine Model | Manufacturer | Displacement (ml) | Power (kW) |
|---|---|---|---|
| B6.2NS6B245 | Dongfeng Cummins | 6,200 | 180 |
| B6.2NS6B260 | Dongfeng Cummins | 6,200 | 191 |
| B6.2NS6B230 | Dongfeng Cummins | 6,200 | 169 |
| D6.7NS6B290 | Dongfeng Cummins | 6,700 | 213 |
| B6.2NS6B290 | Dongfeng Cummins | 6,200 | 213 |
| D7.0NS6B300 | Dongfeng Cummins | 7,000 | 221 |
| D7.0NS6B330 | Dongfeng Cummins | 7,000 | 243 |
Functional Configuration
- Accommodation:
- 12 bunk sets → accommodates 24 persons
- Optional office + rest area layout
- Rest area: 4–8 persons
- Office area: 6–8 persons
- Facilities:
- Independent shower room, toilet, washbasin
- Forced ventilation system, dual-layer outward windows with auto ventilation
- Power Supply:
- Generator: 5 kW
- Rated Voltage: 220V
- Supply Duration: 4–6 hours (per fueling)
- Cabin Equipment:
- Air conditioning (cooling & heating), TV/audio system
- Lighting, storage cabinets, bedside lamps, and sockets
Application Scope
- Designed to improve field accommodation and mission support capability.
- Widely applicable for military, special police, firefighting, medical, disaster relief, and emergency rescue.
- Supports 8–24 people for field accommodation in rescue/medical/emergency tasks.
- Built on a high-mobility class II chassis with expandable cabins, water/electric supply, multimedia, climate control, and sleeping facilities.
Structural Design
- Integral frame structure; skeleton welded from high-quality profiles.
- Exterior: Aviation aluminum sheets.
- Walls & roof: Vacuum composite panels.
- Corners: Aluminum alloy profiles for lightweight + strength.
- Roof: Strobe warning lights + floodlights.
- Skirt: Utility storage compartments.
- Doors/hatches: Reinforced custom profiles, high sealing reliability.
- Flooring: Anti-slip, corrosion/acid/alkali-resistant PVC.
- Walls & roof filled with insulation & soundproofing.
- Interior: Eco-friendly, fire-retardant materials (GB8624B1 standard), attractive & easy to clean.
