Beiben 6×6 9000L Airport Emergency Vehicle

BRIEF

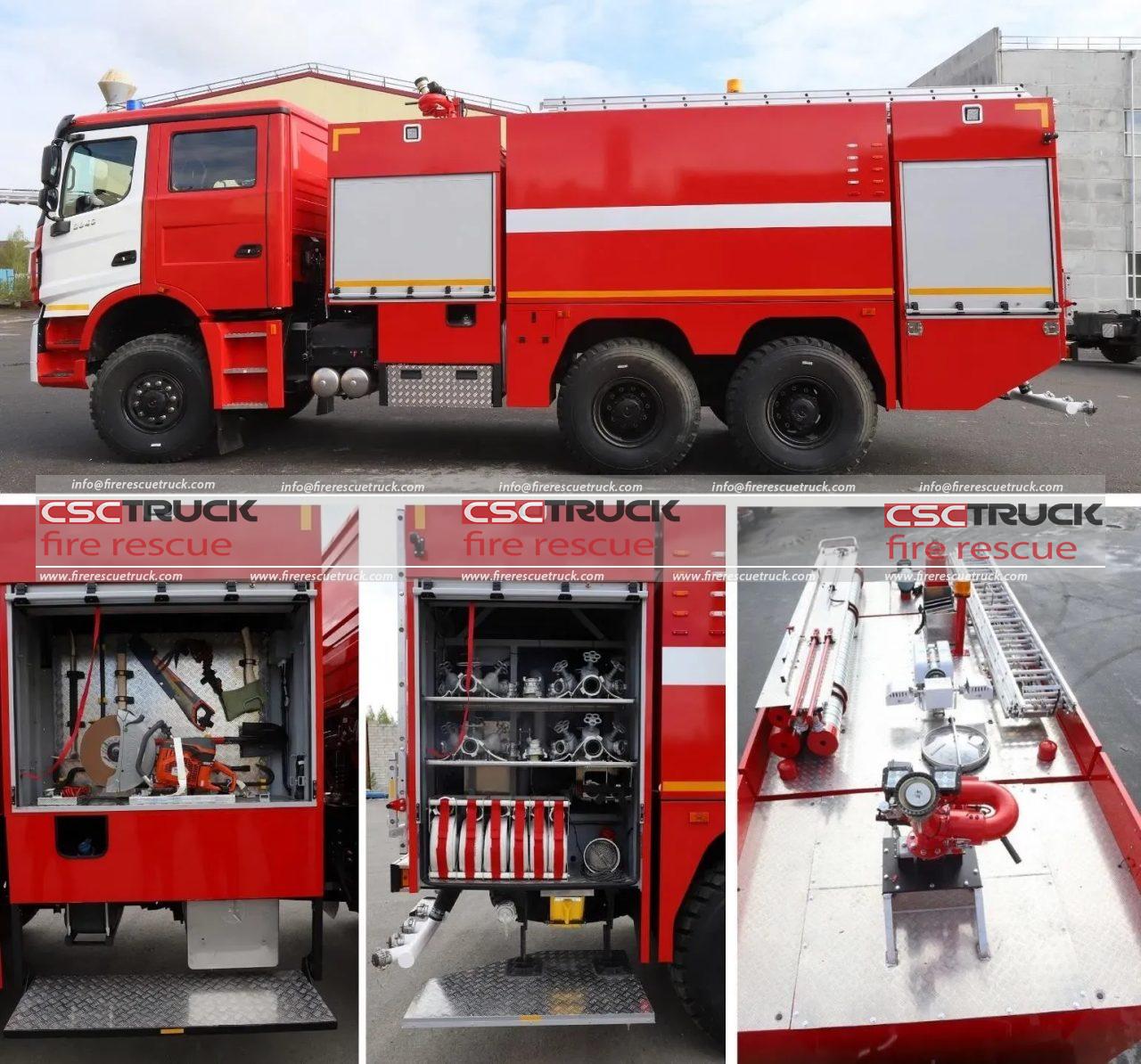

The Beiben 6×6 9000L airport emergency vehicle, produced by CSCTRUCK Fire Rescue Truck is a high-performance firefighting unit specifically engineered for rapid response and efficient fire suppression in airport and aviation emergency scenarios. Built on a robust 6×6 all-wheel-drive chassis, this vehicle delivers excellent off-road capability, stability, and traction, ensuring reliable operation on runways, taxiways, and challenging terrains.

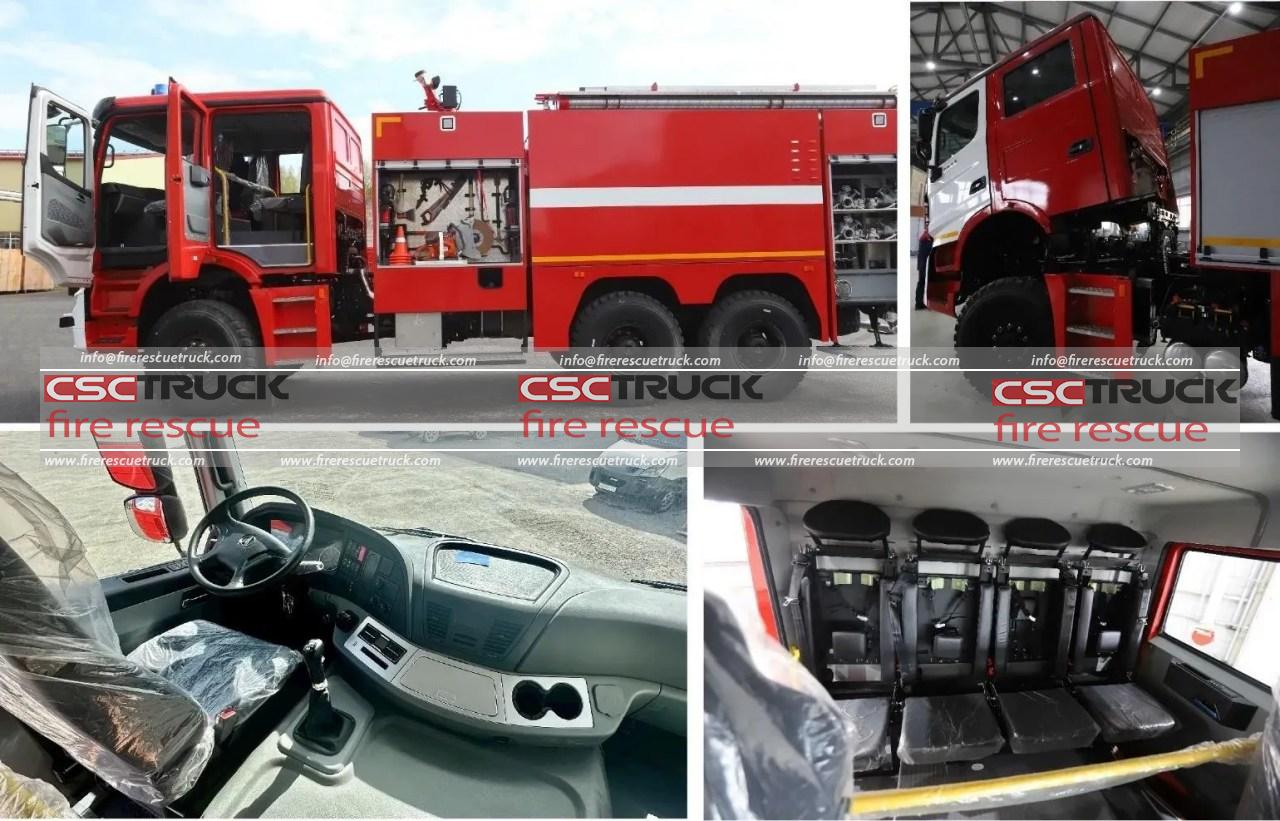

Powered by a WP12.430E50 engine with 430 horsepower and an 11.596L displacement, the vehicle offers strong performance and a maximum speed of up to 120 km/h, enabling quick deployment during critical situations. Its well-designed flat-head, double-row cabin accommodates up to 5 personnel, providing comfort and operational convenience with integrated control systems, alarm devices, and ergonomic layout.

The fire suppression system is highly capable, featuring an 8,000-liter water tank and a 1,000-liter foam tank constructed from high-quality carbon steel for durability. The CB10/60 fire pump, manufactured by Shanghai Rongshen, delivers a rated flow of 60 L/s at 1.0 MPa, ensuring powerful firefighting performance. Complementing this is the PL8/48 fire monitor from Chengdu Wester, which offers a flow rate of 48 L/s, a water range of up to 55–70 meters, and full 360° rotation for flexible operation.

Additionally, the Beiben 6×6 9000L airport emergency vehicle is equipped with a PH64 foam proportioning system that provides adjustable foam mixing ratios between 3% and 6%, enhancing its effectiveness against fuel fires. The advanced pipe system, rear-mounted pump room, and intelligently designed equipment compartments allow for quick access and efficient operation.

Overall, this Beiben 6×6 9000L airport emergency vehicle combines power, capacity, and advanced firefighting technology, making it a reliable and essential asset for modern airport fire rescue operations.



FEATURES



1. Superior 6×6 All-Terrain Mobility
   Built on a rugged 6×6 all-wheel-drive chassis, the vehicle delivers excellent traction, stability, and off-road capability, ensuring reliable performance on runways, taxiways, and challenging terrains.
2. High-Power Engine Performance
   Equipped with a WP12.430E50 engine producing 430 HP, the truck achieves a maximum speed of up to 120 km/h, enabling rapid response to airport emergencies.
3. Large-Capacity Fire Suppression System
   Featuring an 8,000L water tank and 1,000L foam tank, combined with a CB10/60 fire pump (60 L/s @ 1.0 MPa), it provides strong and sustained firefighting capability.
4. Advanced Fire Monitor with Wide Coverage
   The PL8/48 fire monitor offers a flow rate of 48 L/s, a range of up to 55–70 meters, and 360° rotation, allowing flexible and precise fire suppression.
5. Efficient Foam Proportioning System
   The PH64 foam system supports adjustable mixing ratios (3%–6%), enhancing effectiveness in combating fuel and aviation-related fires.



SPECIFICATION



1. Main Vehicle Parameters

Parameter	Specification
Rated Load Mass	9,000 kg
Maximum Speed	120 km/h
Water Pump Flow Rate	60 L/s @ 1.0 MPa
Fire Monitor Flow	48 L/s @ 0.8 MPa
Water Range	70 m
Foam Range	60 m

2. Chassis Parameters

Parameter	Specification
Model Number	CSCAEV009
Drive Type	6×6
Wheelbase	4,450 + 1,450 mm
Engine Model	WP12.430E50
Engine Power	430 HP
Displacement	11.596 L
Tyre Size	12.00R20 (6+1 units)

3. Cabin

Parameter	Specification
Structure	Flat head, four-door, double-row cab
Seating	2 front + 3 rear
Equipment	100W alarm, PTO control switch, alarm light control box

4. Tanker

Parameter	Specification
Water Capacity	8,000 L
Foam Capacity	1,000 L
Material	High-quality carbon steel
Tank Thickness	Inside 4 mm; side & sealing 3 mm; roof 3 mm
Structure	Welded steel
Equipment	Manhole, overflow device, level gauge, sewage outlet

5. Fire Pump

Parameter	Specification
Model	CB10/60 (Shanghai Rongshen)
Flow Rate	60 L/s
Pressure	1.0 MPa
Max Suction Depth	7 m
Suction Time	≤ 60 s
Vacuum Pump	Piston type
Installation	Rear-mounted

6. Pipe System

System	Specification
Material	Seamless steel pipe
Tank Outlet	DN150 pipe with butterfly valve
Water Outlet	2 × DN80 outlets + 1 DN80 gun line
Injection System	2 × DN65 external ports + 1 tank injection pipe
Waste Water	Residual water valve at the lowest point
Cooling Line	With a stainless steel ball valve

7. Power Takeoff (PTO)

Parameter	Specification
Type	Sandwich type (full power)
Control	كهربائي (solenoid valve)
Lubrication	Splash lubrication

8. Fire Monitor (Fire Gun)

Parameter	Specification
Model	PL8/48 (Chengdu Wester)
Flow Rate	48 L/s
Range (Water)	55 m
Pressure	0.8 MPa
Rotation	360° horizontal
Elevation	-18° to 80°

9. Foam Proportioning System

Parameter	Specification
Model	PH64
Manufacturer	Shanghai Rongshen
Working Pressure	0.6 – 1.4 MPa
Flow Range	16 – 64 L/s
Mixing Ratio	3% – 6%
Adjustment	Manual

10. Equipment Box

Parameter	Specification
Material	Carbon steel frame + aluminum alloy inner plates
Structure	Full steel frame, rear pump room
Doors	2 side doors + 1 rear shutter
Design	Ergonomic layout, quick-access equipment placement

11. Electrical System

Component	Specification
Warning Lights	LED light bar on the cab
Searchlight	50W LED, 360° control
Alarm Power	100W
Ladder	Foldable rear ladder
Control Panel	Pressure gauge, level gauge, switches

12. Technical Requirements

Requirement	Description
Labeling	Standard-compliant nameplates
Bonding	Flat and firm
Welding	Strong, polished finish

13. Documents Included

Item
Fire engine operation manual
Firefighting equipment list
On-board tools list
Handover documents
Engine number rubbings
