BRIEF

The Dongfeng emergency rescue 7 Ton boat carrier crane truck is a specialized logistics unit designed for rapid deployment and versatile operations. Built on the Dongfeng EQ1260GSZ6DJ Class II chassis, it has been extensively modified with a cargo compartment and a knuckle-boom truck-mounted crane to support boat transport and lifting requirements in the field.

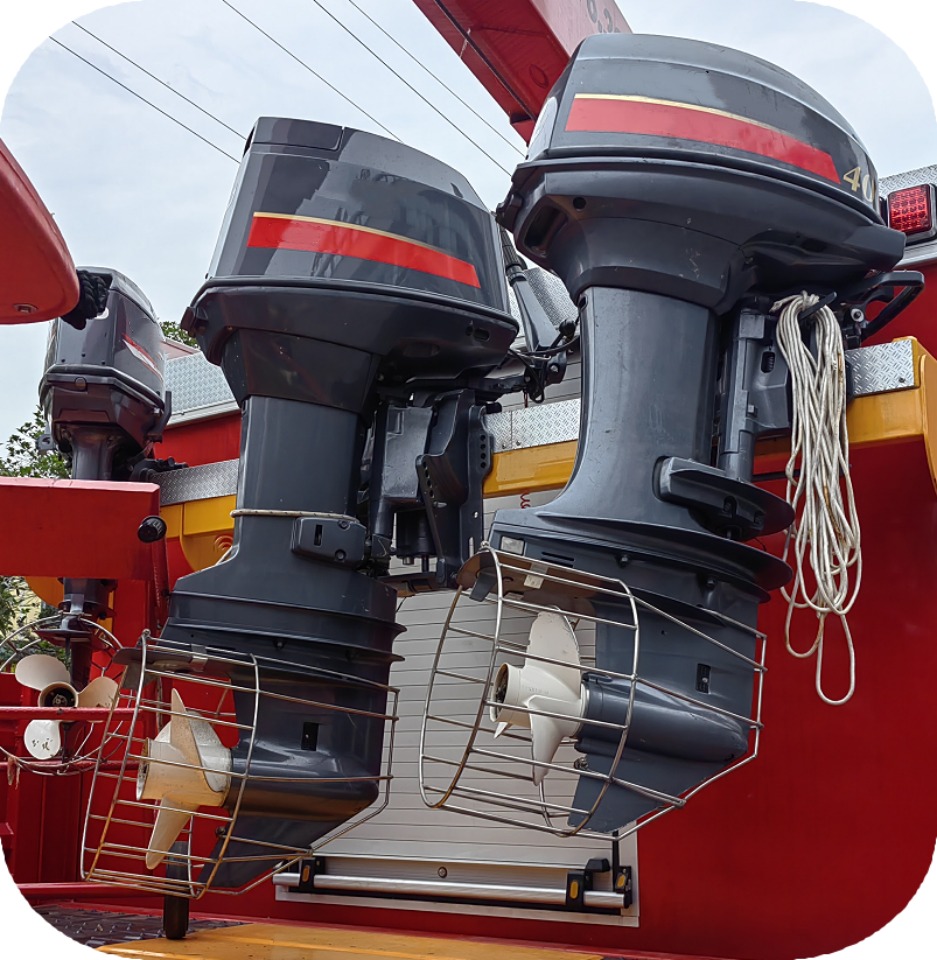

The cargo compartment measures approximately 8.4 meters in length, with 600 mm-high side and rear panels. These panels are designed for maximum flexibility, capable of flipping up or down by 180 degrees and locking securely when upright. The entire structure is detachable, allowing quick reconfiguration depending on mission needs. Inside, removable assault boat racks are installed, capable of transporting up to 4 boats. Each rack is fitted with lifting rings for hoisting, while the compartment floor contains anchoring rings to ensure safe and stable transport. At the front of the compartment, a detachable suspension bracket is provided for outboard motors, allowing up to 4 engines (2 per side) to be carried.

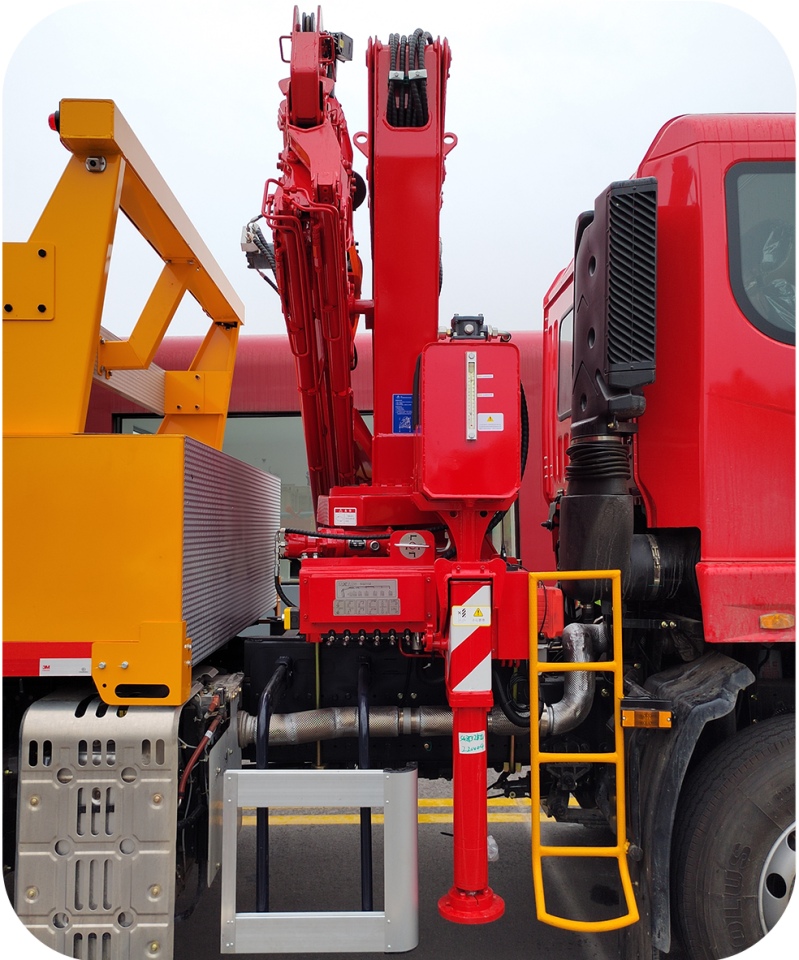

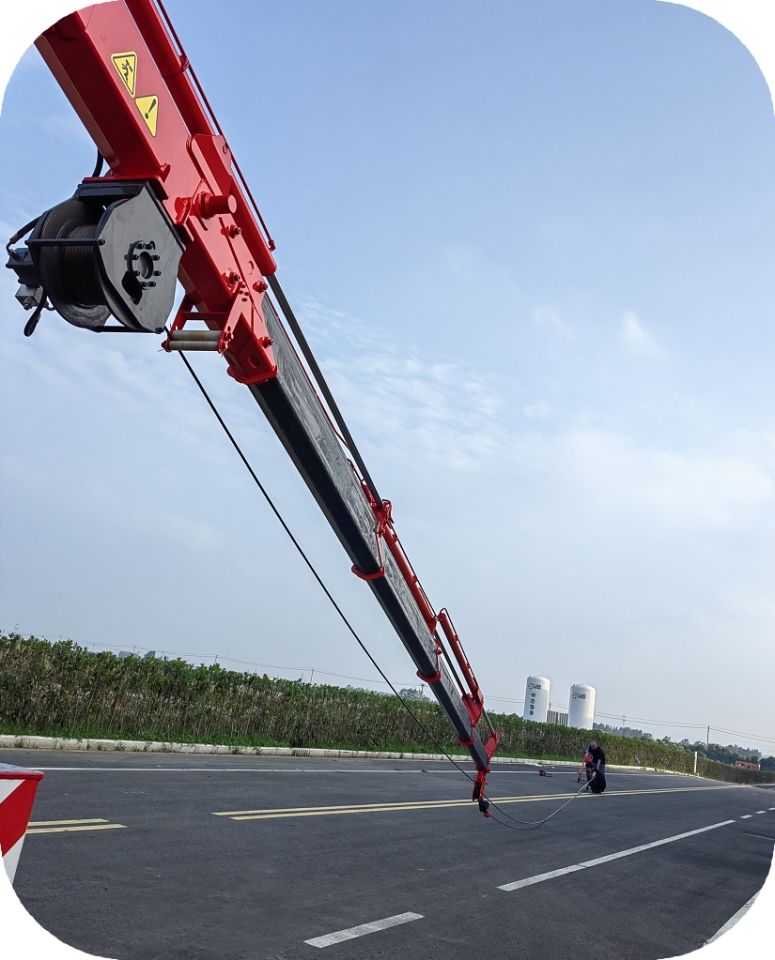

For loading and unloading, the rescue fire truck is fitted with an SQZ132 knuckle-boom crane, with a maximum lifting capacity of 7,000 kg. The crane itself weighs 2,300 kg, contributing to the vehicle’s overall curb weight of 13,350 kg. Safety features include aluminum alloy side underrun protection, a Q345 steel rear underrun guard with a 485 mm ground clearance, and an advanced ABS supplied by Dongke Knorr and Zhejiang Wan’an.

Additional equipment includes a speed limiter set at 80 km/h, with an optional ETC onboard unit and satellite-positioned tachograph available. Power is provided by the L9NS6B400 engine, with a declared fuel consumption of 28.73 L/100 km. These features combine to make the Dongfeng emergency rescue 7 Ton boat carrier crane truck a reliable and efficient platform for emergency support, enabling secure, rapid, and flexible transport of boats and associated equipment.

FEATURES

1. Specialized Boat Transport System

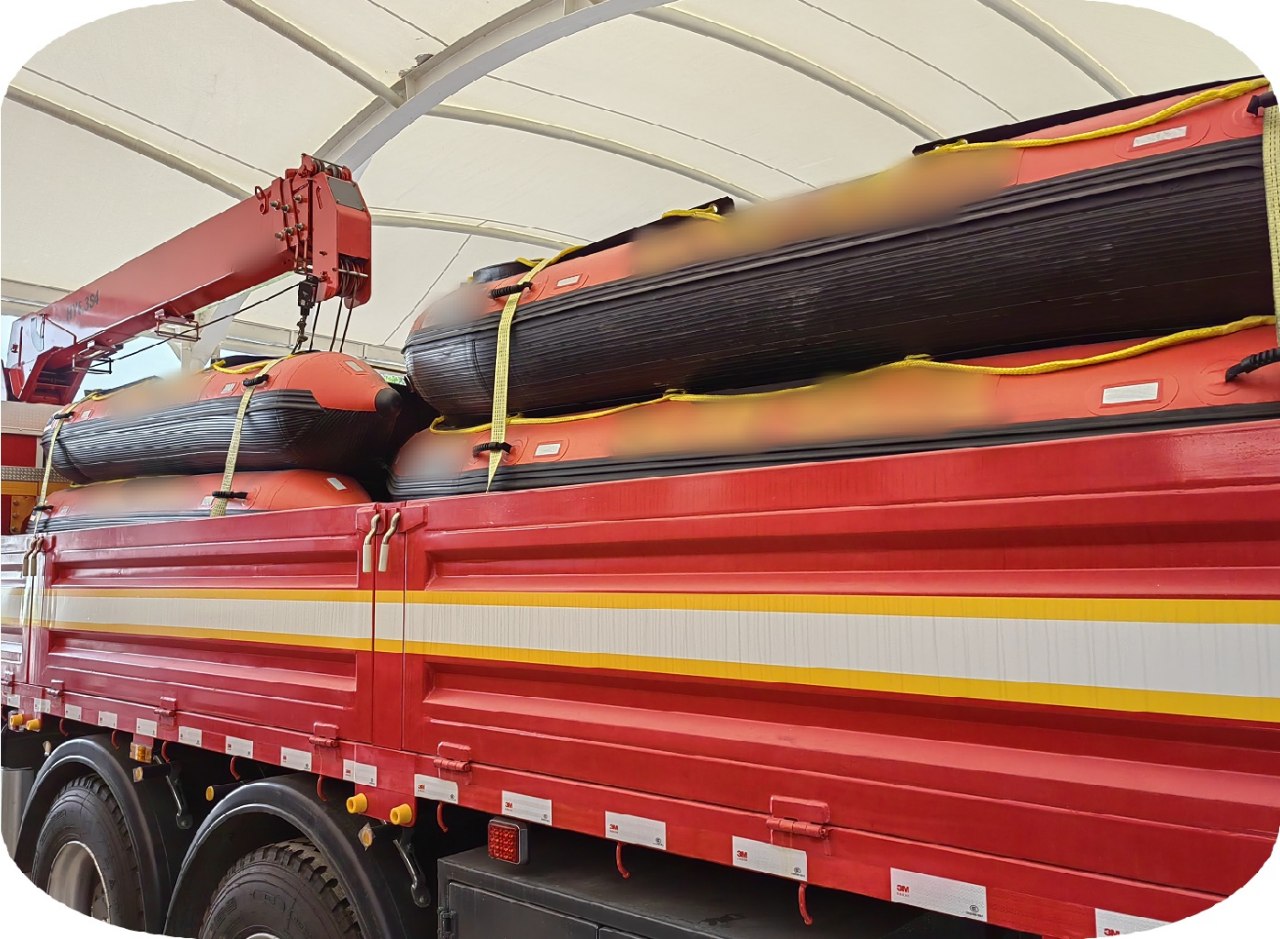

   The vehicle is equipped with a detachable cargo compartment featuring removable assault boat racks capable of carrying up to 4 boats. Each rack is fitted with lifting rings for secure hoisting, while the floor integrates anchoring rings to ensure safe and stable transport during movement.
2. High-Capacity Knuckle-Boom Crane
   Fitted with an SQZ132 knuckle-boom crane, the truck offers a maximum lifting capacity of 7,000 kg. This enables efficient loading, unloading, and deployment of boats and heavy equipment in demanding rescue or support operations.
3. Flexible Cargo Compartment Design
   The 8.4-meter cargo body features 600 mm-high side and rear panels that can flip up or down by 180° and lock securely when upright. The structure is fully detachable, allowing for rapid reconfiguration to meet different mission requirements.
4. Enhanced Safety and Protection Systems
   Safety measures include aluminum alloy side underrun protection, a Q345 steel rear underrun guard with 485 mm ground clearance, and an advanced ABS braking system from Dongke Knorr and Zhejiang Wan’an. These ensure stability, protection, and controlled handling in diverse terrain conditions.
5. Efficient Powertrain and Operational Features
   Powered by the L9NS6B400 engine, the truck maintains reliable performance with a declared fuel consumption of 28.73 L/100 km. Additional operational features include a speed limiter capped at 80 km/h, with optional ETC onboard units and a satellite-positioned tachograph for enhanced fleet management.

SPECIFICATION
