BRIEF

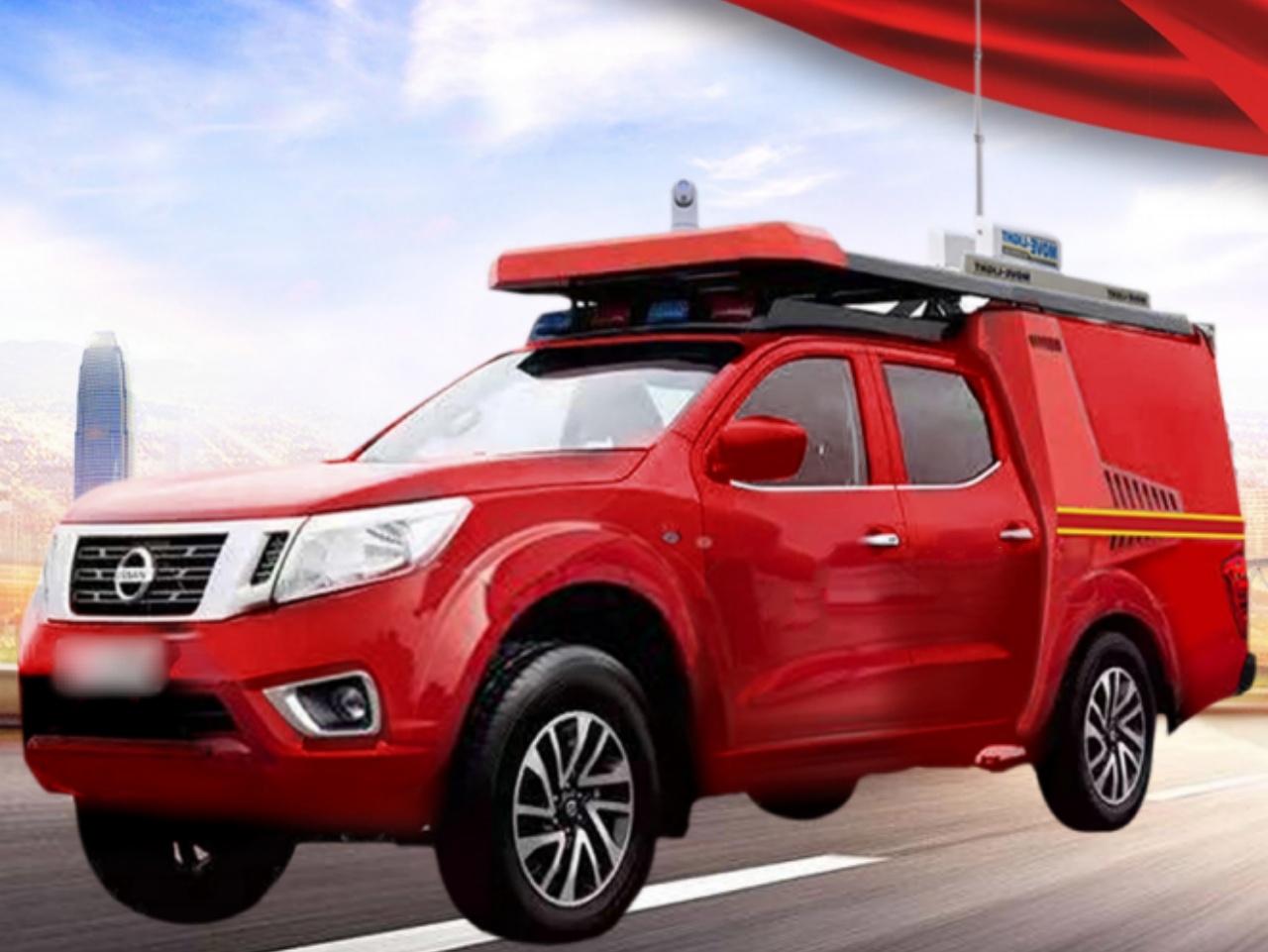

Built on the high-end NISSAN Navara pickup platform, this NISSAN wildland fire engine pickup truck combines the capabilities of an equipment vehicle, fire truck, and patrol vehicle into a single, multifunctional unit. It can be outfitted with a wide range of firefighting and rescue tools, making it ideal for rapid response to fire incidents and emergencies. Its compact size and high maneuverability allow it to operate efficiently in confined spaces, making it particularly suitable for grassroots fire stations, rural towns, industrial enterprises, and community fire posts. The design ensures that even areas where larger firefighting vehicles cannot reach are accessible, enabling timely dispatch and effective early-stage fire suppression.

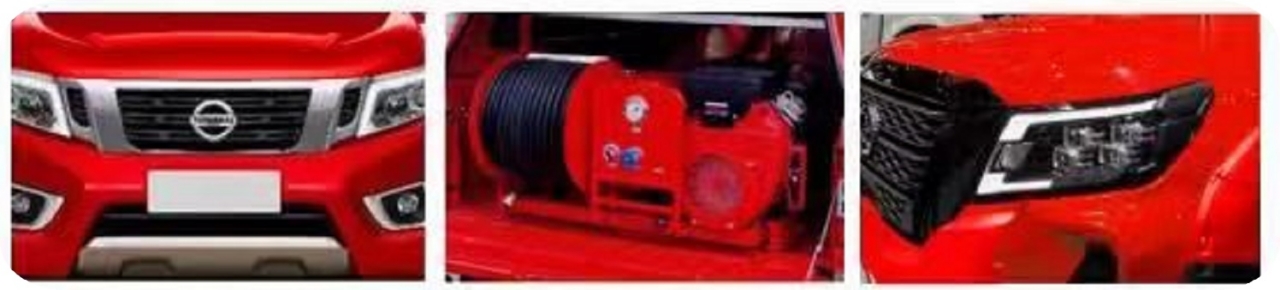

The rescue fire truck is equipped with strategically designed tool cabinets, a generator, and a liftable lighting system, allowing it to transport repair tools and personnel for mobile maintenance and emergency operations. Optional configurations include roof guard rails, integrated cameras, and various cargo box designs. The sides of the cargo area can feature roller shutter doors, hinged doors, or a fully enclosed structure, while the rear can be fitted with either a roller shutter door or double doors, depending on operational requirements.
Height variations depend on the chosen equipment and configuration. With the liftable lighting system and roof guard rails, including a camera, the overall height is 2,290 mm. With only the lighting system, it measures 2,180 mm. Configurations with side roller shutter or hinged doors and roof guard rails reach 2,120 mm. Without any top-mounted options, the height is 2,000 mm, or 1,882 mm with a fully enclosed side structure.
Additional optional features include front fog lights, a lower front bumper, and a front license plate bracket. The NISSAN wildland fire engine pickup truck operates on DC 10–30V or AC 220V and is fully compatible with the liftable lighting system, ensuring it remains a highly adaptable solution for modern fire suppression, emergency response, and patrol operations.
FEATURES
- Multifunctional Firefighting Platform – Combines the roles of an equipment vehicle, fire truck, and patrol vehicle, capable of carrying diverse firefighting and rescue tools for rapid emergency response.
- High Maneuverability & Compact Design – Built on the NISSAN Navara pickup platform, it can easily navigate narrow streets, rural roads, industrial areas, and community spaces where larger fire engines cannot reach.
- Flexible Equipment & Storage Options – Equipped with tool cabinets, a generator, and a liftable lighting system, plus customizable cargo area designs (roller shutter doors, hinged doors, or fully enclosed structures) to suit different operational needs.
- Height & Configuration Variability – Offers multiple configurations with heights ranging from 1,882 mm to 2,290 mm, depending on the chosen setup (lighting system, roof guard rails, or enclosed side structures).
- Enhanced Operational Adaptability – Supports DC 10–30V and AC 220V power supply, compatible with optional features like roof guard rails, cameras, front fog lights, and protective bumpers, ensuring versatility in firefighting, patrol, and rescue operations.
SPECIFICATION
Item | Specification |
---|---|
Gross Vehicle Weight (Kg) | 2,630 |
Overall Dimensions (mm)(LxWxH) | 5,266 × 1,885 × 1,890 |
Wheelbase (mm) | 3,150 |
Curb Weight (Kg) | 2,200 / 2,295 |
Maximum Speed (Km/h) | 155 |
Minimum Ground Clearance (mm) | 228 |
Cabin Seating Capacity (persons) | 2+3 |
Minimum Turning Diameter (m) | 13.7 |
Approach/Departure Angle (°) | 29 / 25 |
Front/Rear Overhang (mm) | 967 / 1,228 |
Axle Load (Kg) | 1,200 / 1,525 |
Maximum Flow (L/min) | 36 |
High-Pressure Fine Water Mist Cannon (mm) | 1,080 × 530 × 460 |
Rated Flow (L/min) | 30 |
Water Cannon Rated Power (kW) | 8.2 |
Water Pressure (MPa) | 10 |
Control Mode | Electric / Manual |
Liftable Lighting Power (kW) | 2 × 216 |
Lighting Working Voltage | DC 10–30V or AC 220V |
Lighting Lift Height (m) | 1.2 / 1.8 / 2.8 / 4 |
