BRIEF
The rescue truck mounted generator 400 kW from CSCTRUCK Fire Rescue Truck is a purpose-built solution designed to deliver dependable high-capacity electrical power for emergency response, disaster relief, and field operations. Central to the vehicle is a brushless generator set rated at ≥400 kW, engineered to provide steady, low-maintenance performance even under demanding conditions. Operating at a frequency of 50 Hz, the generator ensures a reliable supply for heavy-duty equipment, lighting systems, and mission-critical tools.
Built on a rugged Dongfeng chassis, the truck combines excellent road performance with superior load-bearing strength, making it suitable for urban, rural, and off-road deployments. Powering the generator is a proven Cummins engine delivering 169 kW (230 HP), which meets EURO VI emission standards, reducing environmental impact while maintaining efficient fuel consumption and long service life.
To maximize usability, the rescue truck features a practical external power distribution system, including one 5 kW 380 V socket and one 220 V universal outlet, allowing operators to connect a range of electrical devices or auxiliary systems quickly. The truck’s layout is optimized for safety and convenience, with dedicated compartments for cable storage, control panels, and service access, streamlining setup and operation during high-pressure situations.
CSCTRUCK Fire Rescue Truck’s attention to durability and ergonomic design ensures that this generator truck is not only powerful but also operator-friendly. Its robust construction supports continuous use in harsh environments, while straightforward controls simplify training and minimize downtime. Ideal for fire and rescue agencies, civil defense teams, and utility service providers, the rescue truck mounted generator 400 kW delivers a balanced combination of mobility, output capacity, and reliability, ensuring an uninterrupted electrical supply wherever urgent power is required.
FEATURES
- High-Power Brushless Generator
- Equipped with a ≥400kW brushless generator set, it provides strong, stable power output to support demanding rescue and emergency operations.
- Reliable Powertrain
- Built on a robust Dongfeng chassis and powered by a Cummins engine rated at 169 kW (230 HP), ensuring dependable performance and long service life.
- Clean and Efficient Operation
- Meets the EURO VI emission standard, delivering lower emissions and improved fuel efficiency for environmentally responsible use.
- Versatile Electrical Output
- Supplies a standard 50 Hz frequency and features external power outlets, including 1 × 5 kW 380 V and 1 × 220 V universal socket, making it adaptable for different equipment and field requirements.
- Rescue-Ready Mobility
- The integration of a high-capacity generator into a mobile rescue truck platform ensures quick deployment and reliable electricity in remote or disaster-stricken areas.
SPECIFICATION
| No. | Item | Description | Reference Photo |
|---|---|---|---|

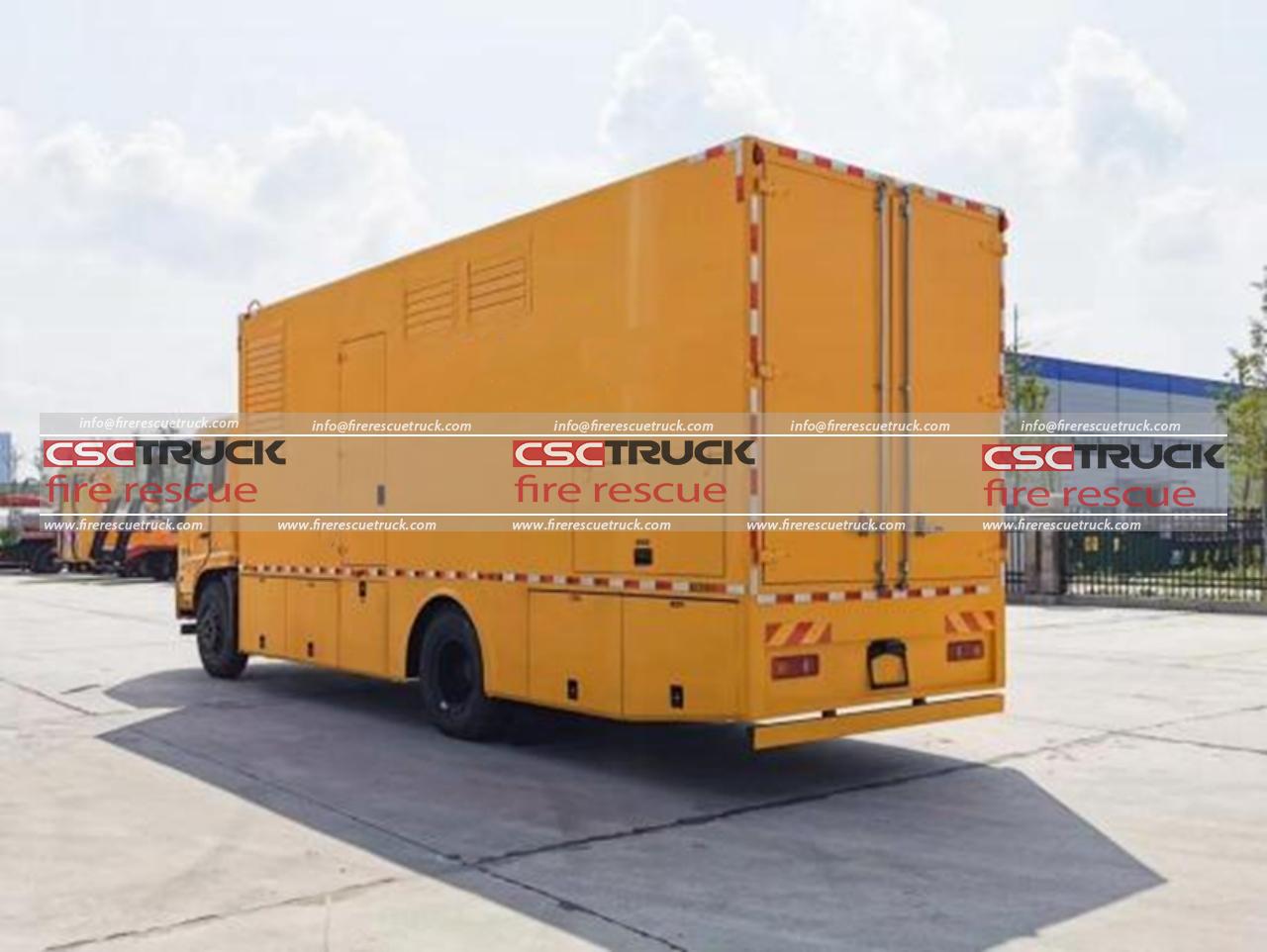

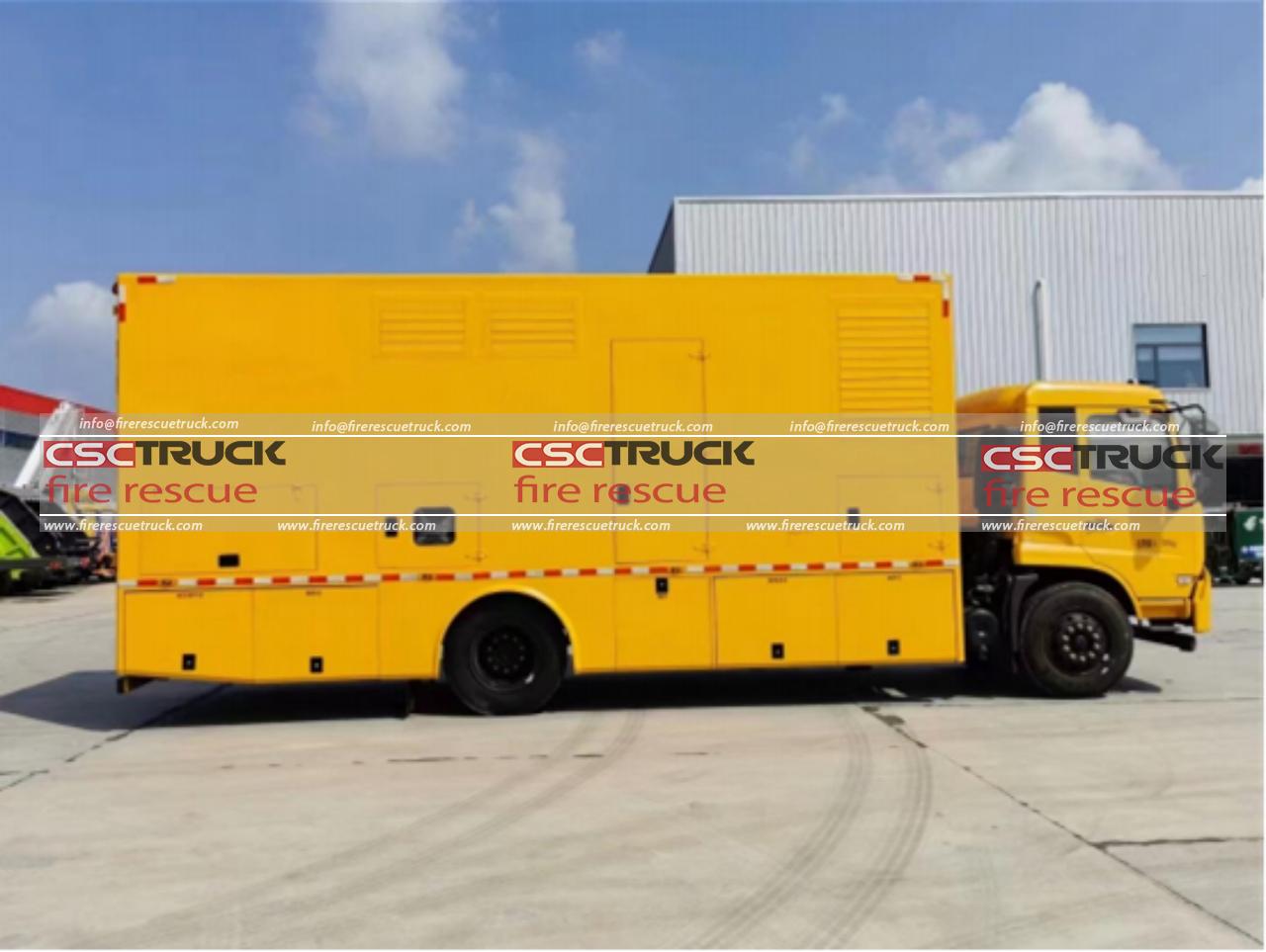

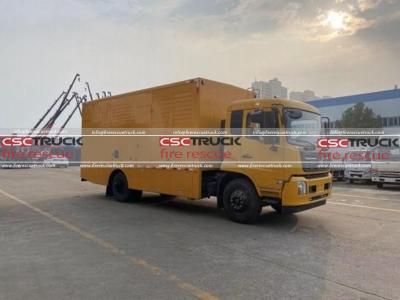

| 1 | Emergency Power Supply Vehicle | Rescue truck mounted generator 400KW. Highly maneuverable; serves as an emergency power source with the advantages of a fixed generator set. Features good driving performance, strong mobility, and is suitable for outdoor work. | ![]() |

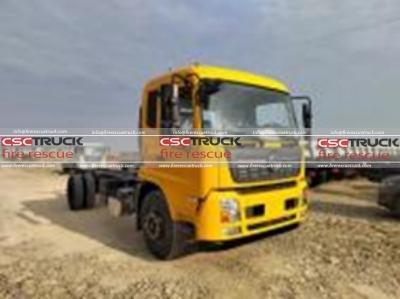

| 2 | Vehicle Chassis | Dongfeng Tianjin chassis, half-cab tilting cab, Dongfeng Cummins 230 HP engine (169 kW), Fast 8-speed gearbox, EURO VI emission standard, 10.00R20 steel radial tires, factory A/C, hydraulic power steering, ABS, standard tools. Wading depth 600 mm. | ![]() |

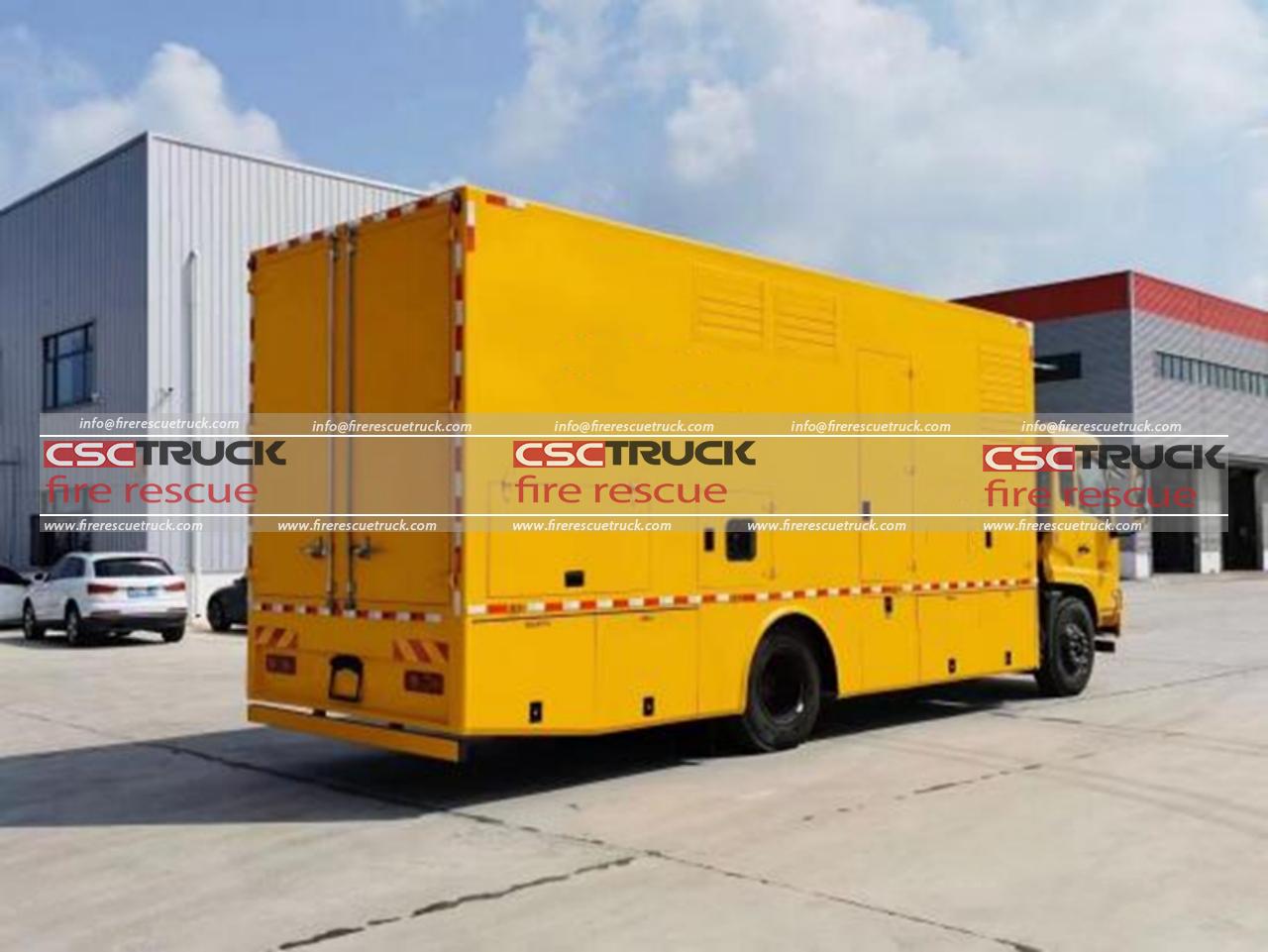

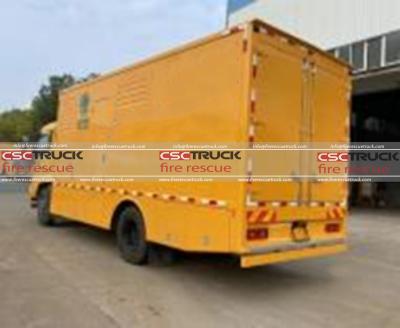

| 3 | Vehicle Body | Outer shell: High-quality cold-rolled steel plate; inner lining: bent-frame cold-rolled steel. Fully sealed, resistant to rain, corrosion, fire, and rust. Rear double doors. Generator air intake/exhaust silencing and muffler noise reduction. | ![]() |

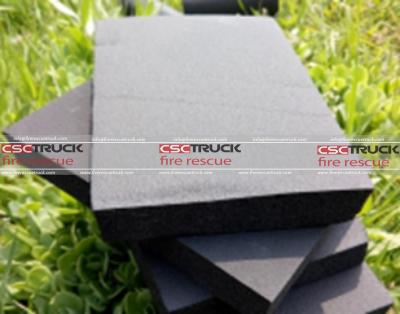

| 4 | Body Insulation Material | Filled with flame-retardant sound-absorbing cotton: excellent sound insulation, thermal insulation, moisture-proof (closed-cell foam), and good fire resistance. Reduces noise, heat, dust, rain, and vibration. Average noise at 1 m distance during full load is ~80 dB(A). | ![]() |
| 5 | Step Ladder | Aluminum alloy pedal, attractive and convenient, supports ~150 kg. | ![]() |
| 6 | Viewing Window | Inspection window for the generator set, operable from the ground, convenient for checking the operation status. | ![]() |
| 7 | Louver | Louvers for generator intake/exhaust, strong heat dissipation, and simple operation. | ![]() |
| 8 | Generator Set | Brushless type, ≥400 kW, supports continuous full-load operation. Rated: 50 Hz, 220/400 V. Electronic governor, starter battery with master switch. Base fuel tank supports 8 hours of full-load running. Displays: Water temp, oil pressure, RPM, frequency, voltage, current, power — one-touch intelligent control. | ![]() |

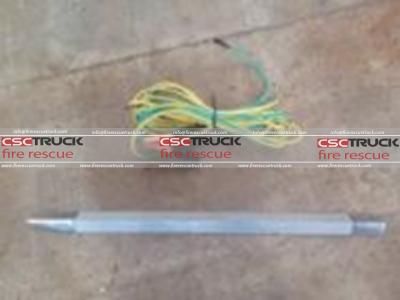

| 9 | Grounding Device | Grounding stake & cable connected to body terminal. Ensures safety during operation. Low-voltage cable with detachable grounding pin ≥10mm diameter, 15mm² section, 10 m length. | ![]() |
| 10 | Cable Reel | Electric reel at rear, easy to operate. Uses flexible heavy-duty rubber cables (A/B/C/N, each with 2×120mm² single-core). Each cable is 50m, 8 pcs total 400m. Aviation plug at the vehicle end, copper lug at the other. | ![]() |
| 11 | External Power Outlets | Inside body: 1 × 5 kW 380 V socket, 1 × 220 V universal socket. Can power welding machines or other appliances. | ![]() |
| 12 | Interior Lighting | LED lights inside the body. Powered by a generator when running; by a vehicle DC battery when off, with quick switch-over. | ![]() |
| 13 | Hydraulic Supports & Control | 4 hydraulic outriggers distribute static load during parking, protect wheels/springs. Imported multi-way valve, cylinders with imported seals, each leg 5t static load, double-acting hydraulic locks. | ![]() |
| 14 | Fire Extinguishers | 2 portable dry powder extinguishers are stored in easily accessible places. | ![]() |
| 15 | Reversing Camera | Visual reversing system with 7-inch display. | ![]() |
| 16 | Paint & Logo | The rescue truck can be painted and marked with a logo as needed. | — |
