BRIEF

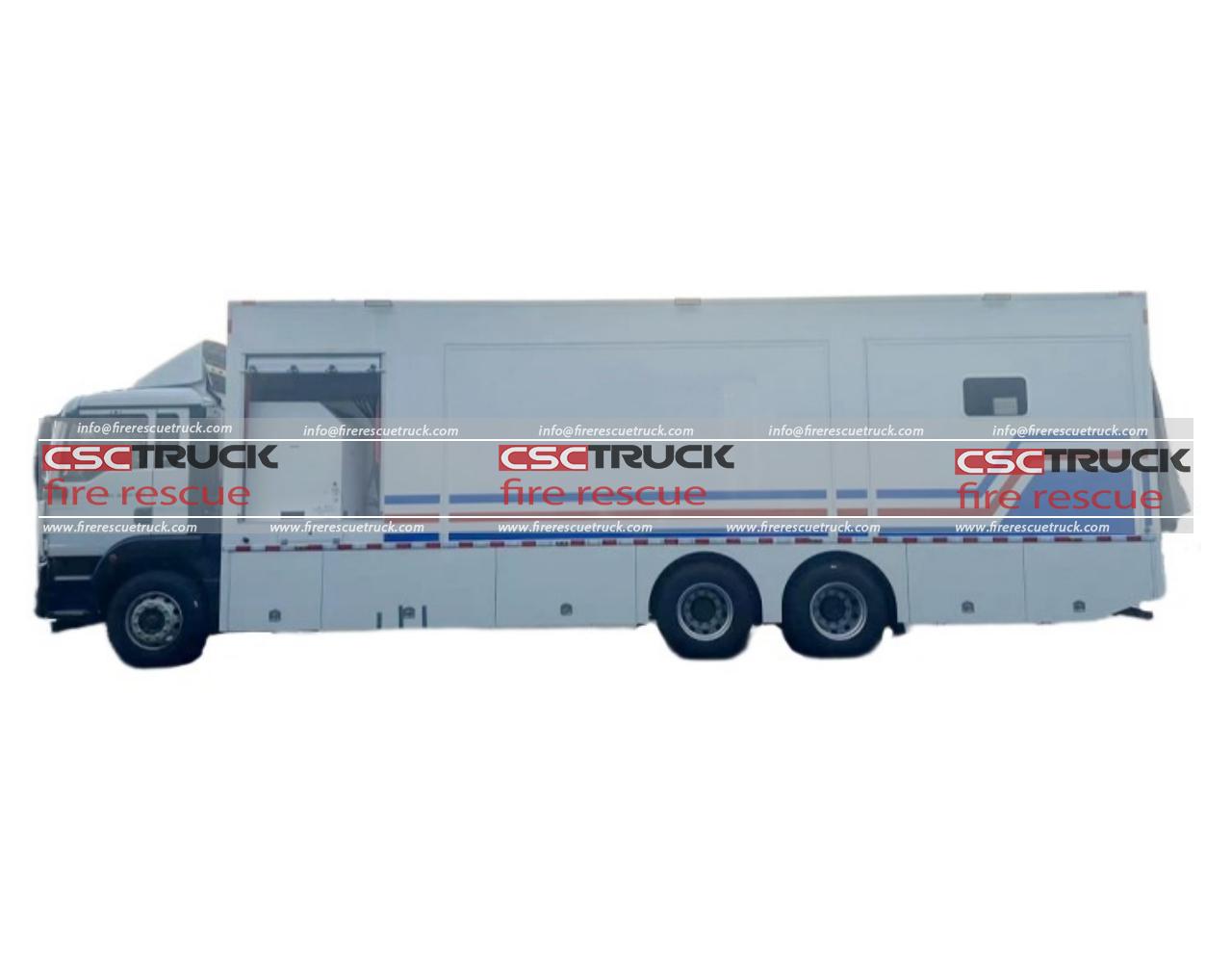

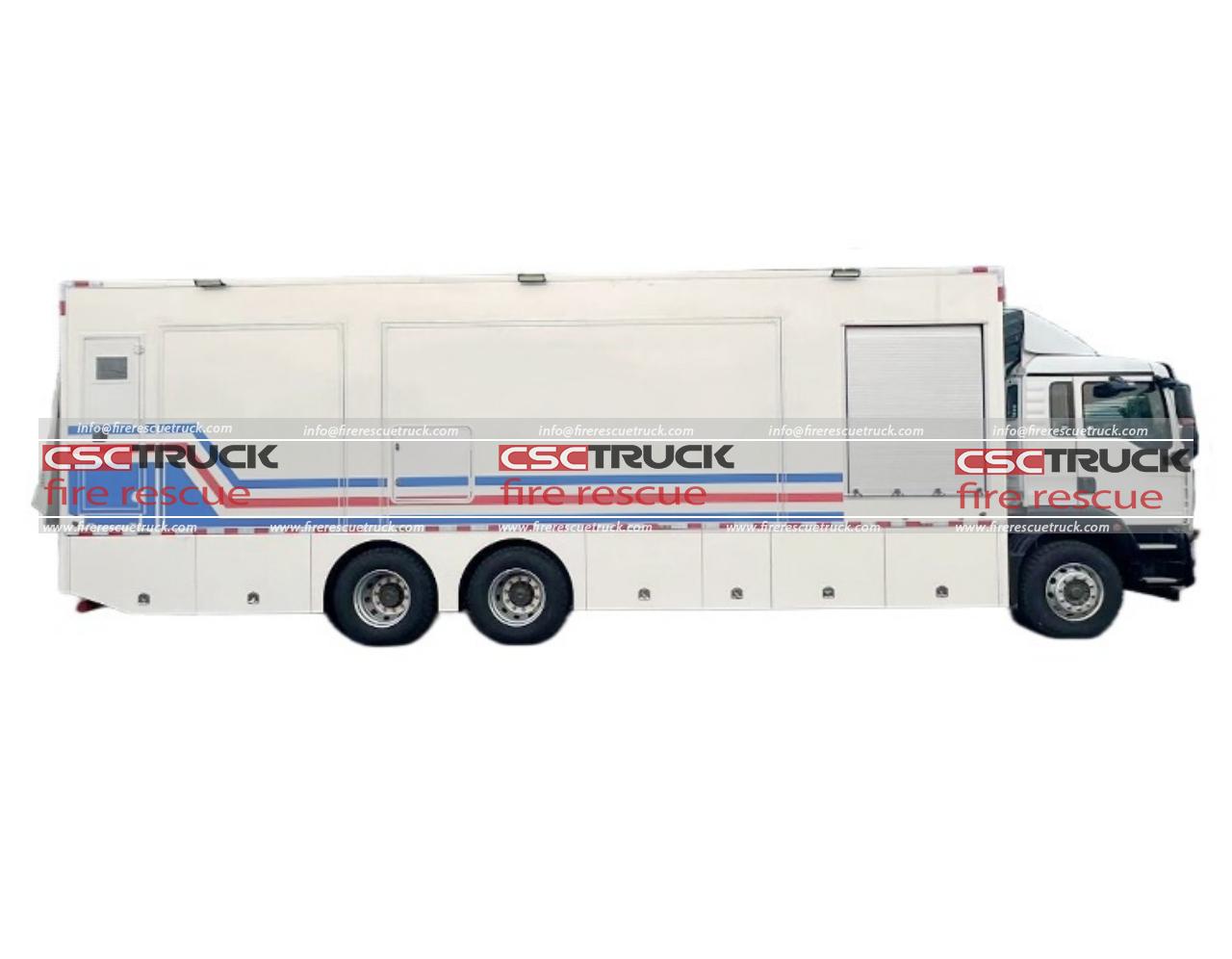

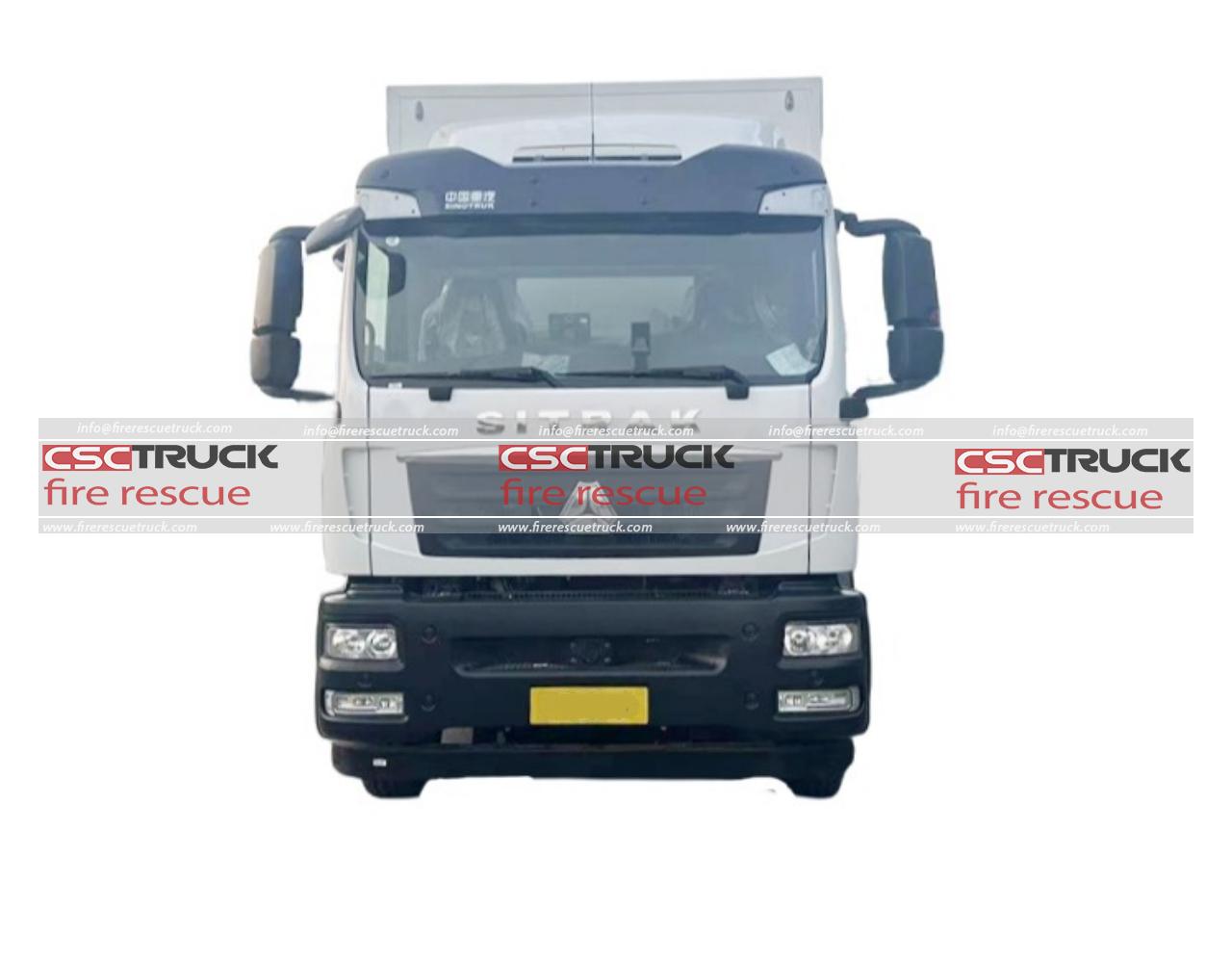

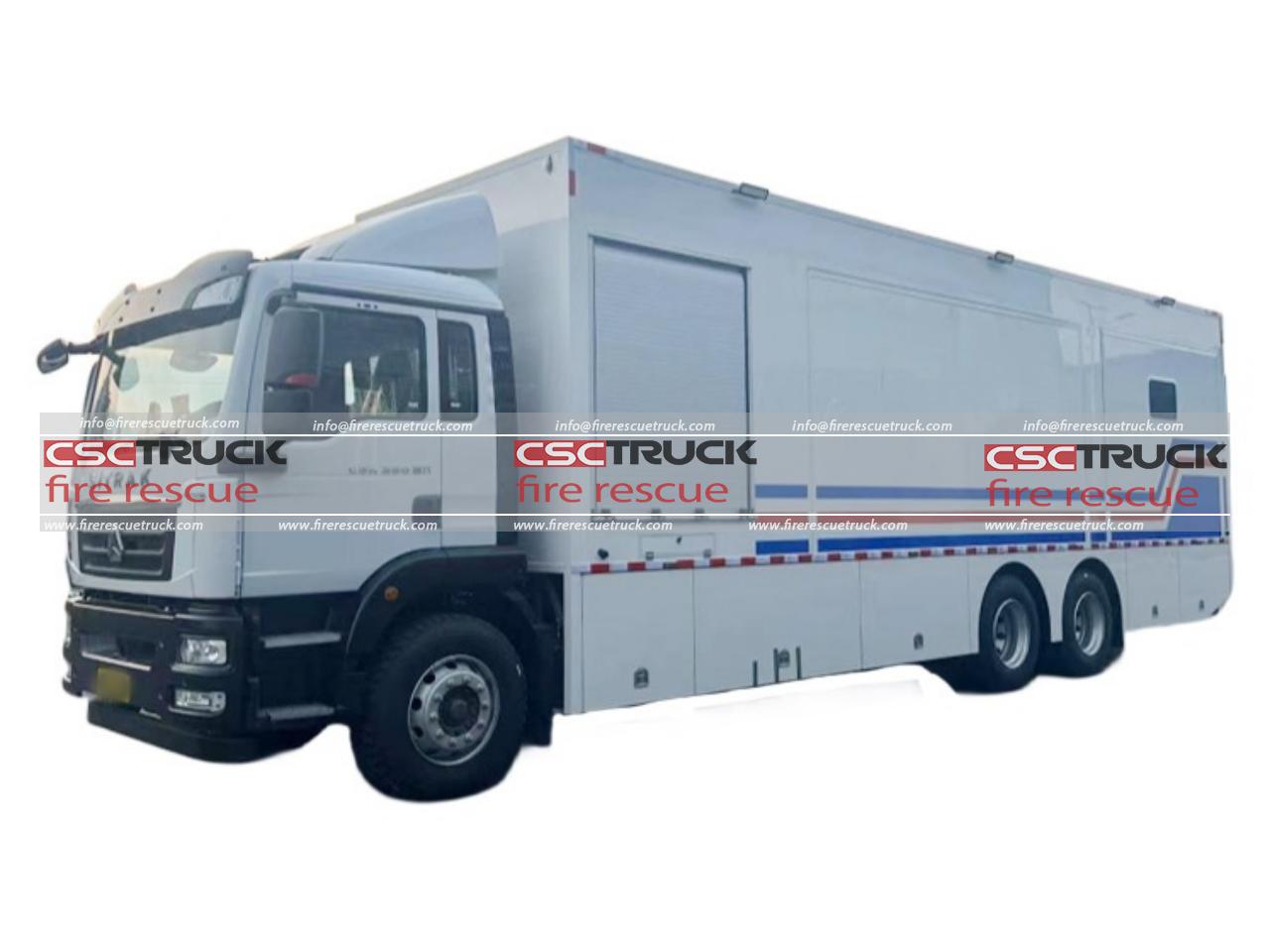

The SITRAK 10 wheelers modular medical unit, produced by CSCTRUCK Fire Rescue Truck, is a highly advanced mobile healthcare solution designed for rapid deployment in emergency response, disaster relief, and remote medical operations. Built on a robust 3-axle chassis with a powerful 240 kW diesel engine and EURO VI emission compliance, the unit ensures reliable performance, fuel efficiency, and environmental responsibility even in demanding conditions.
With overall dimensions of 11,980 × 2,550 × 3,980 mm, the vehicle integrates a spacious and intelligently designed medical compartment measuring 9,900 mm in length. The modular layout includes a preparation room, operating room, and equipment room, enabling seamless workflow for medical personnel. Its double-sided expansion system increases operational space significantly, with each side extending 650 mm without the need for support legs, ensuring fast and stable deployment in the field.
The SITRAK 10 wheelers modular medical unit is constructed using fiberglass reinforced plastic (FRP) outer panels combined with XPS sandwich insulation, providing excellent thermal insulation, durability, and hygiene. A fully equipped hydraulic system with automatic leveling and a high-capacity tail lift (2,000 kg load capacity) enhances operational efficiency, allowing safe loading and unloading of medical equipment.

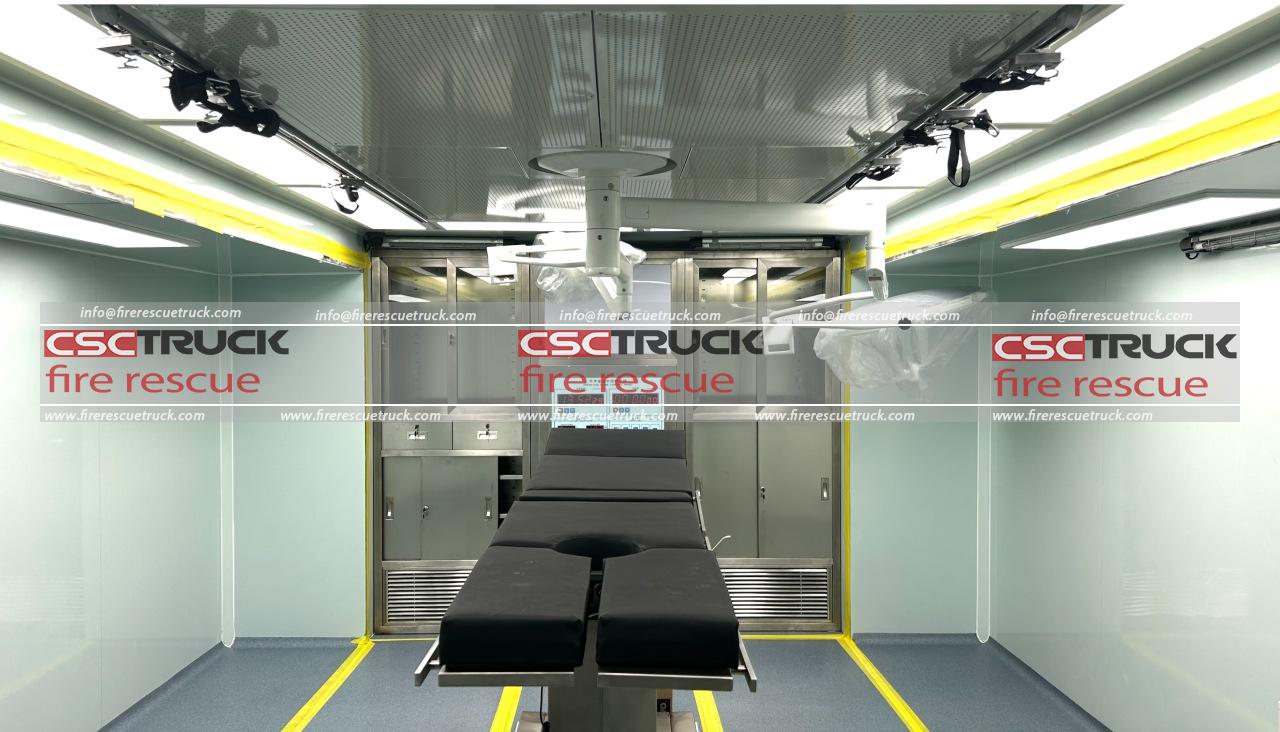

A key highlight is its advanced air purification system, designed to meet strict medical standards. The operating room achieves Class 10,000 cleanliness, while the preparation room reaches Class 100,000, both compliant with GB50333 standards and verified by 3rd-party certification. Equipped with laminar flow ceilings, multiple HEPA filters (≥6), and a micro positive pressure system, the unit ensures a sterile surgical environment with filtration accuracy down to 0.5 μm.
Overall, this SITRAK 10 wheelers modular medical unit combines mobility, advanced engineering, and hospital-grade functionality, making it an ideal solution for critical care delivery in challenging and remote environments.
FEATURES
- High-Performance Chassis and Powertrain
Built on a durable 3-axle platform and powered by a 240 kW diesel engine with EURO VI emission compliance, the unit delivers strong performance, fuel efficiency, and reduced environmental impact, ensuring reliable operation in harsh and remote environments. - Spacious Modular Medical Layout
The 9,900 mm-long medical compartment is intelligently divided into a preparation room, operating room, and equipment room, enabling efficient workflow and supporting a wide range of medical procedures in the field. - Double-Sided Expansion System
Equipped with dual hydraulic slide-outs extending 650 mm on each side, the unit significantly increases interior working space without requiring external support legs, allowing quick and stable deployment during emergencies. - Robust and Insulated Shelter Construction
Constructed with fiberglass reinforced plastic (FRP) panels and XPS sandwich insulation, the unit offers excellent thermal insulation, structural strength, corrosion resistance, and easy-to-clean hygienic surfaces suitable for medical use. - Advanced Sterile Air Purification System
Featuring laminar flow ceilings, multiple HEPA filters (≥6), and a micro positive pressure system, the unit achieves Class 10,000 cleanliness in the operating room and Class 100,000 in the preparation room, ensuring a safe and sterile medical environment compliant with GB50333 standards.
SPECIFICATION
I. Vehicle Specifications
| No. | Item | Specification |
|---|---|---|
| 1 | Overall Dimensions (mm) | 11,980 × 2,550 × 3,980 |
| 2 | Cab Capacity | 3 persons |
| 3 | Emission Standard | EURO VI |
| 4 | Number of Axles | 3 |
| 5 | Engine Displacement (ml) | 6,870 |
| 6 | Fuel Type | Diesel |
| 7 | Maximum Net Power | 240 kW |
| 8 | Cargo Compartment Size | 9,900 mm (L) × 2,550 mm (W) × 2,800 mm (H) |
| 9 | Compartment Layout | Preparation Room, Operating Room, Equipment Room |
| 10 | Expansion Type | Double-sided expansion; single-sided width 650 mm |
| 11 | Expansion Requirement | No support legs required after expansion |
| 12 | Operating Room Expansion Size | ≥ 4,300 mm (L) × 650 mm (W) × 1,900 mm (H) |
| 13 | Outer Skin Material | Fiberglass Reinforced Plastic (FRP) |
| 14 | Insulation Material | Extruded Polystyrene (XPS) sandwich |
| 15 | Boarding Ladder | 1 foldable pull-out type; 1 external mounted type |
| 16 | Hydraulic Support System | Equipped |
| 17 | Leveling Method | Automatic |
| 18 | Auxiliary Function | Position indicator |
| 19 | Hydraulic Tail Lift System | Equipped |
| 20 | Tail Lift Platform Size (mm) | 2,400 × 1,800 |
| 21 | Max Lifting Height (mm) | 1,500 |
| 22 | Max Load Capacity (kg) | 2,000 |
| 23 | Drive Motor Power (W) | 2,200 |
II. Air Purification System
1. System Configuration
| No. | Component |
|---|---|
| 1 | Air Conditioning System |
| 2 | Air Purification Unit |
| 3 | Supply Air Ducts |
| 4 | Return Air Ducts |
| 5 | Terminal Laminar Flow Ceiling |
| 6 | Terminal HEPA Filters |
| 7 | Duct Silencers |
| 8 | Duct Insulation & Fixing System |
| 9 | Temperature Control System |
| 10 | Micro Positive Pressure System |
2. Operating Room Technical Specifications
| No. | Item | Specification |
|---|---|---|
| 1 | Operating Room Cleanliness | Class 10,000 |
| 2 | Certification | Third-party test report with CMA seal, compliant with GB50333 standard |
| 3 | Preparation Room Cleanliness | Class 100,000 |
| 4 | Certification | Third-party test report with CMA seal, compliant with GB50333 standard |
| 5 | Internal Air Handling Structure | Supply fan, primary filter, medium-efficiency filter |
| 6 | Filter Grade | ≥ G4 / F8 |
| 7 | Laminar Flow Ceiling | Equipped |
| 8 | Ceiling Position | Above the operating table |
| 9 | Number of HEPA Filters | ≥ 6 |
| 10 | Filtration Accuracy | ≤ 0.5 μm |
