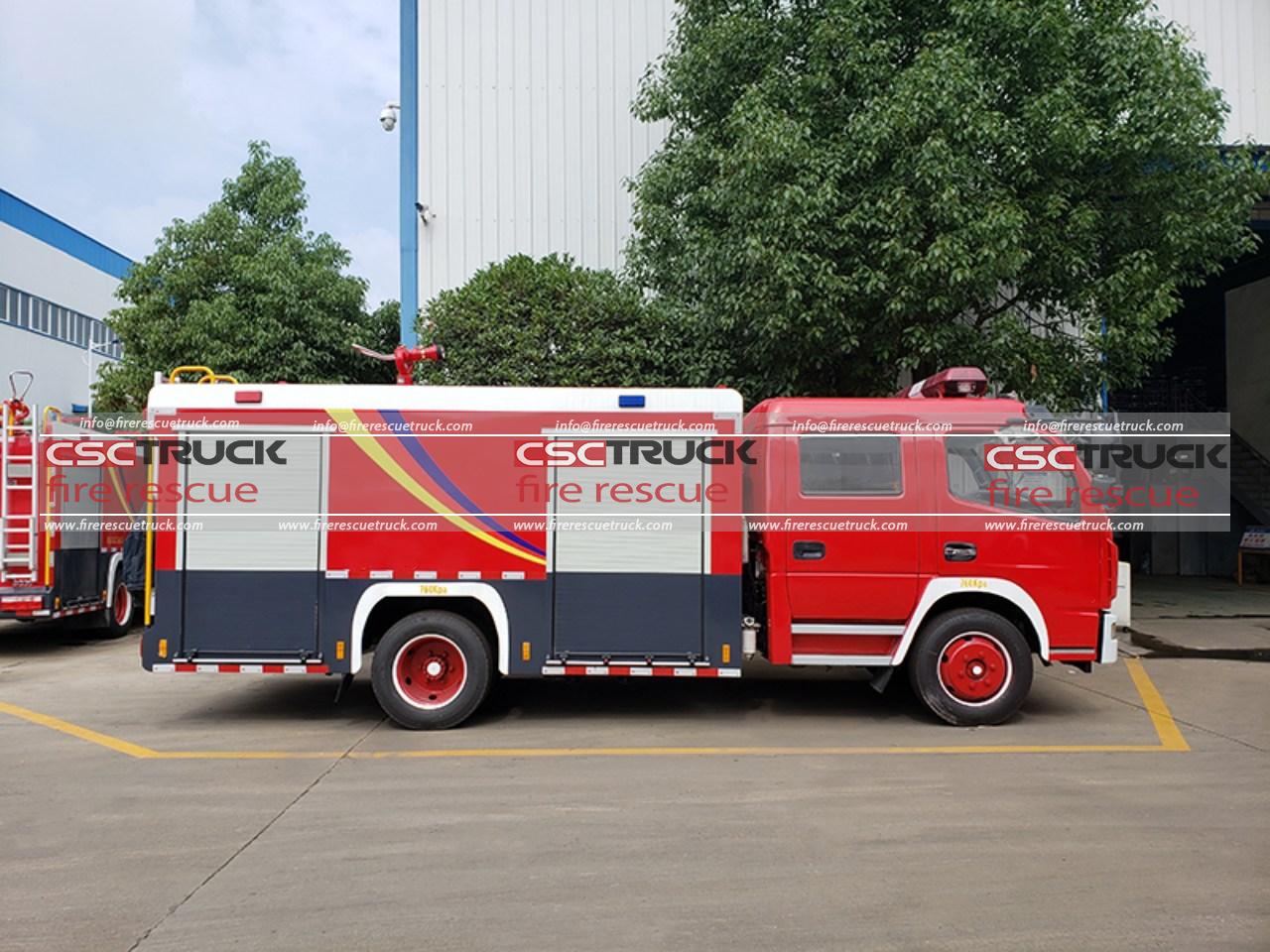

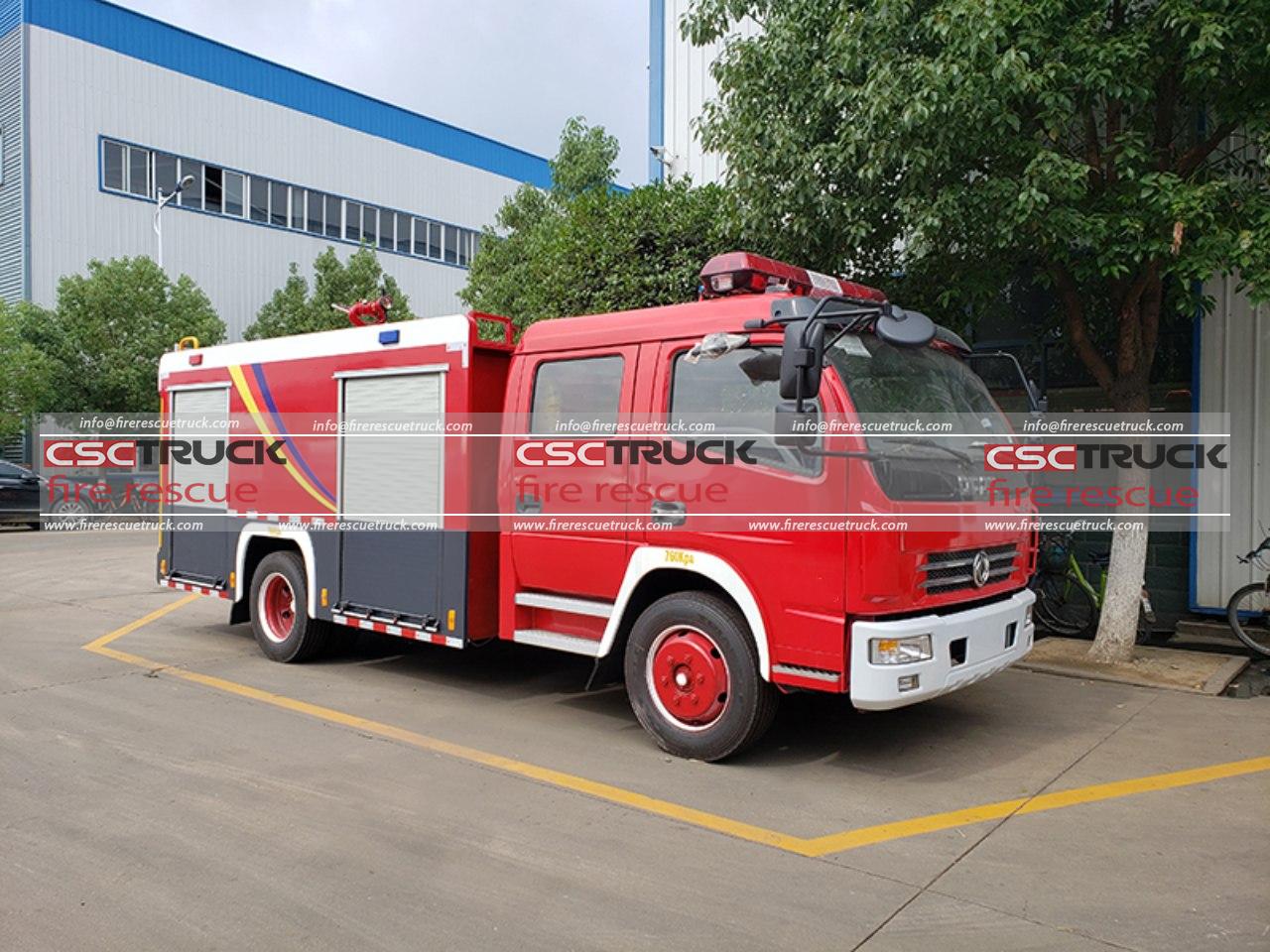

4ton Water Tanker Fire Apparatus

BRIEF

The 4-ton water tanker fire apparatus produced by CSCTRUCK Fire Rescue Truck is a versatile and compact firefighting vehicle designed for rapid response and efficient operation in urban and semi-urban environments. With a water tank capacity of 2,500 kg and an additional 1,000 kg foam tank, this vehicle provides sufficient firefighting resources for small to medium-scale fires, making it particularly effective in areas with limited access for larger fire trucks.

Built on the reliable Dongfeng EQ1110SJ8BDC chassis, the tanker fire truck features a 4×2 rear-wheel-drive configuration, balancing maneuverability and stability. Its CY4SK251 engine delivers 115 kW of power while complying with EURO V emission standards, ensuring both performance and environmental responsibility. The compact design allows the vehicle to navigate narrow streets and congested areas, enabling timely fire suppression and rescue operations.

Equipped with the CB10/30 normal-pressure fire pump, the truck achieves a pump flow rate of 30 L/s at a working pressure of 1.0 MPa, providing a reliable water supply for firefighting. The PL24 fire monitor complements this system, delivering 24 L/s of water or foam with an impressive range of up to 45m for water and 40m for foam at 1.0 MPa pressure. This capability allows firefighters to control fires from a safe distance, improving operational safety and efficiency.

The vehicle is engineered for rapid deployment, with straightforward controls and a robust pump system that ensures continuous operation under demanding conditions. Its combination of water and foam capabilities allows it to handle a variety of fire scenarios, from ordinary combustible materials to flammable liquids, providing versatility on the fireground.

Overall, this 4-ton water tanker fire apparatus combines compact design, reliable performance, and advanced firefighting equipment, making it an ideal solution for municipalities, industrial facilities, and emergency response teams seeking a capable and agile firefighting vehicle for everyday operations.

FEATURES

1. Compact & Efficient Water-Foam Capacity: Equipped with 2,500 kg of water and 1,000 kg of foam, suitable for small- to medium-scale firefighting operations.
2. Reliable Chassis & Engine: Built on a Dongfeng EQ1110SJ8BDC chassis with a CY4SK251 engine delivering 115 kW, compliant with EURO V emission standards for eco-friendly operation.
3. Versatile Pumping System: Features a CB10/30 normal-pressure fire pump with a flow rate of 30 L/s at 1.0 MPa, ensuring effective water and foam delivery.
4. High-Performance Fire Monitor: Equipped with a PL24 fire monitor capable of 24 L/s flow, reaching a range of ≥45 m for water and ≥40 m for foam, with a pressure of 1.0 MPa.
5. Practical Drive Configuration: 4×2 drive type provides maneuverability for urban and rural firefighting scenarios, balancing performance and compactness.

SPECIFICATION
