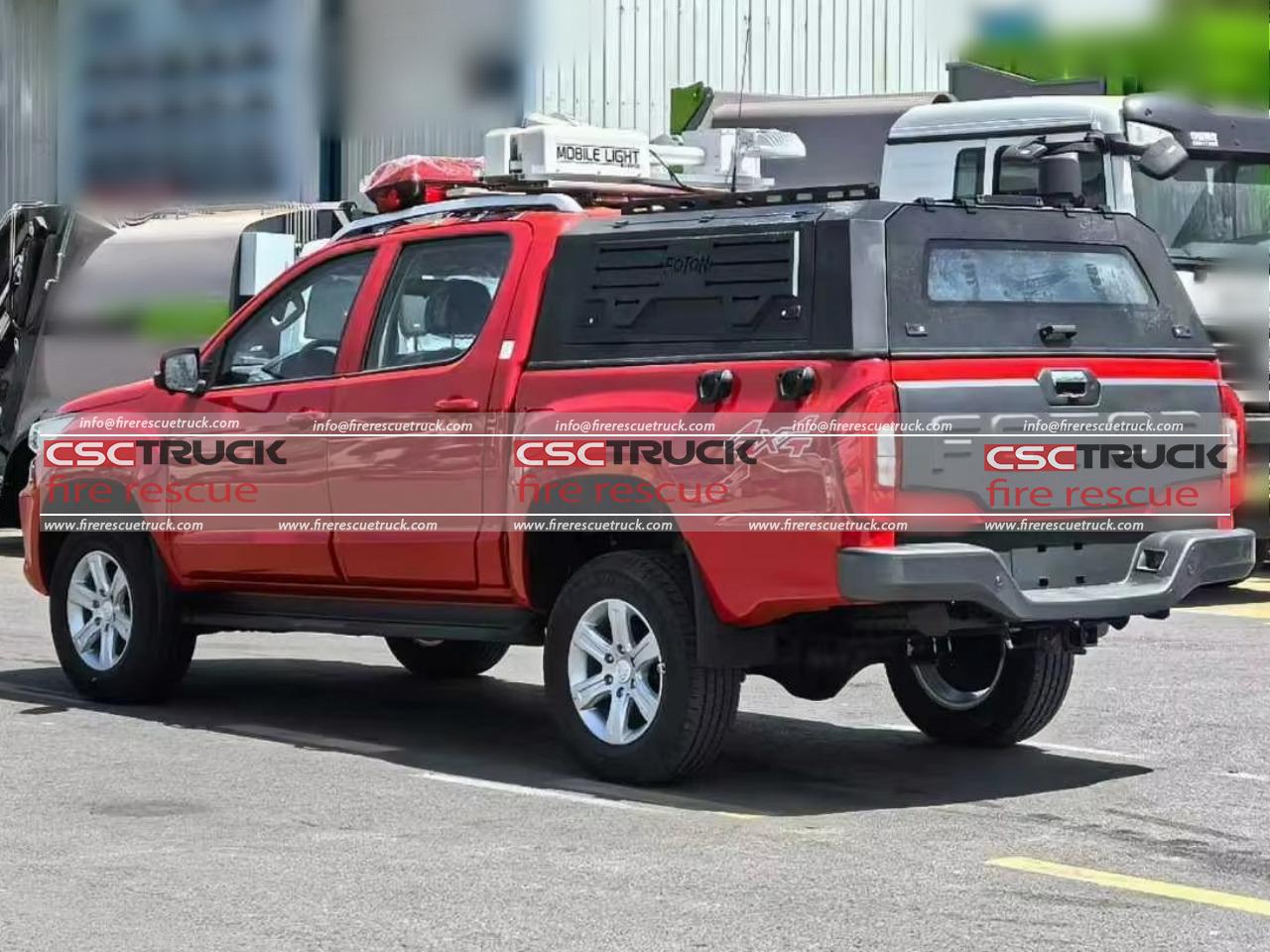

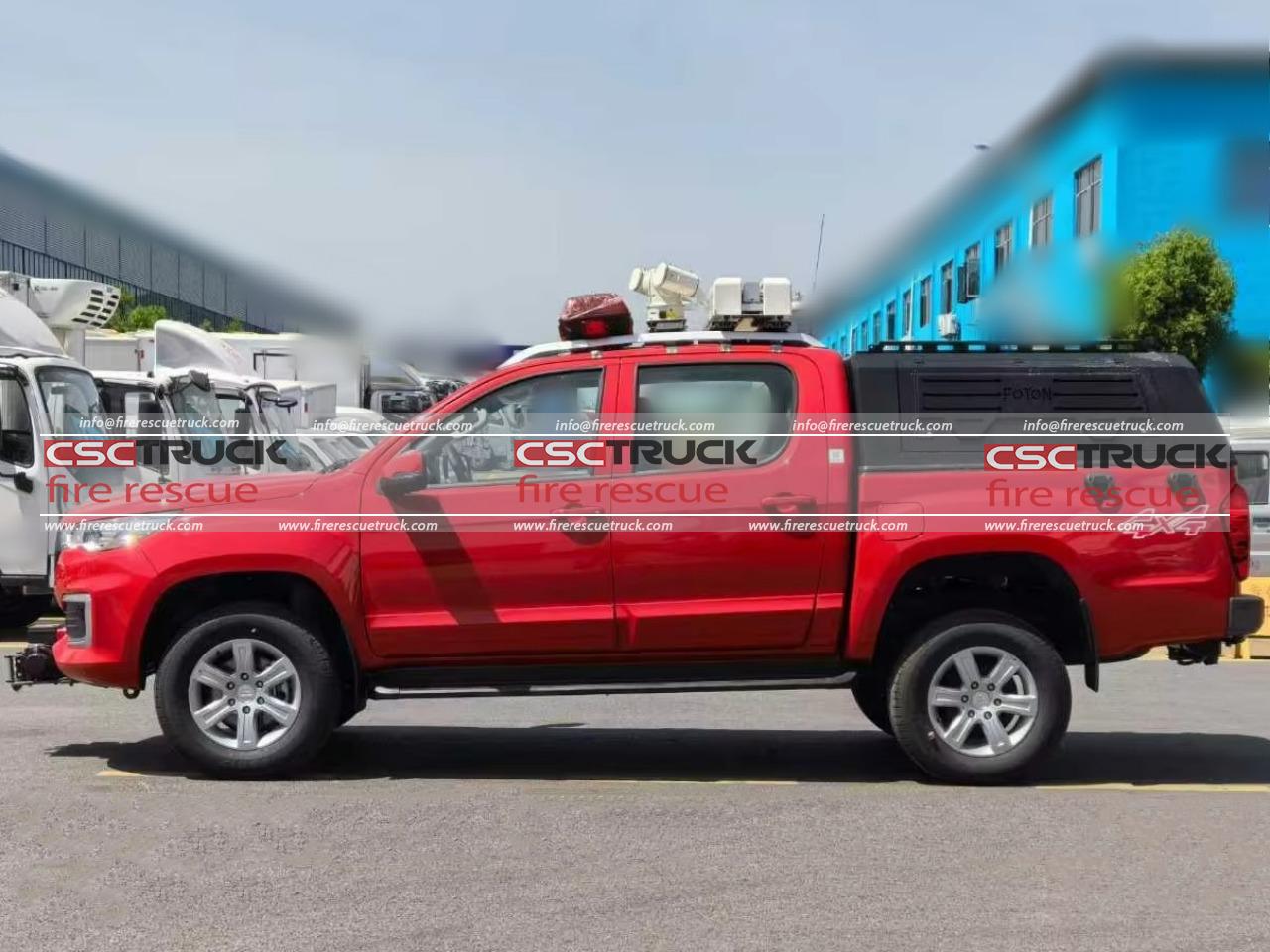

Foton 4×4 Pickup Fire Truck

BRIEF

The Foton 4×4 Pickup Fire Truck, produced by CSCTRUCK Fire Rescue Truck, is a compact and versatile emergency response vehicle designed for rapid firefighting, rescue, and fire suppression operations in urban, rural, industrial, and off-road environments. Built on a reliable Foton 4×4 chassis, this pickup fire truck combines strong mobility, firefighting capability, and a compact body to reach areas that may be difficult for conventional heavy-duty fire trucks to access.

Powered by a 110 kW engine with a 2,600 ml displacement and EURO VI emission standard, the vehicle provides a good balance of performance and environmental compliance. Its 4×4 drive system, 3,096 mm wheelbase, and 22° approach angle give it enhanced mobility on uneven roads, construction sites, rural areas, and other challenging terrains. With a maximum speed of 140 km/h, it can respond quickly to emergency calls.

The truck carries approximately 1.5–2.0 cubic meters of water and is equipped with a CB10/30 fire pump, delivering a flow rate of 30 L/s at 1.0 MPa. The PS8/30W fire cannon provides a water range of up to 60 meters, enabling effective firefighting from a relatively safe distance.

With overall dimensions of 5,252 × 1,880 × 2,320 mm and a gross weight of 4,300 kg, the vehicle is compact enough for flexible deployment while retaining essential firefighting equipment. Standard configurations include a portable fire extinguisher, fire hoses, breaching tools, an LED lighting system, warning lights, and a loudspeaker.

This Foton pickup fire truck is particularly suitable for municipal fire departments, industrial facilities, farms, remote communities, construction sites, forests, and emergency response teams requiring a fast, compact, and highly mobile firefighting solution.

FEATURES

1. Powerful 4×4 Off-Road Mobility
   Built on a Foton 4×4 chassis with a 3,096 mm wheelbase and 22° approach angle, the truck delivers excellent maneuverability on rough roads, rural terrain, construction sites, and other challenging environments.
2. Fast Emergency Response
   Powered by a 110 kW EURO VI engine with a maximum speed of 140 km/h, the pickup fire truck can reach emergency locations quickly, making it ideal for rapid fire suppression and rescue operations.
3. Efficient Firefighting System
   Equipped with a CB10/30 fire pump providing 30 L/s at 1.0 MPa and a PS8/30W fire cannon with a water range of up to 60 meters, it offers effective long-distance firefighting capability.
4. Compact and Flexible Design
   Measuring only 5,252 × 1,880 × 2,320 mm and weighing approximately 4,300 kg, the vehicle can access narrow streets, remote areas, farms, industrial sites, and locations where larger fire trucks may have difficulty operating.
5. Complete Emergency Equipment
   The truck carries approximately 1.5–2.0 m³ of water and can be equipped with fire hoses, portable fire extinguishers, breaching tools, LED lighting, warning lights, and a loudspeaker, supporting versatile firefighting, rescue, and emergency response tasks.

SPECIFICATION
