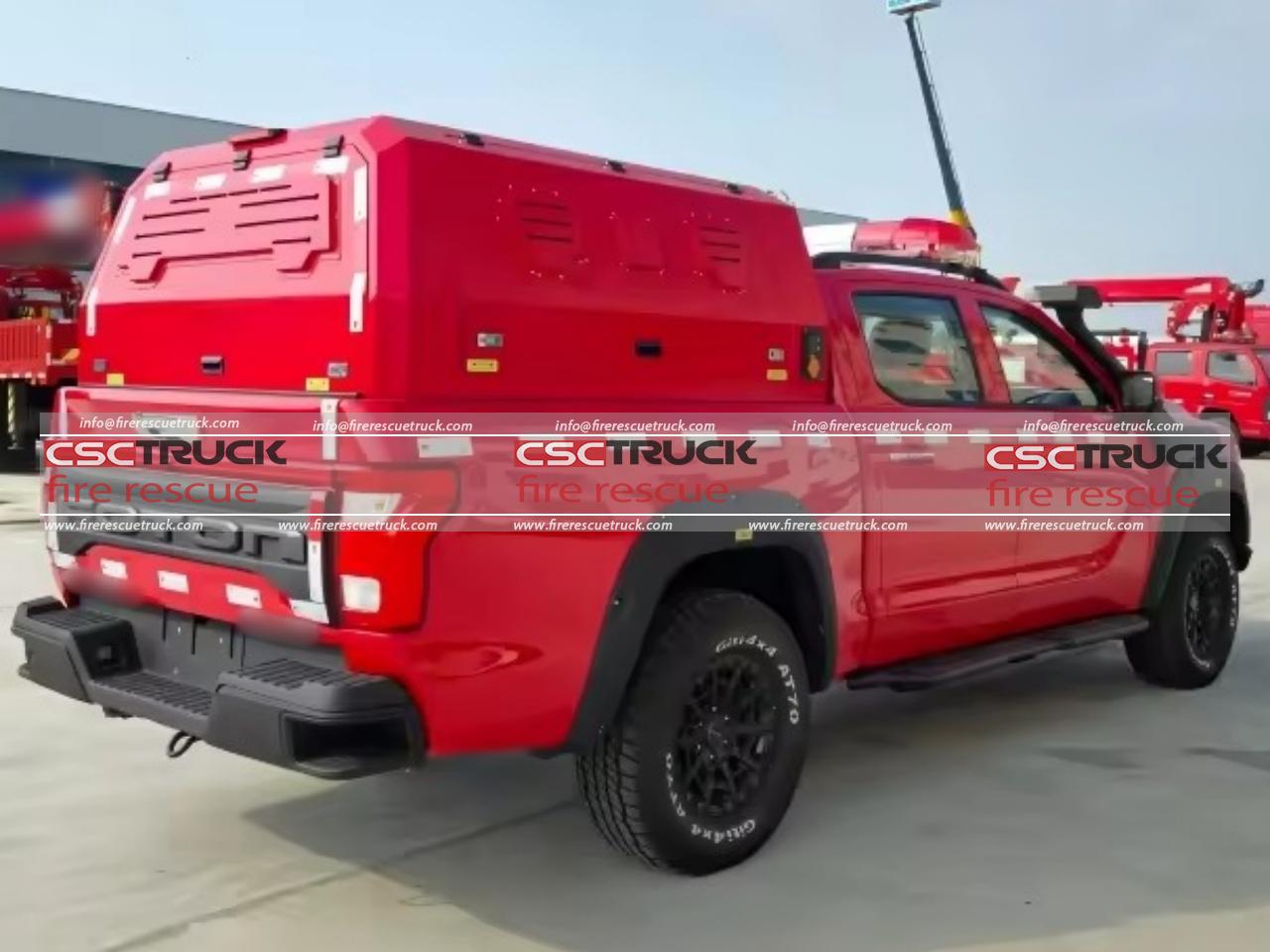

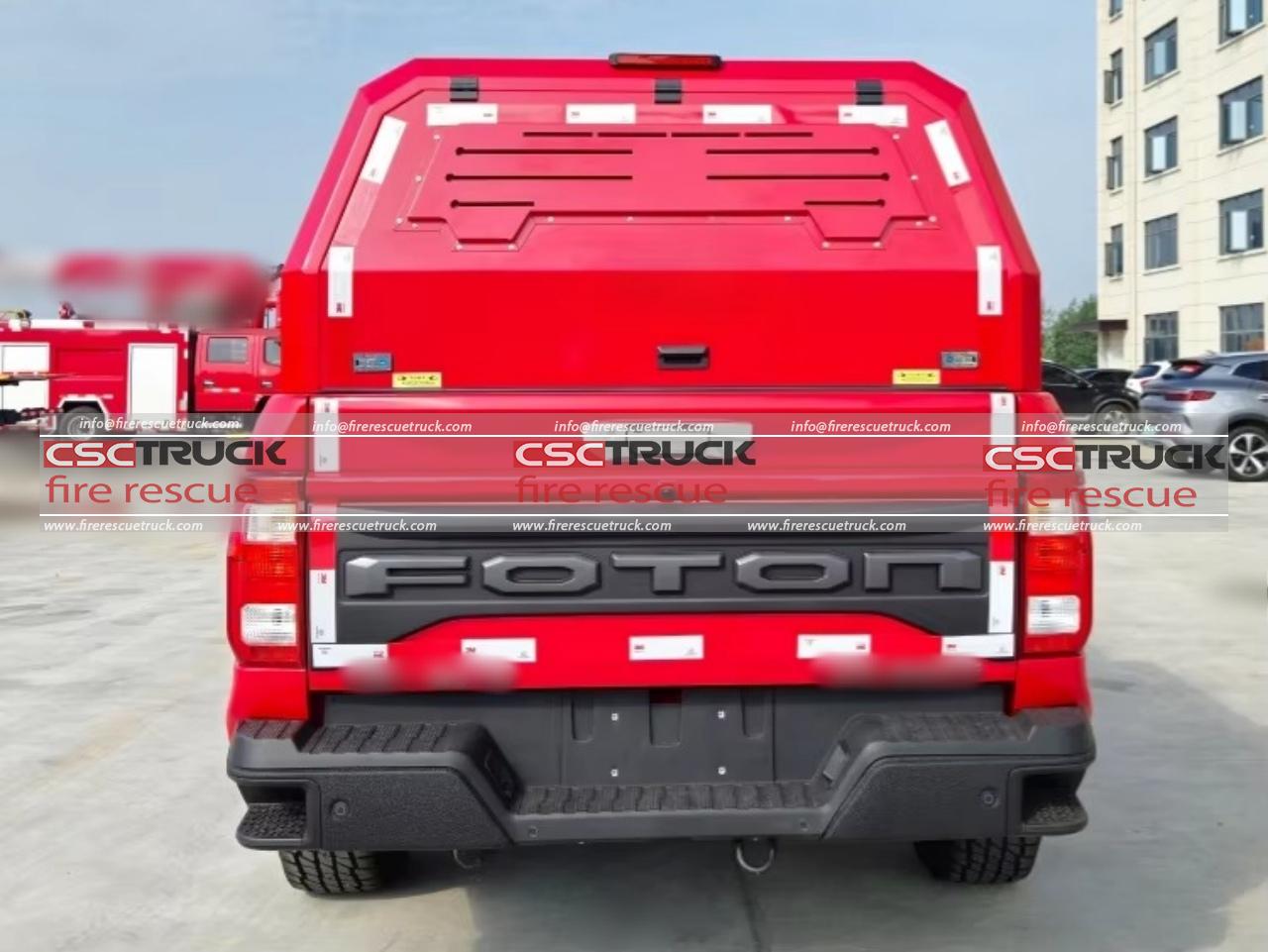

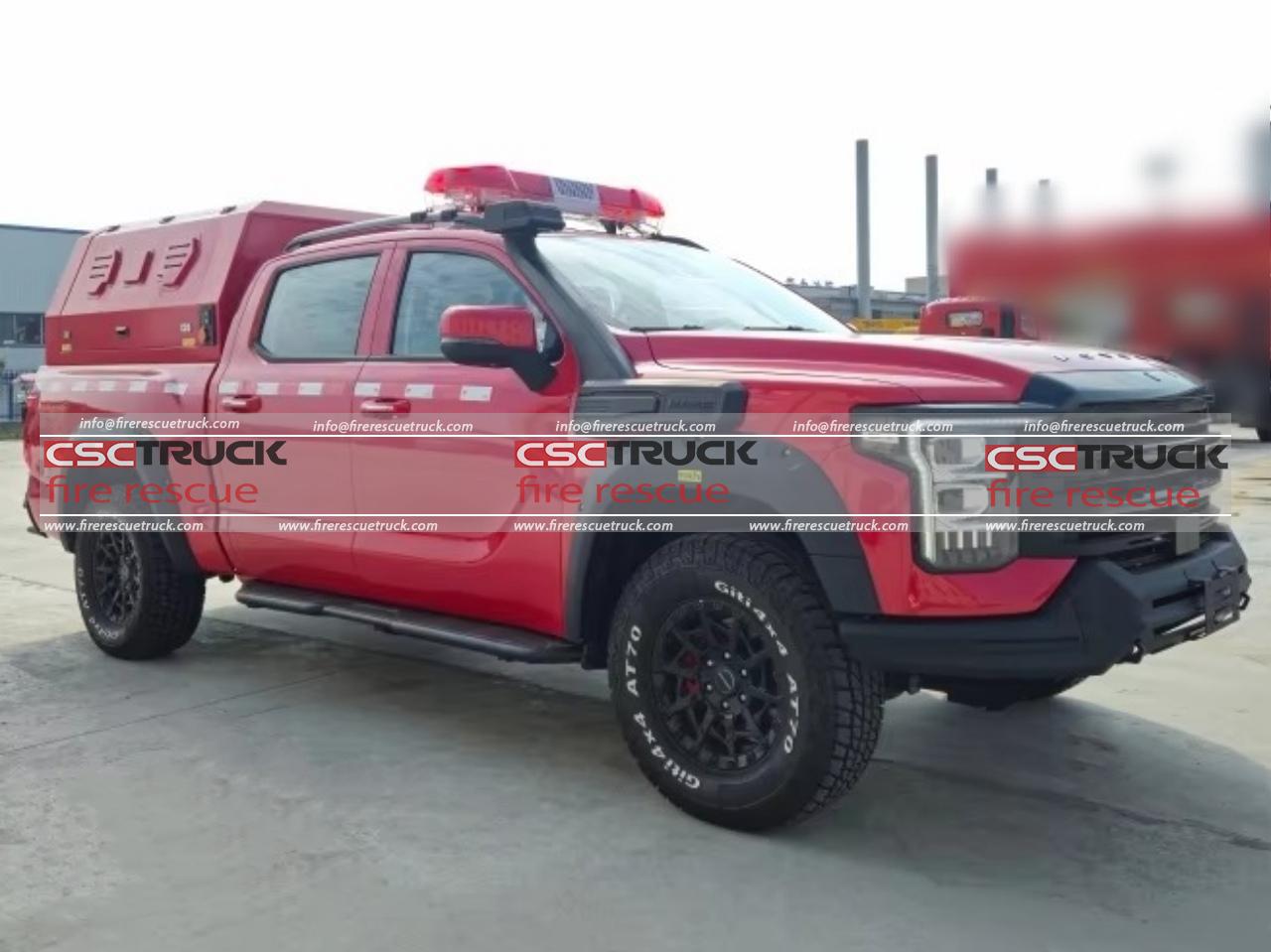

Foton 5-Seat Small Equipment Fire Truck

BRIEF

The Foton 5-Seat Small Equipment Fire Truck, produced by CSCTRUCK Fire Rescue Truck, is a compact and versatile emergency response vehicle designed for rapid firefighting, rescue support, and fire prevention operations. Its practical size, 5-seat cabin, and dedicated rear equipment compartment make it suitable for urban communities, industrial facilities, rural areas, construction sites, and other locations where maneuverability and quick deployment are important.

Built on a 4×2 rear-wheel-drive Foton chassis, the truck has an overall dimension of 5,653 × 1,883 × 1,910 mm and a 3,500 mm wheelbase, allowing it to operate effectively in narrow streets and confined areas. It has a 5,000 kg total weight, including a 1,500 kg rated payload and 3,500 kg curb weight. The cab accommodates 2+3 people, providing enough space for a driver, crew members, and emergency personnel.

Power is supplied by a Cummins ISF3.8s5154 engine rated at 154 hp, paired with a 6-speed manual gearbox. The vehicle can reach a maximum speed of 90 km/h, supporting fast response to emergency calls. Its two-axle configuration, six 7.50R16LT 14PR tires, and leaf-spring suspension provide a practical balance between stability, durability, and load-carrying capability.

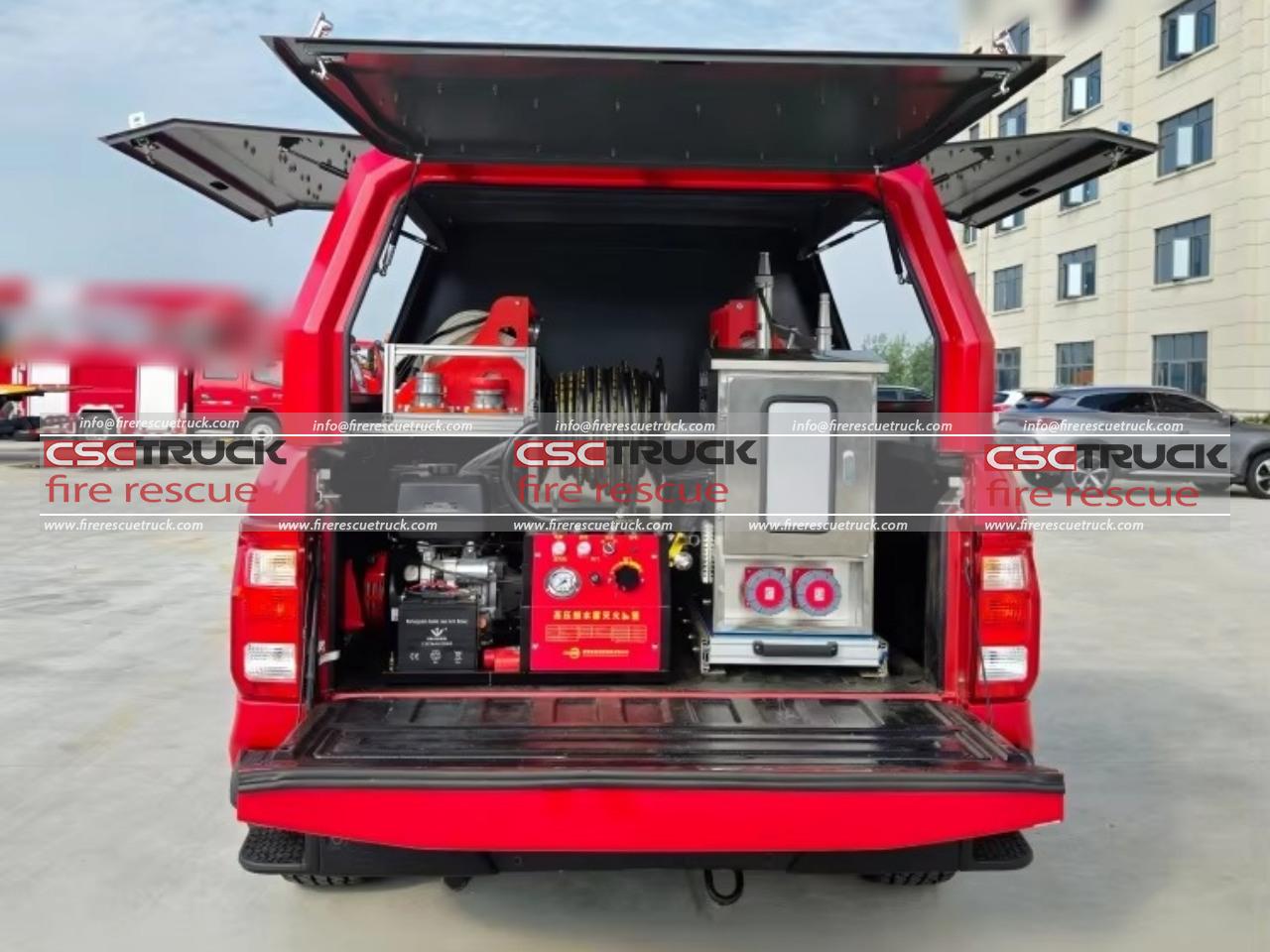

The rear equipment compartment is designed for organized and rapid access to firefighting tools. It includes a portable fire pump, high-pressure hose reel, fire hoses and couplings, fire pump control panel, stainless steel equipment storage cabinet, water inlet/outlet connections, portable firefighting accessories, and a battery and power supply system.

Combining compact dimensions, five-person seating, reliable Cummins power, and versatile firefighting equipment, this Foton small equipment fire truck provides an efficient solution for first-response firefighting and emergency support operations.

FEATURES

1. Compact and Highly Maneuverable Design
   With dimensions of 5,653 × 1,883 × 1,910 mm and a 3,500 mm wheelbase, the Foton fire truck is well suited to narrow urban streets, residential communities, industrial sites, rural roads, and confined emergency locations.
2. 5-Seat Crew Cabin for Rapid Response
   The 2+3 seating configuration provides space for up to 5 occupants, allowing a driver and firefighting crew to travel together and reach emergency scenes quickly. The practical cabin layout supports efficient crew deployment.
3. Reliable Cummins Power and 4×2 Drivetrain
   Equipped with a 154 hp Cummins ISF3.8s5154 engine and a 6-speed manual transmission, the truck delivers dependable performance for emergency response. Its 4×2 rear-wheel-drive chassis and leaf-spring suspension provide good stability and durability for daily operations.
4. Dedicated Firefighting Equipment Compartment
   The rear equipment compartment is designed for organized storage and quick access to essential firefighting tools, including a portable fire pump, high-pressure hose reel, fire hoses, couplings, control panel, water connections, and portable firefighting accessories.
5. Versatile First-Response Firefighting Solution
   Combining a 5,000 kg total weight, 1,500 kg payload, 90 km/h maximum speed, 5-person capacity, and comprehensive firefighting equipment, this Foton small equipment fire truck is ideal for initial fire suppression, rescue support, fire prevention, and emergency response in urban, rural, industrial, and construction environments.

SPECIFICATION

Overall Dimensions(LxWxH): 5,653×1,883×1,910mm.

Wheelbase: 3,500mm.

Rear Equipment Compartment Includes:

1. Portable Fire Pump
2. High-Pressure Hose Reel
3. Fire Hose and Hose Couplings
4. Fire Pump Control Panel
5. Stainless Steel Equipment Storage Cabinet
6. Water Inlet/Outlet Connections
7. Portable Firefighting Accessories
8. Battery and Power Supply System
