BRIEF

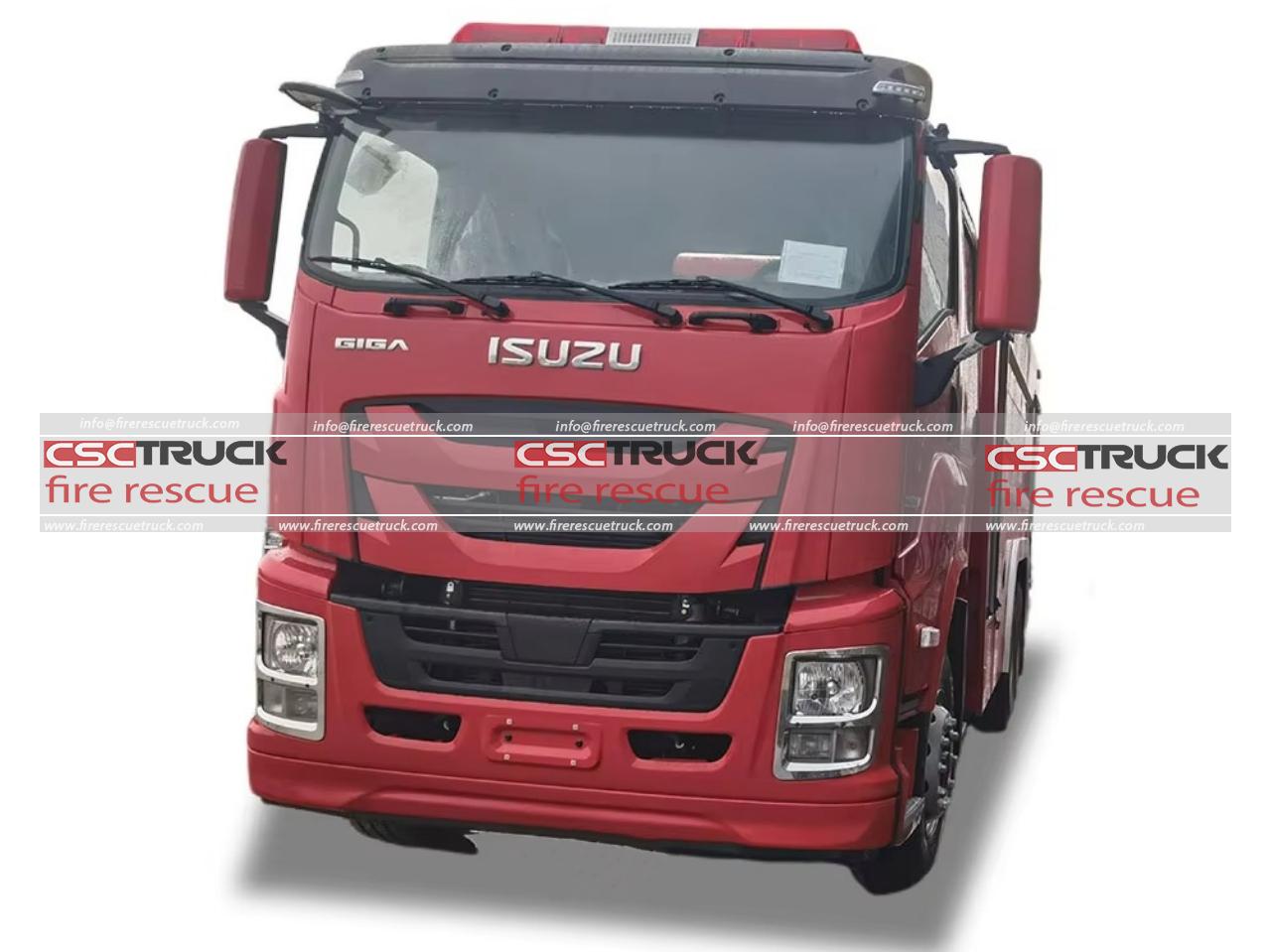

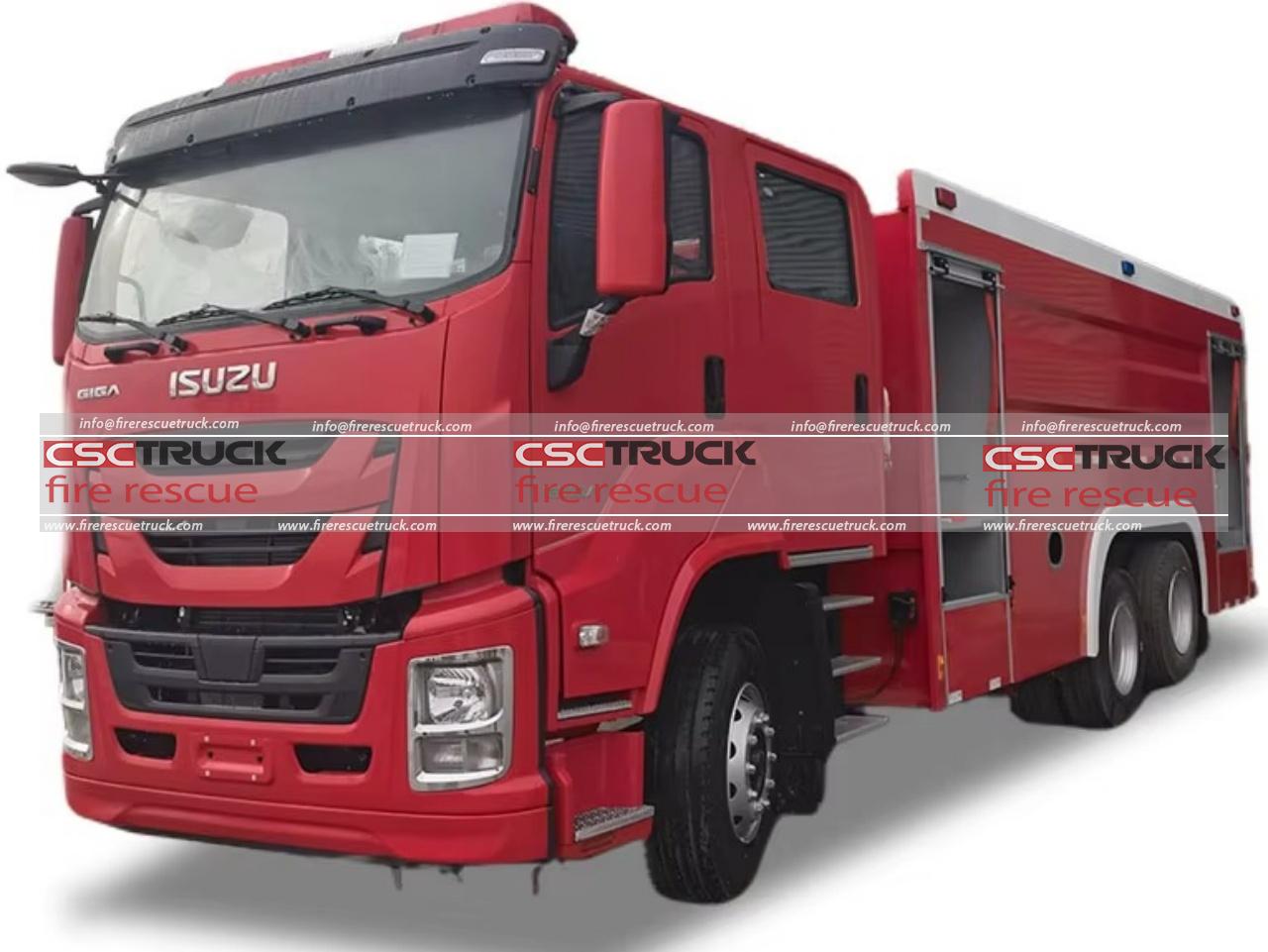

The ISUZU GIGA 14 CBM water foam tanker fire truck produced by CSCTRUCK Fire Rescue Truck is a heavy-duty, high-capacity firefighting vehicle engineered for municipal fire brigades, petrochemical facilities, industrial parks, airports, ports, and large-scale emergency response operations. Built on the dependable ISUZU Motors ISUZU GIGA chassis, this fire truck combines superior power, durability, and advanced firefighting capability to meet demanding rescue missions.
With overall dimensions of 10,210 × 2,550 × 3,400 mm, the vehicle offers a robust structure while maintaining stable road handling. It is powered by a 300PS diesel engine, delivering strong torque and dependable performance for rapid dispatch and long-distance emergency travel. The truck is equipped with a Fast 9-speed manual transmission, ensuring smooth gear shifting and efficient power delivery across various terrains.
The spacious new Isuzu 5X class VC61 double-row cab provides comfortable seating for firefighters and crew members, allowing personnel and equipment to travel together safely. Its ergonomic design improves operational readiness during emergency deployments.
Built with a rugged 6×4 drive configuration, the truck features a 7-ton front axle and dual 10-ton rear axles, offering excellent load-bearing capacity and enhanced traction. The straight-through reinforced frame adds structural strength and durability, especially when carrying a fully loaded firefighting tank system.
For road stability and reliability, the truck uses 11 pcs 295/80R22.5 tubeless tires plus a spare tire. Suspension is supported by durable leaf spring systems (9/12 and 7/10 leaf springs), helping absorb shocks on rough roads and construction zones.
The 14 CBM water and foam tank system enables high-volume firefighting performance, making it highly effective for extinguishing large fires involving buildings, warehouses, fuel depots, and industrial installations. Combined with its large carrying capacity, dependable chassis, and powerful drivetrain, the ISUZU GIGA 14 CBM water foam tanker fire truck is an ideal solution for professional fire departments seeking a reliable, high-performance firefighting apparatus.
FEATURES
- High-Capacity 14 CBM Fire Suppression System
Equipped with a 14 CBM water and foam tank, this fire truck delivers large-volume firefighting capability, making it ideal for tackling major fires at industrial plants, warehouses, airports, ports, and municipal emergency scenes. - Powerful 300PS ISUZU GIGA Performance
Built on the dependable ISUZU GIGA chassis and powered by a 300PS diesel engine, the truck provides strong torque, fast acceleration, and reliable long-distance response for urgent firefighting missions. - Heavy-Duty 6×4 Load-Bearing Chassis
Featuring a rugged 6×4 drivetrain, 7-ton front axle, and dual 10-ton rear axles, the vehicle offers excellent payload capacity, traction, and stability even when fully loaded with firefighting water and foam. - Spacious Double-Row Crew Cab
The new Isuzu 5X class VC61 double-row cab offers comfortable seating for firefighters and crew members, allowing personnel and essential equipment to travel together efficiently and safely. - Durable Suspension and Road Stability
Equipped with 11 pcs 295/80R22.5 tubeless tires, a spare tire, a reinforced straight-through frame, and heavy-duty leaf spring suspension, the truck ensures dependable operation on highways, urban roads, and rough industrial terrain.
SPECIFICATION
|
Type
|
ISUZU GIGA 14 CBM Water Foam Tanker Fire Truck
|
|
Dimensions(LxWxH)
|
10,210*2,550*3,400mm
|
|
Engine horsepower
|
300PS
|
|
Cab
|
New Isuzu 5X class VC61 double-row cab
|
|
Front axle
|
7-ton front axle
|
|
Rear axle
|
10-ton rear axle * 2
|
|
Gearbox
|
Fast 9-speed manual transmission
|
|
Vehicle frame
|
Straight-through frame
|
|
Tire
|
11 295/80R22.5 tubeless tires, with spare tire
|
|
Front/rear overhang (mm)
|
Front: 1,370, Rear: 2,370
|
|
Departure angle
|
Front: 17, Rear: 15
|
|
Suspension
|
Leaf spring 9/12
|
|
Leaf spring
|
7/10 leaf springs
|
|
Wheelbase (mm)
|
5,100+1,370
|
|
Number of tires
|
10+1
|
|
Tread (mm)
|
Front: 2,060, Rear: 1,855/1,855
|
|
Drive type
|
6×4
|
