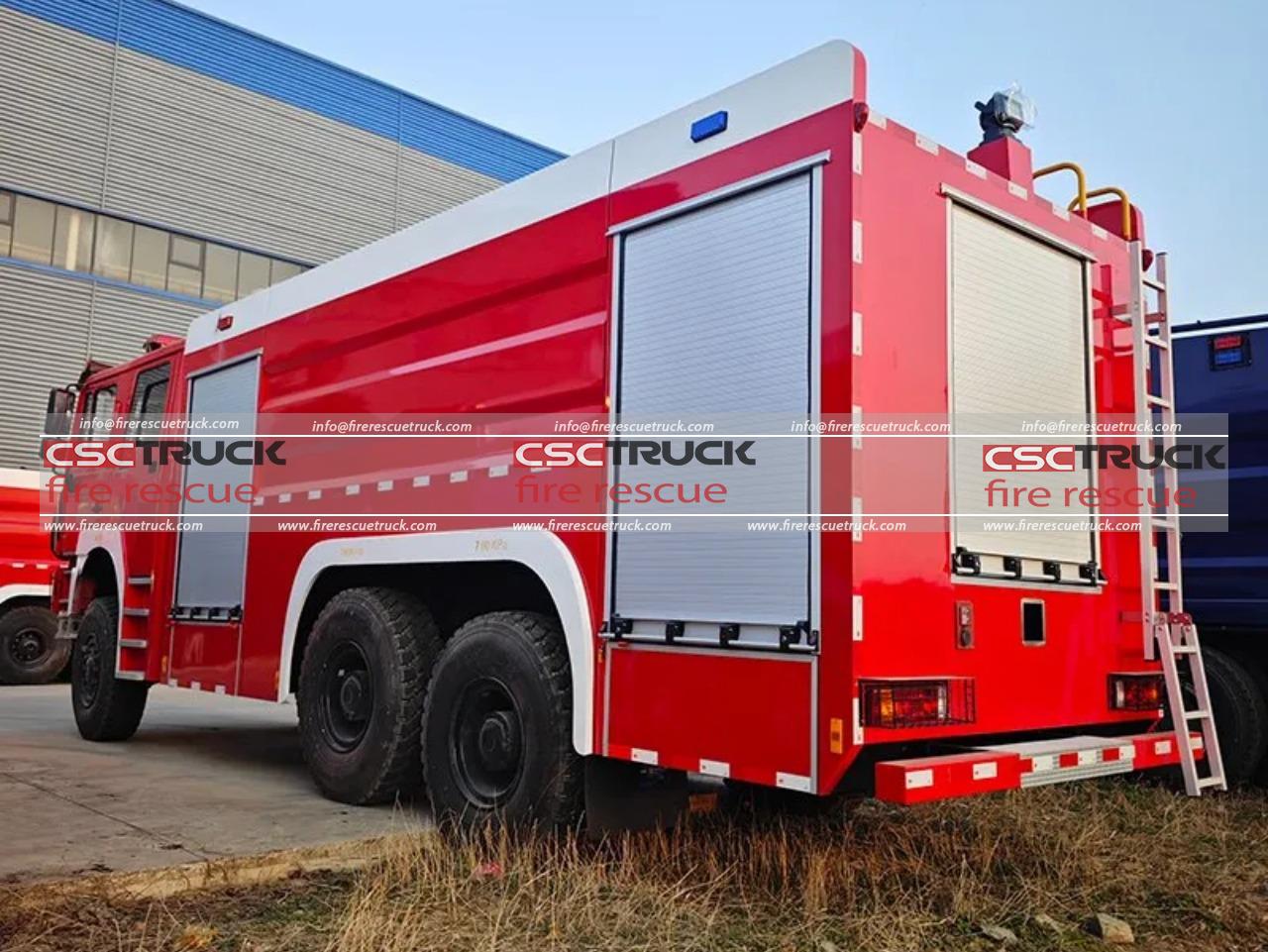

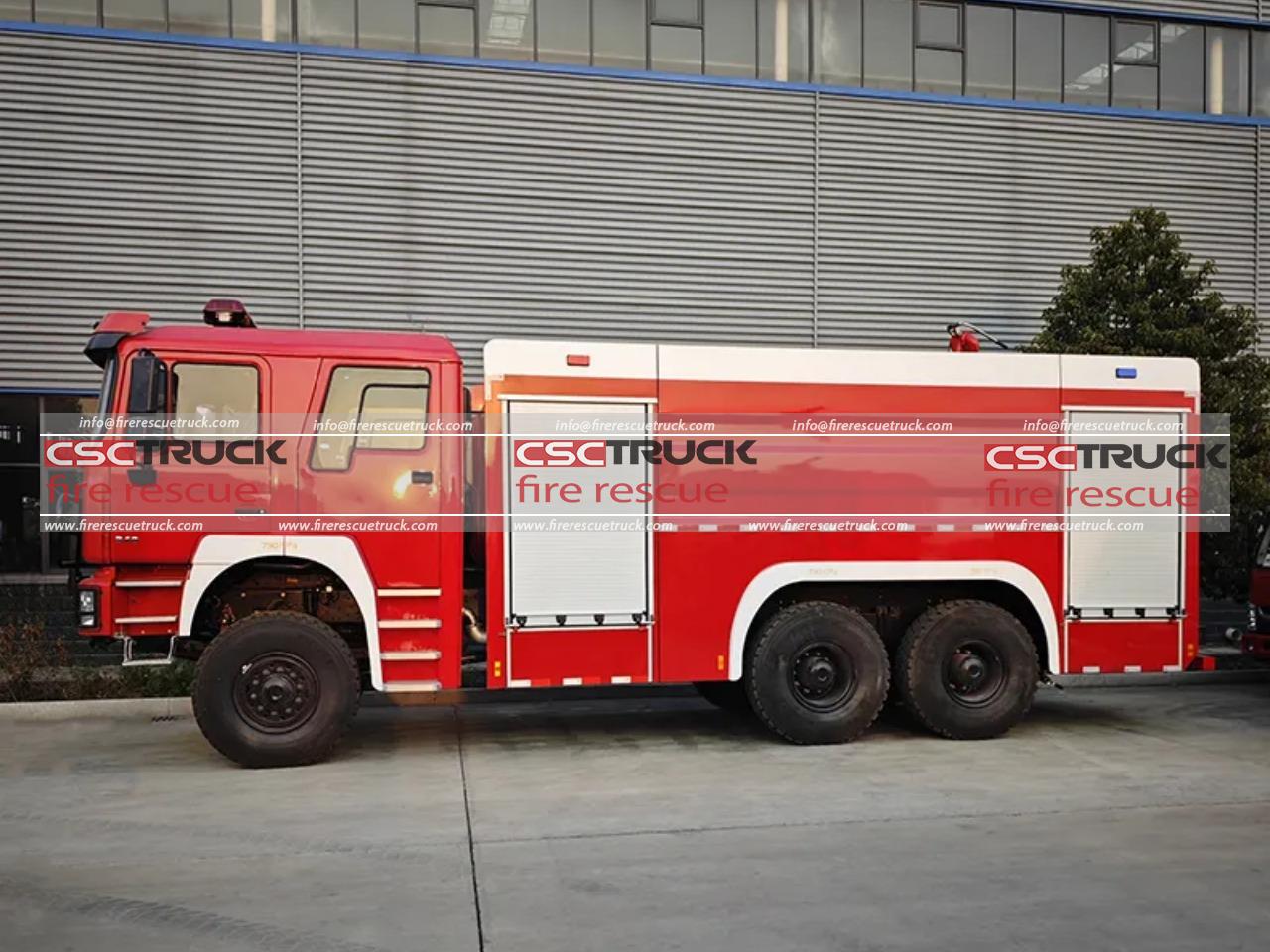

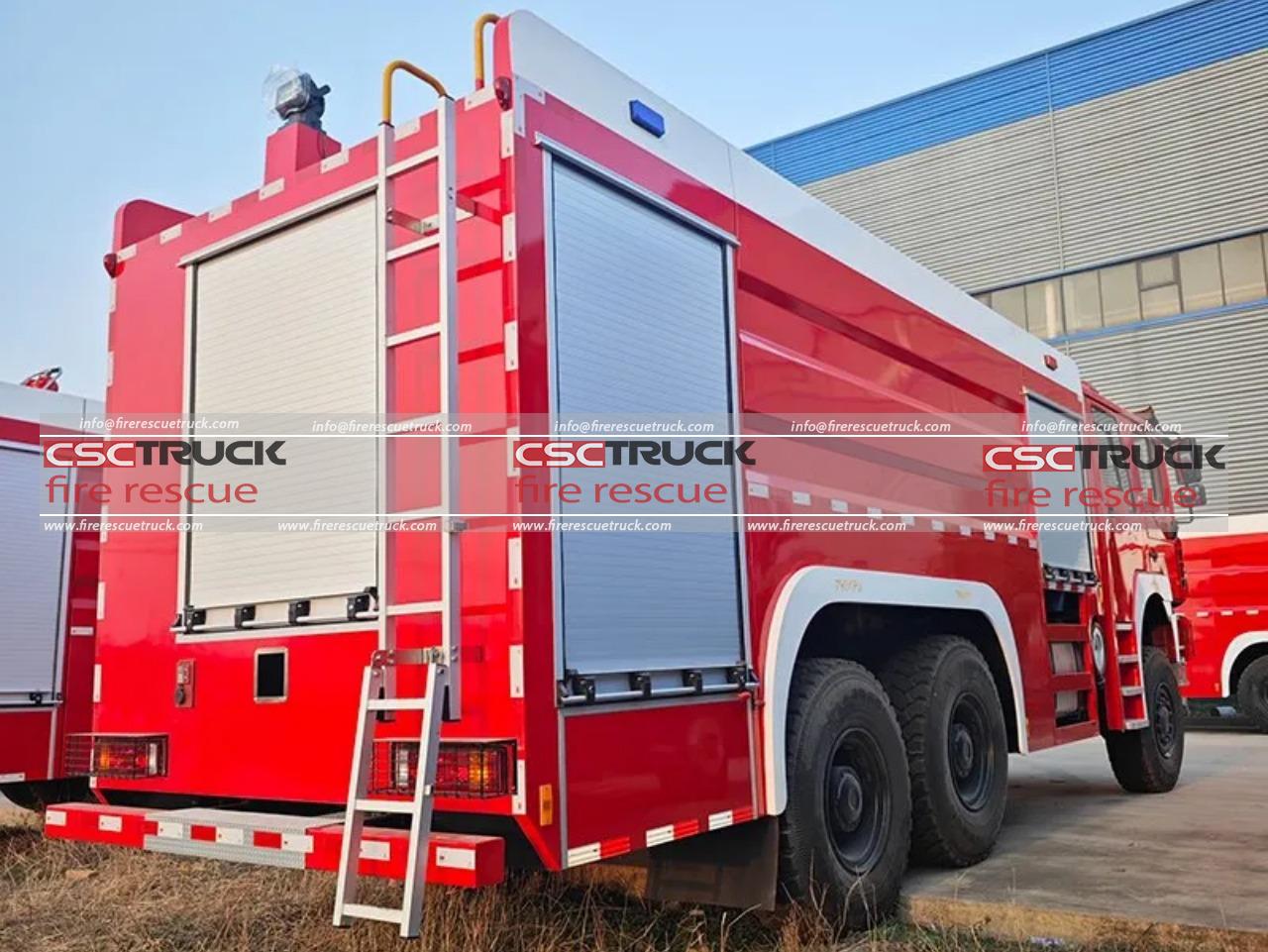

SHACMAN F3000 6×6 16000L Water Tanker Fire Truck

BRIEF

The SHACMAN F3000 6×6 16,000L water tanker fire truck, produced by CSCTRUCK Fire Rescue Truck, is a high-capacity, heavy-duty emergency response vehicle engineered for demanding firefighting and disaster-relief operations. Built on the robust SX5349TXFXC4Z1 chassis from Shaanxi Automobile Group Co., Ltd., it features a 6×6 all-wheel-drive configuration, ensuring superior traction and off-road capability in complex environments such as mountainous terrain, rural regions, and construction or disaster zones.

With overall dimensions of 10,060 × 2,550 × 3,650 mm and a maximum gross mass of 31,000 kg, the SHACMAN F3000 6×6 16,000L water tanker fire truck balances large water-carrying capacity with structural stability. It is powered by an 8,800 ml engine producing 257 kW, compliant with EURO VI emission standards, delivering a specific power ratio of 8.29 for reliable performance under load. The truck can reach a top speed of 95 km/h, enabling rapid deployment to emergency sites.

Its primary firefighting capability comes from a 16,000 kg high-quality carbon steel water tank, designed with reinforced plate thickness (5 mm bottom, 4 mm side, 3 mm top) for durability and corrosion resistance. The CB20·10/30·60-RS medium and low-pressure centrifugal fire pump provides a rated flow of 60 L/s at 1.0 MPa and 30 L/s at 2.0 MPa, ensuring strong and stable water delivery. A dual piston vacuum pump allows rapid water diversion, achieving suction from a maximum depth of 7 meters within ≤50 seconds.

The vehicle is equipped with a PS8/60W fire monitor manufactured by Chengdu West Firefighting Machinery Co., Ltd., offering 360° horizontal rotation, elevation up to +45°, and depression down to -15°. The monitor delivers a water jet range of ≥75 meters and foam coverage up to 60 meters, ensuring effective fire suppression at a distance.

With a wheelbase of 4,575 + 1,400 mm and approach/departure angles of 16°/11°, the SHACMAN F3000 fire truck combines mobility, endurance, and high-output firefighting performance for modern emergency response needs.

FEATURES

1. High-Capacity 16,000L Water Tank
   Built with reinforced carbon steel construction (5mm bottom, 4mm side, 3mm top), the large-capacity tank ensures extended firefighting operations with strong durability and corrosion resistance.
2. Powerful 6×6 All-Wheel Drive Chassis
   The SHACMAN SX5349 6×6 drivetrain provides excellent off-road capability, traction, and stability, making it highly effective in mountains, rural roads, and disaster environments.
3. High-Performance Fire Pump System
   Equipped with a CB20·10/30·60-RS centrifugal fire pump delivering up to 60 L/s flow at 1.0 MPa, ensuring a strong, stable, and efficient water supply for fire suppression.
4. Long-Range Firefighting Monitor
   The PS8/60W fire monitor offers 360° rotation and long-range discharge (≥75 m water, 60 m foam), enabling effective firefighting from a safe distance.
5. Strong Power and Rapid Response Capability
   Powered by a 257 kW EURO VI engine, the truck reaches speeds up to 95 km/h, allowing fast deployment while maintaining heavy-load performance and operational reliability.

SPECIFICATION
