BRIEF

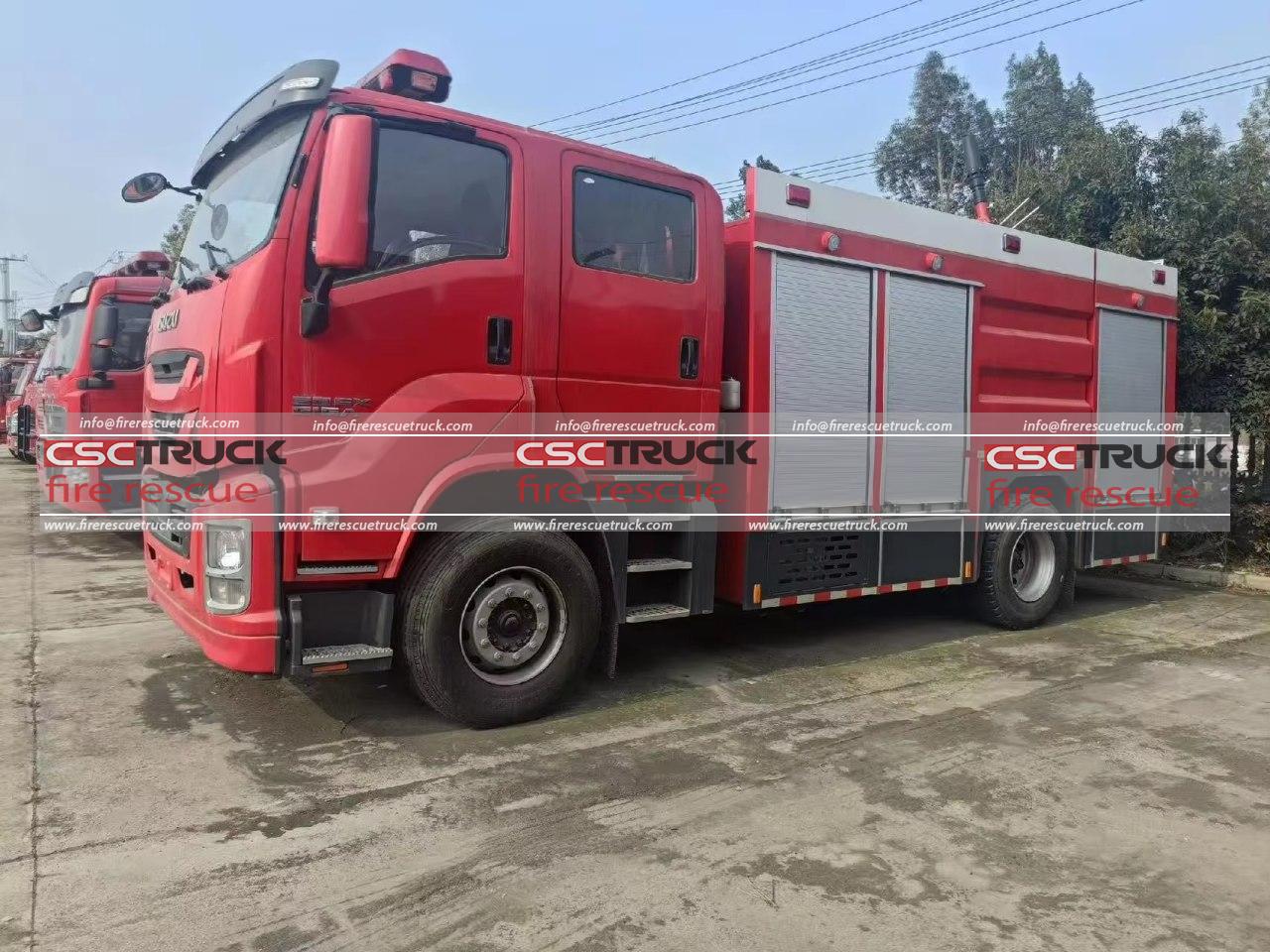

The ISUZU GIGA 5 CBM foam fire tender, produced by CSCTRUCK Fire Rescue Truck, is a compact yet highly capable firefighting vehicle designed for rapid response to urban, industrial, and roadside fire emergencies. Built on the robust ISUZU GIGA chassis, this model combines dependable Japanese engineering with specialized firefighting systems to deliver efficient performance, stability, and operational reliability in critical situations.
With a total mass of 18,000 kg and a curb weight of 11,750 kg, the vehicle offers a strong balance between payload capacity and maneuverability. Its 5 cubic meter (CBM) foam-water tank system is optimized for mixed firefighting applications, enabling crews to combat both fuel-based and structural fires effectively. The compact overall dimensions of 7,990 × 2,550 × 3,500 mm allow the truck to operate efficiently in narrow urban streets while still maintaining substantial onboard fire suppression capability.
The truck accommodates a crew of 2+4 personnel, ensuring sufficient manpower for coordinated emergency response. A bolted vehicle connection method enhances structural stability, especially during high-pressure firefighting operations. The chassis is engineered with a 2-axle configuration and a 6+1 tire setup, supported by 7.00R16 tires for improved grip and durability across varied road conditions.
Power is delivered through a 6-speed transmission system paired with a diesel engine producing 112 kW, offering a reliable driving force for both city driving and emergency acceleration. The wheelbase of 3,800 mm contributes to stable handling, while the air brake system ensures responsive and safe stopping performance under full load conditions.
Overall, the ISUZU GIGA 5 CBM foam fire tender represents a practical and efficient solution for modern firefighting needs. As a specialized product from CSCTRUCK Fire Rescue Truck, it is engineered to deliver quick deployment, operational safety, and consistent performance in demanding emergency environments.
FEATURES
- Efficient 5 CBM Foam-Water Firefighting System
Equipped with a combined foam and water tank, the vehicle can effectively handle both fuel-based and structural fires, making it highly versatile in emergency response. - Compact Yet High-Performance Design
With overall dimensions of 7,990 × 2,550 × 3,500 mm, it is optimized for maneuvering through narrow urban streets while still maintaining strong firefighting capability. - Powerful and Reliable ISUZU GIGA Chassis
Built on a robust Japanese-engineered ISUZU GIGA platform, the truck ensures durability, stability, and dependable performance under demanding conditions. - Strong Powertrain and Safety System
Powered by a 112 kW diesel engine with a 6-speed transmission and air brake system, it delivers stable driving performance and safe stopping even under full load. - Well-Organized Crew and Operational Efficiency
Designed for a 2+4 crew layout, it supports coordinated firefighting operations, improving response efficiency during urban and industrial emergencies.
SPECIFICATION
Vehicle Technical Parameters |
||||
|
Product Name
|
ISUZU GIGA 5 CBM Foam Fire Tender
|
|||
|
Total mass (kg)
|
18,000
|
|||
|
Rated load mass (kg)
|
6,000
|
|||
|
Curb weight (kg)
|
11,750
|
|||
|
Tank volume (m3)
|
5
|
|||
|
Dimensions (mm) (LxWxH)
|
7,990×2,550×3,500
|
|||
|
Number of passengers allowed (person)
|
2+4
|
|||
|
Vehicle connection method
|
Bolted
|
|||
Chassis Technical Parameters |
||||
|
Chassis Brand
|
ISUZU GIGA
|
|||
|
Fuel Type
|
Air Brake
|
|||
|
Front/Rear Axle (t)
|
Diesel
|
|||
|
Number of Axles
|
2
|
|||
|
Number of tires
|
6+1
|
|||
|
Brakes
|
6-Speed Transmission
|
|||
|
Engine Power (kW)
|
112
|
|||
|
Transmission
|
Fast
|
|||
|
Wheelbase (mm)
|
3,800
|
|||
|
Tire Size
|
7.00R16
|
|||
