Introduction: CSCTRUCK Fire Rescue Truck and Off-Road Water Supply Capability
Modern firefighting increasingly requires vehicles that can operate beyond traditional urban environments. While many fire emergencies occur near hydrants and municipal water systems, wildfires, industrial accidents, rural fires, and disasters often happen in locations where a reliable water source is unavailable. In these situations, the ability of a fire truck to draw water directly from natural sources such as lakes, rivers, ponds, or reservoirs becomes a major operational advantage.
CSCTRUCK Fire Rescue Truck is a manufacturer of specialized firefighting vehicles designed for different emergency scenarios, including water tanker fire trucks, airport fire trucks, rescue vehicles, and heavy-duty off-road firefighting platforms. Through its FireRescueTruck.com platform, CSCTRUCK Fire Rescue Truck provides customized fire apparatus solutions with various chassis options, including rugged 6×6 configurations designed for demanding environments.
A 6×6 fire truck, with 3 driven axles and enhanced mobility, is especially valuable in areas such as forests, mountains, mining sites, and remote industrial zones. One important question for many fire departments is whether these powerful vehicles can draft water directly from lakes or rivers. The answer is yes—provided the truck is equipped with the correct pump system, suction equipment, and operational setup.
Understanding Water Drafting in Firefighting
Water drafting is the process of using a fire pump to pull water from a static water source instead of receiving water from a pressurized hydrant system. Unlike a hydrant, which pushes water into the truck, a drafting operation requires the fire pump to create suction and lift water through a supply hose.
Common drafting sources include:
- Lakes
- Rivers
- Ponds
- Swimming pools
- Reservoirs
- Water tanks
- Portable water reservoirs
A properly configured 6×6 fire truck can perform drafting operations when positioned near these sources. This capability is especially important during wildland firefighting, where natural water sources may be the only available supply.
How a 6×6 Fire Truck Drafts Water from a Lake or River
The water drafting process generally involves several key components:
1. Positioning the Fire Truck
The truck must first be parked on stable ground close enough to the water source. A major advantage of a 6×6 chassis is its ability to reach difficult locations where conventional fire engines may struggle.
The 6-wheel-drive system improves:
- Traction on muddy surfaces
- Stability on uneven terrain
- Mobility on gravel roads
- Access to remote water sources
This makes 6×6 fire trucks particularly suitable for forest fires, rural emergencies, and off-road rescue operations.

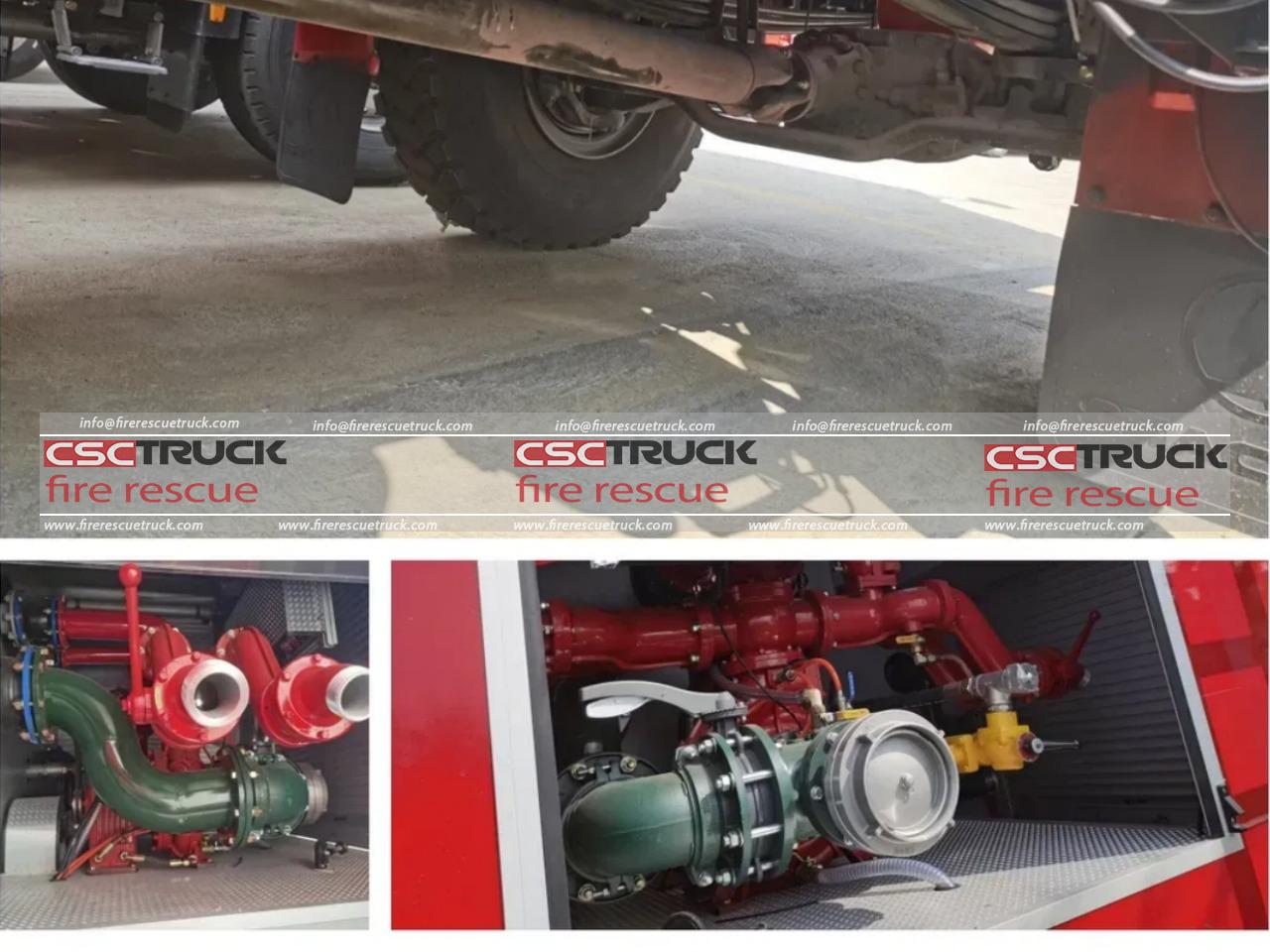

2. Connecting the Suction Hose
Firefighters connect a large-diameter suction hose from the pump inlet to the water source. Unlike normal firefighting hoses, suction hoses are designed with reinforced walls to prevent collapse under negative pressure.
A typical drafting setup includes:
- Hard suction hose
- Strainer
- Pump inlet connection
- Pump priming system
The strainer prevents debris, leaves, rocks, and other materials from entering the pump.
3. Activating the Pump and Creating a Vacuum
The fire pump creates a partial vacuum inside the suction hose. Atmospheric pressure then pushes water upward into the hose and pump.
Because the pump is lifting water rather than receiving it under pressure, drafting efficiency depends on several factors:
- The height difference between the truck and the water surface
- Hose length
- Hose diameter
- Water temperature
- Pump capacity
- Equipment condition
Most fire pumps can draft water several meters vertically, but shorter suction distances generally provide better performance.
Advantages of a 6×6 Fire Truck for Drafting Operations
1. Access to Remote Water Sources
The greatest advantage of a 6×6 fire truck is mobility. During emergencies, the closest water supply may not be located on paved roads.
Examples include:
- Forest firefighting operations
- Mountain rescue missions
- Agricultural fires
- Oil field emergencies
- Industrial facilities far from cities
A 6×6 vehicle can travel over rough terrain and establish a water supply point closer to the incident.
2. Large Water Pump Capability
Many heavy-duty 6×6 fire trucks are equipped with high-capacity pumps capable of moving significant volumes of water. Pump specifications vary by model, but firefighting pumps may provide thousands of liters per minute depending on configuration.
High-capacity pumping allows the vehicle to:
- Supply attack hoses
- Feed aerial systems
- Support multiple firefighting teams
- Refill other fire apparatus
CSCTRUCK Fire Rescue Truck offers various specialized firefighting vehicles that can be configured according to operational requirements, including pump capacity, tank size, and chassis selection.
3. Reduced Dependence on Hydrant Networks
Urban fire departments often depend on municipal water infrastructure. However, rural and wilderness environments may have limited hydrant coverage.
A drafting-capable 6×6 fire truck provides greater independence by allowing firefighters to use available natural water resources.
This capability is particularly useful in:
- Wildland firefighting
- Remote communities
- Disaster response
- Large-scale industrial incidents
Challenges When Drafting Water from Lakes or Rivers
Although drafting is highly useful, it requires careful planning and operation.
Water Quality Issues
Natural water sources may contain:
- Sand
- Mud
- Plant material
- Small rocks
- Floating debris
These materials can damage pumps or reduce efficiency. Proper strainers and filtration systems are necessary.
Water Level Changes
Rivers and lakes may experience changing water levels due to:
- Weather conditions
- Seasonal changes
- Drought
- Flooding
Fire crews must ensure the suction hose remains submerged throughout operations.
Access Problems
A water source may exist nearby but still be difficult to reach. Steep banks, soft soil, or unstable ground can prevent safe truck positioning.
This is where the off-road capability of a 6×6 fire truck becomes especially valuable.
Equipment Needed for Effective Drafting
A drafting-capable 6×6 fire truck usually requires:
Fire Pump
The pump must generate sufficient suction pressure and maintain a stable water flow.
Priming System
A primer removes air from the suction line, allowing water to enter the pump.
Hard Suction Hose
Flexible hoses are generally unsuitable because they may collapse under vacuum conditions.
Suction Strainer
A strainer protects the pump from debris.
Portable Water Equipment
Firefighters may also use portable tanks to create temporary water supply systems.
Can Every 6×6 Fire Truck Draft Water?
Not automatically. The 6×6 drivetrain only describes the vehicle’s wheel configuration and off-road capability. Drafting ability depends on the firefighting equipment installed on the truck.
A 6×6 fire truck intended for drafting operations should include:
- A suitable fire pump
- Pump inlet connections
- Priming equipment
- Appropriate suction hose fittings
- Water supply accessories
When ordering a customized vehicle, fire departments should specify their water supply requirements, including whether they need lake, river, or pond drafting capability.
Applications of Drafting-Capable 6×6 Fire Trucks
Wildland Firefighting
Forests and grasslands often lack hydrants. Fire crews depend on lakes, rivers, and portable water systems.
Airport Emergency Response
Large airports may use heavy-duty firefighting vehicles that require reliable water supply systems.
Industrial Fire Protection
Factories, chemical plants, and energy facilities may require independent firefighting resources.
Rural Fire Departments
Remote communities benefit greatly from trucks capable of using local water sources.
Conclusion
A 6×6 fire truck can draft water from lakes or rivers when equipped with the proper firefighting pump system and suction equipment. This capability transforms the vehicle from a simple water carrier into a highly versatile emergency response platform capable of operating in locations without traditional water infrastructure.
With its rugged drivetrain, high mobility, and customizable firefighting configurations, a 6×6 fire truck provides an effective solution for challenging environments such as forests, mountains, rural areas, and industrial sites. CSCTRUCK Fire Rescue Truck develops specialized fire vehicles designed to meet diverse operational needs, helping emergency organizations improve response capability in both urban and remote conditions.
For firefighting agencies that require reliable water access anywhere, a drafting-capable 6×6 fire truck can be one of the most valuable assets in a modern emergency fleet.
