Aircraft Rescue and Firefighting (ARFF) vehicles are specialized emergency trucks designed to protect passengers, aircraft, airport personnel, and infrastructure during aviation emergencies. Among the most widely used configurations is the water/foam ARFF vehicle, which combines a large water tank, foam concentrate system, high-capacity pump, and firefighting monitors in a high-speed, highly maneuverable chassis.
Unlike conventional municipal fire trucks, ARFF vehicles must reach aircraft incidents rapidly and operate in environments where aviation fuel fires can develop extremely quickly. Water/foam systems therefore form the core of many airport firefighting operations.
According to the U.S. Federal Aviation Administration (FAA), certificated Part 139 airports must provide ARFF services during applicable air carrier operations, with specific requirements covering vehicles, firefighting agents, training, and operational readiness.
What Is a Water/Foam ARFF Vehicle?
A Water/Foam ARFF vehicle is an airport firefighting truck equipped primarily with two extinguishing resources:
Water
Foam concentrate
The vehicle stores water and foam separately and uses a proportioning system to mix them at a controlled ratio. The resulting foam solution can then be discharged through roof-mounted or bumper-mounted monitors, handlines, or other outlets.
The purpose of the foam is particularly important for aircraft fuel fires. Foam can spread across a burning liquid-fuel surface, helping suppress flames and reduce the release of fuel vapors. Water, meanwhile, provides cooling and can support other firefighting operations.
Modern ARFF vehicles may also carry complementary agents such as dry chemical powder, depending on airport requirements and vehicle configuration.
Why Water and Foam Are Used Together
Aircraft firefighting presents different challenges from ordinary structural fires.
Jet fuel and aviation gasoline can produce intense fires over relatively large areas. Simply applying water to a burning fuel surface may not provide the same fire-control mechanism as a properly selected foam system.
A water/foam ARFF vehicle addresses these requirements by combining:
Water → cooling and foam solution production
Foam concentrate → creation of a firefighting blanket
Pump → high-volume delivery
Monitor → rapid application from a protected position
This integrated system allows firefighters to attack a fire while maintaining a safe operating distance from the aircraft.
Airport authorities must select extinguishing agents according to their applicable regulations and airport category. For example, ICAO requirements link quantities of water and complementary agents to the aerodrome category and the required level of protection.
Main Components of a Water/Foam ARFF Vehicle
1. Water Tank
The water tank is normally the largest firefighting-agent tank on an ARFF vehicle.
Its capacity depends on the airport’s required level of protection, vehicle size, aircraft types served, and local regulations. Large 6×6 and 8×8 ARFF vehicles can carry many thousands of liters of water.
For example, CSCTRUCK Fire Rescue Truck offers ARFF configurations with large water and foam capacities. One of its listed 6×6 ARFF vehicles has a 13,500-liter water tank, 1,700-liter foam tank, and 250 kg dry-powder system.
The tank should be designed to withstand vehicle movement, vibration, corrosion, and repeated filling and discharge cycles.
2. Foam Tank
The foam tank stores concentrated firefighting foam separately from the water supply.
A foam proportioning system introduces the required amount of concentrate into the water stream. Correct proportioning is essential because excessive or insufficient foam concentrate can affect system performance.
Airport operators should also verify foam compatibility. For example, Canadian airport standards specify that different foam concentrates should not be mixed unless their compatibility has been established.
Foam selection is also evolving. The FAA is currently addressing testing and transition issues involving fluorine-free foam (F3) at certificated Part 139 airports.
3. Fire Pump
The pump is responsible for moving water and foam solution from the tanks to the firefighting outlets.
A high-performance ARFF pump needs to provide sufficient flow and pressure for the vehicle’s monitors and other discharge systems.
For example, a CSCTRUCK Fire Rescue Truckelectric 6×6 airport firefighter truck is specified with a 100 L/s fire-pump flow rate at 10 bar, demonstrating the high-volume delivery capability possible on modern ARFF platforms.
4. Roof and Front Monitors
Monitors allow firefighters to apply large quantities of water or foam without immediately leaving the cab.
A typical ARFF configuration may include:
Roof-mounted foam/water monitor
Front bumper monitor
Remote-controlled monitor
Adjustable spray or jet patterns
Long-range discharge capability
Some airport vehicles use multiple monitors so crews can attack fires from different directions.
U.S. regulations, for example, specify turret discharge-capacity requirements for certain ARFF vehicle configurations based on water-tank capacity.
5. High-Speed Chassis
An ARFF vehicle is not simply a large water tank with a pump. It must also reach the incident quickly.
Airport firefighting trucks commonly use powerful engines, automatic transmissions, heavy-duty suspension, and 4×4, 6×6, or 8×8 drivetrains.
All-wheel drive can be particularly valuable because airport emergency routes may include grass, gravel, uneven ground, shoulders, or other surfaces away from paved runways.
6. Rescue and Safety Equipment
Water/foam suppression is only one part of ARFF operations.
Modern vehicles may also carry:
Rescue tools
Breathing apparatus
Thermal imaging equipment
Portable extinguishers
Emergency lighting
Communications equipment
Hose reels
Ladders
Personal protective equipment
Some specialized ARFF vehicles can also incorporate high-reach systems for accessing aircraft fuselages.
How Does a Water/Foam ARFF Vehicle Work?
The firefighting process generally follows several stages.
Step 1: Rapid response
When an aircraft emergency occurs, the ARFF crew rapidly drives toward the incident area.
Step 2: Vehicle positioning
The driver positions the truck where firefighters can attack the fire while maintaining appropriate operational safety.
Step 3: Agent selection
The crew selects water, foam solution, dry chemical, or another approved agent depending on the incident and vehicle configuration.
Step 4: Foam production
Water is pumped from the water tank while foam concentrate is introduced through the proportioning system.
Step 5: Monitor discharge
The foam solution is discharged through the roof or bumper monitor toward the affected area.
Step 6: Fire control and cooling
Foam is used for fire suppression while water can provide cooling and support further emergency operations.
The exact procedure depends on airport emergency plans, crew training, vehicle design, aircraft type, and applicable regulations.
Water/Foam ARFF vs. Conventional Fire Truck
A conventional municipal fire engine is generally designed for urban incidents such as building fires, vehicle fires, and rescue calls. A water/foam ARFF vehicle is specifically engineered around the airport environment.
Feature
Water/Foam ARFF Vehicle
Conventional Fire Truck
Primary environment
Airport/airfield
Urban/community
Main hazards
Aircraft and aviation fuel
Buildings, vehicles, general fires
Water capacity
Usually high
Varies
Foam system
Core firefighting system
Optional/common depending on unit
Acceleration
High-performance
Application dependent
Drivetrain
Often 4×4/6×6/8×8
Commonly 4×2/6×4
Fire monitors
Major component
May be optional
Off-road capability
Important
Depends on vehicle
Airport compliance
Specifically designed
Usually not
The fundamental difference is therefore not simply tank size. ARFF vehicles are engineered around rapid airport response, aircraft fire suppression, high-volume agent delivery, and specialized rescue operations.
How to Choose a Water/Foam ARFF Vehicle
Airport operators should evaluate several factors before purchasing an ARFF vehicle.
1. Airport Category and Regulations
Start with the required level of protection and applicable aviation regulations. FAA, ICAO, national aviation authorities, and other standards may establish different requirements.
2. Aircraft Types
Consider the largest and most frequently operated aircraft. Larger aircraft can require greater firefighting capacity and longer discharge reach.
3. Water and Foam Capacity
Select tank capacities according to regulatory requirements and operational needs rather than simply choosing the largest available vehicle.
4. Pump and Monitor Performance
Check:
Pump flow rate
Working pressure
Monitor flow rate
Discharge range
Control method
Simultaneous monitor operation
5. Chassis and Mobility
For airports with large airfields or challenging terrain, 6×6 or 8×8 configurations can provide additional traction and stability.
6. Maintenance and After-Sales Support
ARFF vehicles are mission-critical equipment. Parts availability, technical support, operator training, system testing, and maintenance services should therefore be considered during procurement.
CSCTRUCK Fire Rescue Truck Water/Foam ARFF Vehicle Solutions
CSCTRUCK Fire Rescue Truck specializes in special-purpose firefighting and emergency vehicles for demanding applications. Its ARFF range includes different chassis configurations, water/foam capacities, firefighting systems, and airport-specific equipment.
CSCTRUCK Fire Rescue Truck‘s listed products include Mercedes-Benz 6×6 airport fire apparatus, 6×6 ARFF trucks, hybrid airport firefighting vehicles, and other specialized airport fire trucks.

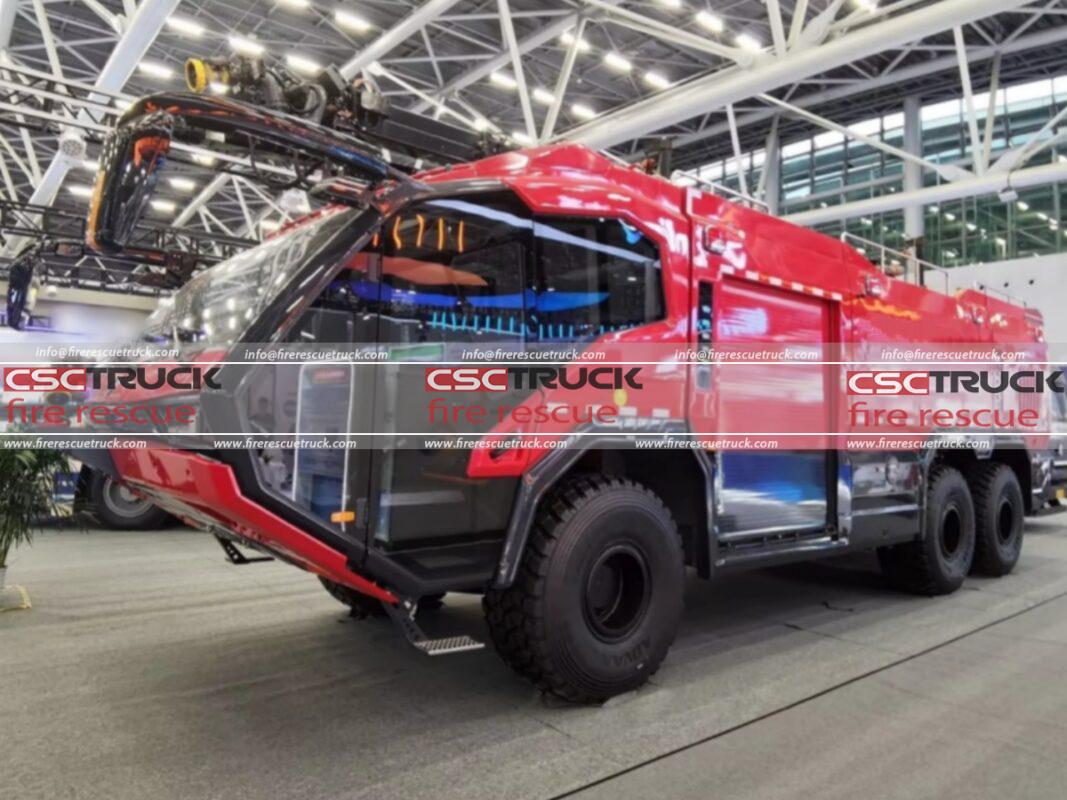

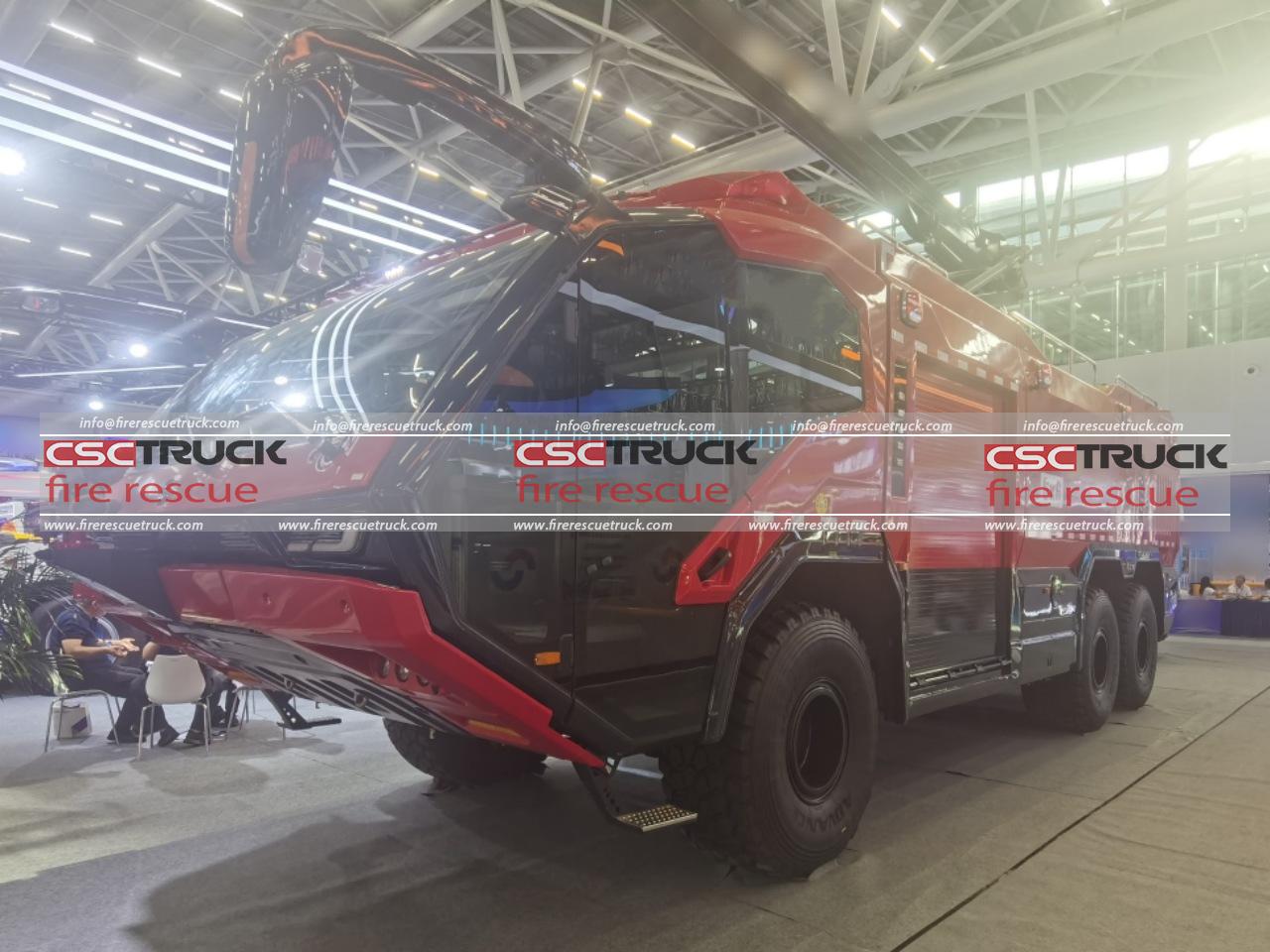

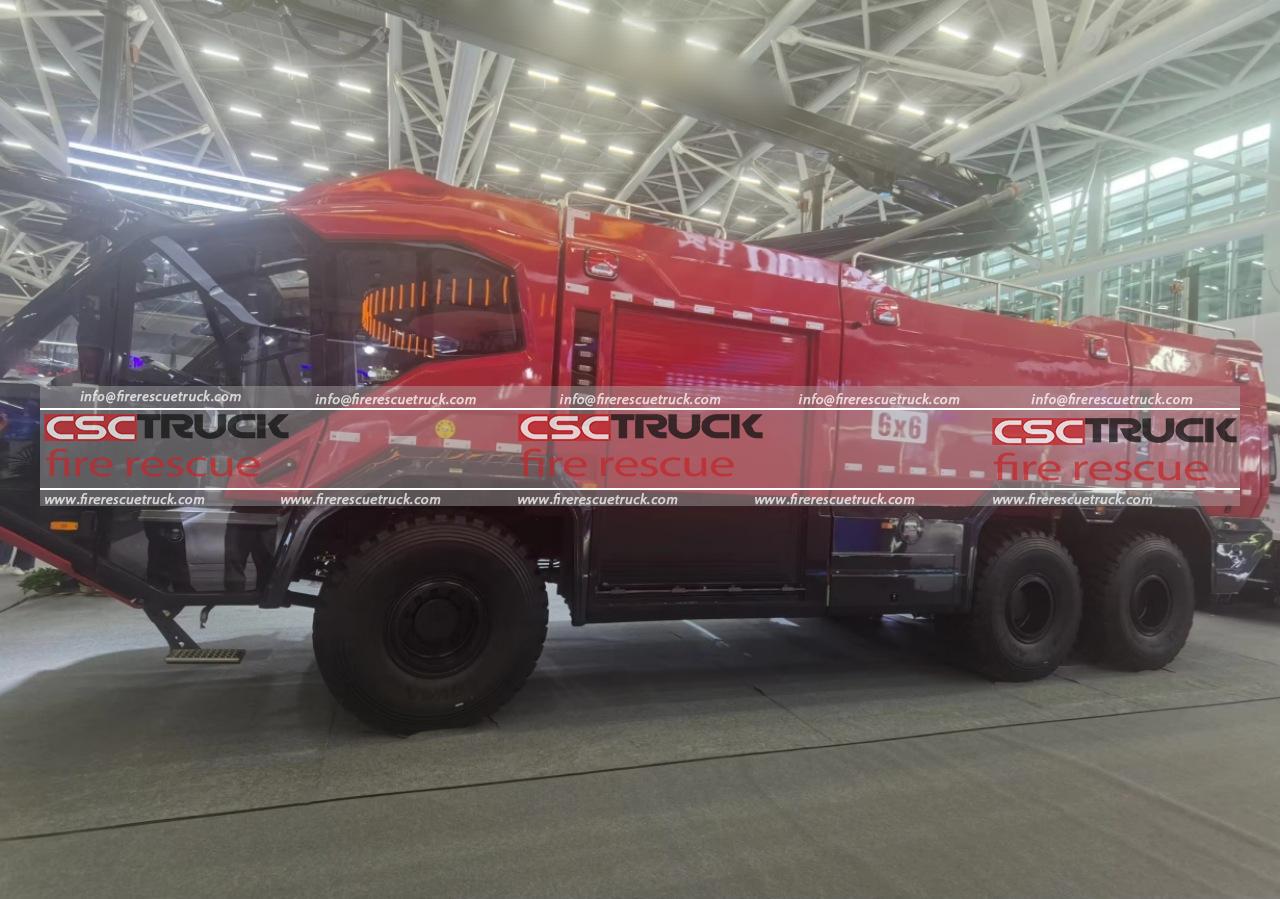

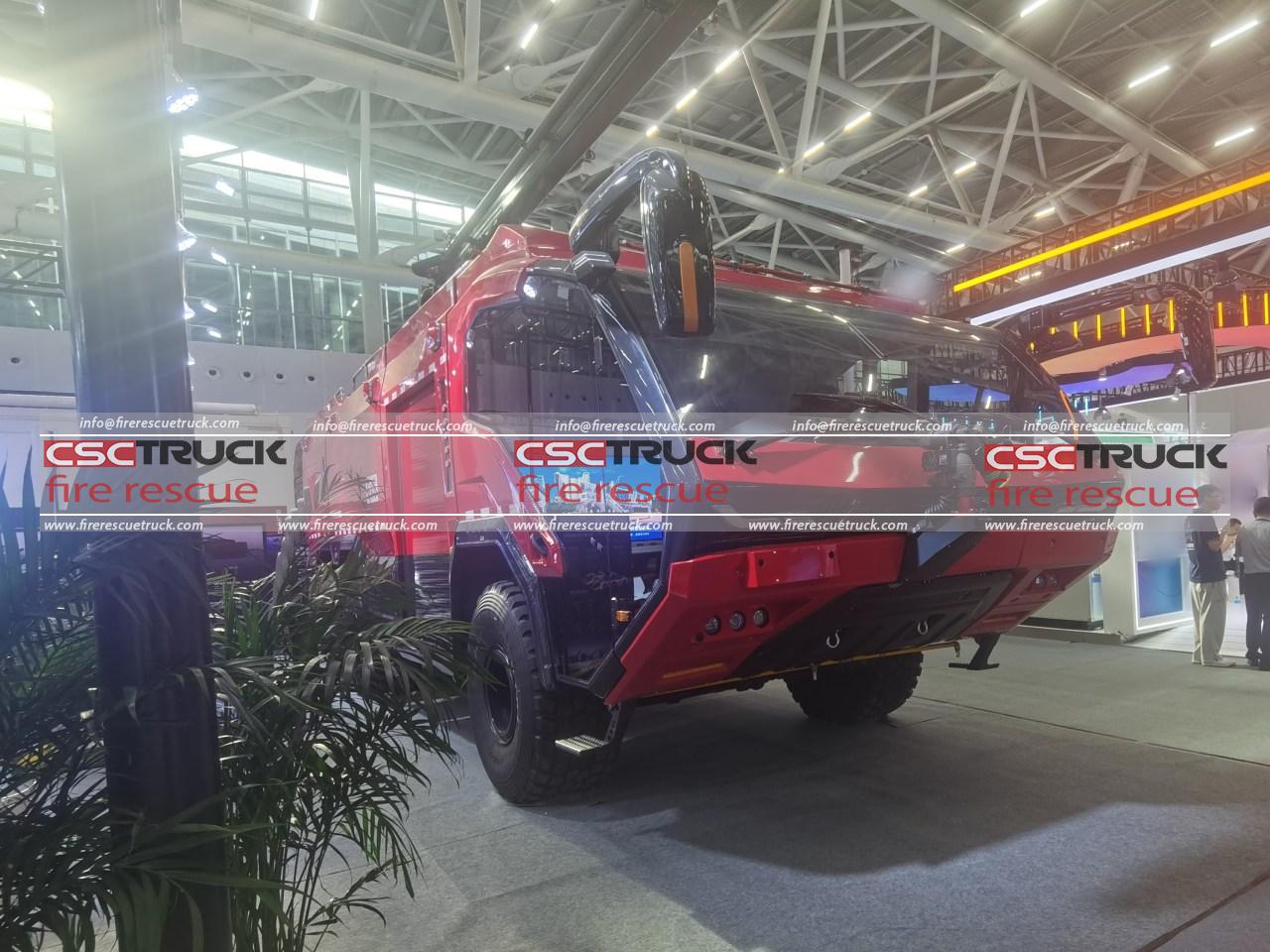

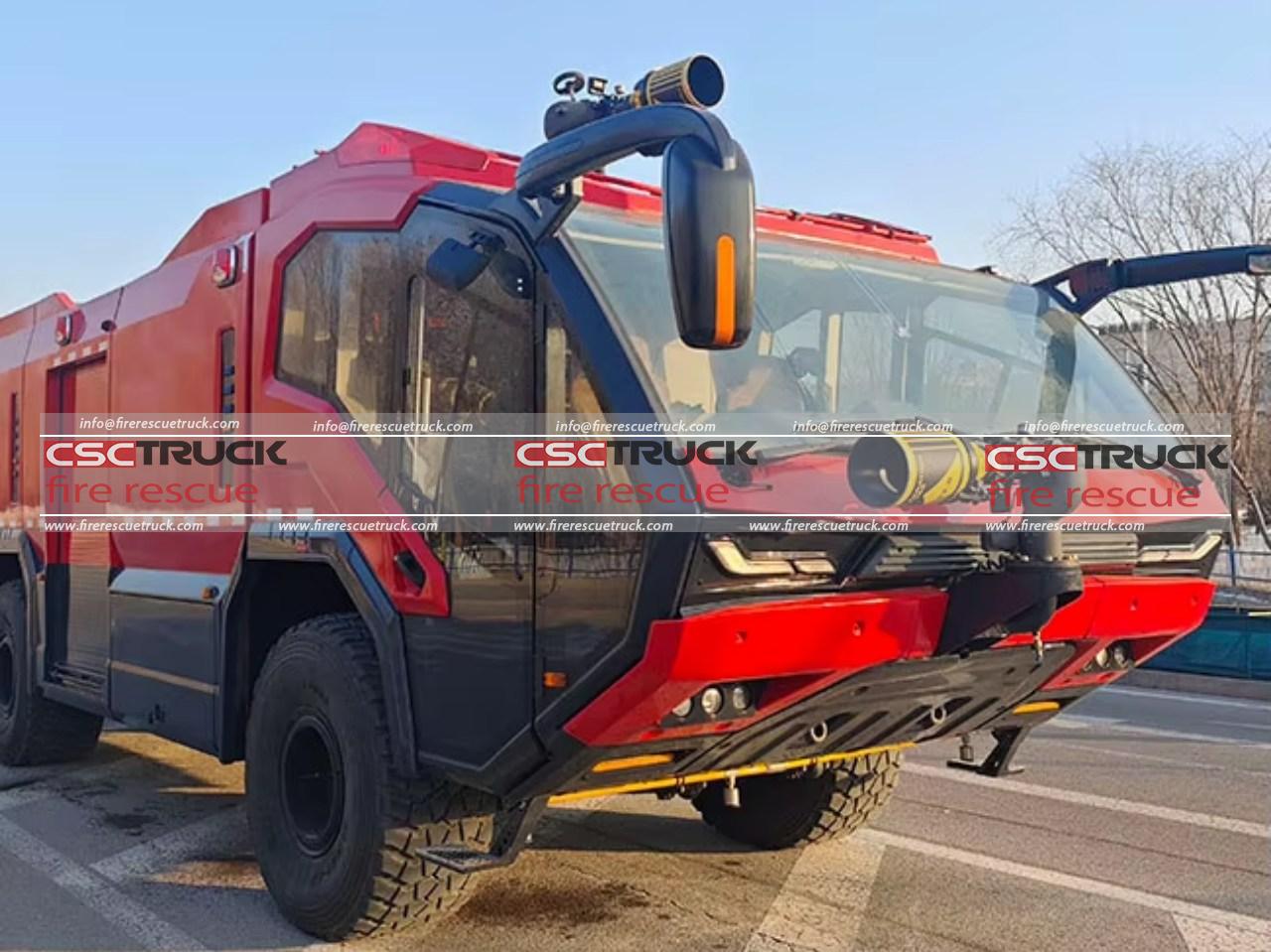

For example, the company’s Ziegler 6×6 airport firefighting truck combines a large water tank, foam tank, dry-powder system, high-output engine, and high-speed chassis for airport emergency response.
For airport operators, government procurement projects, fire departments, and international distributors, the CSCTRUCK Fire Rescue Truck can provide customized configurations based on required water capacity, foam capacity, chassis, firefighting equipment, and local operating requirements.
Conclusion
A Water/Foam ARFF Vehicle is one of the most important specialized vehicles in airport emergency response. Its combination of high-speed mobility, large water and foam capacity, powerful pumps, firefighting monitors, and specialized airport equipment enables crews to respond rapidly to aircraft fires and other airfield emergencies.
When selecting an ARFF vehicle, buyers should look beyond tank capacity. Airport category, aircraft size, foam requirements, pump performance, monitor range, chassis configuration, regulatory compliance, maintenance, and after-sales support all deserve careful consideration.
For airports seeking a customized water/foam ARFF truck, CSCTRUCK Fire Rescue Truck provides multiple configurations ranging from 6×6 airport fire apparatus to high-capacity ARFF vehicles, helping customers develop firefighting solutions suited to their specific airport and operational requirements.
